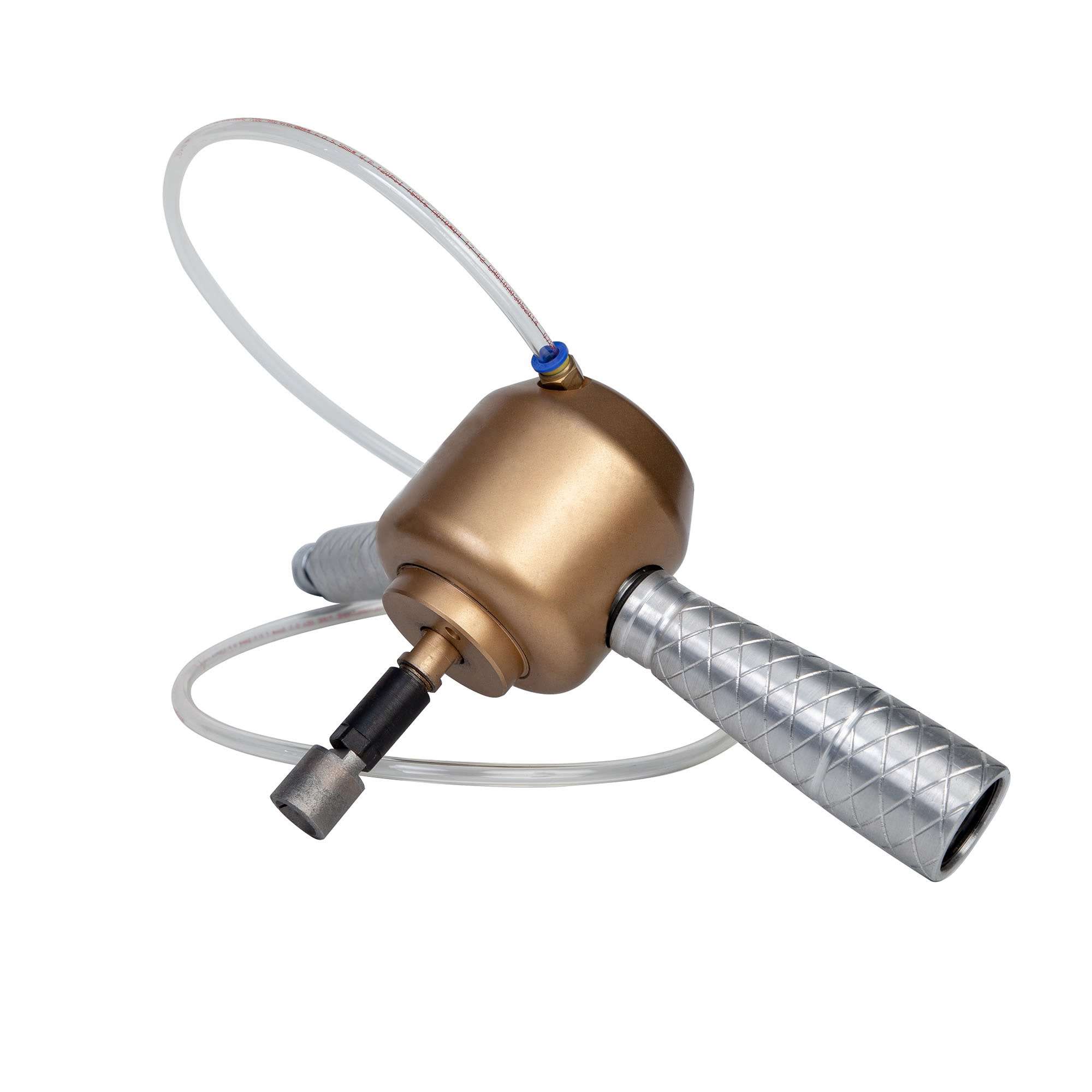

G200 Hand-held pneumatic grinder
- Air pressure: 5-7 bar (72-100 psi)
- Air consumption, max: 35 L/S, 2 m3/min
- Rate power: 1.8 kw
- Idling speed: 22,000 r.p.m
- Water flushing pressure, max: 4 bar (60 psi)
- Hose diameter, air: 19 mm (1/2’’)
- Hose diameter, water: 6 mm (1/4’’)
- Weight, excel. Hoses: 3.2 kg
- Sound level: 90 dB

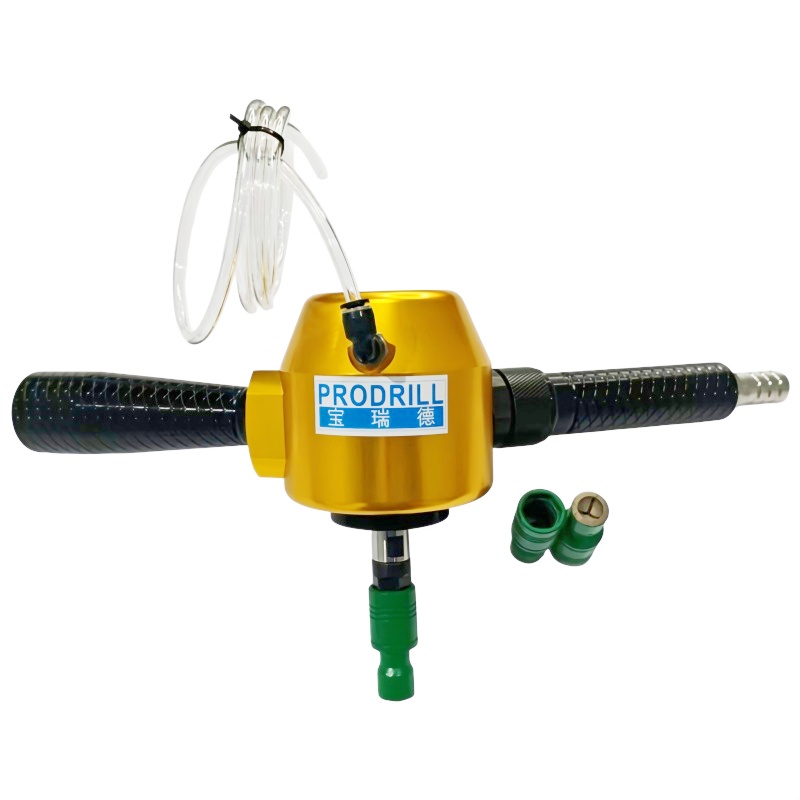

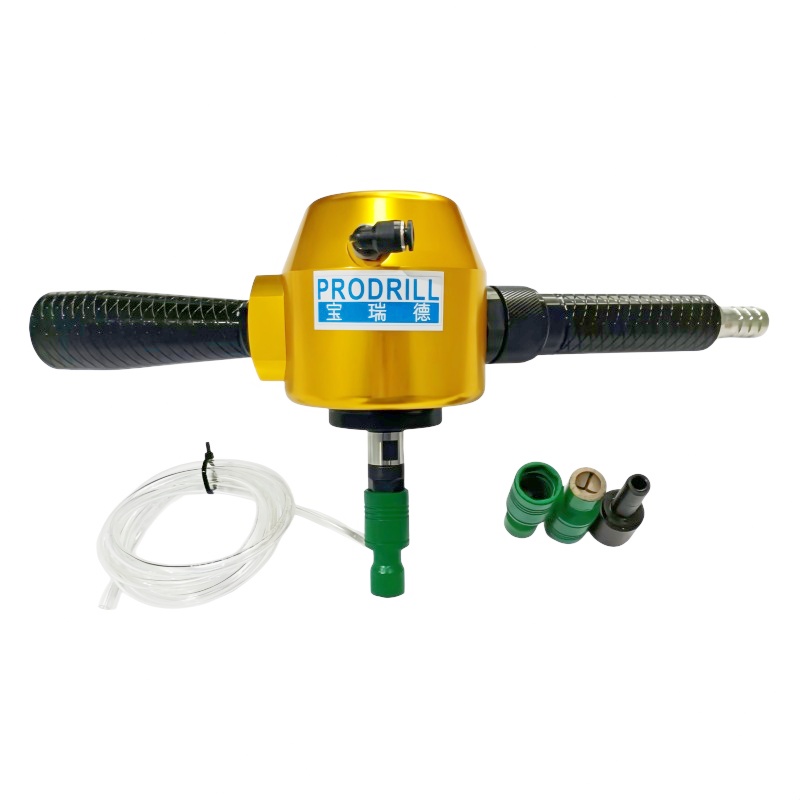

G200 Hand Held Bit Sharpener a complete manual grinding system consisting of pneumatic grinding machine with a specially designed Chuck, Quick Snap, and matching diamond grinding cup (grinding cap) is ideal for small-schale field operations.

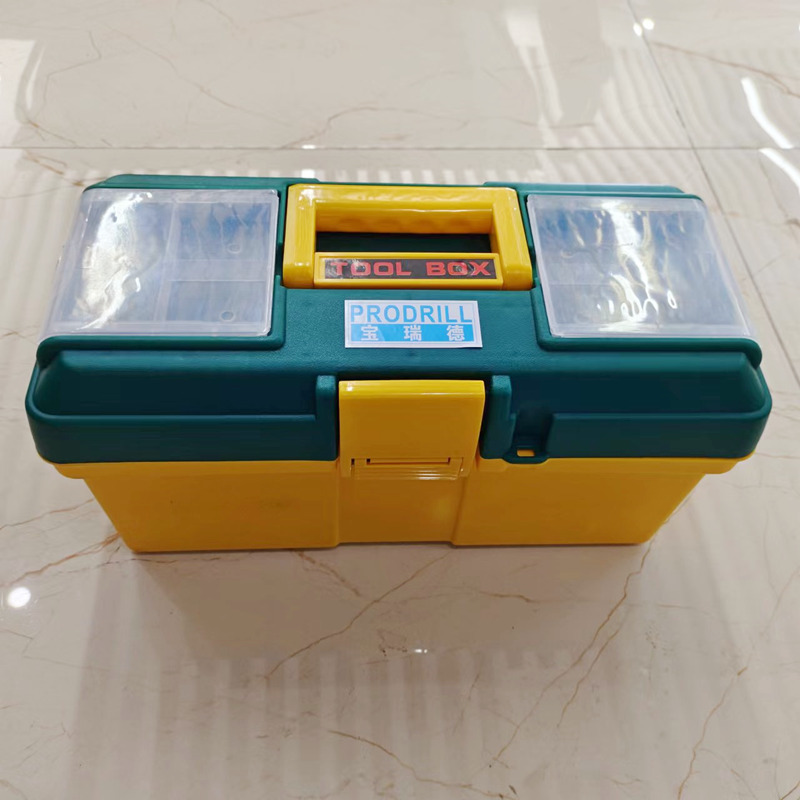

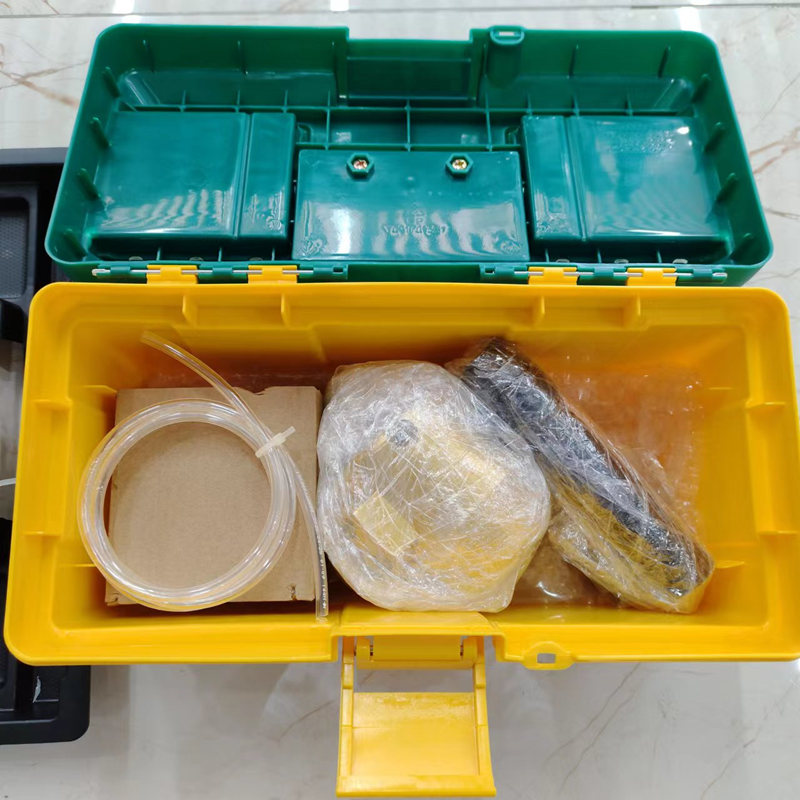

This powerful pneumatic button bit grinder is well-known for its easy of maintenance with corrosion free spare parts, sealed bearing, drop in cartridge air motor, light weight trigger action, quick change chucks for different diamond grinding cups , giving a fast and efficient re-grinding machine, its package box is very strong and good-looking.

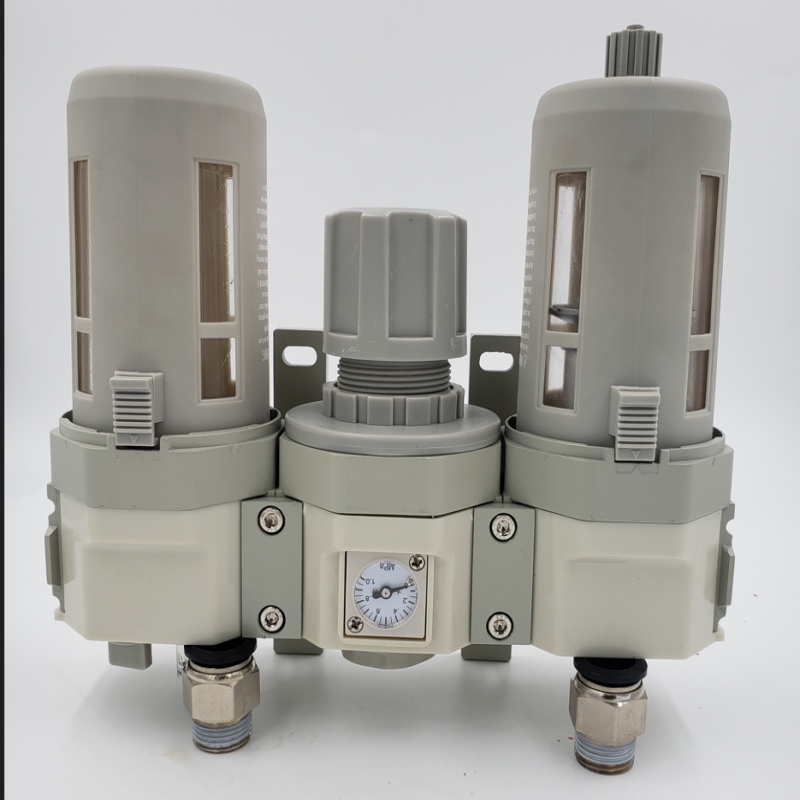

Lubricator for G200 , for pressure regulation, lubrication, and filtration .
G200 Hand Held Button Bit Grinder Technical Specification
|
Air pressure |
5-7 bar (72-100 psi) |
|
Air consumption, max |
35 L/S, 2 m3/min |
|
Rate power |
1.8 kw |
|
Idling speed |
22,000 r.p.m |
|
Water flushing pressure, max |
4 bar (60 psi) |
|
Hose diameter, air |
19 mm (1/2’’) |
|
Hose diameter, water |
6 mm (1/4’’) |
|
Weight, excel. Hoses |
3.2 kg |
|
Sound level |
90 dB |

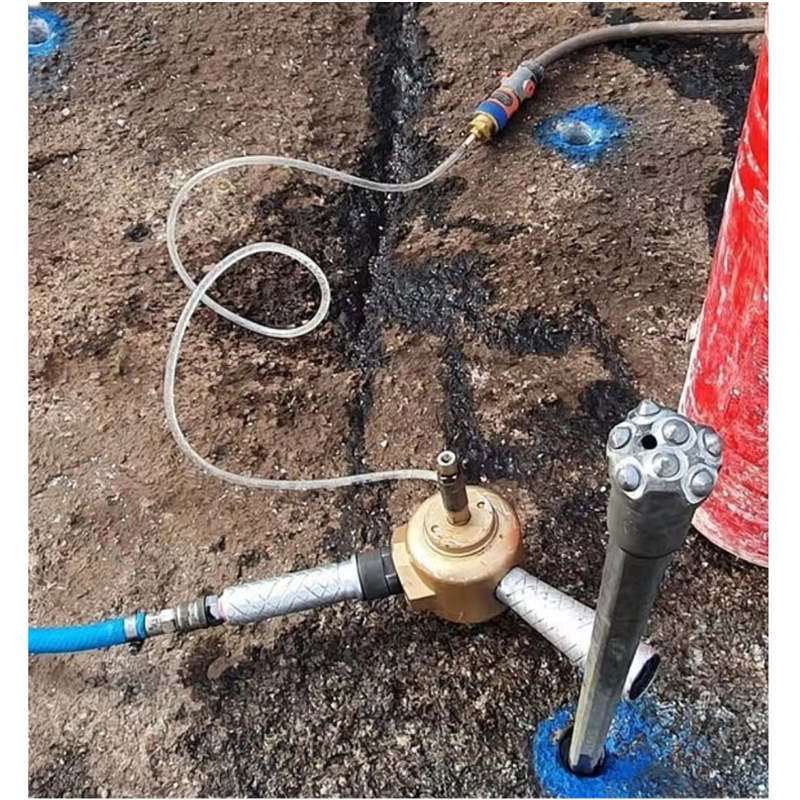

Rock drilling tools manufacturer ProDrill: G200 Hand-Held Air Grinder is powered by air pressure from air compressor to make a job of re-grinding tapered button bits, threaded button bits and DTH button bits.

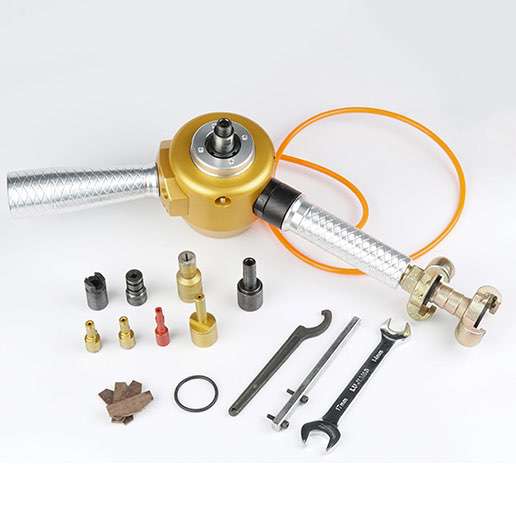

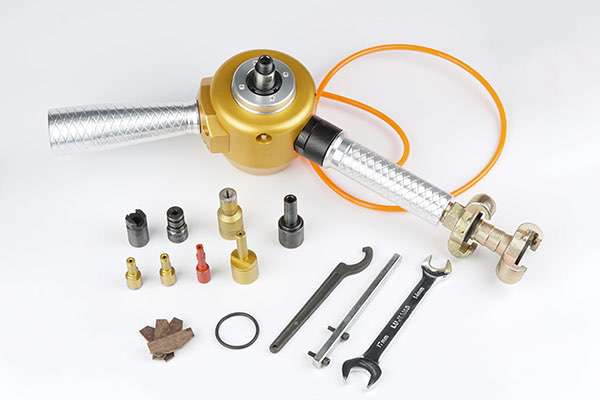

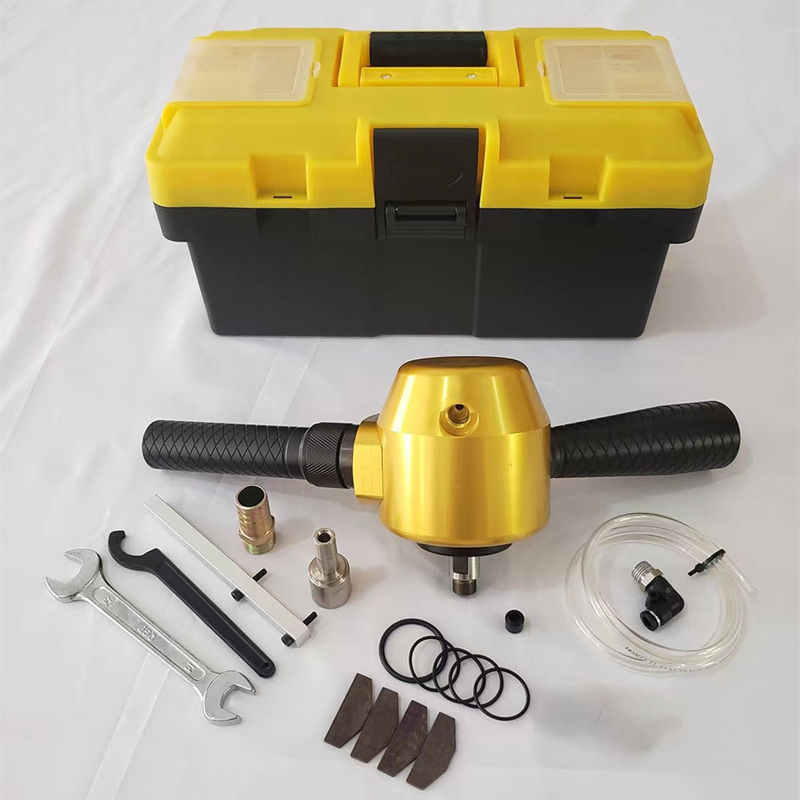

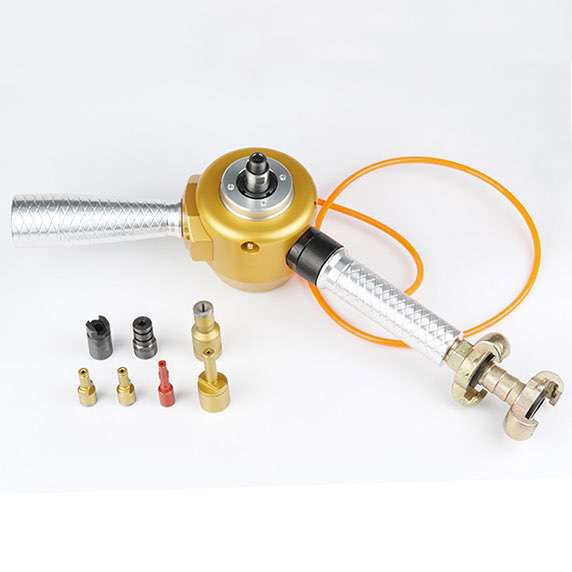

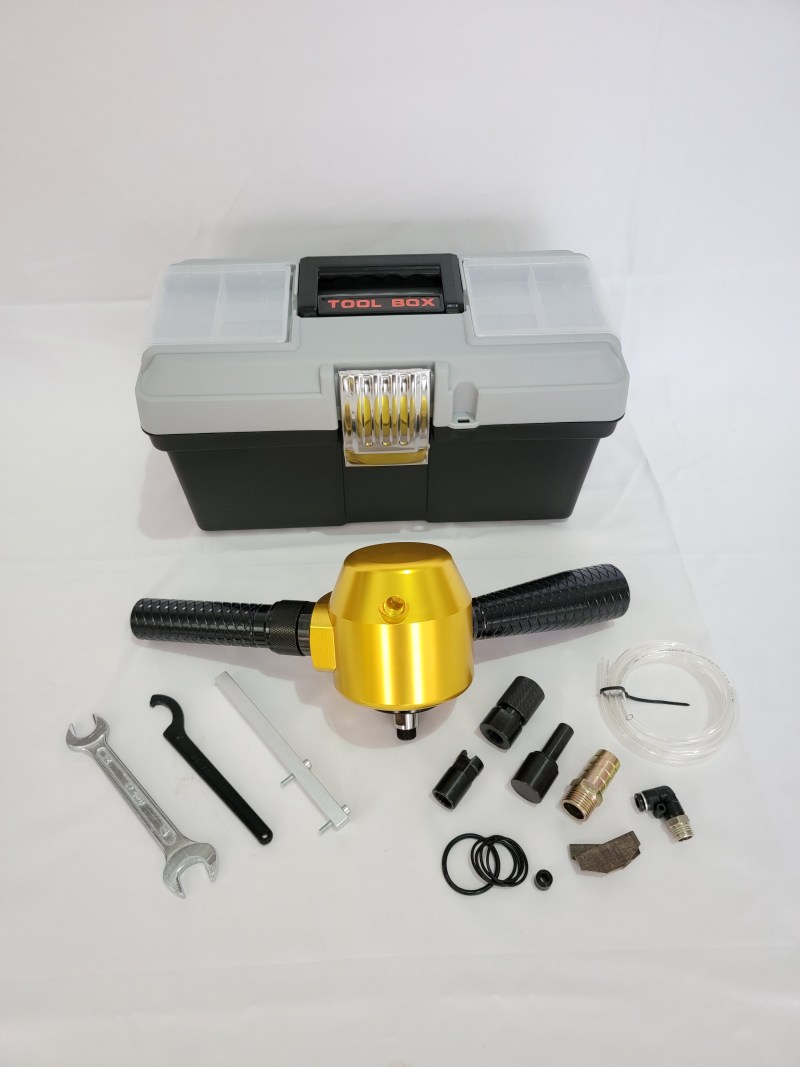

Button Bit Grinder with Chucks, Grinding Cups and assemble tools:
Keywords : pneumatic grinding machine, drill bit sharpener, Pneumatic button bits grinder
DTH bit sharpening machine
For more details please watch PDF online: Button Bit Grinding Equipment
