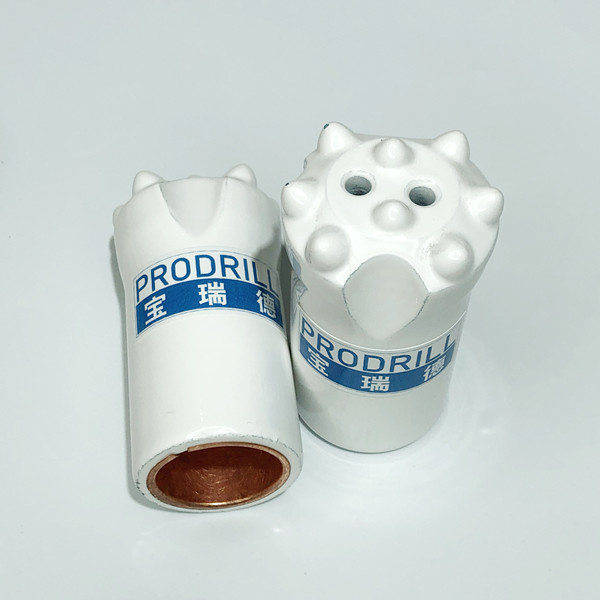

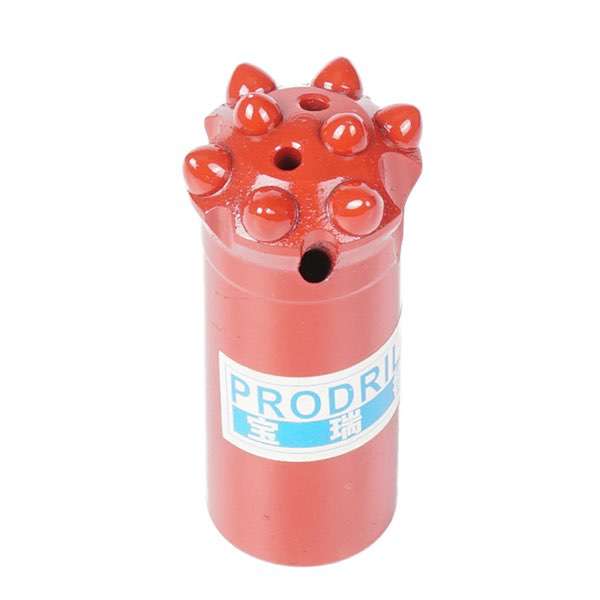

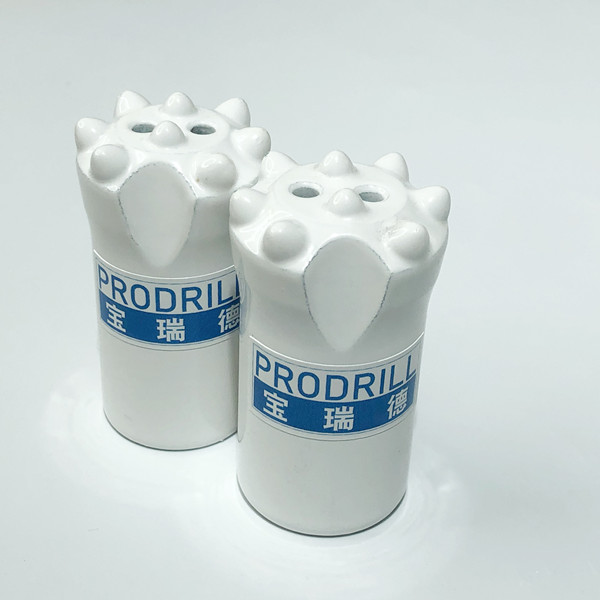

Q8-34-722-80 Tapered Button Bit

  • Code No.: Q8-34-722-80
  • Diameter: 34mm
  • Length: 80mm
  • Carbide Dimension: 0710×8
  • Carbide Design of Tapered Buttons: Parabolic(Semi-Ballistic)

Q8-34-722-80 Tapered Button Bit

Q8-34-722-80 Tapered Button Bit

Product details

Rock drilling tools manufacturer ProDrill offers small hole rock drill bits Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammer driller in stone quarrying, and mining.

Tapered button bit



Tapered Bits Description:
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter: 32mm,34mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)Material: Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.

(5)Button Shape: Semi-Ballistic; Face Type: Flat Face; Bit Body: Standard

(6)Qty of button: 5,7, 8 pcs

(7)main market: India, Saudi Arabia, Chile, South Africa, stone countries consume very much





PDFFor more details please watch PDF online: Tapered Buttons Bits for Small Hole Drilling Catalogue
