TY24C Hand Held Rock Drills for quarrying & demolition

Product details

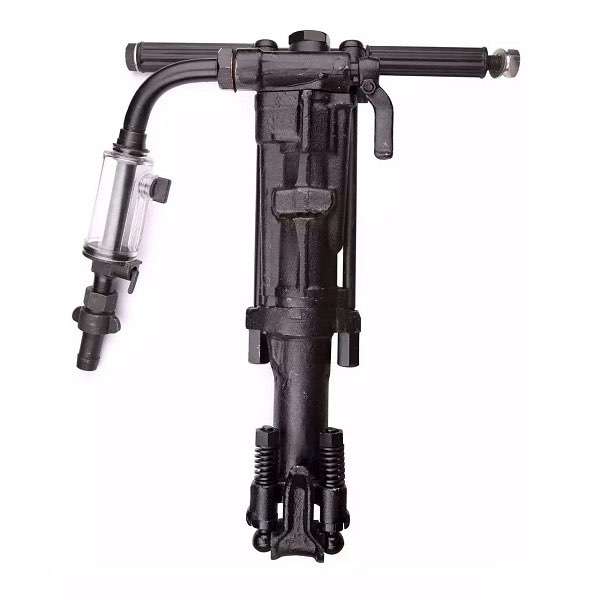

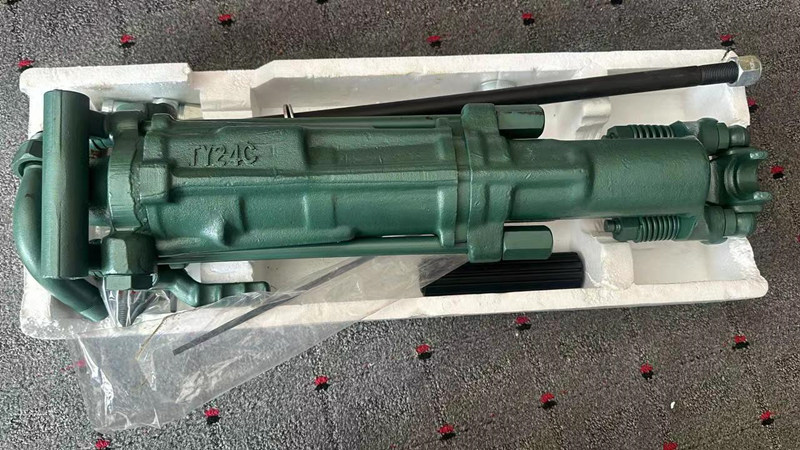

TY24C Toyo hand held pneumatic rock drills

Rock drilling tools manufacturer ProDrill: TY 24C toyo pneumatic rock drills (jack hammer hand drill) are light and small types designed on the basis of less recoil in safety.

They are suitable to the secondary rock breaking, and bedrock drilling blast hole for demolition rock and dimension stone quarrying.

TY24C Hand Held Rock Drills for quarrying & demolition

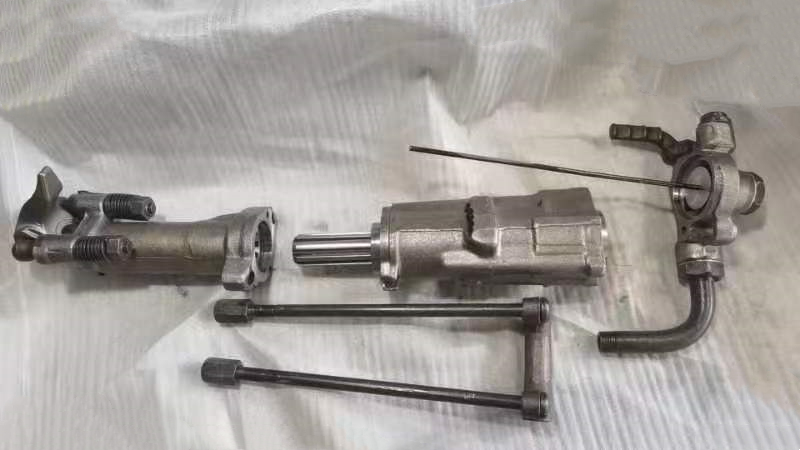

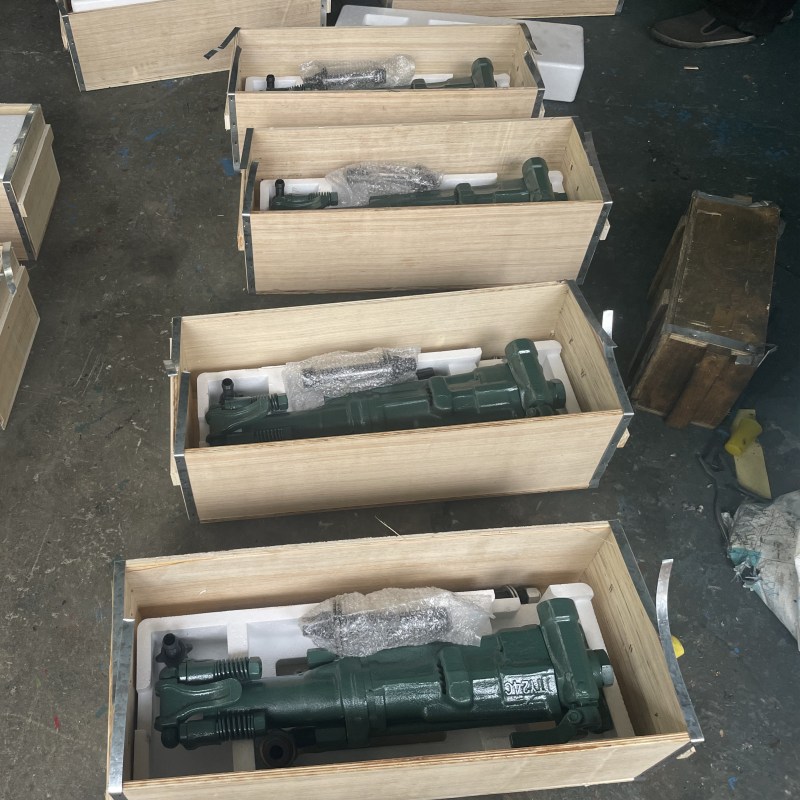

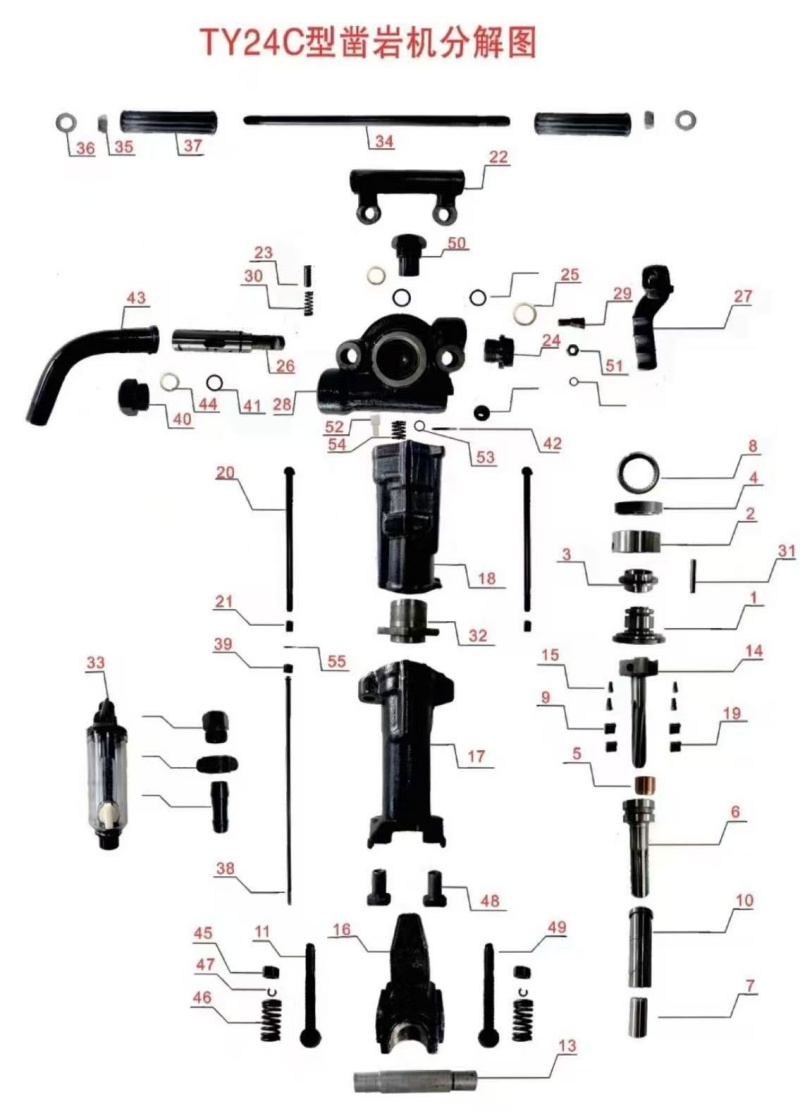

TY24C assembly main parts for export

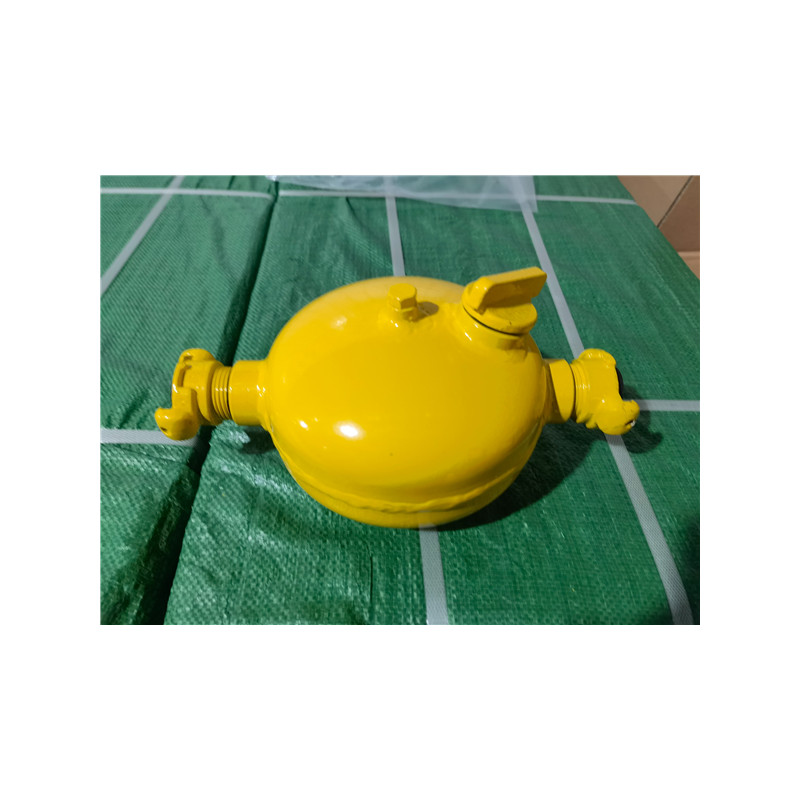

Oil feeder

Pawl ratchet

TY24Cyingyong

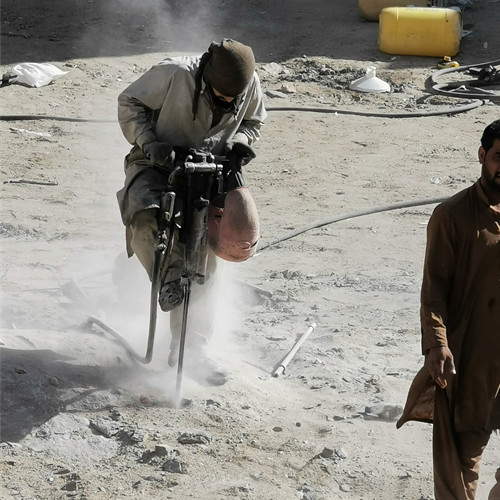

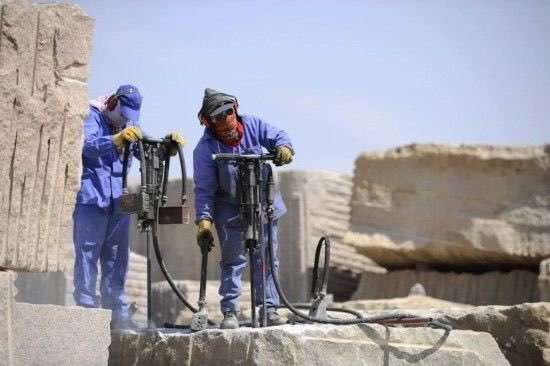

TY24C Hand Held Rock Drills for drilling granite blocks

QQjietu20160914120028

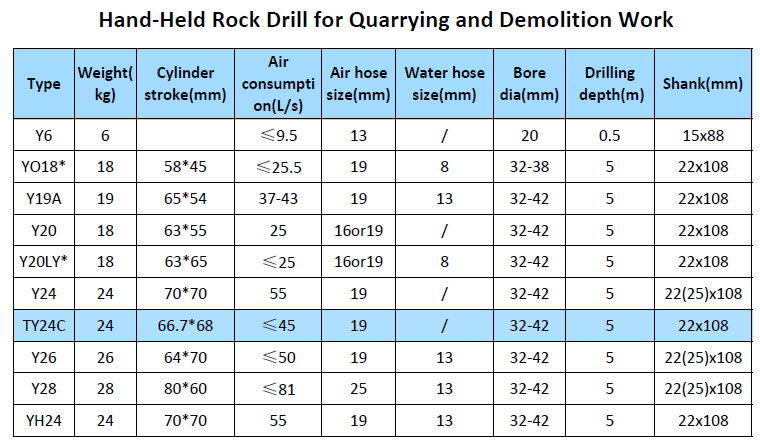

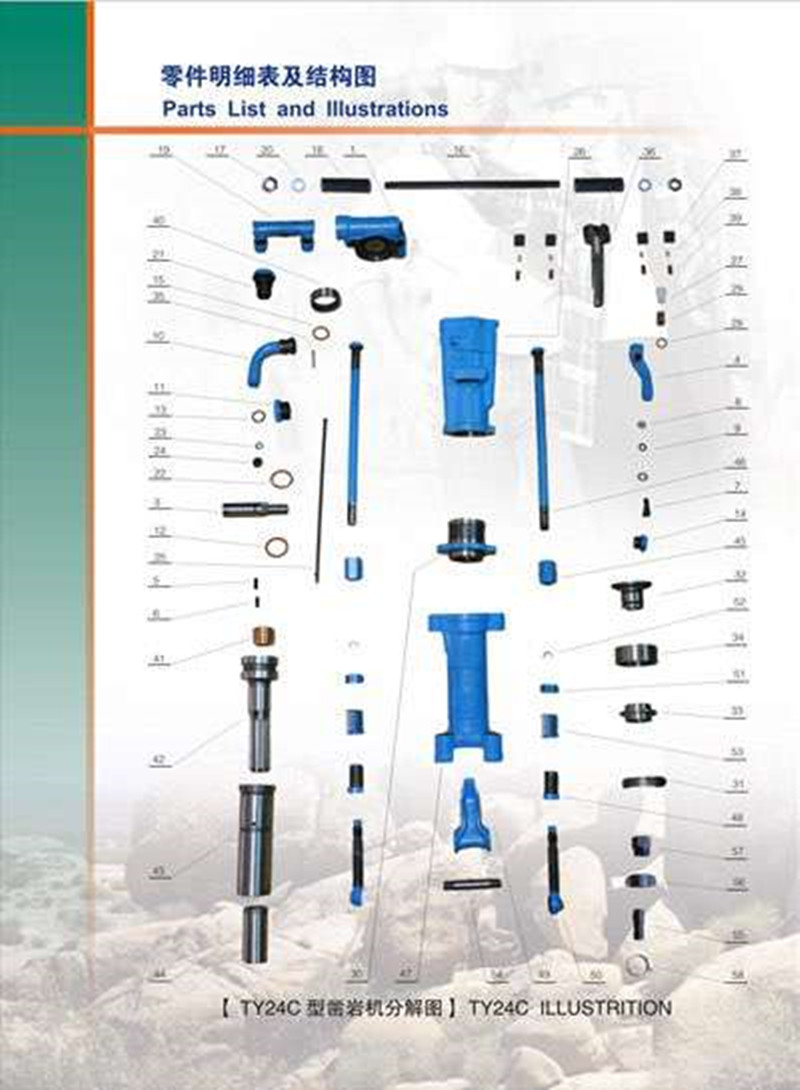

Code	Part No	Name	名称	Code	Part No	Name	名称
	TY24C	Rock drill	凿岩机	30	TY24C-30	Guide sleeve	导向套
1	TY24C-01	Back head	柄体	31	TY24C-31	Cover-valve chest	阀盖
2	TY24C-02	Grip chip	柄体芯片（省略）	32	TY24C-32	Valve sleeve	阀套
3	TY24C-03	Control valve	操纵阀	33	TY24C-33	Valve	阀
4	TY24C-04	Control handle	操纵手柄	34	TY24C-34	Valve chest	阀柜
5	TY24C-05	Pin	档位销	35	TY24C-35	Setting pin	定位销
6	TY24C-06	Gear spring	档位弹簧	36	TY24C-36	Rifle bar	螺旋棒
7	TY24C-07	Bolt-Throttle valve	紧固销	37	TY24C-37	Pawl ratchet	棘轮爪
8	TY24C-08	M10Nut-hex	M10螺母	38	TY24C-38	Plunger pawl	棘轮顶头
9	TY24C-09	M10Washer spring	M10垫片	39	TY24C-39	Spring-pawl	棘轮弹簧
10	TY24C-10	Air connection tube	气弯管	40	TY24C-40	Ratchet rotation	内棘轮
11	TY24C-11	Hose connector	气弯管接头	41	TY24C-41	Rifle nut	螺旋母
12	TY24C-12	Gasket-hose gland	气管接头垫片	42	TY24C-42	Pistion	活塞
13	TY24C-13	O-ring30*3.1	O型圈30*3.1	43	TY24C-43	Rotational sleeve	转动套
14	TY24C-14	Water pipe plug	水管螺堵	44	TY24C-44	Bushing sleeve	钎套
15	TY24C-15	Plug gasket	螺堵垫片	45	TY24C-45	Nut-cap	长杆螺母
16	TY24C-16	Bolt handle	手把长杆	46	TY24C-46	Bolt through	长螺杆
17	TY24C-17	M20Nut-hex	M20螺母	47	TY24C-47	Front head	机头
18	TY24C-18	Grip-handle	包铁胶把	48	TY24C-48	Bushing-front head	弹性套
19	TY24C-19	Handle	把手	49	TY24C-49	Yoke	钎卡
20	TY24C-20	M20Washer spring	M20垫片	50	TY24C-50	Bolt-steel holder	钎卡螺栓
21	TY24C-21	Air pipe plug	气针螺堵	51	TY24C-51	Nut-steel holder	钎卡螺母
22	TY24C-22	Gasket tube gland	气针螺堵垫片	52	TY24C-52	Clamp-steel holder	钎卡栓卡环
23	TY24C-23	Air tube pad	气针垫片	53	TY24C-53	Spring-steel holder	钎卡弹簧
24	TY24C-24	Air tupe rubber pad	气针胶垫	54	TY24C-54	Pin-steel holder	钎卡转轴
25	TY24C-25	Tube blower	气针	55	TY24C-55	Conical pipe connector	锥形胶管接头
26	TY24C-26	Cylinder	气缸	56	TY24C-56	Wing nut	蝶形螺母
27	TY24C-27	Connection-slow air	强吹密封套	57	TY24C-57	Pipe connector	管接套
28	TY24C-28	O-ring20*2.2	O型圈20*2.2	58	TY24C-58	Hoop	喉箍
29	TY24C-29	Spring-blow air connection	密封套弹簧	59		Oil reservior	注油器

For more details please watch PDF online:TY24C
