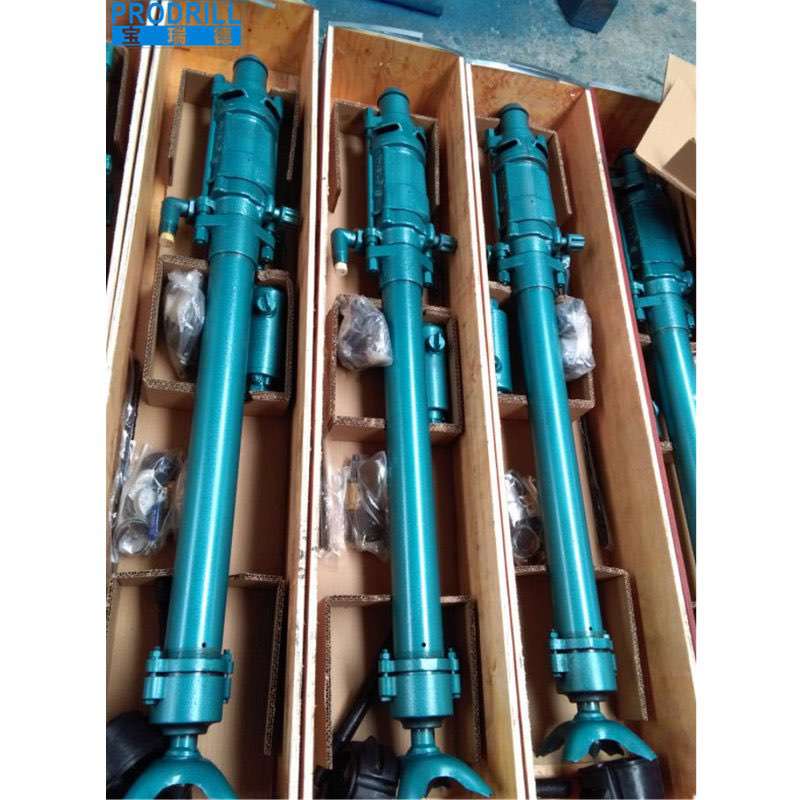

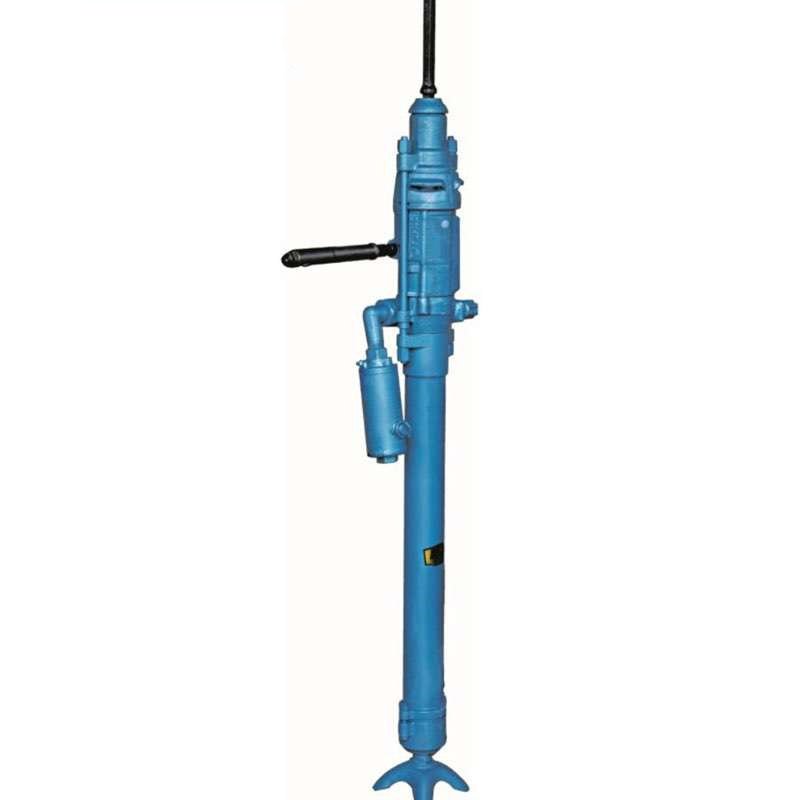

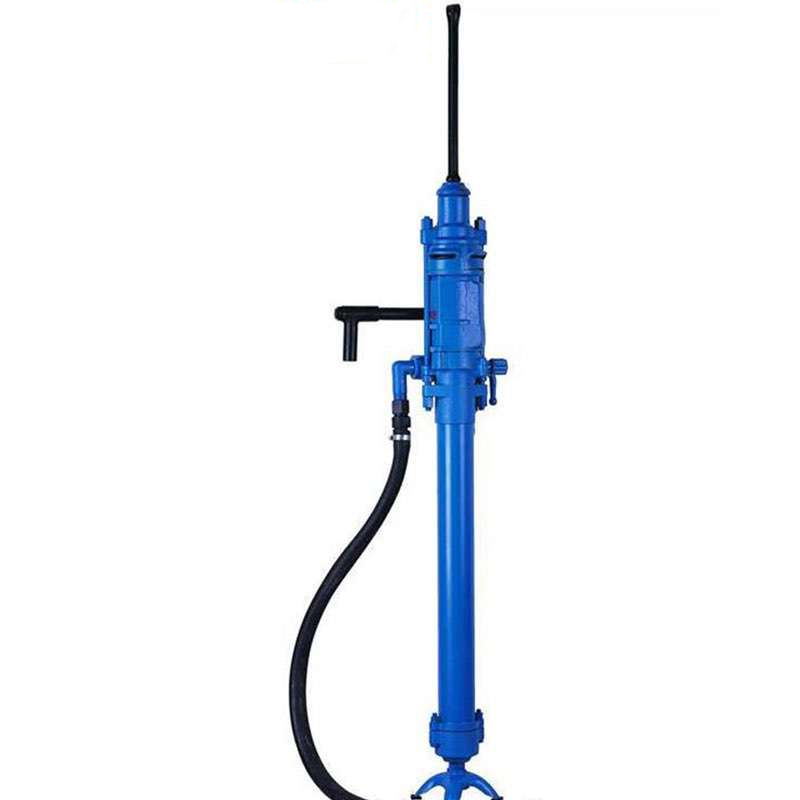

YSP45 Rock Drill Rigs for Upward Drilling of Underground Mining，Stooper Type
- Weight:44kg
- Drilling Diameter:32-50mm
- Water Hose Size:13 mm
- Bore Diameter:34~42 mm
- Drilling Depth:10m, 6 m
- Physicalsize(length*wide*high):1420*390*160mm
YSP45 Rock Drill Rigs for Upward Drilling of Underground Mining，Stooper Type
YSP45 stoper rock Drilling machine , is powerful and impact rock drill rigs for small -scale underground mining , also is robust design for tough working condition. It has high impact frequency and is mainly used for small-scale production drilling underground mining , raise driving and bolting.
| YSP45 general specifications | |
| Product No | 96000006 |
| Product code | 962A-0-3312300305 |
| Air requirement | 83 l/s |
| Rock drill piston bore | 95 mm |
| Stroke lenght | 47mm |
| lmpact frequency | 45 Hz |
| Rotation speed | 350 r/min |
| Weight | 44 kg |
| Length retracted | 1420mm |
| Length extracted | 2170mm |
| Feeding length | 750mm |
| Feed piston bore | 74mm |
| Physical size(length*wide*high) | 1420*390* 160mm |
| Appropriate dilling Hole Dia | 34~42mm |
| Drilling Depth | 10m, 6 m |
| Drilling Diameter | 32-50mm |
| Water Hose Size | 13 mm |
| Pressure | 5kg/cm2 |
| Inner diameter of air hose | 25mm |
Feathures:
（1）High efficiency
（2）Lower noisy
（3）Easy to clean
（4）widly used in quarry
（5）Good price
For more details please click PDF: YSP45 Rock Drill Rigs for Upward Drilling Parts List
