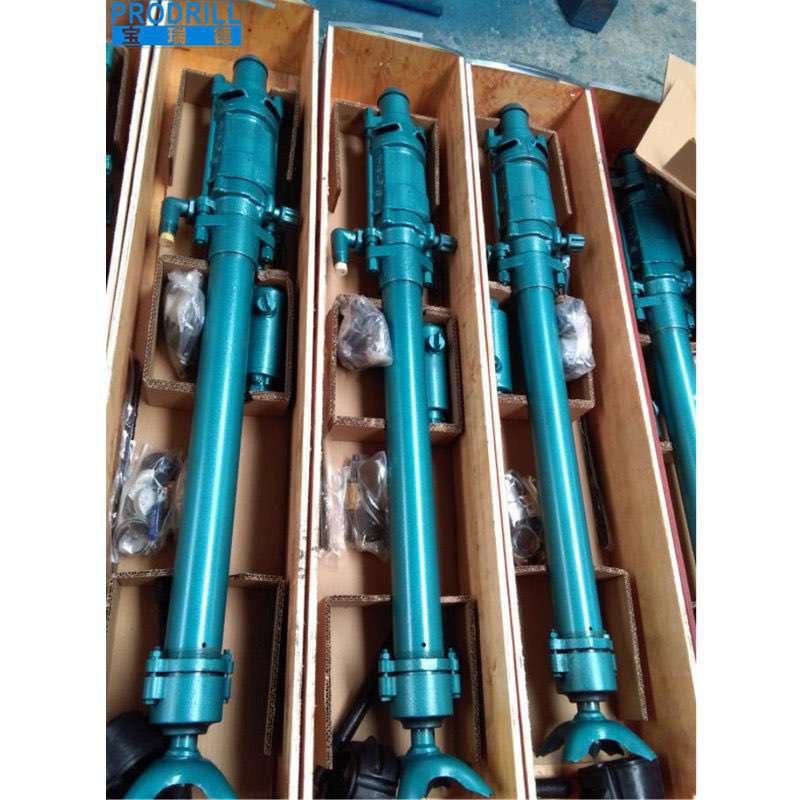

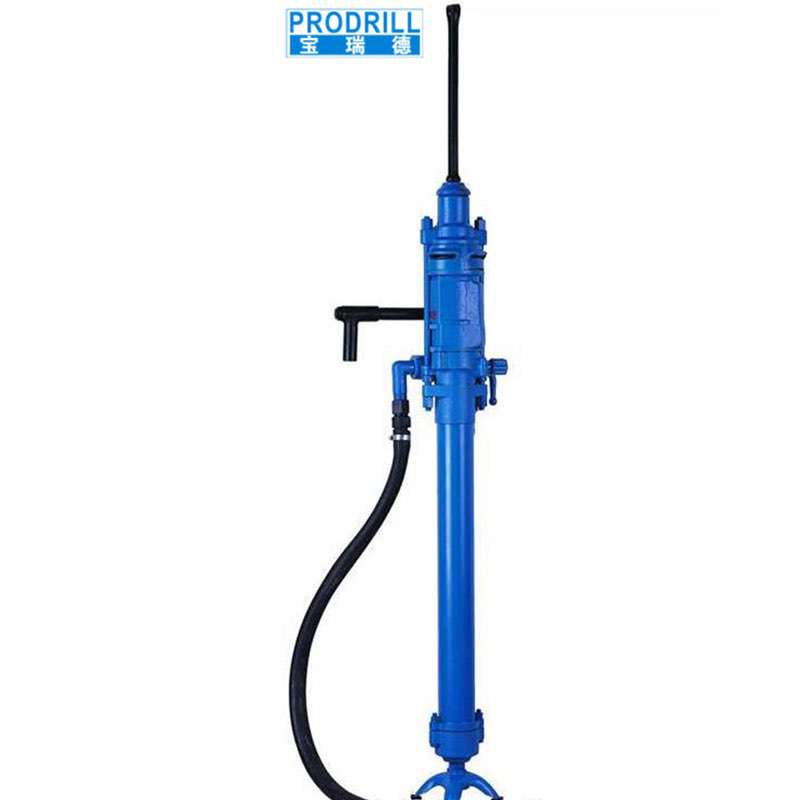

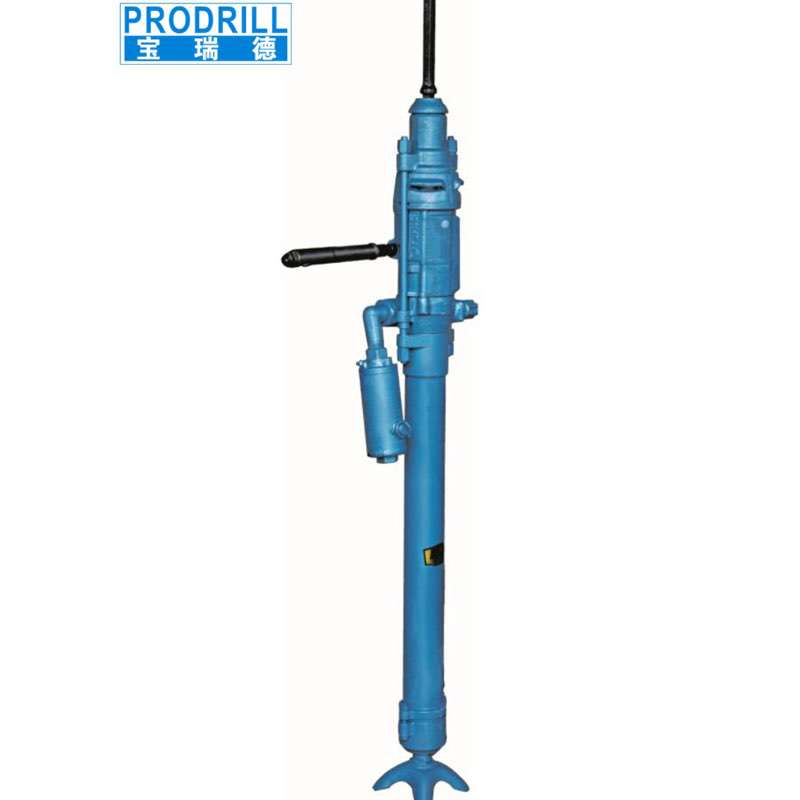

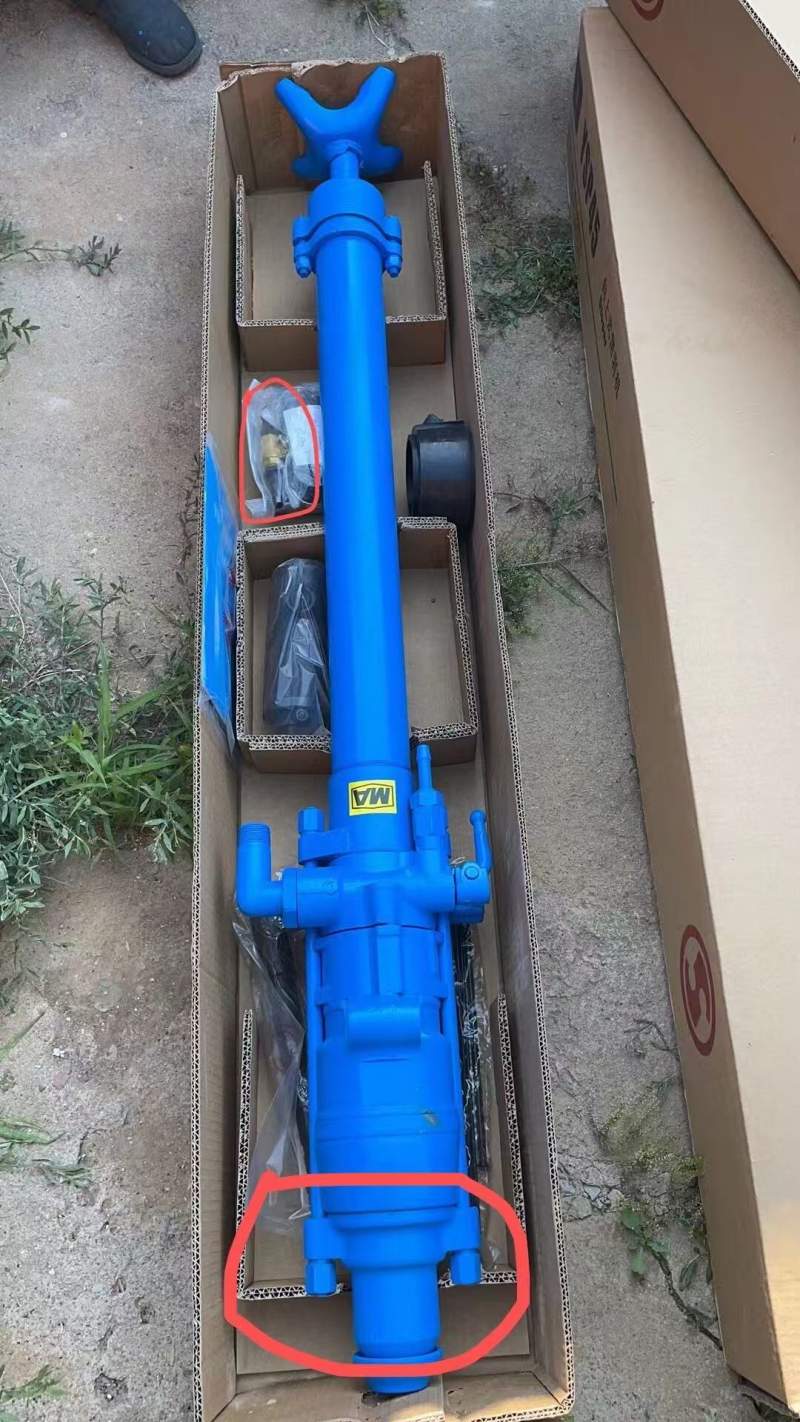

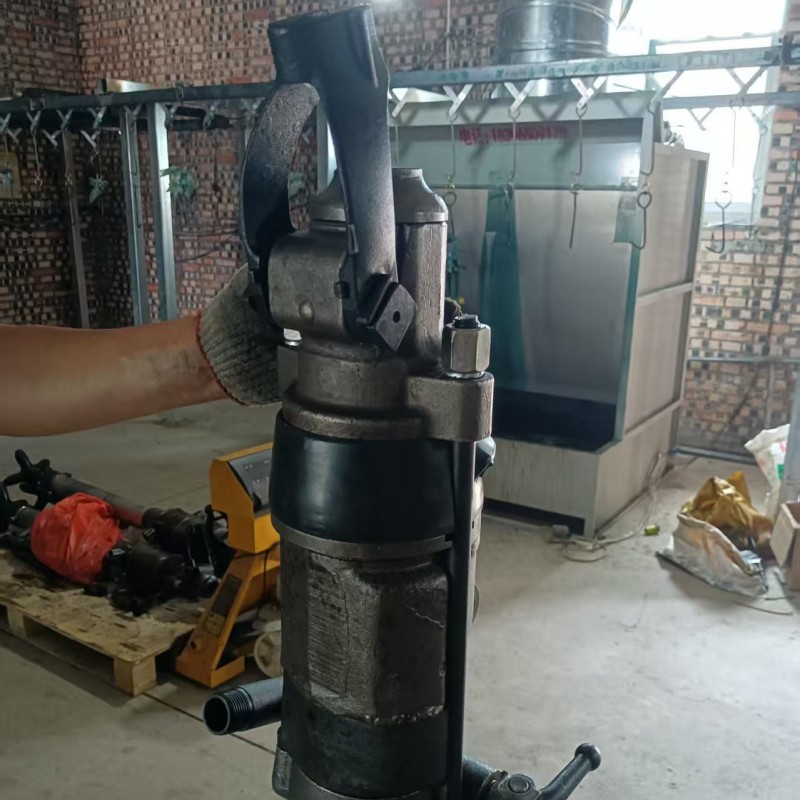

Stopper YSP45 Rock Drill Machine
- Weight:44kg
- Drilling Diameter:32-50mm
- Water Hose Size:13 mm
- Bore Diameter:34~42 mm
- Drilling Depth:10m, 6 m
- Physicalsize:1420*390*160mm
- Applicable:Construction works , Energy & Mining
Stoper YSP45
The Secoroc stopper rock drill, YSP45, is of robust design for tough working condition.It has high impact frequency and is mainly used for production drilling, raise driving and bolting.
Application of YSP45 Stoper Air Leg Rock Drill:
YSP45 Stoper Air Leg Rock Drill applied in mining, tunneling or rock drilling work, to drill up holes with angle to the earth within the range from 60o to 90oand also can be used for bolting work and shaft sinking work.It is a kind of high efficiency, indispensable, important machine tool in quarries, metallurgy, coal, railway, traffic and water conservancy construction. It is suitable for making downward, horizontal and inclined blastholes. The hardness of rock is f8 to f18.
| YSP45 general specifications | |
| Product No | 96000006 |
| Product code | 962A-0-3312300305 |
| Air requirement | 83 l/s |
| Rock drill piston bore | 95 mm |
| Stroke lenght | 47mm |
| lmpact frequency | 45 Hz |
| Rotation speed | 350 r/min |
| Weight | 44 kg |
| Length retracted | 1420mm |
| Length extracted | 2170mm |
| Feeding length | 750mm |
| Feed piston bore | 74mm |
| Physical size(length*wide*high) | 1420*390* 160mm |
| Appropriate dilling Hole Dia | 34~42mm |
| Drilling Depth | 10m, 6 m |
| Drilling Diameter | 32-50mm |
| Water Hose Size | 13 mm |
Feathures:
（1）High efficiency
（2）Lower noisy
（3）Easy to clean
（4）widly used in quarry
（5）Good price
For more details please click PDF: YSP45 Rock Drill Rigs for Upward Drilling Parts List
