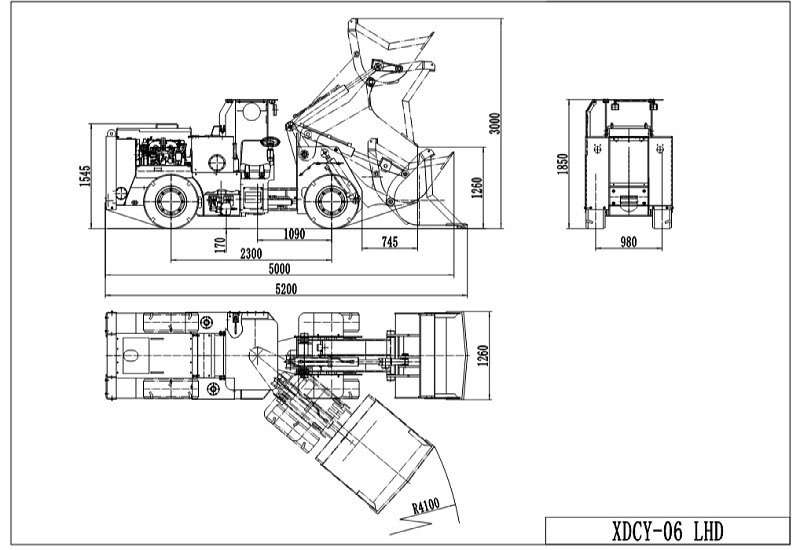

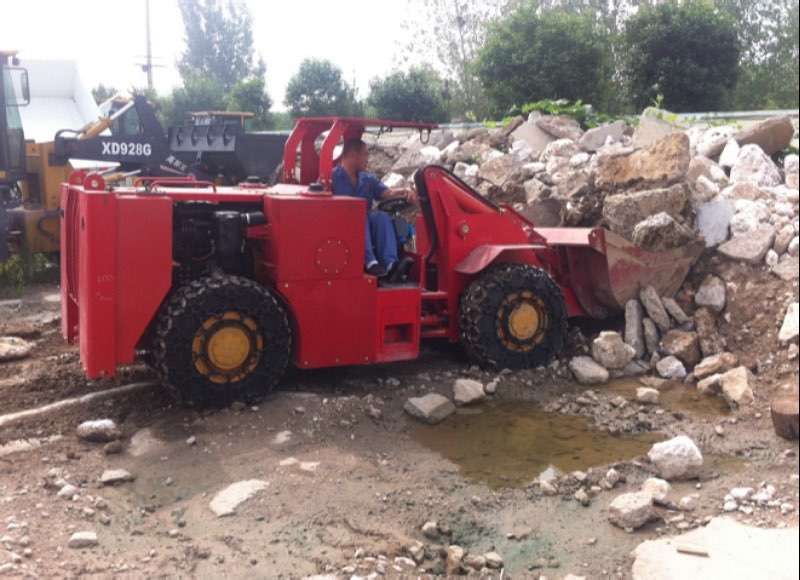

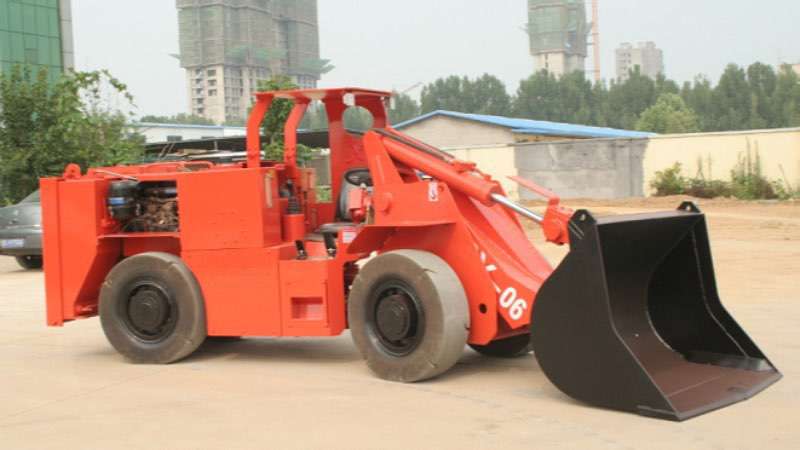

XDCY - 0.6m3 Diesel Scooptram
- Main specifications :
- Bucket capacity (m3 ) 0.6 :
- Rated load (t) 1.2 :
- Weight (t) 5.1 :
- Lifting time of the arms (s) ≤4 :
- The sum of three items(s) ≤8 :
- Forward gear（km/h） I 0-4.6 II 0-9.7 :
- Reverse gear I 0-4.6 II 0-9.5 :
- Max. climbing gradient 16°:
I.Features&Benefits
1. Power system adopts China’s top brand YUNNEI engine with low speed and high torque.
2. Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
3. Operating system adopts pilot control to make operation easily and work efficiently.
4. Service brake adopts multi-disc wet brake technology, parking brake uses band brake to guarantee its safety and reliability.
5. Exhaust cleaning system is equipped with diesel oxidation catalyst（DOC）and water filtration system, greatly reducing air pollution.
6. 255/70D406 smooth, wear-resistant and puncture- resistant tires for long working life.
7. Technology leader slewing structure, hydraulic steering, lower failure rate, easy to maintain.
8. The loader has compact structure and small turning radius. It can be used for shovelling, loading, transporting and unloading. It is easy
to be operated and has high working efficiency. Suitable for mining and roadway excavating, as well as road construction and material transportation.
II.Specifications
|
Model |
XDCY-06 （Normal bucket） |

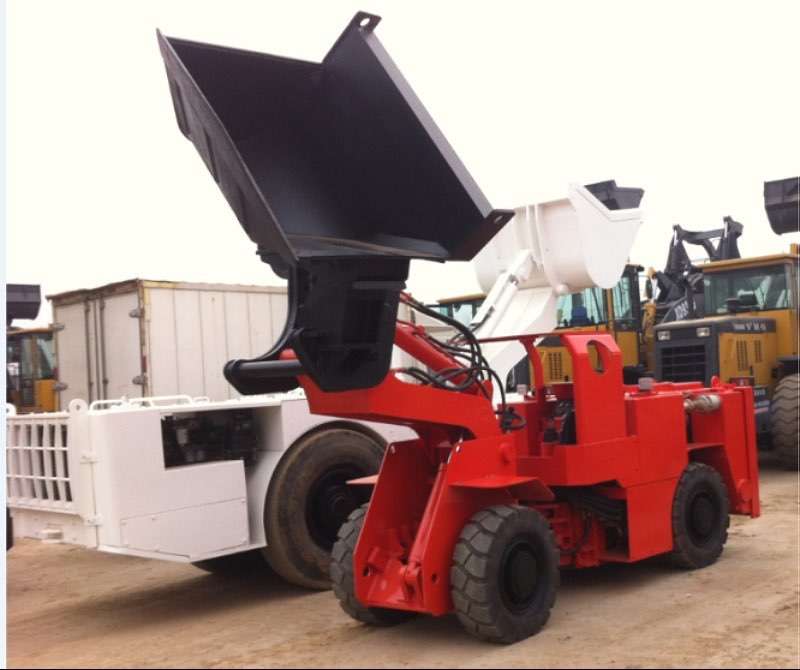

XDCY-06 （Side dumping bucket） |
|
Main specifications |
||
|
Bucket capacity (m3 ) |
0.6 |
0.6 |
|
Rated load (t) |
1.2 |
1.2 |
|
Weight (t) |
5.1 |
5.1 |
|
Lifting time of the arms (s) |
≤4 |
≤4 |
|
The sum of three items(s) |
≤8 |
≤8 |
|
Forward gear（km/h） |
I 0-4.6 II 0-9.7 |
I 0-4.6 II 0-9.7 |
|
Reverse gear |
I 0-4.6 II 0-9.5 |
I 0-4.6 II 0-9.5 |
|
Max. climbing gradient |
16° |
16° |
|
Dimensions |
||
|
Overall dimension (L×W×H mm) |
5000×1260×1850 |
5500×1260×1850 |
|
Wheel base (mm) |
2300 |
2300 |
|
Wheel tread(mm) |
980 |
980 |
|
Max. dumping height(mm) |
1260 |
2500 |
|
Dumping reach (mm) |
745 |
190 |
|
Diesel engine |
||
|
Engine model |
YUNNEI YN33GBZ |
YUNNEI YN33GBZ |
|
Engine type |
In-line,water-cooling, 4-strokes,4cylinders, direct-injection, turbo |
In-line,water-cooling, 4-strokes,4cylinders, direct-injection, turbo |
|
Rated power(kW) |
65 |
65 |
|
Rated speed (r/min) |
2400 |
2400 |
|
Total exhaust of cylinder(L) |
3.298 |
3.298 |
|
Type of starting |
Electric start |
Electric start |
|
Transmission system |
||
|
Torque converter |
|
|
|
Model |
China YJ265 |
China YJ265 |
|
Type |
Single stage, three elements |
Single stage, three elements |
|
Gearbox |
|
|
|
Model |
China ZL15 |
China ZL15 |
|
Type |
Fixed counter-shaft, power-shift |
Fixed counter-shaft, power-shift |
|
Axle and tire |
|
|
|
Type of main reducer |
Spiral bevel gear,single stage |
Spiral bevel gear,single stage |
|
Type of final reducer |
Single stage planetary |
Single stage planetary |
|
Size of tire |
255/70D406 |
255/70D406 |
|
Working device of hydraulic system |
||
|
Model of working pump |
CBG2050 |
CBG2050 |
|
Nminal displacement(ml/r) |
50 |
50 |
|
Rated pressure (Mpa) |
16 |
16 |
|
Multi-way directional valve |
ZL15 |
ZL15 |
|
Pressure (Mpa) |
16 |
16 |
|
Steering system |
||
|
Type |
Load-sensing hydraulic steering |
Load-sensing hydraulic steering |
|
Displacement(ml/r) |
250 |
250 |
|
Max input pressure (Mpa) |
16 |
16 |
|
Brake system |
||
|
Type of traveling brake |
Multi-disc wet brake |
Multi-disc wet brake |
|
Type of parking brake
|
Band brake |
Band brake |
