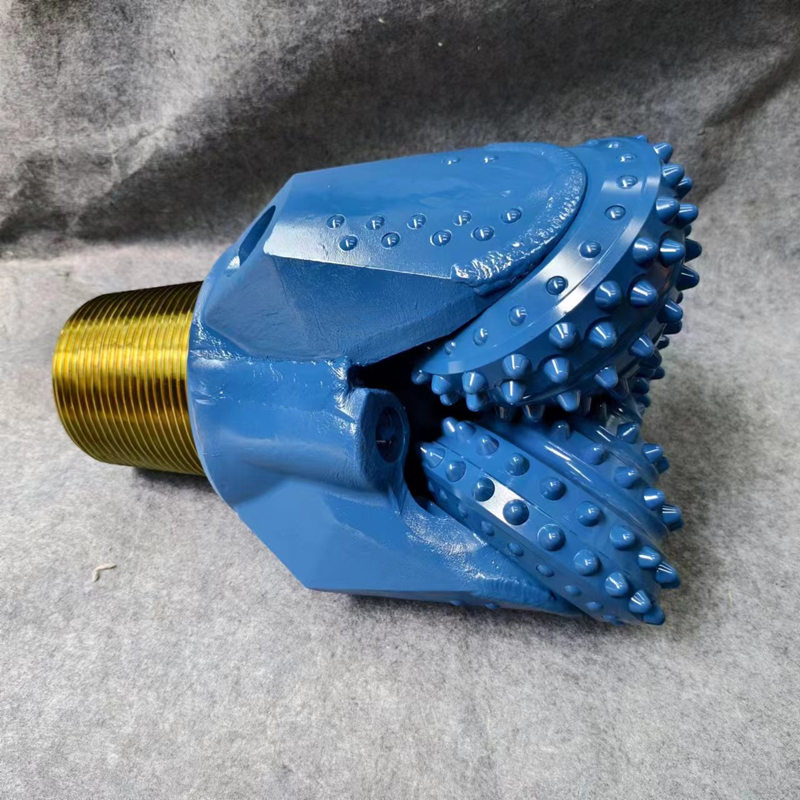

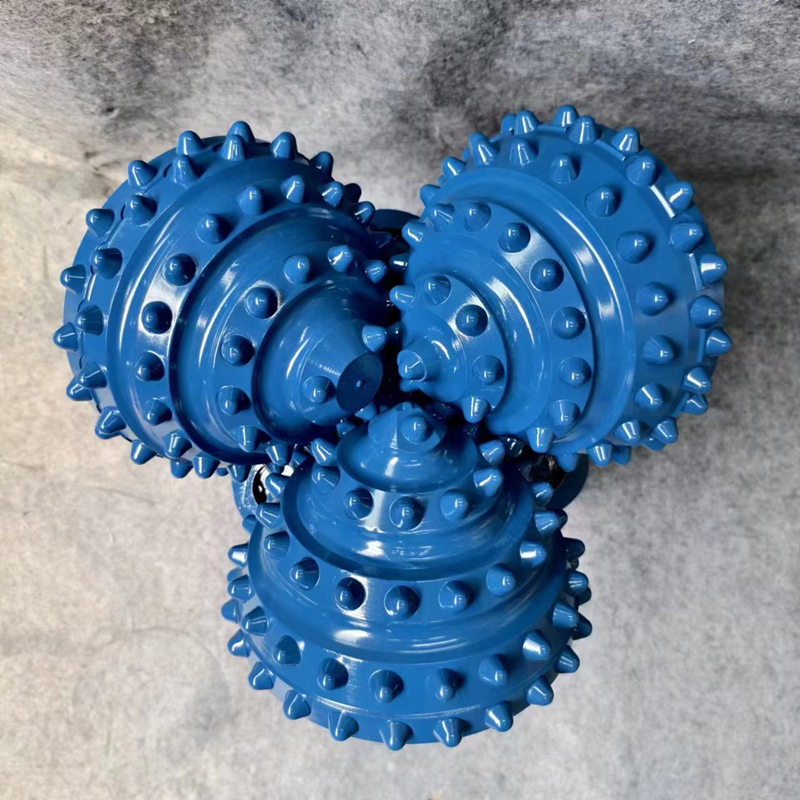

12 1/4" IADC 625 Tricone Bit for Water Well
- Diameter: 311mm
- Diameter: 12 1/4"
- Teeth Type: TCI
- IADC No.: 625
- Bearing type : Sealed Roller Bearing
- Usage & working principle : Water Well, Mud circulation
We are ProDrill, We are proud specialists in developing and manufacturing rock drilling & demolition equipment and tools for the quarrying , mining and construction industries. Xiamen is our homeland, but the global surface mining, natural dimensional stone quarry , water well , construction industry is our playground. We constantly explore new innovative designs, new materials, new manufacturing methods and new engineering tools. Only to supply our customers with the most hard-wearing, efficient and cost-effective drilling & demolition tools available.
TCI Tricone Roller Bits
ProDrill offers a full line of tricone and bicone bits. Tricone drill bits are available in new and used (re-tip and re-run) steel tooth and tungsten carbide insert, size from 3 3/8"(85.7mm) to 26"(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.
Rotary Drilling Tools: 12 1/4'' IADC Code 625-Tricone Roller Bit with Tungsten Carbide Insert, Rubber sealed journal bearing, carbide side friction protection for semi hard to hard rock formation.
12 1/4" IADC 625 Tricone Bit Technical Data Sheet（TDS）
| IADC | 625 |
| Bearing Type | "0" ring sealed,roller bearing |
| Connection thread | 6 5/8REG |
| Net /Gross weight | 108KG/98KG |
| Volume | 370*330*520MM |
| RPM(r/min) | 110~60 |
| WOB(KN/MM) | 0.45~1.1 |
| Applicable strata | Soft to medium soft or soft with hard stringers with low compressive strength,such as soft shale, medium soft limestone,medium soft sandstone and has a hard abrasive formations dissection medium,etc. |
Tricone drill bits include Steel Tooth (or milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth bits, but with a higher cost to manufacture. Both types of Tricone Bits are available with
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)
(3) Gage Protected or Non-Gage Protected, etc.
ProDrill offers heavy duty tricone bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), american petroleum industry number (API Number) and international association of drilling contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. All possible combinations of IADC number for tricone bits are available at ProDrill.
