Carburized Taper Drill Rod ( 23 CrNiMoVa )
- Hex:22*108mm,H22*159,H25*108,H25*159
- length: 2FT,3FT,4FT,5FT,6FT, 8FT,10FT,36FT
- Materials: 23 CrNiMoVa
- Client feedback from Peru: European brand materials Z708 from can drill 80 meters for Gold Ming, 100 meters for Cooper mining ,Prodrill using materials 23 Cr Ni Mo Va from China can drill 700 ft (200 meters ) for cooper mining in South of Peru .
- Usage:Mining , Quarrying
Full Carburized Taper Drill Rod ( steel code : 23 CrNiMoVa ) with shank hexagon Shank Hexagon: 19*108 mm, 22*108mm, 25*108 mm, 25*159 mm; 4, 6,7, 11, 12 degree taper in most lengths, taper degrees of drill steel for excellent drilling productivity.

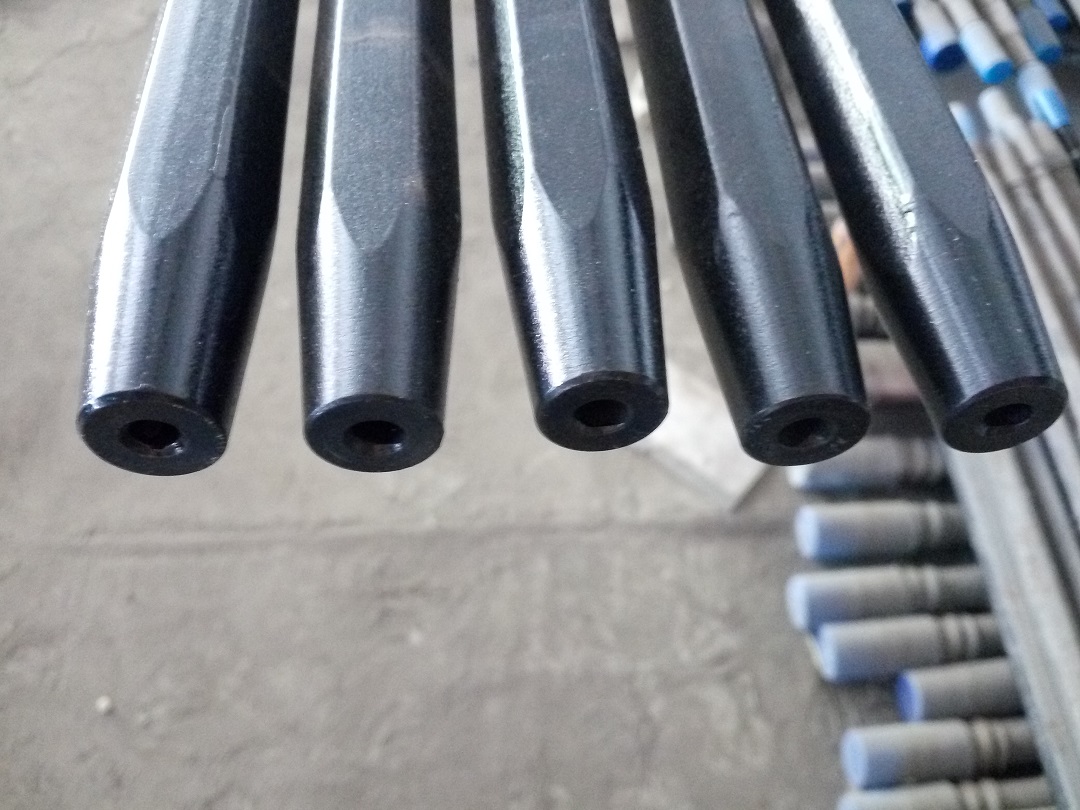

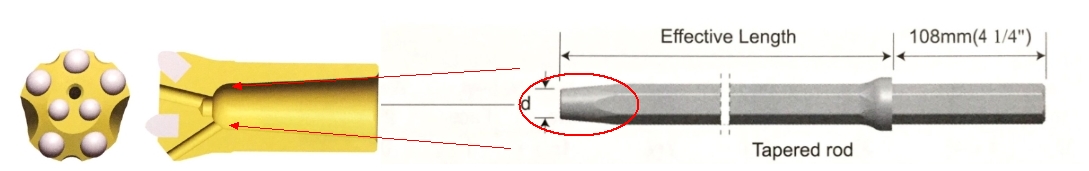

Tapered drill rod, another name called taper rod or conical drills, tapered drill steels from rock drilling tools manufacturer ProDrill which provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths available from 0.6 meters to 3.6 meters in length—are measured from the collar to the rock drill bits end
ProDrill also offer excellent super quality tapered drill rods for hydraulic rok drill rig from Doofer, Atlas Copco, Sandivk which are used in granite,, marble & lime quarrying site, also with two hydraulic drifter hammer , this type of tapered rod done after special hot treatment techolog-Surface Carburized , more abrasive , more hardness , more stronger in time of drilling rock with a perfect performance in penetration rate , service life , cost less.

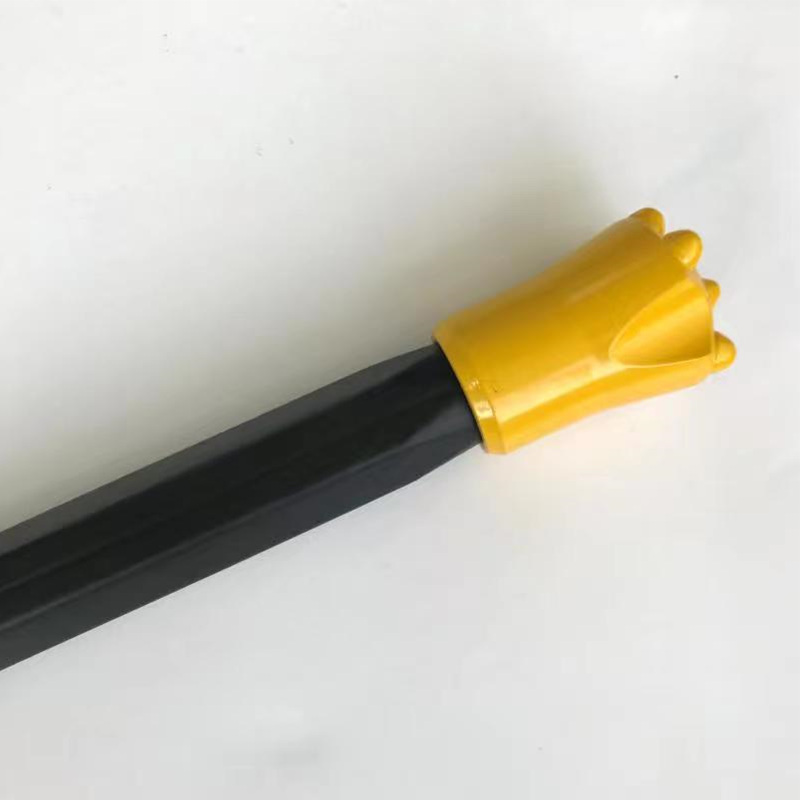

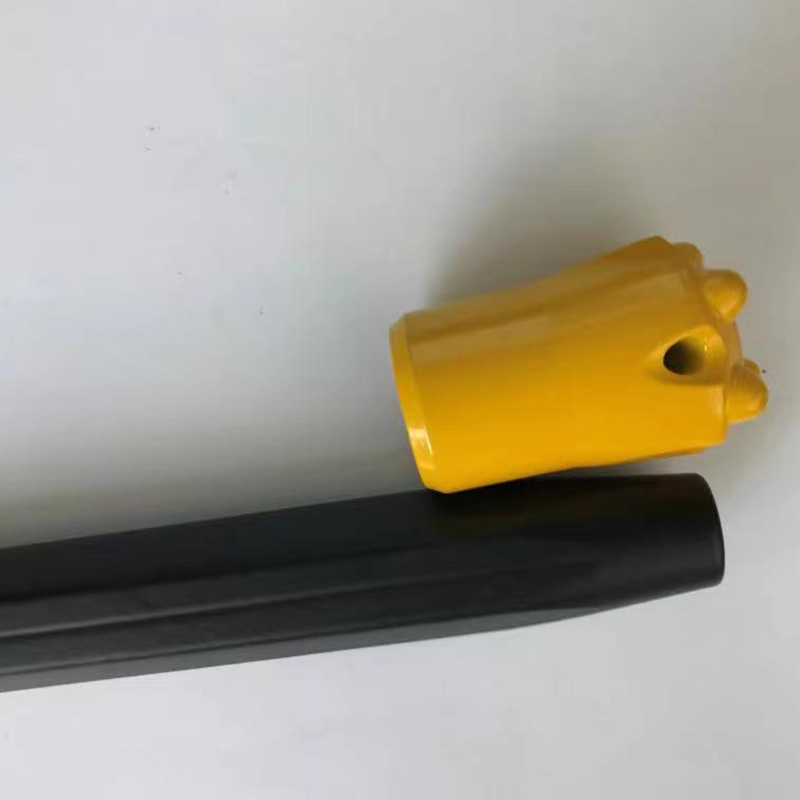

A range of Rods and T.C. Tipped Bits (Cross and Button). Shank sizes 82.5mm*22mm(3 1/4”*7/8”),108mm*25mm(4 1/4”*1”), 159mm*25mm(6 1/4”*1). Lengths 600mm to 6400, (2’-21’). Available in Taper Angles of 4º,7º,11º and 12ºon 22mm and 25mm (7/8”&1”)Hexagon. Bit Diameters: Cross-32mm to 51,(1 1/4”-2”), Button -32,, to 51mm(1 1/4”-2”)
For drilling medium-hard to hard and abrasive rock formations, normally taper angles of 11 and 12-degrees are used on modern drill rigs, like our model no. PD-Y58 crawler hydraulic rock drill. Also for Y6, Y10, Y24, YT24, Mobile rock drill pneumatic and hydraulic. For low impact rock drills and softer rock formations, a narrow tape range of 7 degrees is used, such as Indian, Saudi’s granite and marble quarry. A comprehensive range of taper button bits, cross bits and chisel bits with 4, 7, 11, 12 degree taper, drill hole diameter: 28mm-57mm
For more details please watch PDF online: Tapered Drill Rod for Small Hole Drilling CatalogueShank rod All the models
