Rock drill bits factory ProDrill™ offers small hole rock drill bits: Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit and rod to be used for hydraulic highs speed drill rig , air leg or hand held jack hamme rdriller in natural dimensional stone quarrying ,such as blue pearl granite ...

For high quality small-hole drilling consumables ( tools, accessories , spareparts ), We will choose to use tungsten carbide insert ( TCI ) of T6，featuring good wear-resistance and toughness. This type of carbide has already been proved to be the best in China and been competing with those big names worldwide for quite a long time.

Meanwhile，we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes. In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.

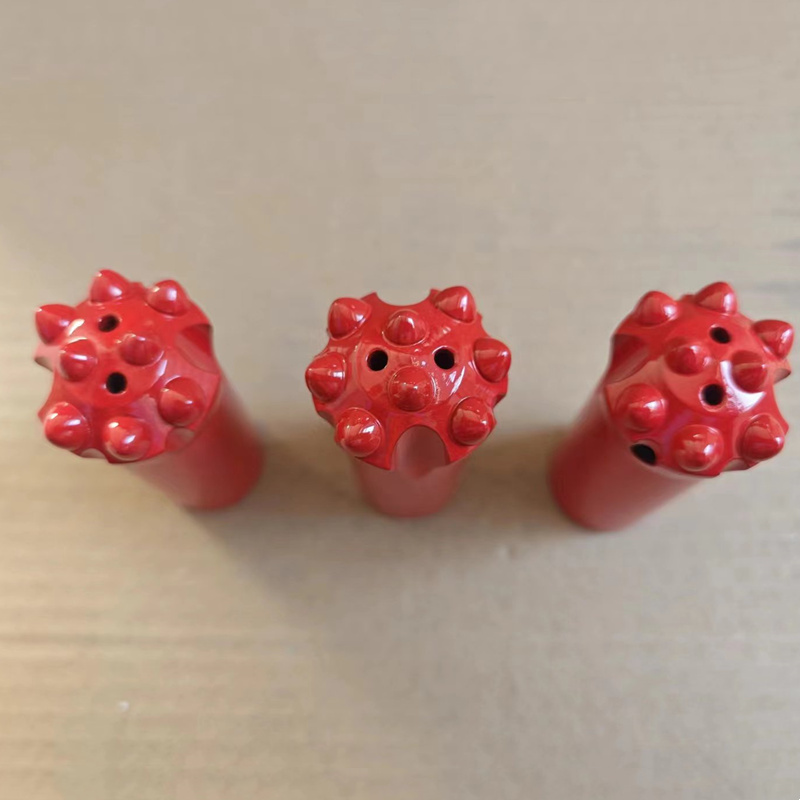

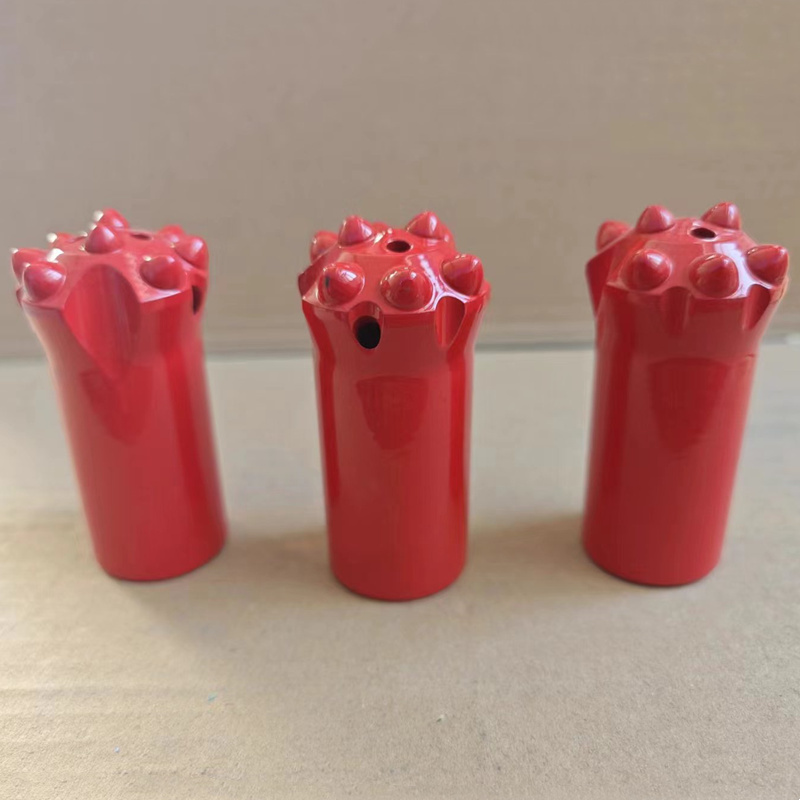

Tapered Bits Description:

(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter: 32mm,34mm,35mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)Material: Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.

(5)Button Shape: Semi-Ballistic; Face Type: Flat Face; Bit Body: Standard

(6)Qty of button: 5,7, 8 pcs

(7)main market: India, Saudi Arabia, Chile, South Africa, stone countries consume very much.

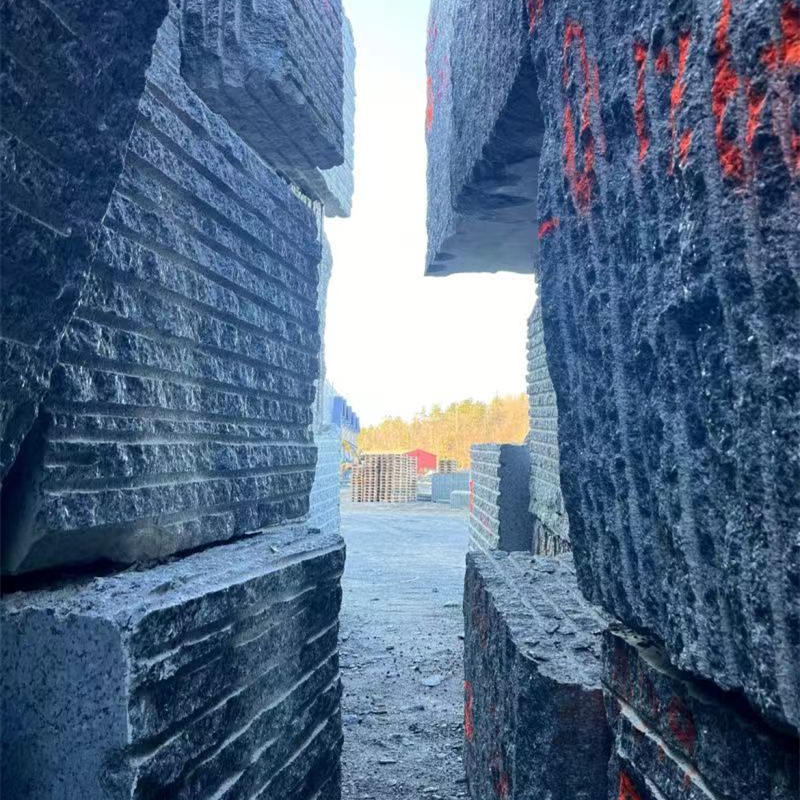

Norway Blue Pearl Granite
