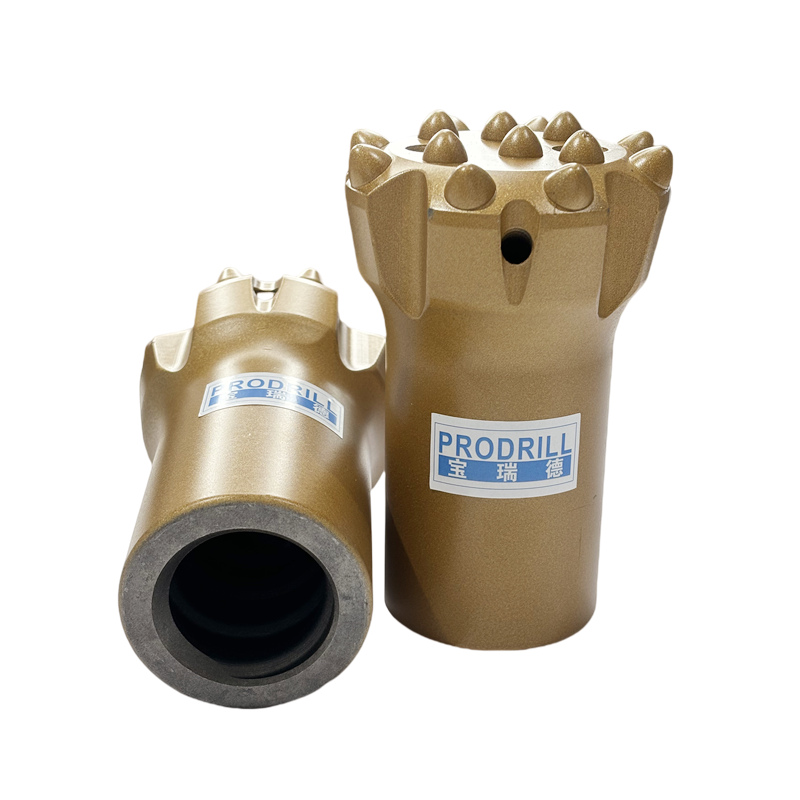

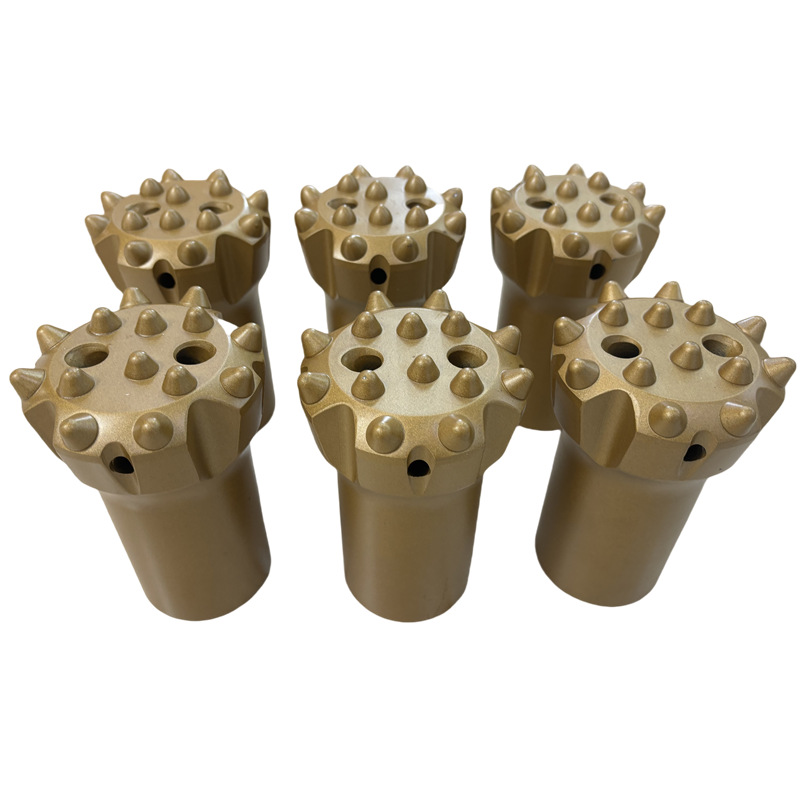

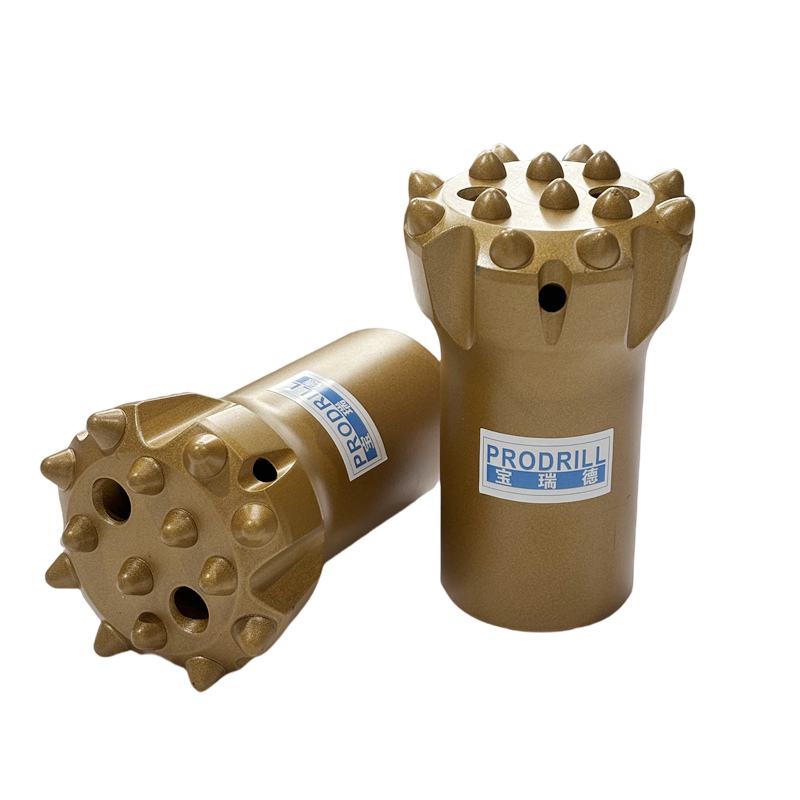

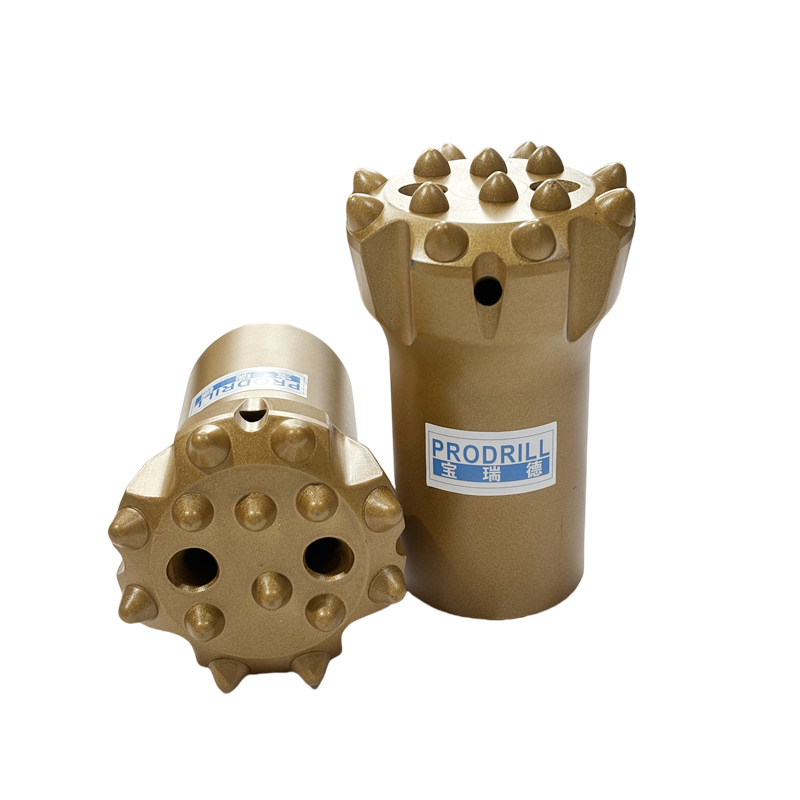

Q14-89-T45-Threaded Button Bit
- Code No. : Q14-89-T45
- Thread : T45
- Diameter : 89mm
- Gauge Buttons : 8*13mm
- Front Buttons : 6*12mm
- Carbide Design : Parabolic Button ( Semi-Ballistic )，Ballistic Button
- Carbide grade : YK05
- Materials : 45 CrNiMoV
Rock drilling tools factory ProDrill™ manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground
Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop Center
Carbide: Hemispherical Button , Parabolic Button ( Semi-Ballistic ) , Conical Button , Ballistic Button.
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.
Standard Skirt profile
A standard skirt is more suited for homogeneous rock conditions. The standard skirt is typically smaller than the head diameter and this gap between the bit and the rock wall helps in the flushing characteristics of the
• ProDrill™ Tapered, Threaded bits for small hole drilling, drifting and tunneling, stone quarrying applications
• ProDrill™ offers top hammer threaded drill bits for long hole drilling underground mining, and bench drilling applications
Q14-89-T45-Threaded Button Bit wooden box packaging
Mr Sergei from Estonia visit Prodrill Xiamen Office on date of Aug 19, 2024.
