Shims and wedges for stone splitting

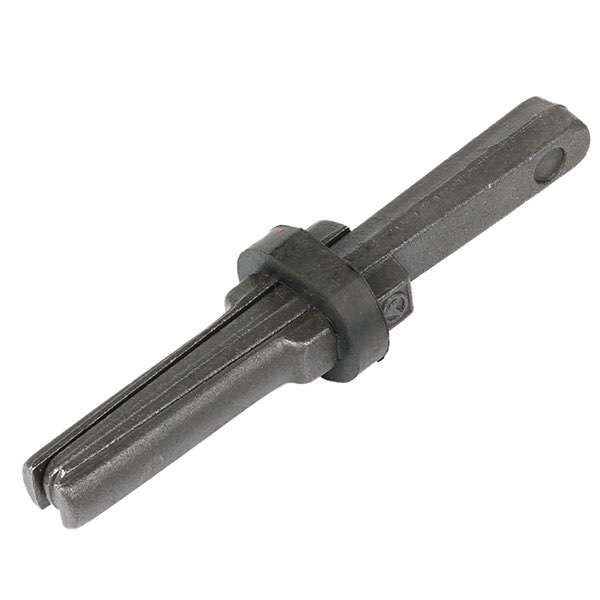

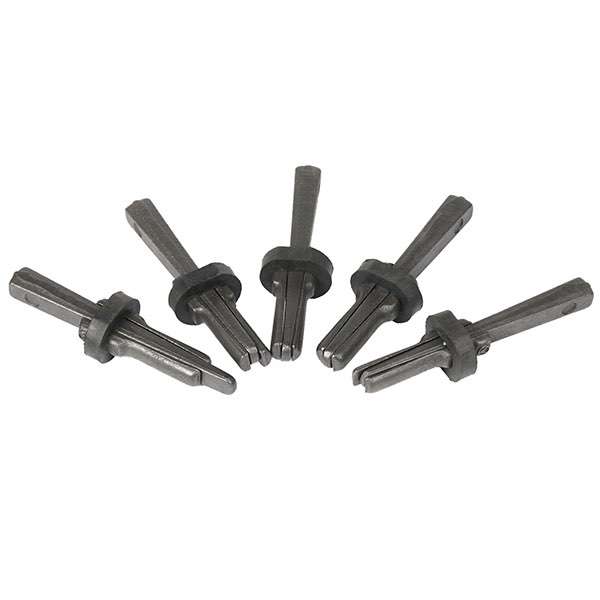

Wedges and shims, it's also called Hand Splitter, Plug and Feathers, Feather Pair and Wedges. Used for stone block splitting and cutting.

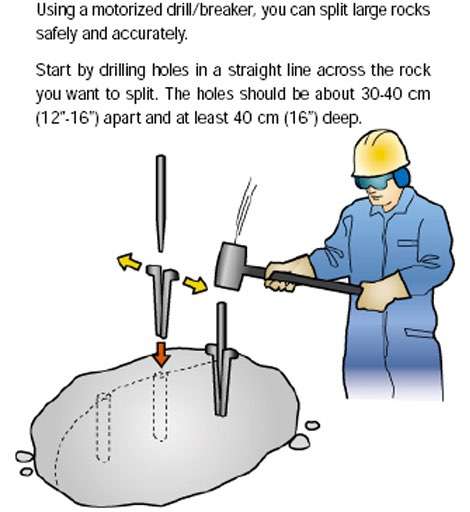

Rock drilling tools manufacturer ProDrill: Shim and wedges are a kind of manual tools that uses manpower to impact the metal wedge into holes on stone, thereby split stone. It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.
Shims and Wedges is a very effective and labor-saving tool, good for environment, no dust and sound, especially for mines applying small size of quarrying stone blocks. Suitable for quarrying layered ores which are either horizontal or gently inclined, have layer depth around 1.5m. More sizes and shapes for your choice.
Hand splitter with rubber size from 14mm-38mm
We can design the length and hole size and shape as customers\' requirements

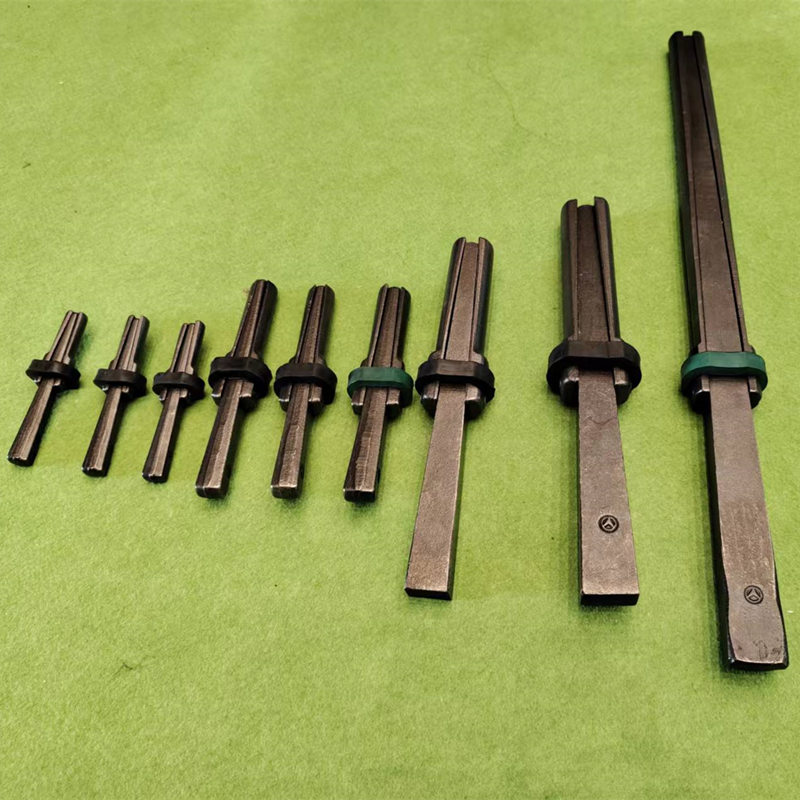

Standard size available as follows:
| Shims & Wedges (Feather Pair & Wedges) | ||
| Hole Diameter(mm) | Length(mm) | Net Weight(kg) |
| 20 (3/4’’) | 190 (7 1/2’’) | 0.5 |
| 24 (15/16’’) | 190 (7 1/2’’) | 0.58 |
| 30(1 9/50’’) | 270(10 3/5’’) | 1.2 |
| 32(1 1/4’’) | 270(10 3/5’’) | 1.5 |
| 32(1 1/4’’) | 400(15 7/10’’) | 1.57 |
| 32(1 1/4’’) | 600(23 3/5’’) | 1.64 |
| 34(1 8/25’’) | 290(11 1/2’’) | 1.7 |
| 34(1 8/25’’) | 350(13 4/5’’) | 2 |
| 34(1 8/25’’) | 400(15 7/10’’) | 2.5 |
| 34(1 8/25’’) | 450(11 1/2’’) | 2.9 |
| 34(1 8/25’’) | 600(23 3/5’’) | 3.9 |
| 36(1 21/50’’) | 325(11 1/2’’) | 1.9 |
| 36(1 21/50’’) | 600(23 3/5’’) | 3.7 |
| 38(1 1/2’’) | 325(11 1/2’’) | 2.1 |
| 38(1 1/2’’) | 600(23 3/5’’) | 4.1 |

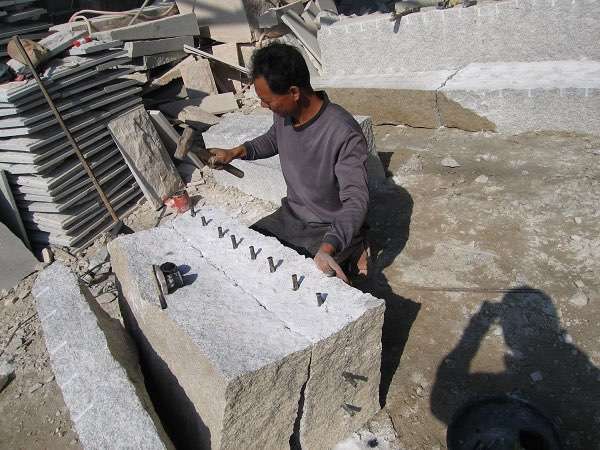

Splitting stone block by Shims and wedges (Plugs and feathers)
