COP1838-T45-525 Shank Adapter
- Code No.: COP1838-T45-525
- Thread Type: T45
- Length: 525mm

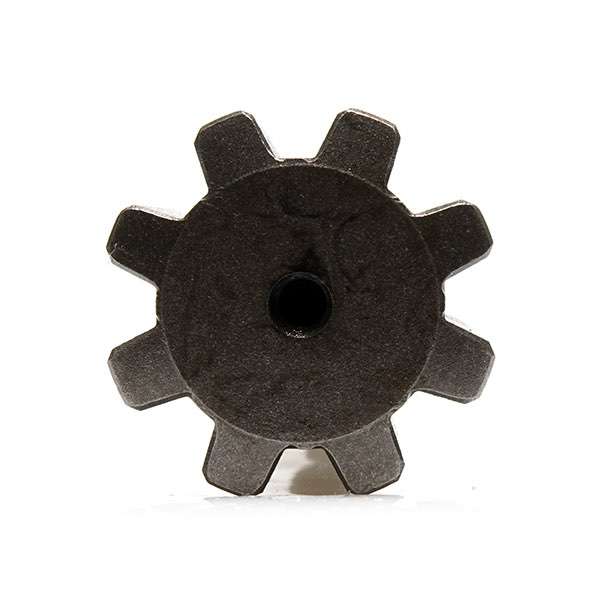

- Spline Diameter:54mm
- Rod Shank Diameter:52mm
- Rock Drill Type: Cop1838
- Rock Drill Manufacturer: Atlas Copco
ProDrill Shank Adapters cover world main drill rigs brands and drifter as follows : - Atlas Copco (COP1238, COP1840, COP1638, COP1838, COP2150, COP2550, COP2160, COP2560)
- Furukawa (HD609, HD709, HD612, HD712)
- Sandvik (HL500, HL600, HL700, HL800, HL1000, HL1500, HLX5)
- Ingersoll Rand (YH65, YH70, YH80, YH60, YH135)
- Montabert (HC109, HC158, HC120, HC150, HC80)
Rock drilling tools: Shank adaptor or shank adapter, the task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
Shank adapters – one of part of rock tools to connect rock drill drifter hammer to extension drill rods carburized and manufactured with tight tolerances and controlled straightness.

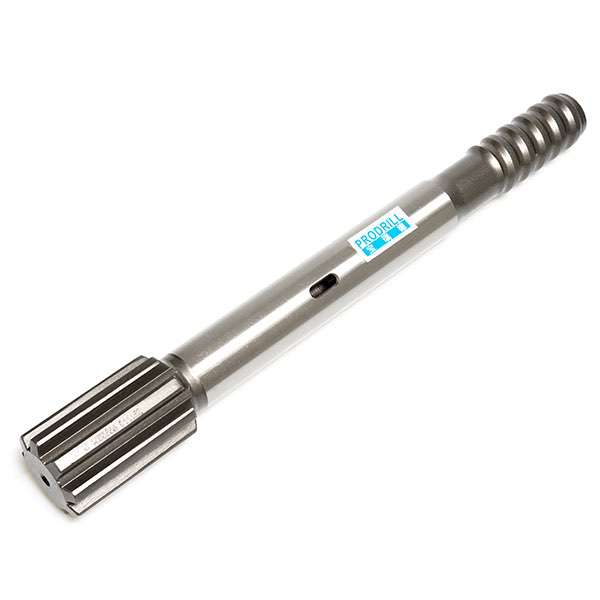

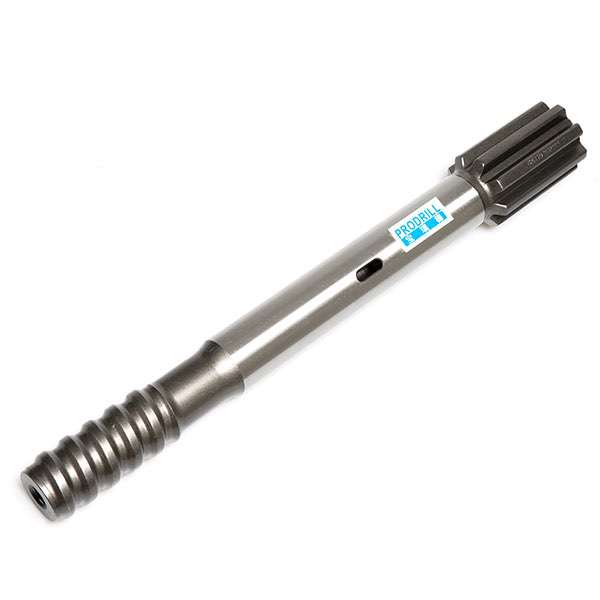

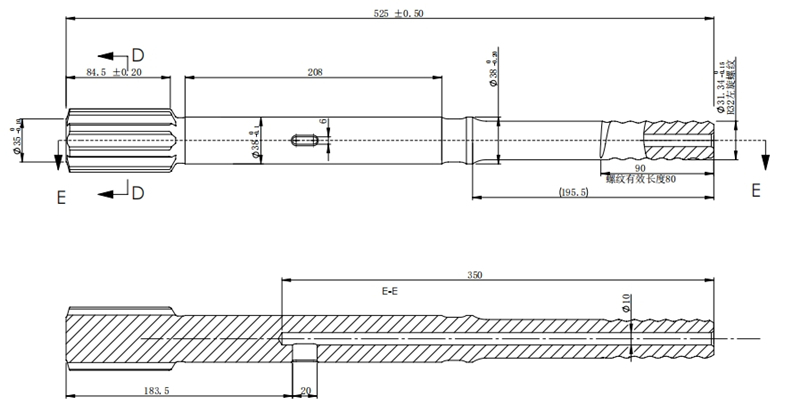

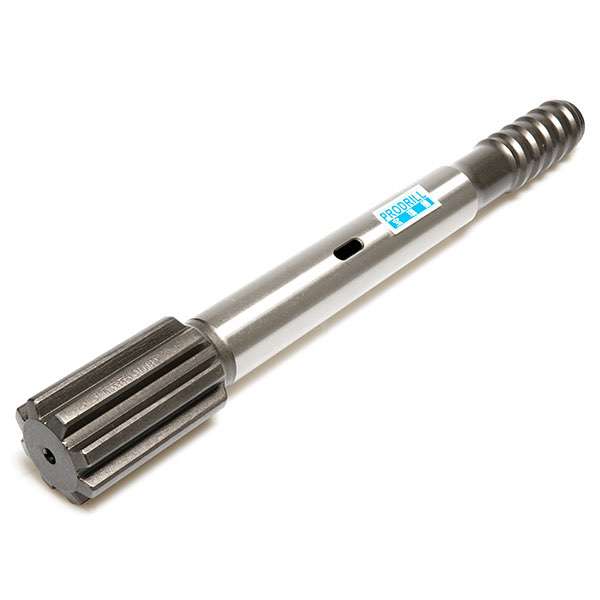

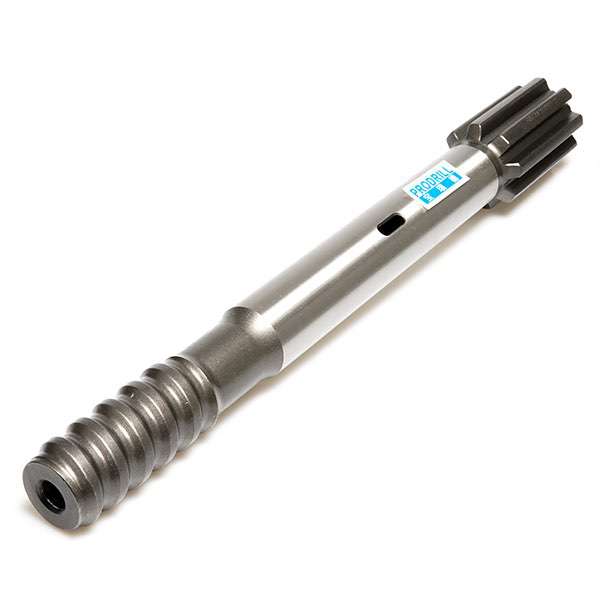

COP1838-T45-(52X525) Shank Adapter:
T45-525 Shank Adapter Packaging:

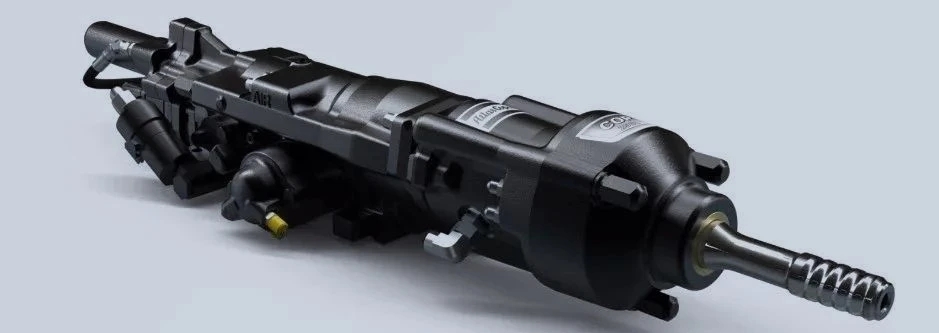

ROCK DRILL with Shank Adapter

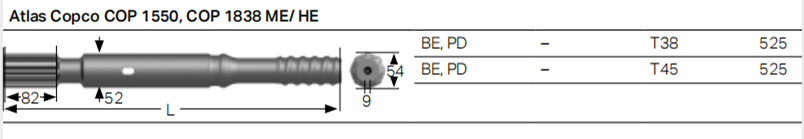

For more details please watch PDF online: Shank Adapter Catalogue
