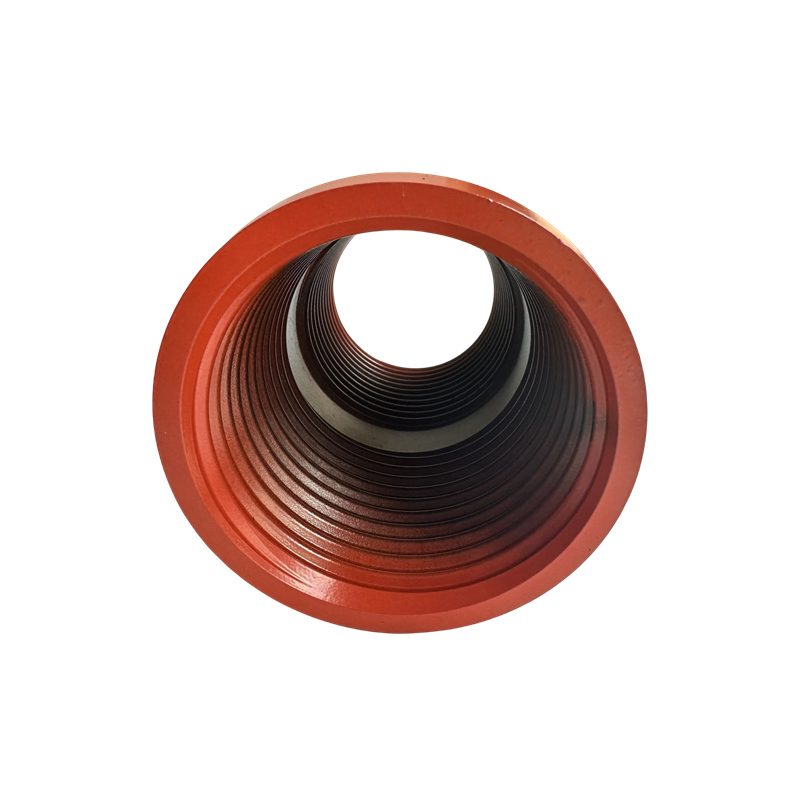

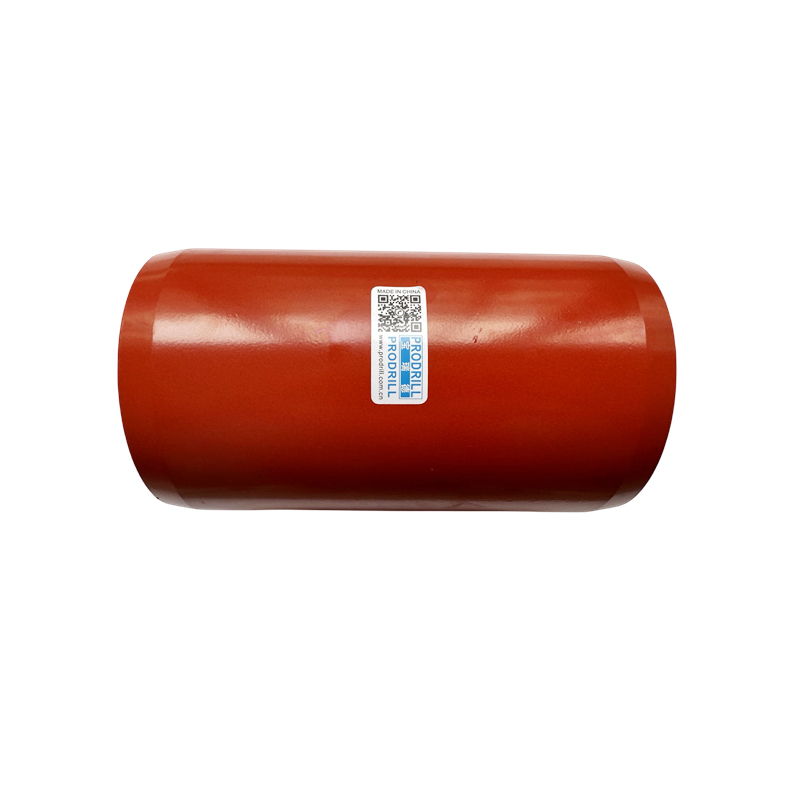

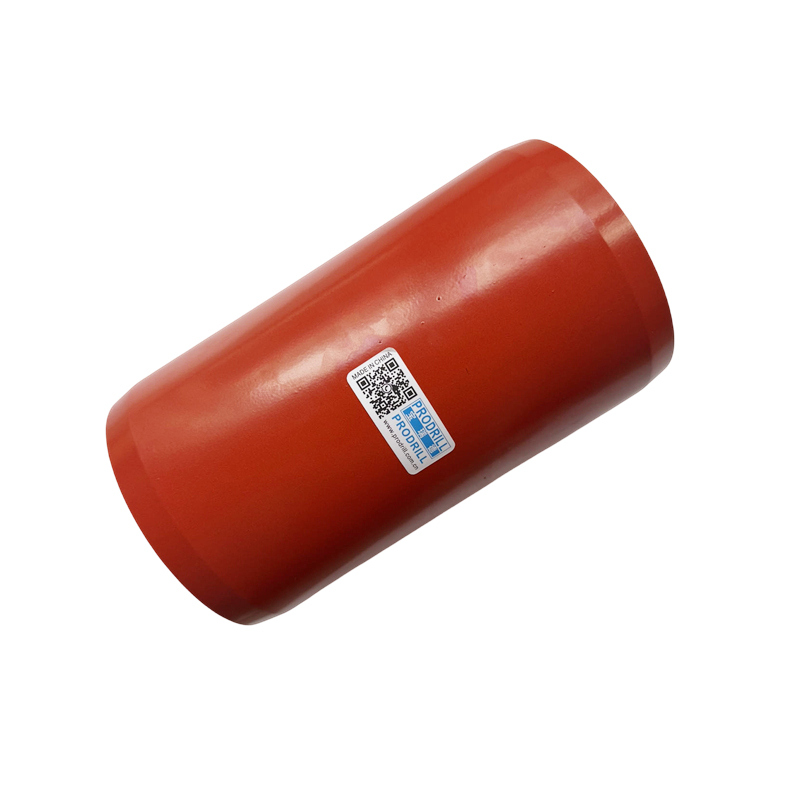

Couplers

Outer diameter : 130mm
Length : 220mm
Material quality : 42CrMo

Product details

The couplers' main aim is to provide the connection between seating of each hollow tube face-to-face connection. This is the main component for the energy transmission from end to end connection of anchor and provides maximum percussive energy to drill bit with lesser losses.

Couplers Specification

No.	Outer Dia.mm	Length mm	Hole Dia mm	Steel Type	Weight kg
No.	Outer Dia.mm	Length mm	Hole Dia mm	Steel Type	Weight kg
1	68	35	35	CK45	0.35
2	70	35	40		0.36
3	85	40	52		0.52
4	95	40	67		0.53
5	125	40	67		0.86
6	140	50	80		1.25
7	170	60	112		2.15
8	65	35	35		0.3
9	70	35	40		0.36
10	85	40	53		0.52
11	103	60	150		1.4
12	110	50	80		0.75
13	140	60	112		1.25
14	150	60	108		1.62
