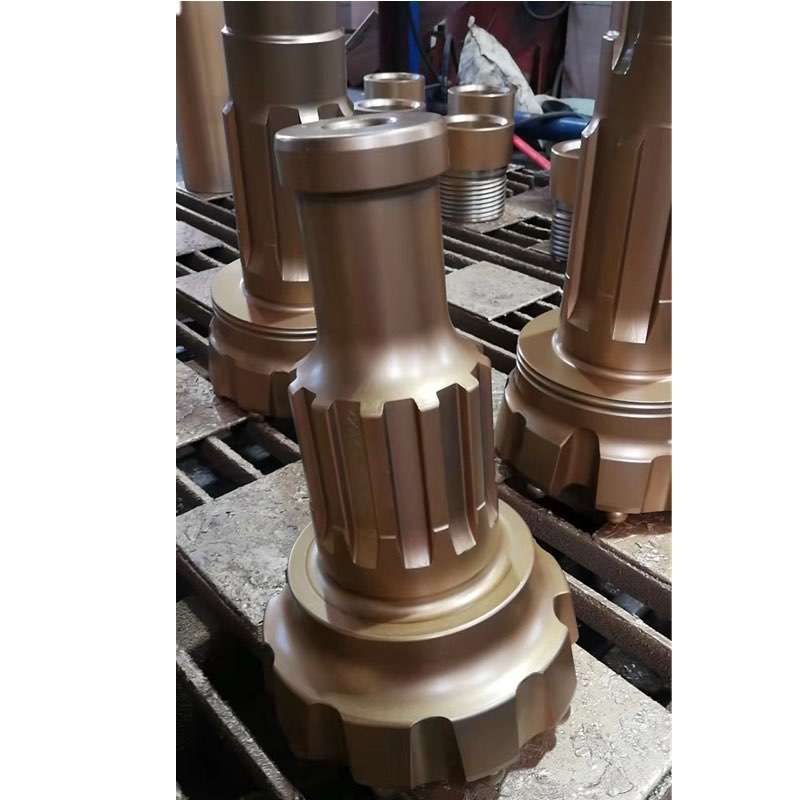

SD6-203 DTH Hammer Bit
- Code No: SD6-203
- Diameter: 203mm
- Air Holes No: 2
- Gauge Buttons: 10*18mm
- Face Buttons: 8*16+6*15mm
- Face Design: Concave
- Carbide Design: Dome
- Approx. Weight:34 KGS
ProDrill rock drilling tools manufacturer has a full range of DTH drill bits with Mshanks type for a wide range of hole sizes, which are designed to match all conceivable applications for water well industries, stone quarrying, mining and construction.
Shank types: SD4, SD5, SD6, SD8.
DTH hammer bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm).
Concave Face
The all around application rock drill bits face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

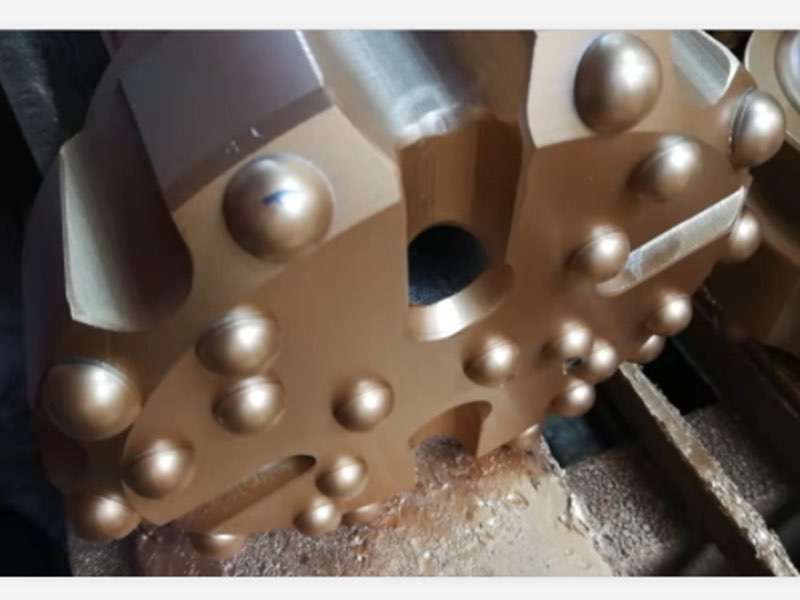

M shank DTH drill bit with concave face, 18 dome carbide buttons for blasting bore holes, water well drilling.
