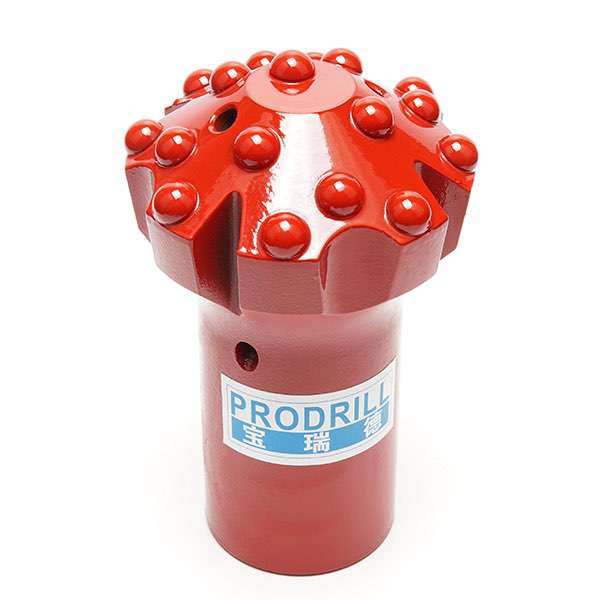

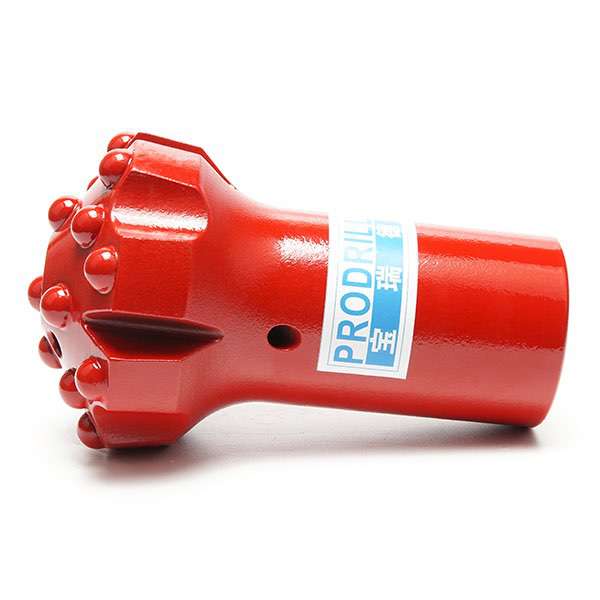

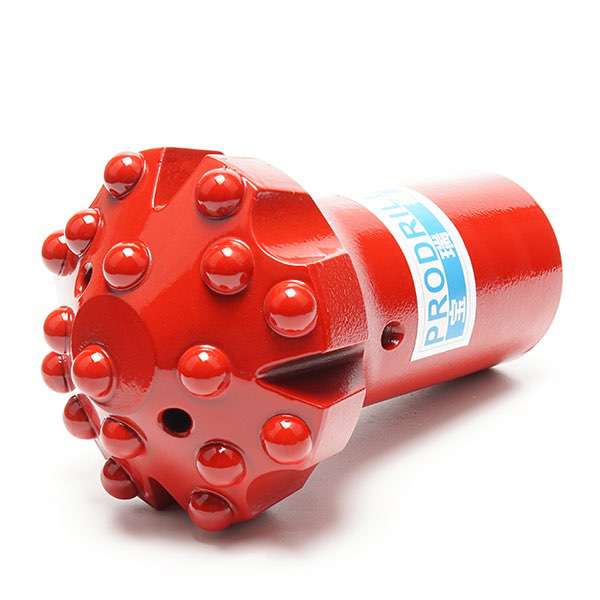

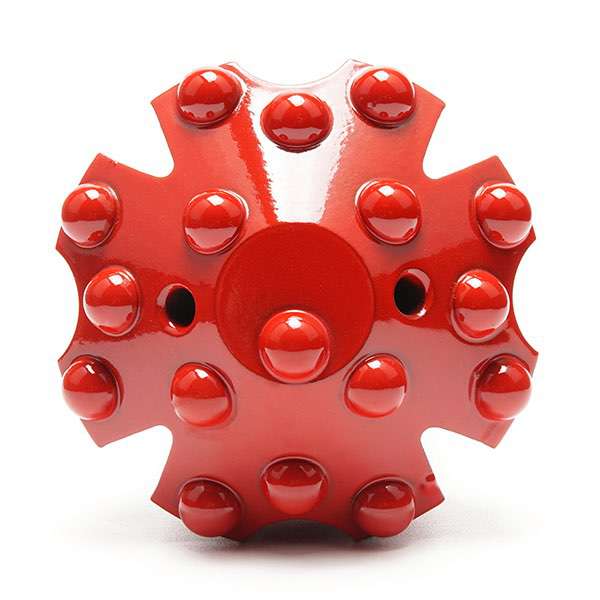

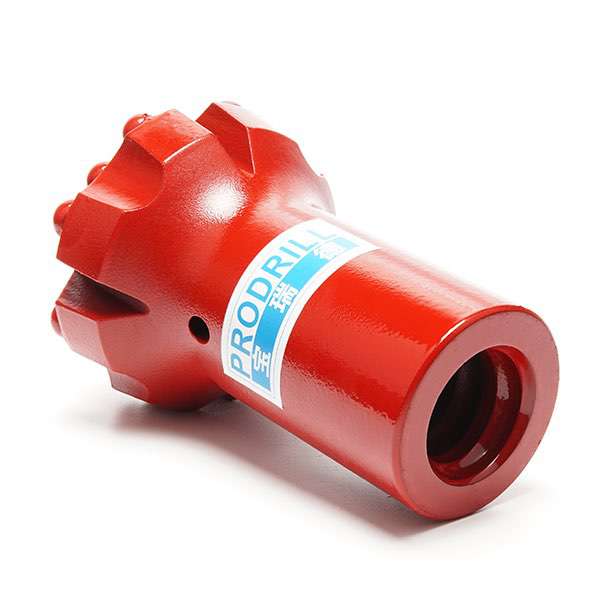

Integral Reaming Bit R32-102mm
- Thread Type: R32
- Reaming Diameter: 102mm
- Length: 165mm
- Buttons: 13mm*17
- Carbide Design: Dome
- Weight: 4.57KG
- :
Prodrill reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge. A second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.
Features:
Made from high alloy steel and tungsten carbide as same grade as internationally well-known brand
Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand
Entire CNC processing procedure ensure the quality consistency
Military grade requirements of heat-treatment guarantee durability
Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.
A reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes pilot adapter a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge.
Reaming ring of reaming tools, a second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.
R32-102mm Integral Reaming Bit is the main drilling bit for Chilean market.
For PDF file, please click: Reaming Tools for Bench Drilling, Long Hole Drilling Underground Catalogues
