Q9-45-R32 Threaded Button Bit
- Thread: R32
- Diameter: 45mm
- Gauge Buttons: 6*10mm
- Front Buttons: 3*8mm
- Skirt Design: Standard
- Weight: 0.8KGS
- Carbide Design: Semi-Ballistic
Rock drilling tools manufacturer ProDrill offers rock drill bits: R32 Threaded Button Bits is the most important size for drifting and tunneling drilling job.
| R32-45MM button bit ( PRODRILL) | |
| Describtion | R32-45MM button bit |
| Carbide size | 3*8mm/6*10mm |
| Dia. | 45mm |
| Thread | R32-45MM button bit |
| Painting | Atlas Yellow |
| Weight | 0.80KG |
| Face flushing hole | 3 front + 1 side |
| Carbide Design | Semi-ballistic |
| Head treadment | 47-49HRC |
| Carbide Brand and Grade | ZCC/YK05 |
| Steel grade | 45CrNiMoVA |
| Perforemace | For hard rock |
| Package | 25pcs in one wooden box |
| Package size | 35CM×35CM×15CM |
| Net Weight per package | 20KG |
| Grass Weight per package | 22KG |
Threaded Button Bit
Diameter: 43mm, 45mm, 48mm, 51mm, 57mm, 64mm
Skirt body: retrac, and normal,
Face: flat, uniface,
Carbide: Dome, ballistic
Used in drifting and tunneling, dimensional natural stone quarrying
To match shank rod, and MM and MF Hex drifter rod for light-duty top hammer.

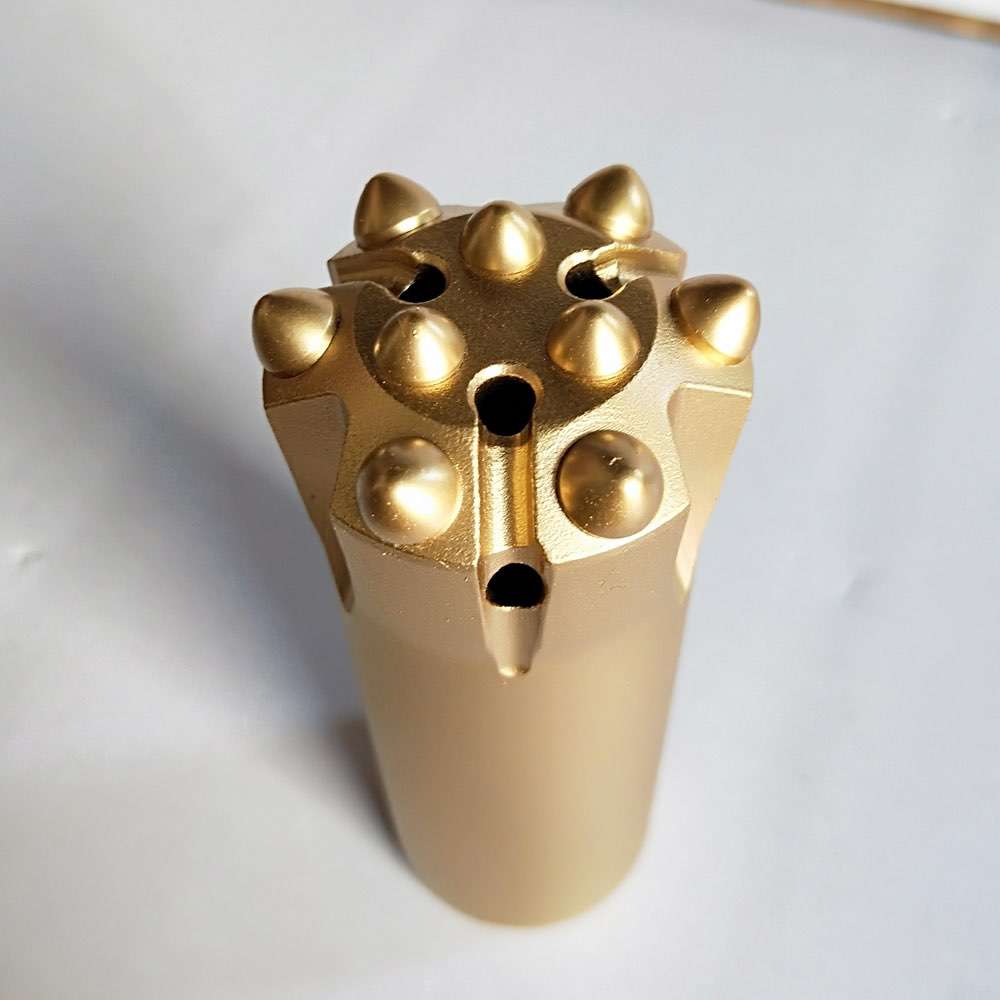

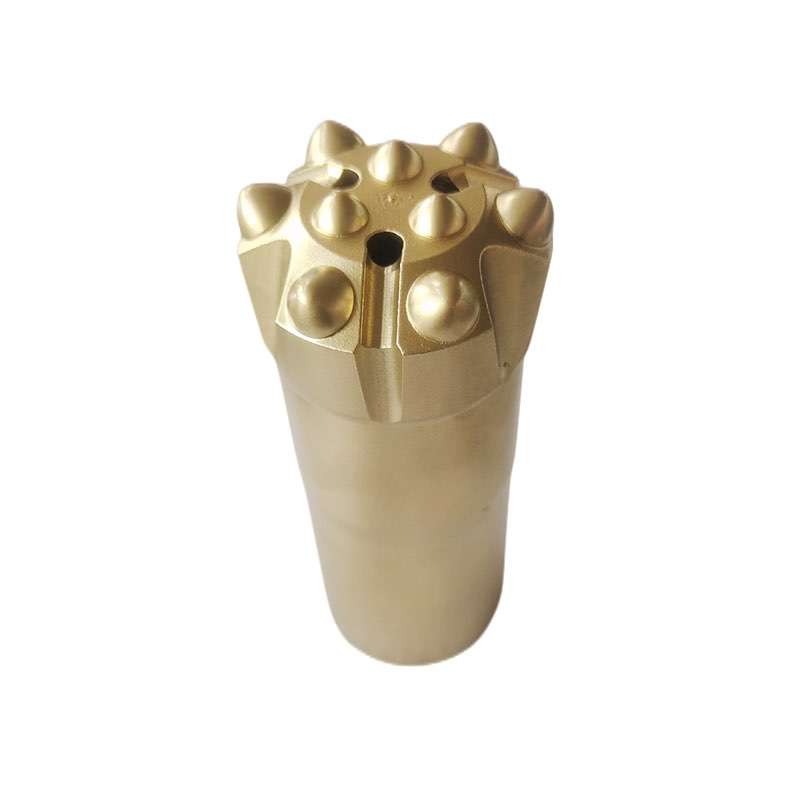

R32 Thread Drill Bit Dome Button Threaded Drill Bit

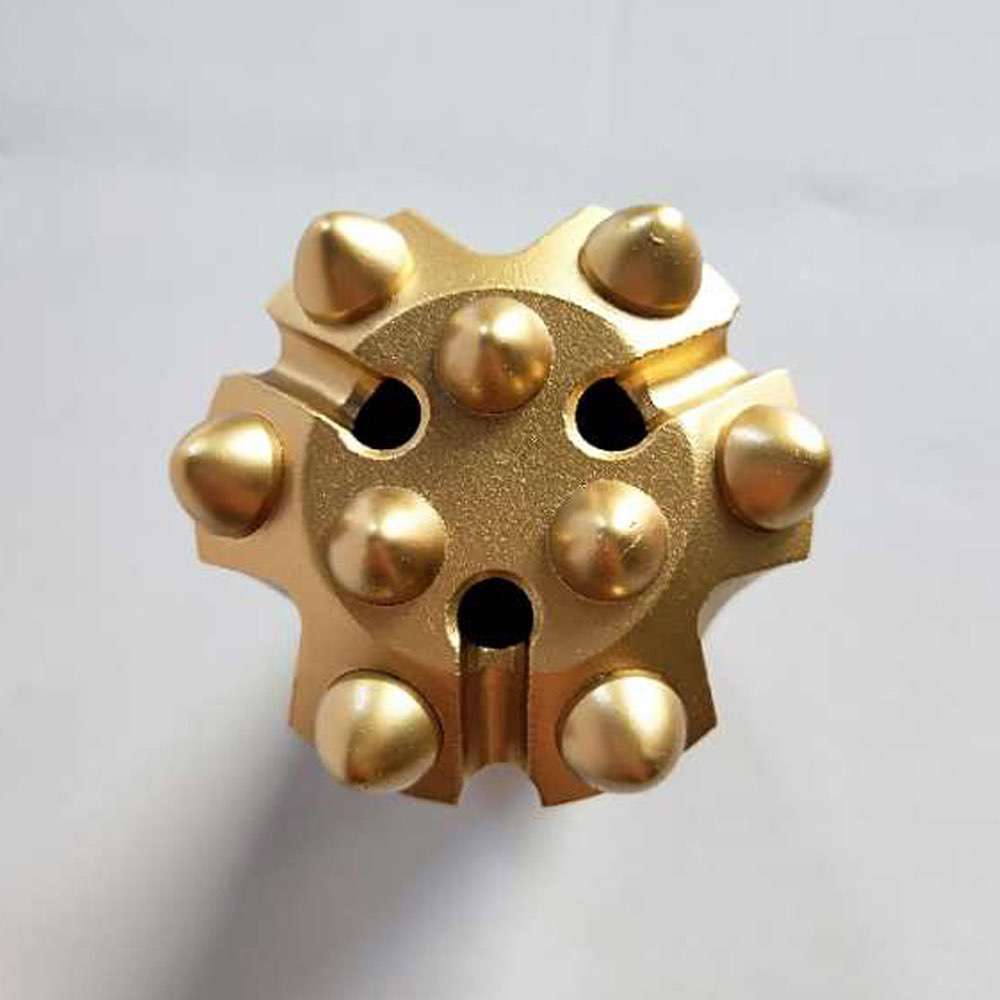

R32 Threaded Drill bit with 9 dome/semi-ballistic carbide inserts, diameter 45mm with standard skirt design
Prodrill button bit used for underground mining in cooper mine of Peru
To match shank rod, and MM and MF Hex drifter rod for light-duty top hammer such as Atlas Copco Boomer 282, L2D, and similar of Sandvik drill rig like Q7.Main Drifter rod as follows: R32-Hex 32 -R32 3660mm,T38-Hex35-SR35 ( R32 ) 4305mm
Q9-45-R32 Threaded Button Bit with R32 drifting rod
