G15 Pneumatic Hammer Splitter For Stone
- Overall Length: 570mm
- Weight: 15kg
- Impact Frequency: ≥16Hz
- Impact Energy: ≥45J
- Air Consumption: ≤26L/S
- Pituitary Diameter: 38mm
- Hose Size: Φ16mm
- Specification of Drill Shank: Φ24*70
- It is used our pressure: 0.63Mpa
Pneumatic splitter is also called pneumatic hammer, air hammer, pick hammer, etc, from rock drilling tools manufacturer ProDrill.
This kind of demolition equipment is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. It can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc.

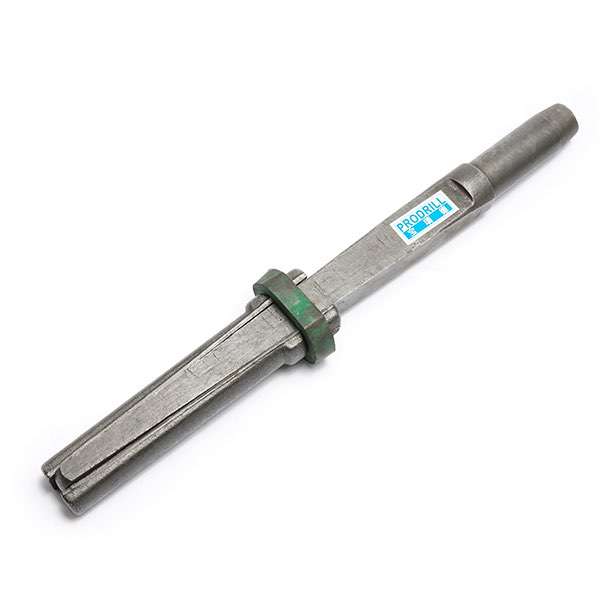

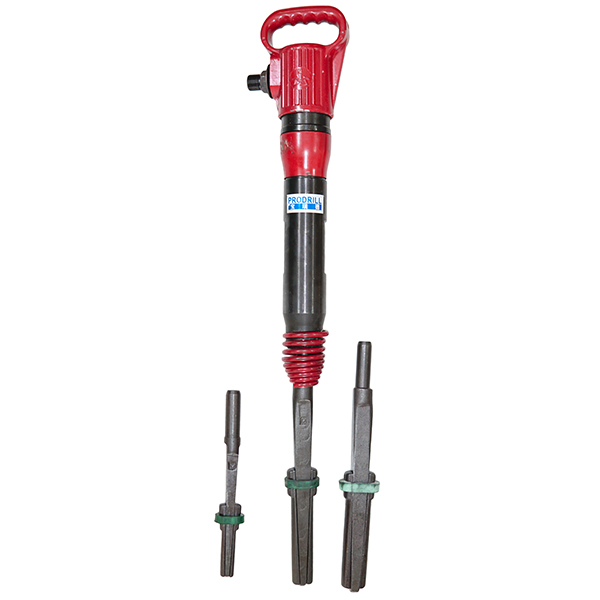

One complete machine including a pneumatic hammer and one set of forge plug and feathers (3parts),
Major size as below, more sizes are available according to your special request.

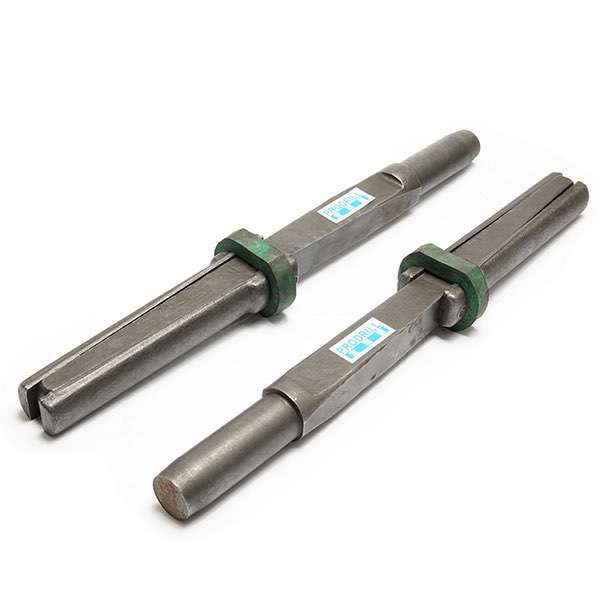

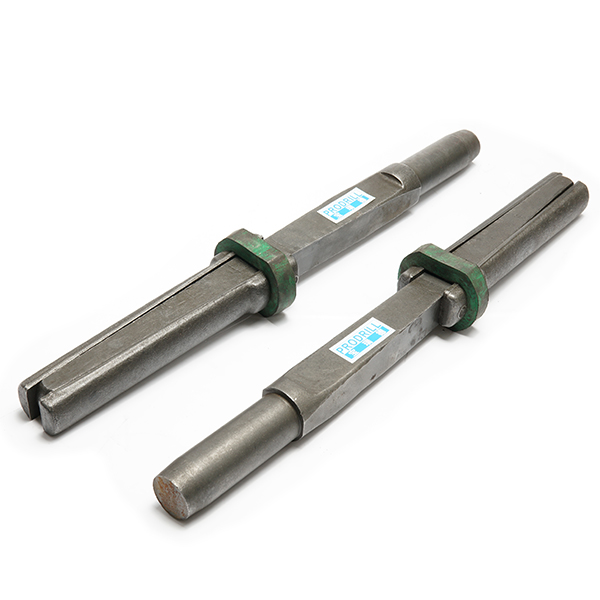

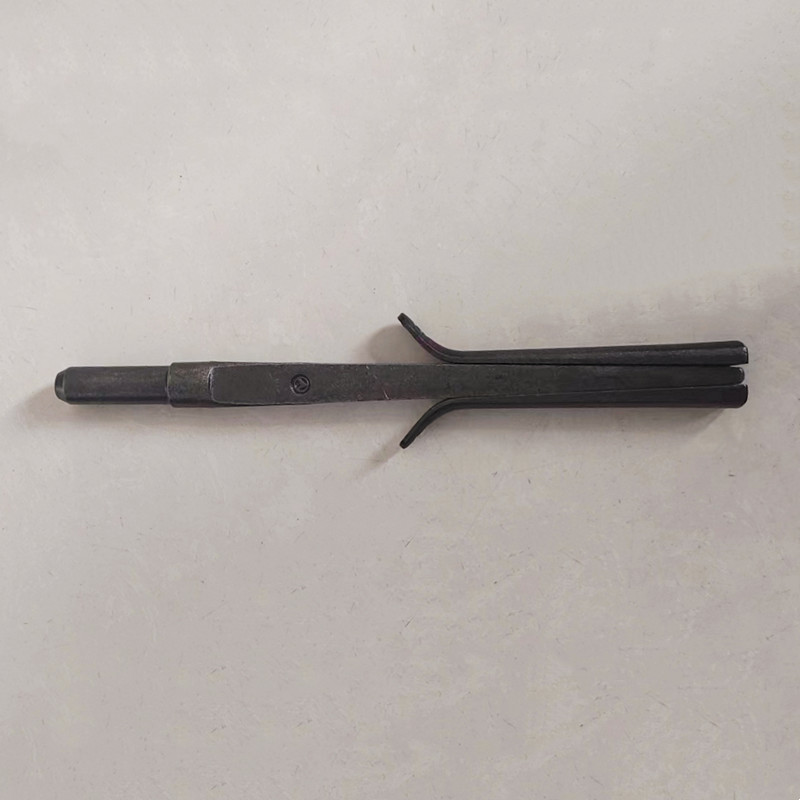

Plugs and feathers size for G10 ，G15 , G16，G 20
| Model | Weight |
| 20MM*290MM | 0.8kg |
| 24MM*330MM | 0.97kg |
| 30MM*395MM | 1.86kg |
| 32MM*365MM | 1.75kg |
| 32MM*395MM | 1.89kg |
| 32MM*470MM | 2.4kg |
| 32MM*610MM | 3.19kg |
| 34MM*395MM | 2.03kg |
| 34MM*610MM | 3.29kg |
| 36MM*395MM | 2.28kg |
| 36MM*610MM | 3.42kg |
| 38MM*395MM | 2.38kg |
| 38MM*610MM | 3.75kg |
| 40MM*395MM | 2.5kg |
G15 Plug & Feathers with size of Diameter 32mm Length 395mm to split granite work site:
