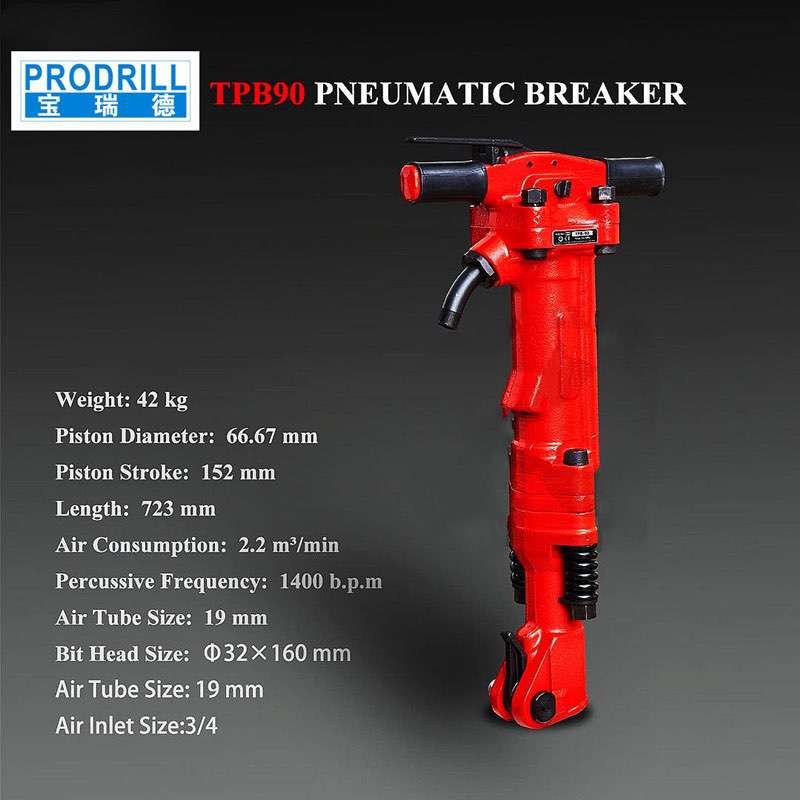

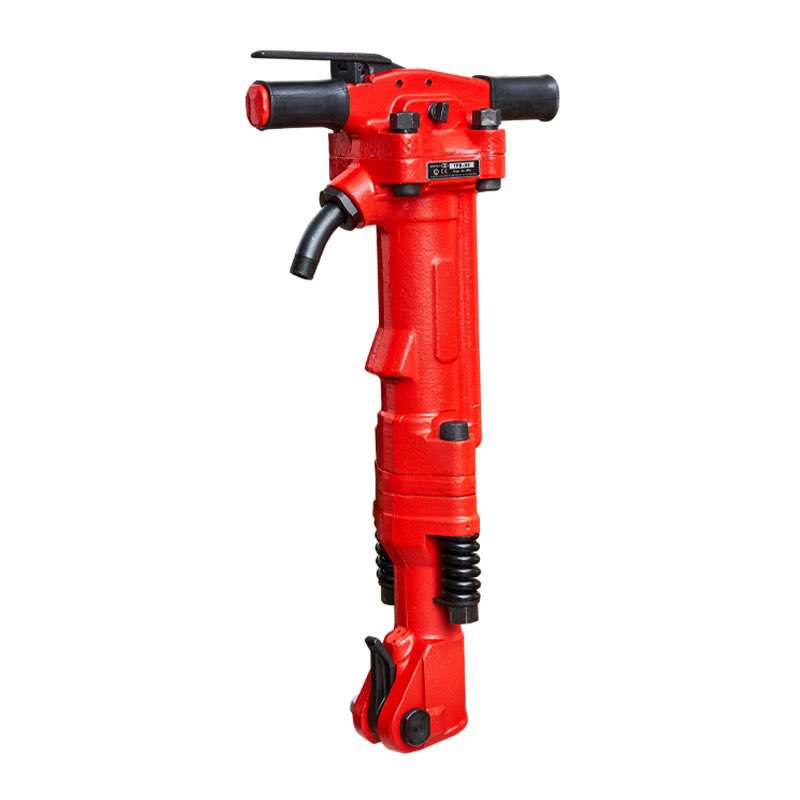

TPB-90 Pneumatic hammers
- Type:TPB-90
- Weight:42(Kg)
- Length:723 (mm)
- Air consumption:2.2L/s
- Piston stroke:152(mm)
- Shank size : 31.5×152(mm)
Model TPB-90 breaker is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

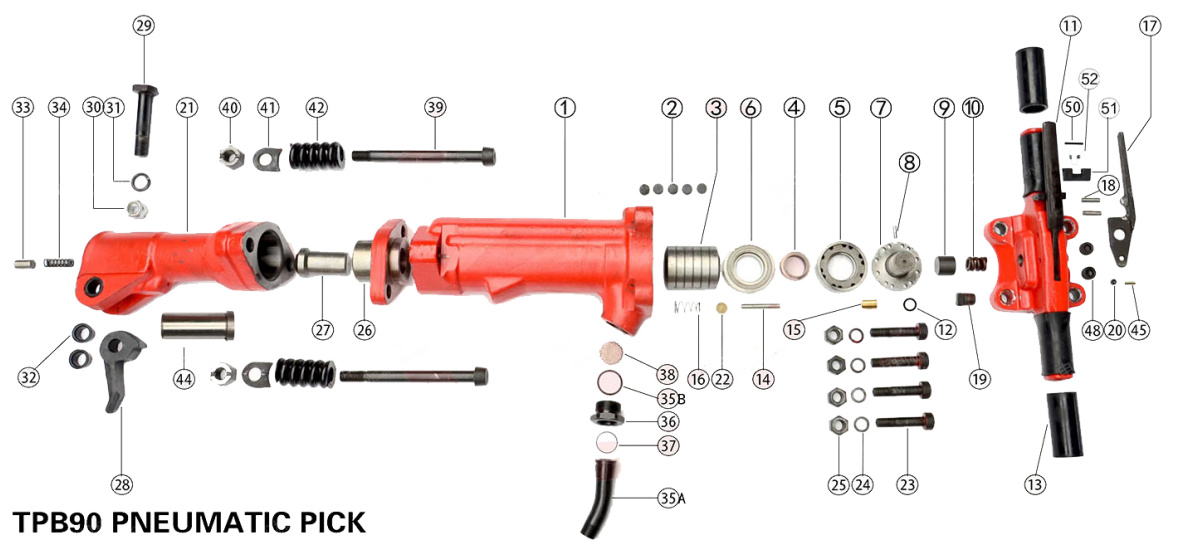

| 1 Cylinder |
2 Plug |
3 Piston |
4 Valve |
5 Valve Chest |
6 Valve Seat |
7 Valve Guide |
8 Dwel Pin |
9 Plunger |
10 Plunger Spring |
11 Back Head |
12 O-Ring |
13 Rubber Grip |
| 15 Throttle Valve Stem Guide |
16 Spring |
17 Throttle Lever |
18 Throttle Lever Pin |
19 Oil Plug |
20 Pipe Plug |
21 Front Head |
22 Rubber Ball |
23 Back Head Bolt |
24 Spring Washer |
25 Nut |
26 Tappet Seat |
27 Tappet |
| 29 Steel Retainer Bolt |
30 Nylon Nut |
31 Spring Washen |
32 Steel Retainer Bolt Bushing |
33 Steel Retainer Plunger |
34 Spring |
35A Air Connection Tube |
35B O-Ring |
36 Air Connection Nut |
37 O-Rring |
38 Air Inlet Screen |
39 Front Head Bolt |
40 Front Head Bolt Nut |
| 42 Srping |
44 Bushing |
45 Felt Oiler |
48 oil plug |
50 Spring Pin |
51 Stop Lever |
52 Stop Lever Spring |
