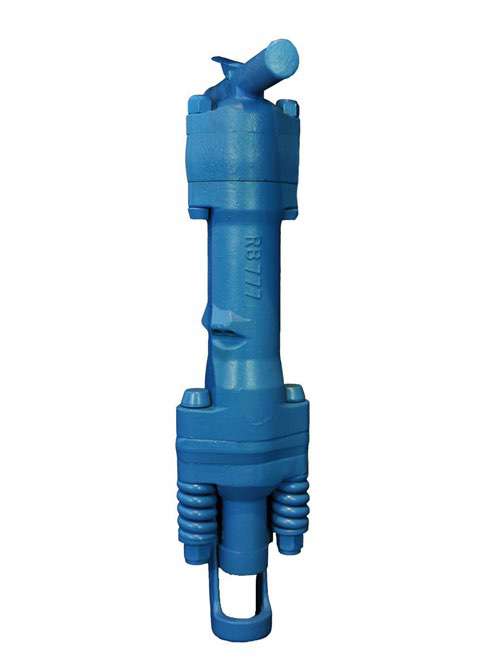

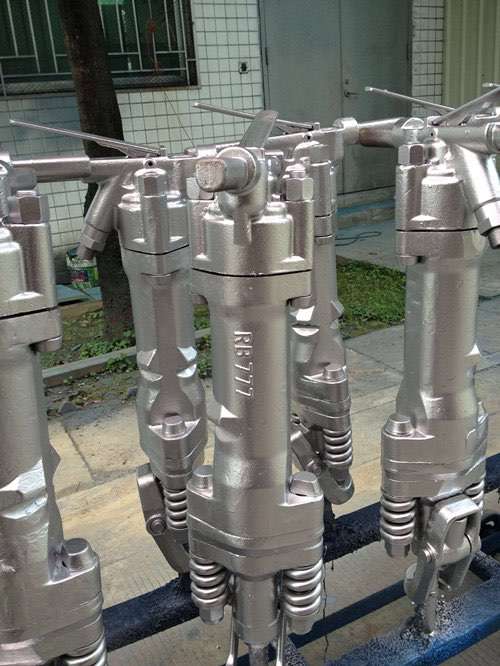

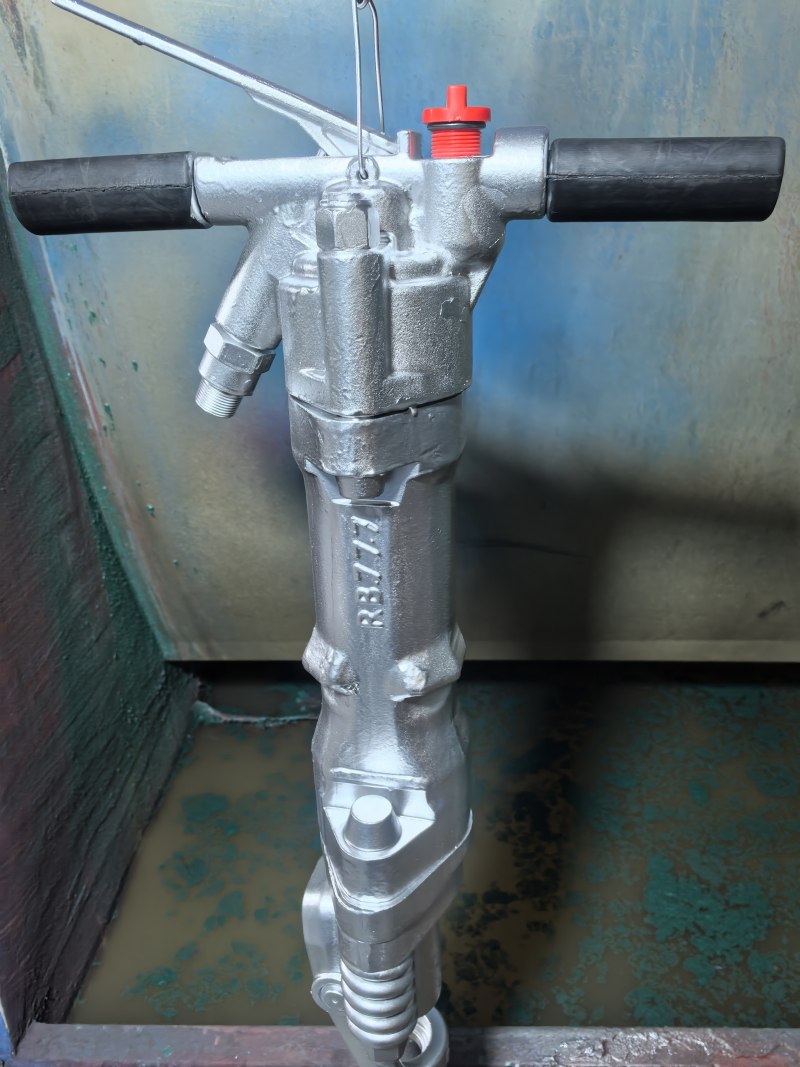

RB777 Paving Breaker
- Type:RB777
- Weight:37kg
- Length:733mm
- Cylinder dia:φ57mm
- Rammar stroke:189mm
- Working pressure:0.4-0.5mpa
- Impact frequency:≥18.3Hz
- Air consumption:≤34(L/S)
- Air pipe inner dia:φ19(mm)
Usage:
Drilling in mine and coal bed and rock demolition.
Crashing concrete and clay.
Blasting in civil engineering and underground construction.
RB777 Paving Breaker Spare Parts Drawing

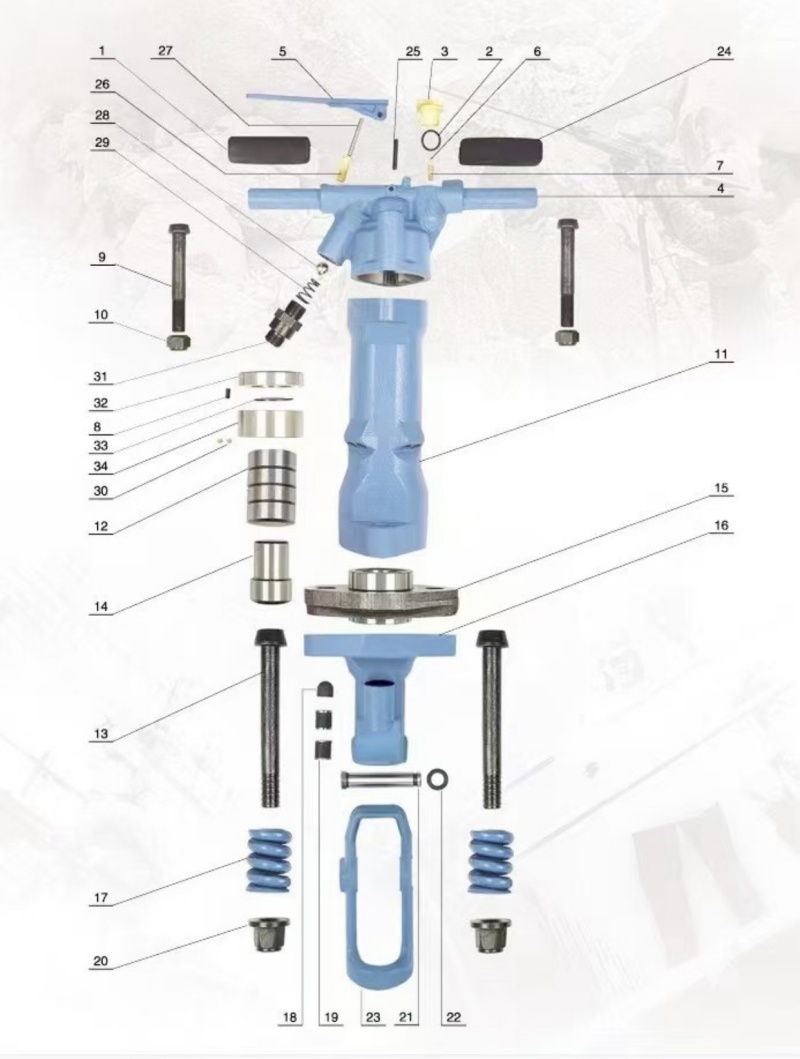

RB777(SL80) Paving Breaker Spare Parts Drawing
| RB777 Paving Breaker SPARE PARTS | |||
| Code | Part No | Name | 名称 |
| RB777 | Jack hammer | 气镐 | |
| 1 | RB777-01 | Control handle | 操纵手把 |
| 2 | RB777-02 | Elastic pin | 弹性圆柱销 |
| 3 | RB777-03 | Jib pipe | 挺杆导管 |
| 4 | RB777-04 | Rammer head | 镐柄头 |
| 5 | RB777-05 | Box valve | 阀箱 |
| 6 | RB777-06 | Cylinder | 气缸 |
| 7 | RB777-07 | Side bolt | 长螺杆 |
| 8 | RB777-08 | Nut | 螺母 |
| 9 | RB777-09 | Plug | 螺塞 |
| 10 | RB777-10 | Air connection tube | 气管接头 |
| 11 | RB777-11 | Clogging valve spring | 球阀弹簧 |
| 12 | RB777-12 | Clogging valve | 阻塞球阀 |
| 13 | RB777-13 | Jib pin | 挺杆销 |
| 14 | RB777-14 | Guide sleeve | 导向套 |
| 15 | RB777-15 | Front head | 机头 |
| 16 | RB777-16 | Yoke | 钎卡 |
| 17 | RB777-17 | Yoke bolt | 钎卡螺栓 |
| 18 | RB777-18 | Yoke spring | 钎卡弹簧 |
| 19 | RB777-19 | Yoke nut | 钎卡螺母 |
| 20 | RB777-20 | Yoke axis | 钎卡小轴 |
| 21 | RB777-21 | O-seal ring | O型圈 |
| 22 | RB777-22 | Rammer | 锤体 |
| 23 | RB777-23 | Punch | 冲头 |
| 24 | RB777-24 | Valve chest | 阀柜 |
| 25 | RB777-25 | Valve core | 阀片(芯) |
| 26 | RB777-26 | Valve chest pad | 阀柜垫板 |
| 27 | RB777-27 | Yoke pin | 钎卡挡位销 |
| 28 | RB777-28 | Pin pad | 挡位销垫柱 |
