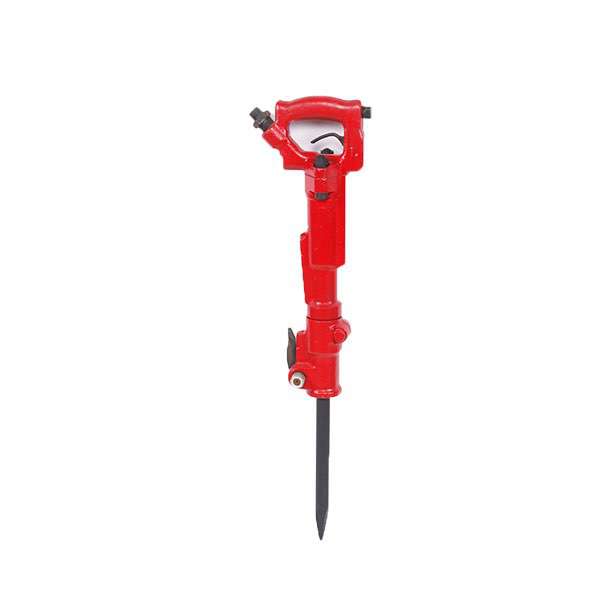

Model B10 portable jack hammer is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

Pneumatic pick is lighter, more flexible and convenient operation. It’s suitable for operation all around of work, especially in narrow space, upper or climbing direction.

It can stop working automatically when the solid object is broken.

It’s widely used in coal mining, soft rock, digging digging slots, breaking concrete, frozen earth in constructionand installation engineering or constructing

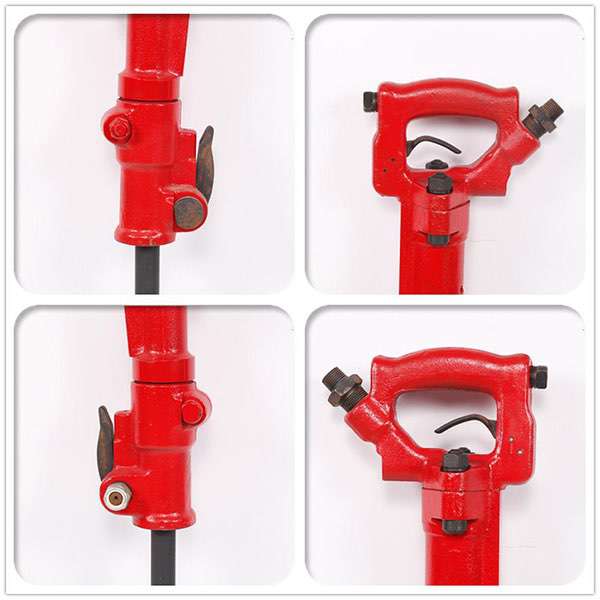

HTB1izUKRFXXXXXfaXXXq6xXFXXXPWEB用

Product Main Features:
This kind of machine is designed for block secondary splitting or squaring specially,
It can be instead of the dynamite blasting or traditional manual splitting device completely
Ergonomic design can make operator fell comfortable and also improve the working efficiency
Flexible operation. Huge impact, appropriate frequency, low gas consumption;
The key parts of the hammer body, valve set and so on adopt special alloy steel, wear-resisting, strong impact resistant ability.
The utility model can be widely used for the construction and demolition of the rein forced concrete, the demolition of the building part, the demolition of the brige and the underwater demolition

Technical Parameters:

Model	B10	B37	B47	B50	B67C
Weight	10Kg	17Kg	21.5Kg	18Kg	39Kg
Length	520mm	580mm	550mm	660mm	686mm
Working pressure	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa
SCFM	22L/S	22L/S	23L/S	33L/S	55L/S
Air pipe inner dia	26×80 mm	30×87 mm	25×108 mm	25×108 mm	32×152 mm
