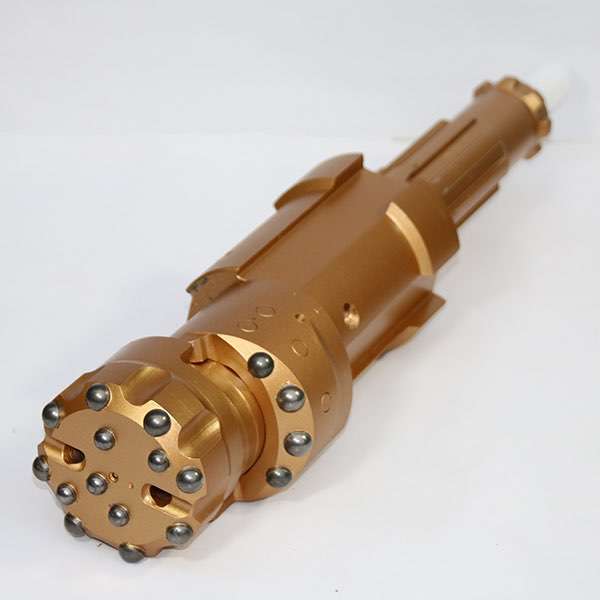

ODEX90 Eccentric Casing
- Casing Tube Outer Dia.: 108mm
- Casing Tube Inner Dia.: 93-99mm
- Reamed Hole Dia.: 123mm
- Casing Shoe Inner Dia.: 87mm
- DTH Hammer Type: HD35 QL30
- Drill Pipe: 76mm

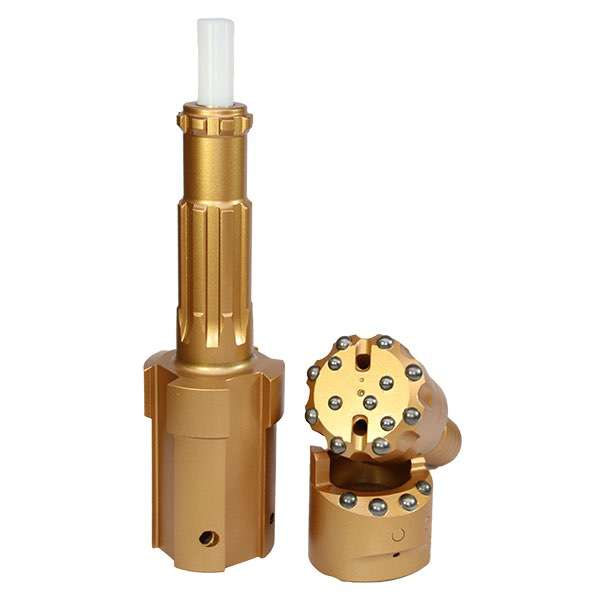

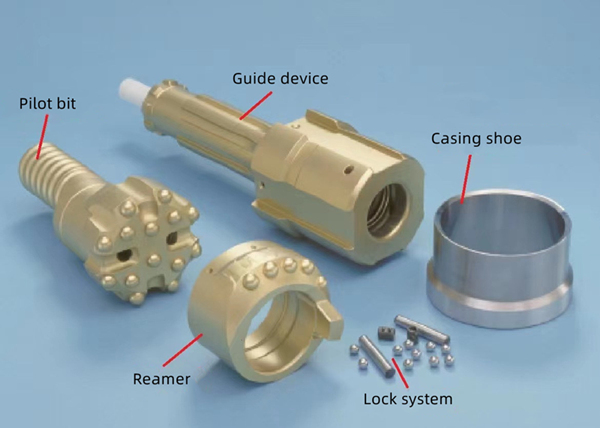

For small-hole sizes, ProDrill produces the ODEX Eccentric Overburden Drilling System, rock drill bits starting with the ODEX90 to suit 114mm O.D. casings. This two-piece system comprises the shank bit holder and the eccentric pilot bit that is secured in the bit holder by a double interlocking pin. This is easily removed to allow for bit sharpening or replacement. ProDrill ODEX overburden drilling systems are widely used in a variety of applications from well drilling and mini pilling to rock anchoring and site investigation.
Application Range
It is suitable for drilling water wells, geothermal wells, short micro piles ,medium mini-type grouting hole of building, dam and harbor project.
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly
2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
How to order?
Casing Tube Out Diameter & Inner Diameter + Reamer Bit Diameter + Minimal Casing Shoe Inner Diameter + Hammer Shank Style
Technical Data
| Type | Casing Tube | Reamed Hole Dia(mm) | Casing Shoe Inner Dia(mm) | DTH Hammer type | Drill Pipe(mm) | |
| OD(mm) | ID(mm) | |||||
| ODEX80-P | 108 | 93-99 | 118 | 87 | COP34/DHD3.5 | 76 |
| ODEX90-P | 114 | 102-108 | 123 | 93 | COP34/DHD3.5 | 76 |
| ODEX100-P | 127 | 114-117 | 136 | 102 | COP34/DHD3.5 | 76 |
| ODEX115-P | 140 | 124-128 | 152 | 115 | COP44/DHD340/SD4/QL40 | 76 |
| ODEX120-P | 146 | 130-134 | 154 | 121 | COP54/DHD350/SD5/QL50 | 76 |
| ODEX140-P | 168 | 148-156 | 185 | 140 | COP54/DHD350/SD5/QL50 | 89 |
| ODEX150-P | 178 | 158-166 | 195 | 150 | COP54/DHD350/SD5/QL50 | 89 |
| ODEX165-P | 194 | 174-182 | 211 | 166 | COP64/DHD360/SD6/QL60 | 114 |
| ODEX190-P | 219 | 199-207 | 237 | 193 | COP64/DHD360/SD6/QL60 | 114 |
| ODEX210-P | 245 | 225-233 | 260 | 210 | COP84/DHD380/SD8/QL80 | 114 |
| ODEX240-P | 273 | 253-257 | 308 | 241 | COP84/DHD380/SD8/QL80 | 114 |
| ODEX280-P | 325 | 305-309 | 378 | 281 | DHD112/DHD380 | 114 |

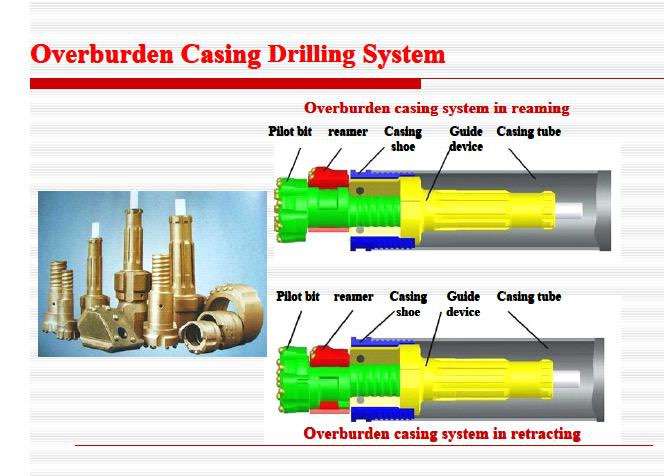

Over Burden Casing Drilling System:

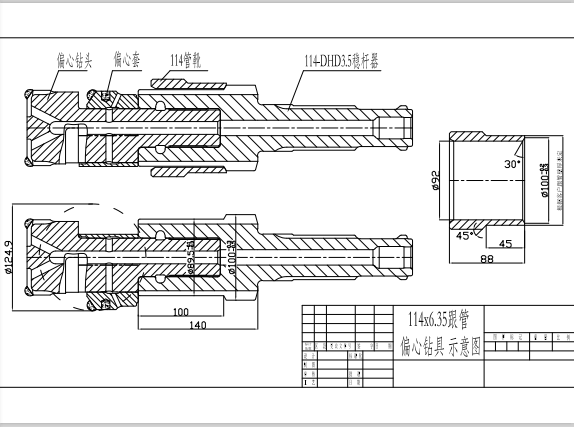

ODEX90 casing system drawing
A set of overburden drilling system in reaming and retracting.
For more details please review PDF online: ODEX Eccentric Overburden Casing System Catalogue
