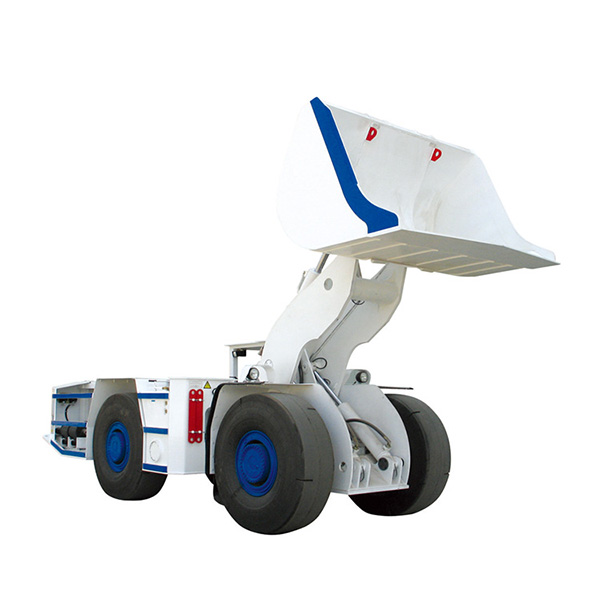

WJ-4 Underground Diesel Wheel Loader, Load Haul Dump(LHD)
WJ-4 Underground Diesel Wheel Loader, Load Haul Dump(LHD), Underground Mining Loader, Low Profile LHD, Underground Mining Equipment,
Product main features
The best power system is matched to give full play to the system performance, and there is a certain reserve of power and strong power.
Low fuel consumption, low emissions of pollutants, low noise, environmental protection and energy conservation.
The components have strong versatility, low operation and maintenance costs, and good economy.
The chain protection function is complete. When the vehicle stops or the vehicle fails, the vehicle is automatically in braking state, which is safe and reliable.
Ergonomically designed, cushioned seats, visual operator interface, comfortable ride, and maximum visibility.
Central articulated body, power steering, good passability.
Swing body, to ensure full four-wheel landing, great traction.
The steel structure of the car body is made of high-quality carbon structural steel, CNC cutting, gas shielded welding, overall processing, surface shot peening and high mechanical strength.
Scraper buckets are specially designed for wear parts such as shovel blades and side blades. They are made of wear-resistant materials and have low scooping resistance.
According to customer needs, optional remote control operating system, automatic fire fighting system, active safety monitoring system, automatic weighing system.
Specification of WJ-4 Diesel LHD Loader:
|
Heaped Bucket Capacity |
4m³ |
|
Max. Traction |
272KN |
|
Running Speed |
0-22km/h |
|
Max. Rotation Angle |
40°±2° |
|
Diesel engine |
SCANIA DC09 076A |
|
Dimensions |
9500*2740*2372mm |
|
Payload Capacity |
10000kg |
|
Max. Shovel Force |
210KN |
|
Grade ability |
25% |
|
Min. Turning Radius |
6650±250 mm outside,3345±250mm inside |
|
Min. Ground Clearance |
290mm |
|
Tire size |
18.00-25 |
|
Weight(include hydraulic oil): |
25.3T |
