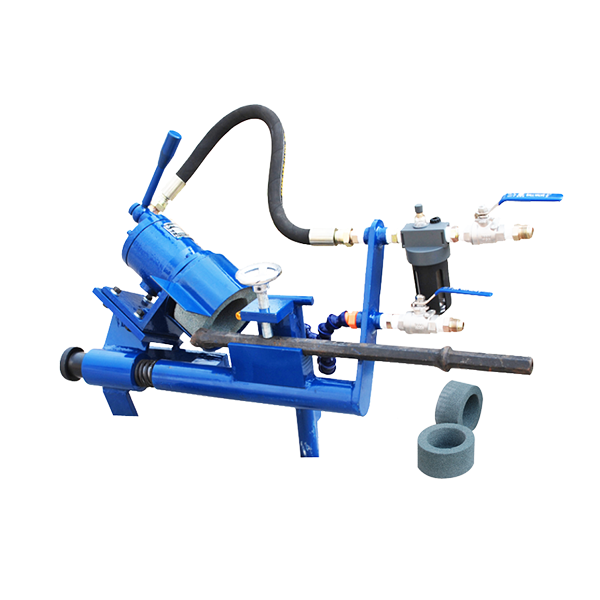

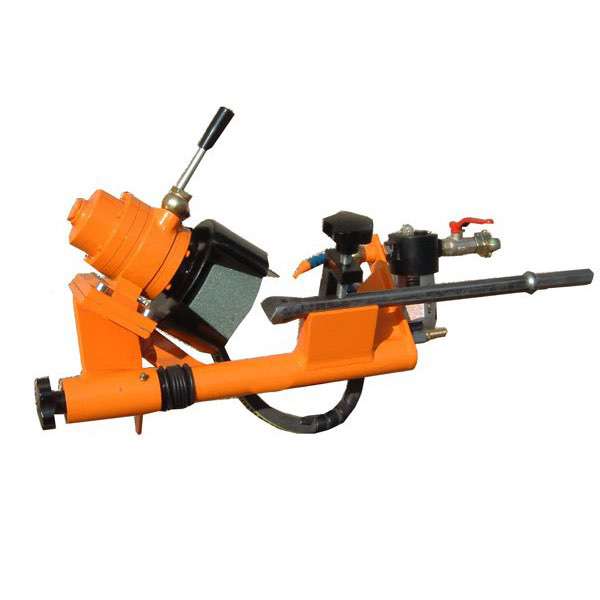

Pneumatic Integral Drill Rod & Chisel Bit Sharpen Grinder

  • Rotation speed : 3500 RPM Max
  • Motor Power : HP2
  • Sharpening angle : 110°
  • Sharpening radius : 125 mm
  • Operating pressure insufficient : 6.0 bar
  • Air consumption at 6 bar : 1.5 mc/min
  • Abrasive grinder diameter : 152 mm
  • Grinder height : 70 mm
  • Grinder thickness : 22 mm
  • Grinder hole(diameter) : 32 mm
  • Bench version weight : 36 kg
  • Portable version weight : 37 kg

Pneumatic Integral Drill Rod & Chisel Bit Sharpen Grinder

Grinding tools
Grinding equipment
Integral Drill Steel Grinder
drill rod grinding tools

Product details

From Rock drilling tools manufacturer ProDrill: Pneumatic Integral Drill Rod & Chisel Bit Sharpen Grinder is a milling machine surface grinding, capable for re-grinding blunted drilling steel integral bits carbide at an angle of 110 degrees, since this Integral Drill Steel Grinder is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Chisel bit type Integral Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.

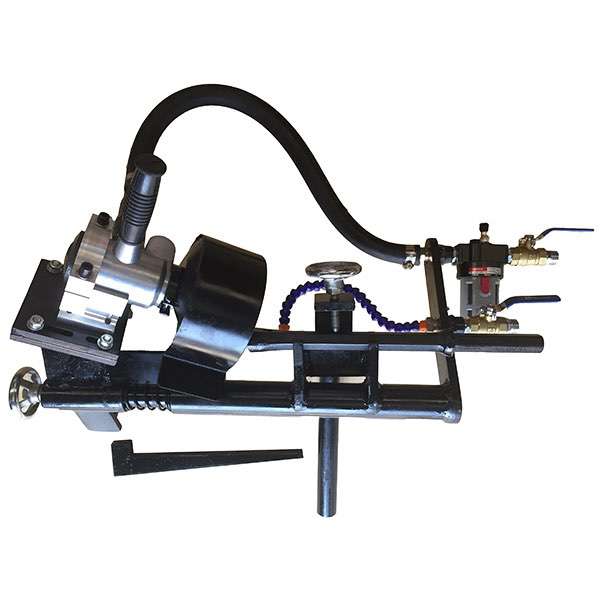

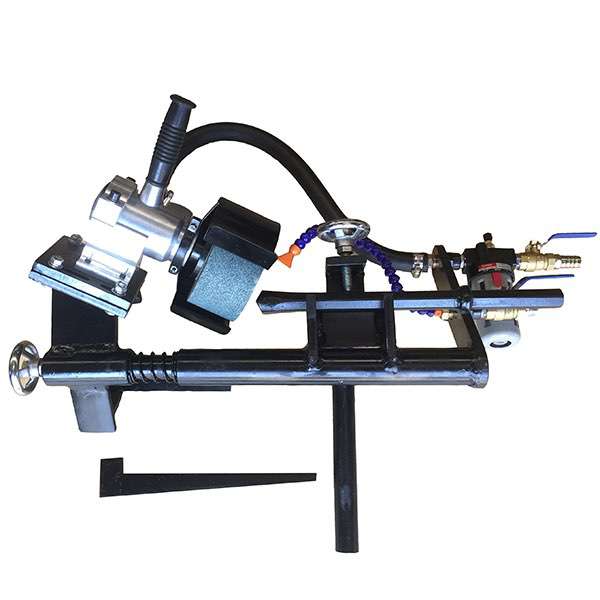

Integral Steel GrinderIntegral Steel Grinder

This pneumatic machine is designed for grinding the chisel bits and integral drill rods. Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and save your money.

It's hand-held using, very convenient. And we have CE certificate for this machine.

PD125 Integral Steel Grinder PD125 Integral Steel Grinder

Integral Drill Rod Grinder Technical Parameters

 Rotation speed

 3500 RPM max

 Motor power


 Sharpening angle


 Sharpening radius

 125 mm

 Operating pressure insufficient

 6.0 bar

 Air consumption at 6 bar

 1.5 mc/min

 Abrasive grinder diameter

 152 mm

 Grinder height

 70 mm

 Grinder thickness

 22 mm

 Grinder hole(diameter)

 32 mm

 Bench version weight

 36 kg

 Portable version weight

 37 kg
