PD110 piston-hydraulic rock splitter with 6 cylinders
- Model No.: PD110
- Hole dia: 110
- Drilling depth mm: >1000
- Splitting power Ton/pcs: 411
- Weight KG/pcs: 47
- Working pressure MPa: 100-120
- Space distance mm: 500~1000
- Drive by: Hydraulic power station driven by diesel engine/electric motor
- Power Source: Diesel engine/Electric motor
Prodrill has been developing equipments in two categories:
manual type and mechanical type.
The manual type is light and handy enough for a man worker.
The mechanical type is heavy and operated on a mounted excavator by the excavator operator.The manual type is good for small or narrow work sites.
Mechanical type is for large scale work sites where large amount of hard rock is to be removed rather speedily.
Below piston splitting clyinders used for 110-115mm holes
PD Piston Rock Splitter Technical Parameter
| Model No. | Hole dia. | Drilling depth mm |
Splitting power Ton/pcs |
Weight KG/pcs |
Working pressure MPa |
Space distance mm |
Power Source |
| PD-90 | 90 | ＞1000 | 260 | 32 | 120 | 500-700 | Diesel enginel/ Electric motor |
| PD-102 | 102 | ＞1000 | 305 | 41 | 100-120 | 500-900 | Diesel enginel/ Electric motor |
| PD-110 | 110 | ＞1000 | 411 | 47 | 100-120 | 500-1000 | Diesel enginel/ Electric motor |
| PD-115 | 115 | ＞1000 | 420 | 57 | 100-120 | 500-1500 | Diesel enginel/ Electric motor |
| PD-130 | 130 | ＞1000 | 520 | 80 | 100-120 | 500-2000 | Diesel enginel/ Electric motor |
| PD-150 | 152 | ＞1000 | 600 | 100 | 100-120 | 500-2300 | Diesel enginel/ Electric motor |
| PD-180 | 184 | ＞1000 | 780 | 168 | 100-120 | 800-3000 | Diesel enginel/ Electric motor |
Prodrill offers manual type splitters and mechanical type splitters.

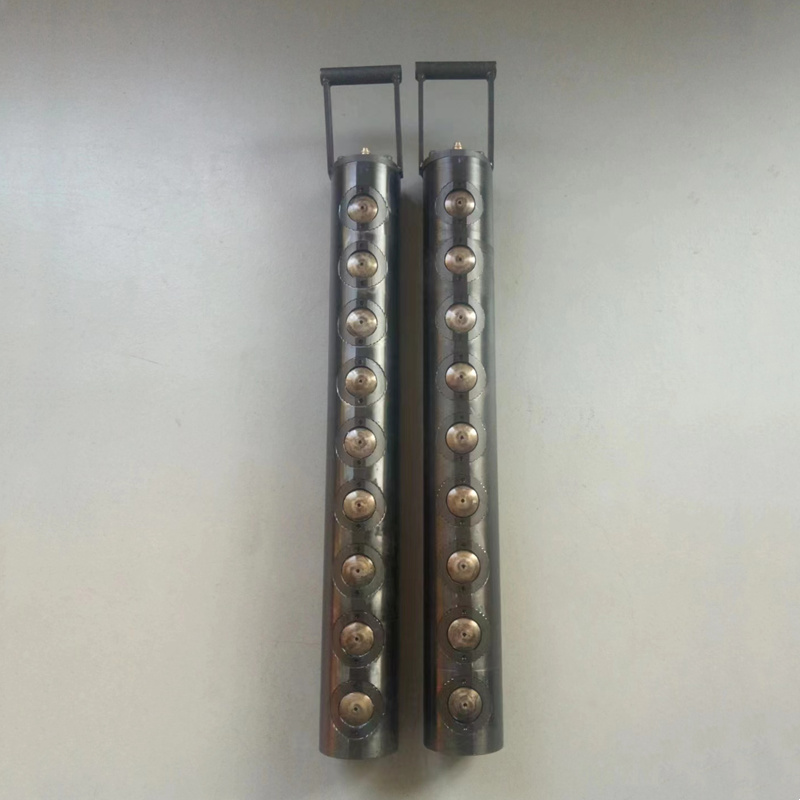

These splitters are piston type cylinders with piston rods inside Qty from 3-8 pcs
A manual type cylinder is light and portable for hand-held operation.
A mechanical type cylinder is heavy and controlled by excavator only.
Different size of diameter is available for the user's convenience.
