PD-450 Diesel Motor Hydraulic Rock Splitter
- Power : 8P horsepower
- Hydraulic oil tank : 50L
- Work Pressure : 55-63mpa
- Workflow : 3-13 liters per minute
- Can be brought at the same time : 1-8 guns
Rock drilling tools manufacturer Prodrill™ series Hydraulic Rock and Concrete Splitters provide a powerful and cost-effective alternative to other conventional demolition equipment such as Expansive Mortar (High Soundless Cracking Agent), Blasting, Pneumatic Spitting Hammer G10, etc. Used for quarrying, demolition. Type of rock splitter is Mobile and portable,

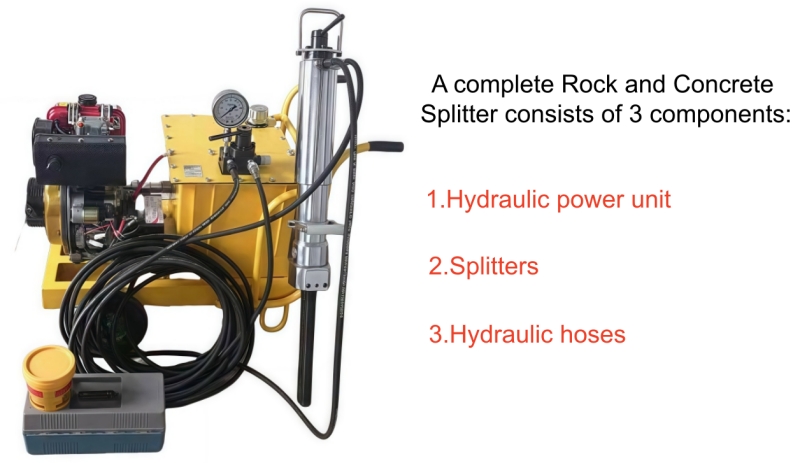

A complete Prodrill series rock and concrete splitter comprises 3 components:
1. one or several steel/aluminum splitting cylinders
2. one hydraulic pump unit
3. one set of high and low pressure hoses
For the details, Hydraulic concrete splitter is constituted by three parts: hydraulic oil pressure system, oil way system and splitting cylinder. Because the hydraulic oil pressure system is specially designed for the machine, and the connection is exclusive, one full set of Hydraulic Rock Splitter included 1 hydraulic power pump station, plus 3 or more hydraulic cylinders, powered by electricity, or fixed with 7.5HP diesel, gasoline engine, or air motor, of course with full set of hoses, one cylinder with one set of counter wedges and center wedges.
As for the consummation energy, gasoline motor, diesel motor, electro motor, air motor less 1 liter per hour ,7.5 HP single cylinder, very small cost in consuming of gasoline and diesel, 4 kw for one hour consumed for electric, cost less.

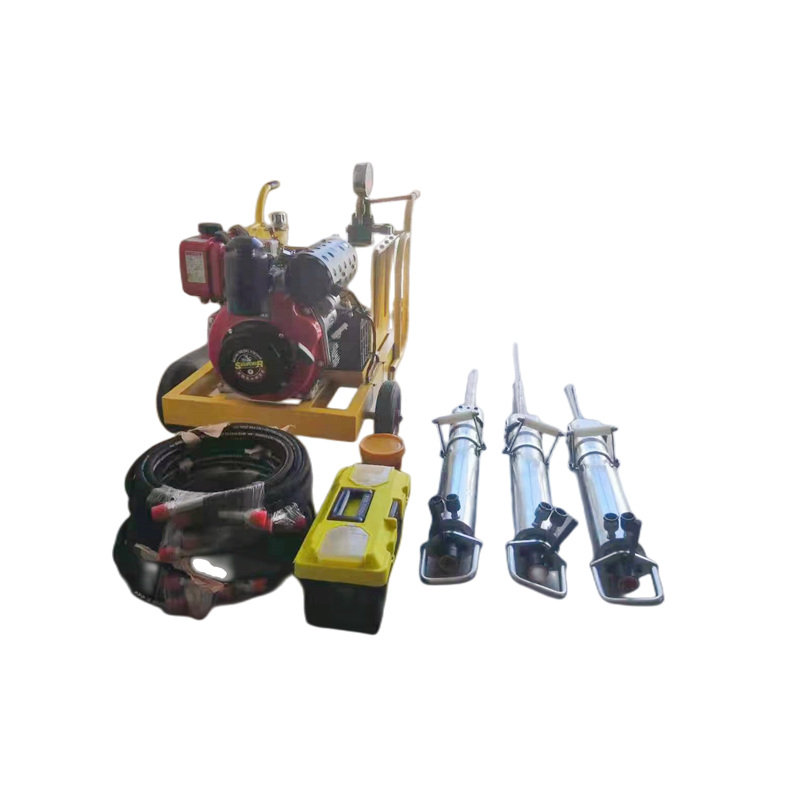

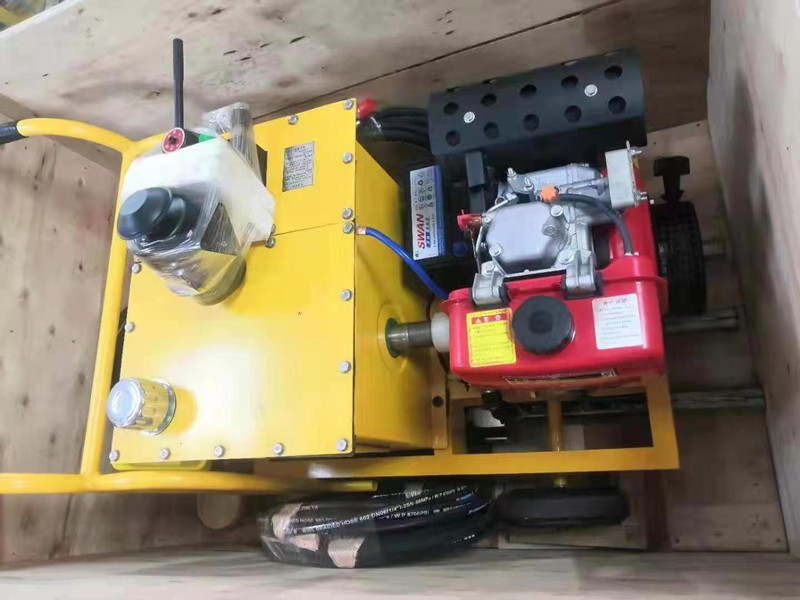

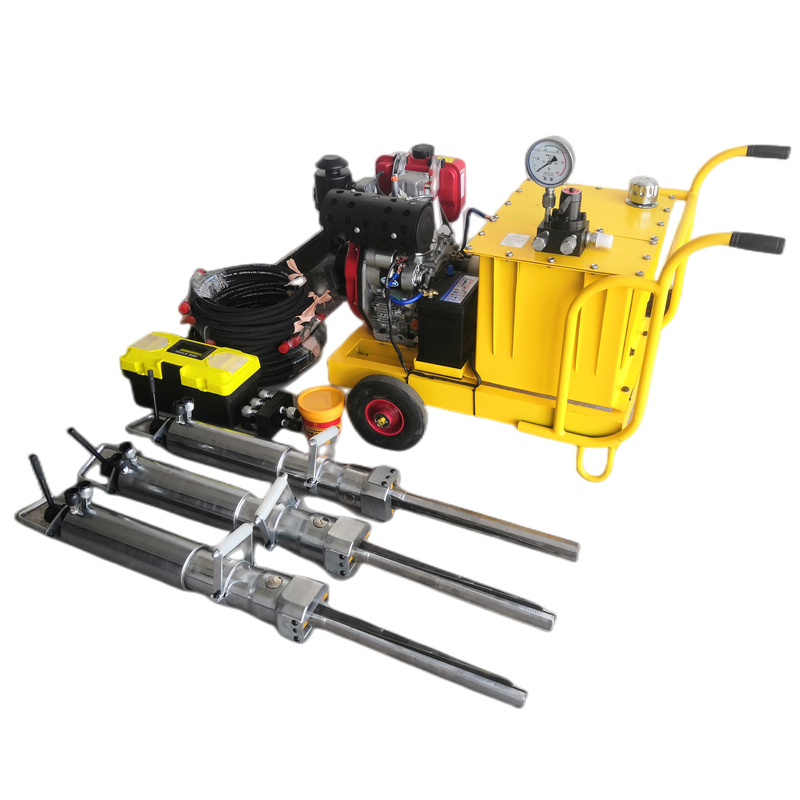

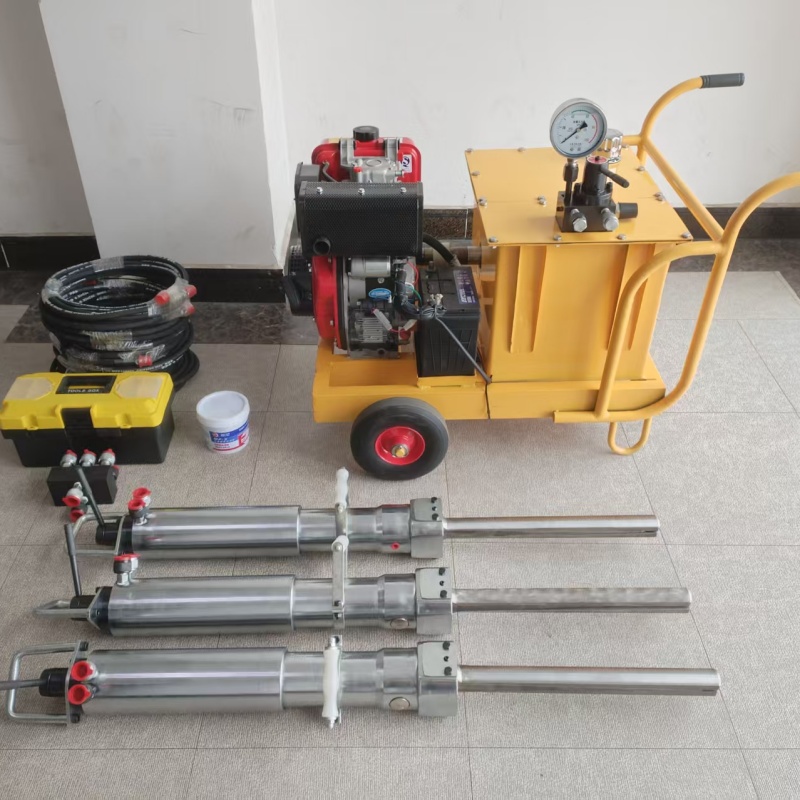

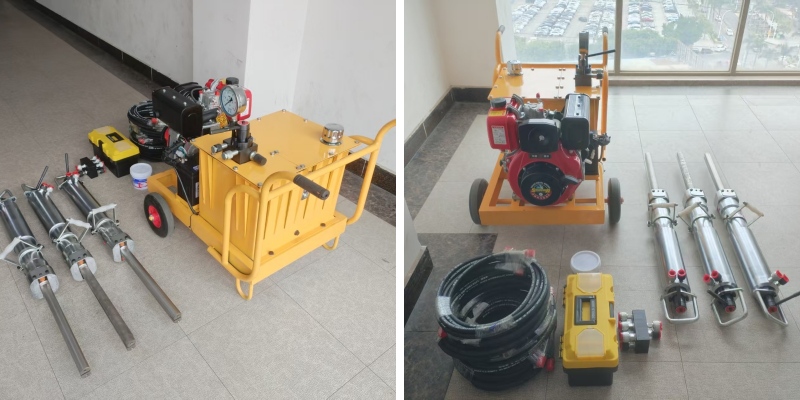

Diesel Driven Air-cooles hydraulic rock splitter with steel cylinder

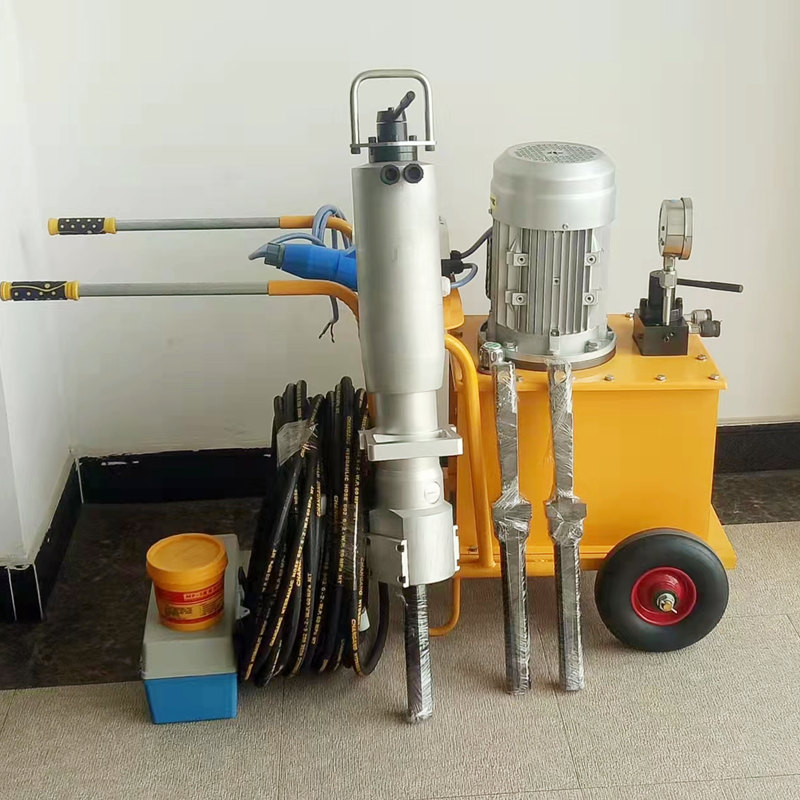

Electrical motor drived hydraulic splitter with aluminiun cylinder
GEDSC DIGITAL CAMERA
Advantage:
1) Splitting force up to 450tons
2) Dust free
3) Quiet performance
4) Also applicable at places of difficult access
5) Vibration free
6) Easy handling
7) Easy to transport
8) Splits in seconds
9) Controlled splitting
10) Dimensional accurate working

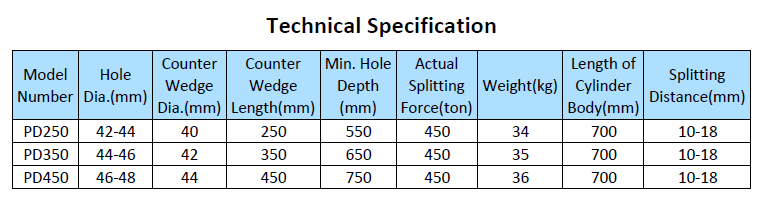

Technical specification
Electric, air, diesel or gasoline motors can be used to drive the high pressure pump units. The system pressure has been limited to 80Mpa by a pressure limiting valve.Both mobile and portable pump units are available
Depending on the pump model,up to 8 splitting cylinders can be run simultaneously.As for diesel motor, we can supply air-cooled and water-cooled System as for customer’s choice, water-cooled type rate is much competitive
C12 Darda 's wedge set ( centra wedge, counter wedges )

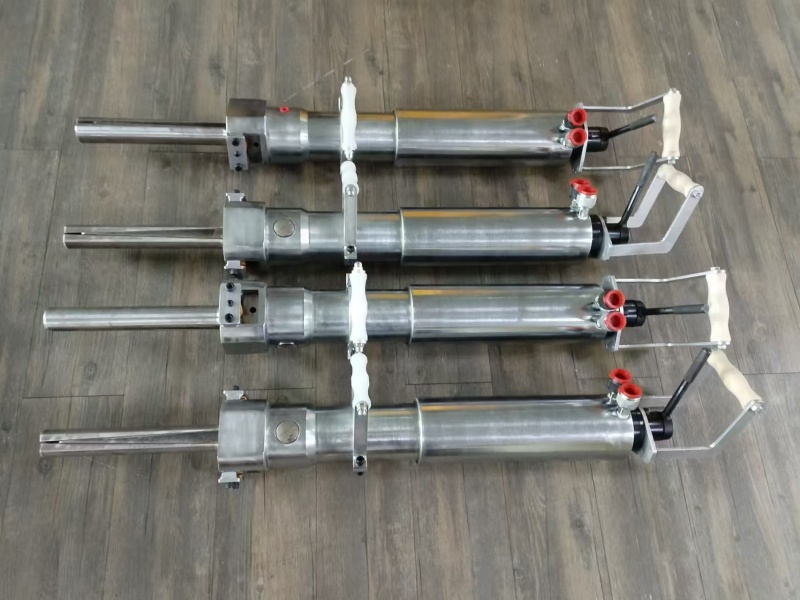

Steel Splitting Cylinder

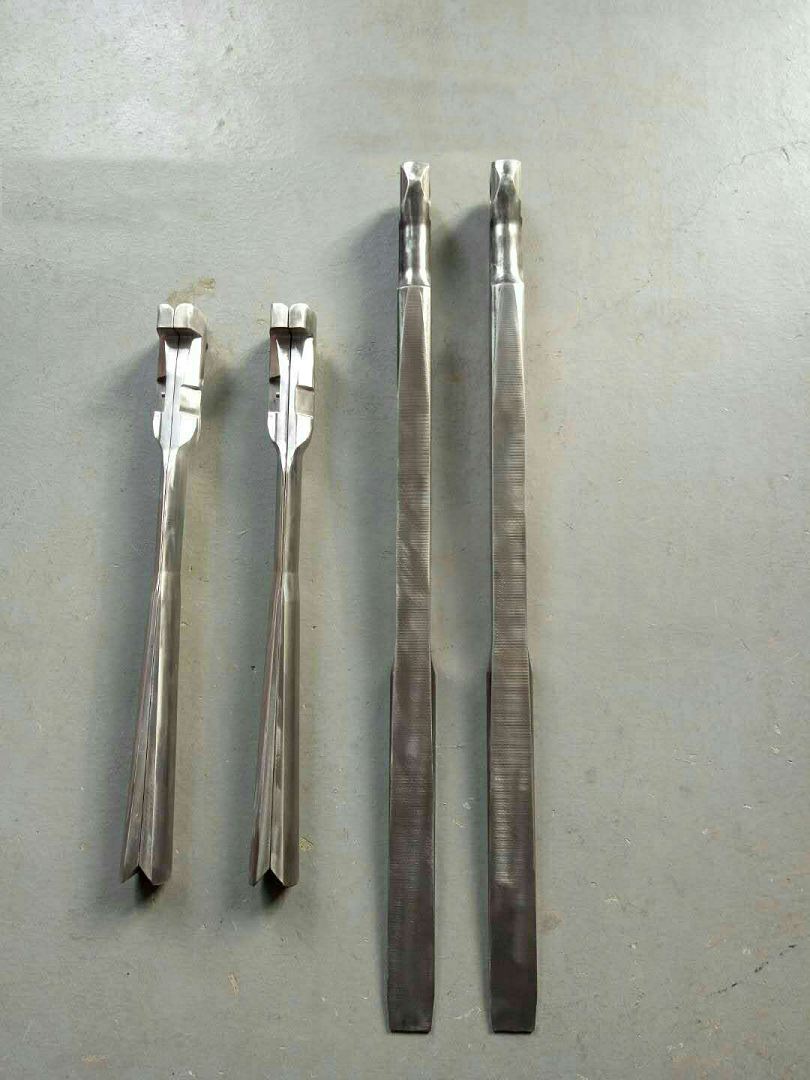

Wedge sets of counter wedge+centra wedge for PD 150,250,350,450 mm
Centre wedge
Piston
How the hydraulic splitter works:

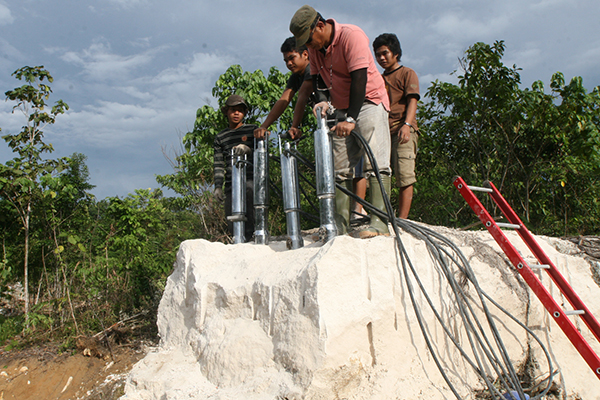

ProDrill hydraulic rock splitter with Darda C12 Aluminum Cylinder, hydraulic pump station powered by diesel motor wind cold engine，splitting power up to 800 Tons.
