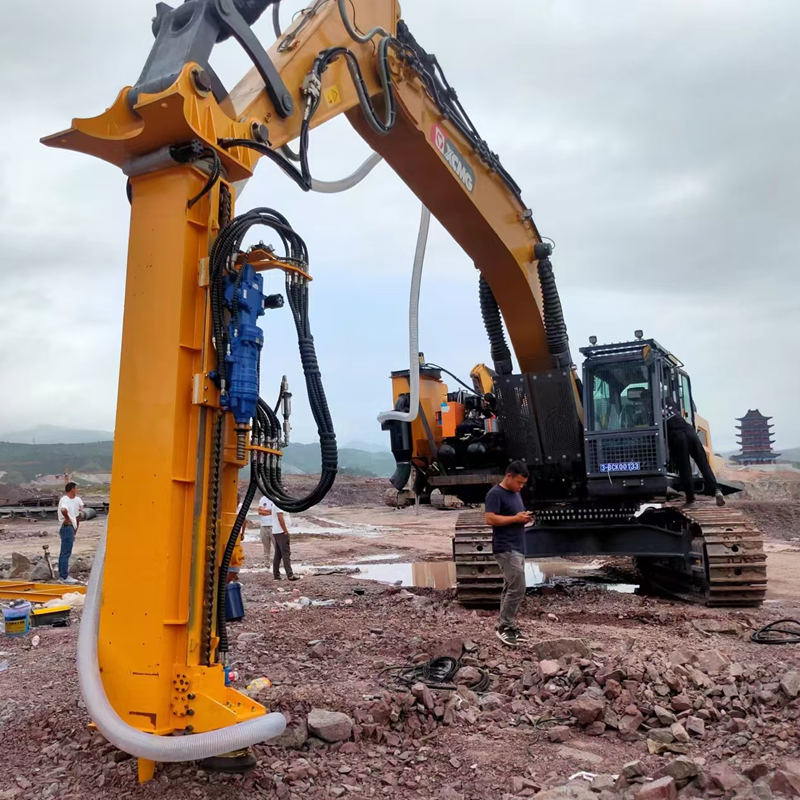

PD-115 Integrated Hydraulic Rock Drill & splitter

Drifter : GZ Dazhao DZ700, Impact power : 18kw
Depth :1.5 m, Drilling hole: 115mm
Max splitting force : 5000 tons
Excavator required : 20-25 Tons
Splitting machine cylinder dia : 320mm
Automatic dust removal to protect the environment :
Wireless controller available with driller and splitter system :
Rotated 360°, and the splitting direction can be controlled at will:

Product details

The leading demolition equipment supplier ProDemo™ with 16 years craftsmanship creates quality, innovation forges classics , Integrated hydraulic rock drill and splitter PD-115, is an innovative over-sized rock demolition techology to replace blasting , expansive mortar (HSCA) , hand hold rock splitter and super wedge's integral drilling & splitting rockbreaking equipment that can break very hard bed rocks in trench , surface , underground , very touch rock condition and formation.

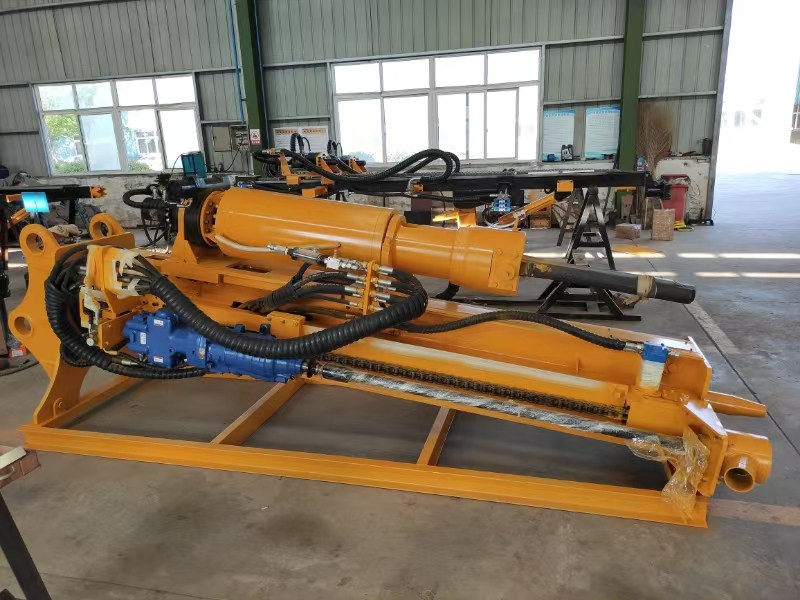

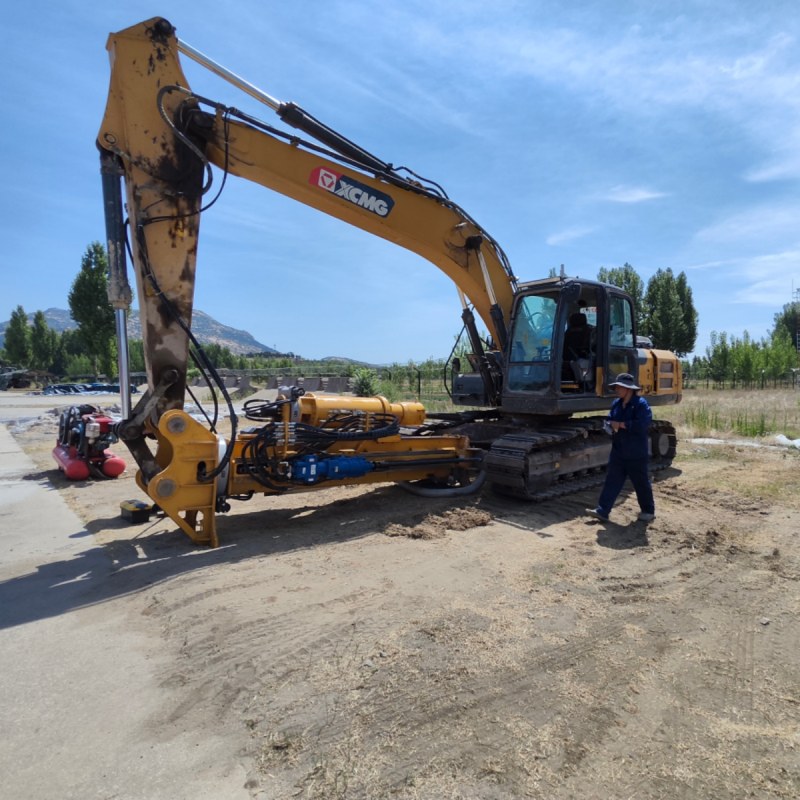

ProDemo™ , PD115 rock drill and splitter attachment is a combined rock drill and hydraulic rock splitter mounted on an excavator. It can be installed on any 20-50 ton excavator. Compared with traditional single-piece rock splitters, there is no need to purchase or rent an additional drilling machine. Only one excavator can complete drilling and rock splitting operations. Save a lot of construction costs, manpower, and time.

PD-115 Integrated Hydraulic Rock Drill & splitter Technical Data Sheet
Serial Number	Parameter	Unit	Numeric	Serial Number	Parameter	Unit	Numeric
1	LengthWidthHeight	mm	450015501600	15	Rotation speed	Rpm	250
2	Total Weight	kg	4450	16	Maximum working flow	L/min	250
3	Hydraulic rock drill	/	YHD210/DZ718	17	Preset pressure	Bar	180
4	Aperture	mm	115	18	Splitting machine	/	ANZP320
5	Hole Depth	mm	1500	19	Cylinder diameter	mm	320
6	Drilling speed	mm/min	500-1200	20	Splitting pressure	Bar	≤315
7	Impact power	kw	18	21	Strength	t	5000
8	Impact method	/	Hydraulic	22	Control System	/	Electro-hydraulic proportional valve + wireless remote control
9	Impact pressure	Bar	175	23	Dust removal system	/	Optional
10	Impact flow	L/min	80-100	24	Screw Compressors	/	40SCG-7
11	Impact flow energy	J	300	25	Air displacement	m³/min	4.5
12	Rotation flow	L/min	30-44	26	Air pressure	Bar	8
13	Rotation pressure	Bar	150	27	Applicable drill rod specifications	/	T51-1830
14	Rotation torque	N.m	830	28	Applicable excavator specifications	t	≥20（26t optimal）

PD-115 with the high speed and top perfmrance rock drill and powerful hydraulic splitter are perfectly combined with the suitable excavator, and the corresponding electro-hydraulic control system is added by using the original power of the excavator, realizing a multi-purpose machine.

During the operation, two machines and multiple operators are required for construction, and the machines need to be moved frequently, which consumes a lot of construction costs and time.

Wireless remote

PD-115 Integrated hydraulic rock drill and splitter system, drifter 18KW, drilling hole 115mm , depth 1.5 meters , splitting machine cylinder dia 320mm , very fast drilling speed, large splitting force Max 5000 tons , and flexible movement of the whole machine.

According to clients feedback , This is really amazing invnovative rock demoliton design, easy for user , driller to finish rock or concrete demolishing job, One excavator can complete the rock drilling and splitting operations. This saves the costly use of a rock drill. There is no need to frequently move the equipment during work, which greatly improves rock breaking efficiency.

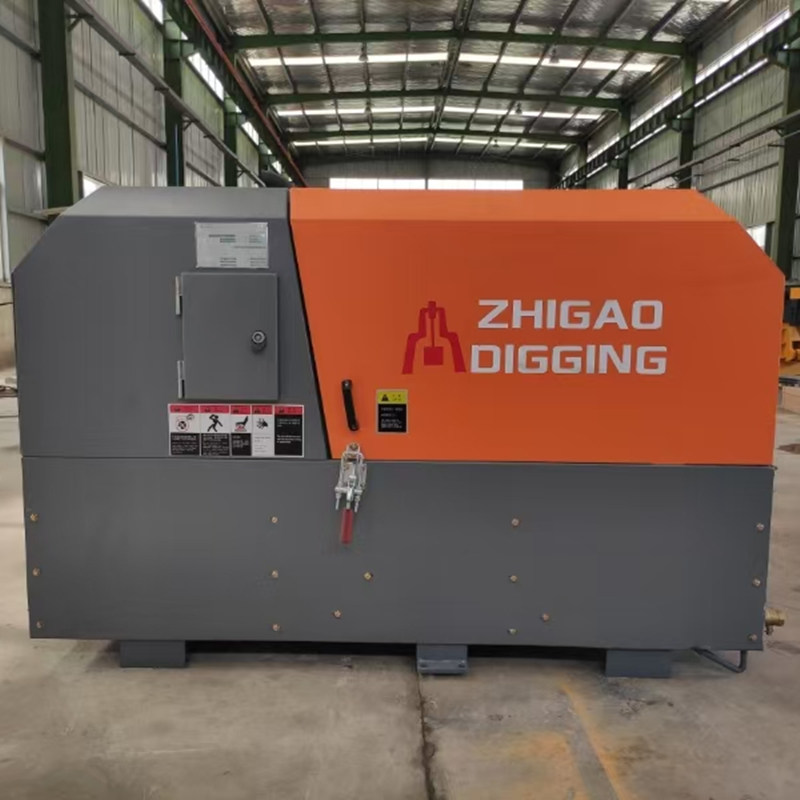

Air compressor parameters, diesel screw air compressor, 37KW national four cylinder turbocharged diesel engine, air volume 4.5m ³/min, air pressure 8bar.

Application : ProDemo™ The integrated hydraulic rock drill and splitter are especially suitable for the decomposition of huge-sized rocks after blasting in mine quarries; and hard rock-breaking projects near residential areas where blasting is prohibited, such as urban foundation pits, subway construction, pipeline trenches, road widening, etc.

Advantage：

It combines a rock drill, rock splitter, and excavator perfectly
It adopts pin-shaft installation, so it is easy to replace other equipment
It can be rotated 360°, and the splitting direction can be controlled at will
It can work at multiple angles of vertical, inclined, and horizontal
It is a fully hydraulic drilling machine with fast drilling efficiency.
It has an automatic pressurization system to achieve a strong splitting force
It has automatic dust removal to protect the environment
It has a wireless remote control which is safe and fast
