PD90 Piston Rock Splitter
- Model No.: PD90
- Hole dia: 90
- Drilling depth mm: >1000
- Splitting power Ton/pcs: 260
- Weight KG/pcs: 32
- Working pressure MPa: 120
- Space distance mm: 500~700
- Power Source: Diesel engine/Electric motor
Prodrill has been developing equipments in two categories:
manual type and mechanical type.
The manual type is light and handy enough for a man worker.
The mechanical type is heavy and operated on a mounted excavator by the excavator operator.The manual type is good for small or narrow work sites.
Mechanical type is for large scale work sites where large amount of hard rock is to be removed rather speedily.
PD Piston Rock Splitter Technical Parameter
| Model No. | Hole dia. | Drilling depth mm |
Splitting power Ton/pcs |
Weight KG/pcs |
Working pressure MPa |
Space distance mm |
Power Source |
| PD-90 | 90 | ＞1000 | 260 | 32 | 120 | 500-700 | Diesel enginel/ Electric motor |
| PD-102 | 102 | ＞1000 | 305 | 41 | 100-120 | 500-900 | Diesel enginel/ Electric motor |
| PD-110 | 110 | ＞1000 | 411 | 47 | 100-120 | 500-1000 | Diesel enginel/ Electric motor |
| PD-115 | 115 | ＞1000 | 420 | 57 | 100-120 | 500-1500 | Diesel enginel/ Electric motor |
| PD-130 | 130 | ＞1000 | 520 | 80 | 100-120 | 500-2000 | Diesel enginel/ Electric motor |
| PD-150 | 152 | ＞1000 | 600 | 100 | 100-120 | 500-2300 | Diesel enginel/ Electric motor |
| PD-180 | 184 | ＞1000 | 780 | 168 | 100-120 | 800-3000 | Diesel enginel/ Electric motor |
Prodrill offers manual type splitters and mechanical type splitters.

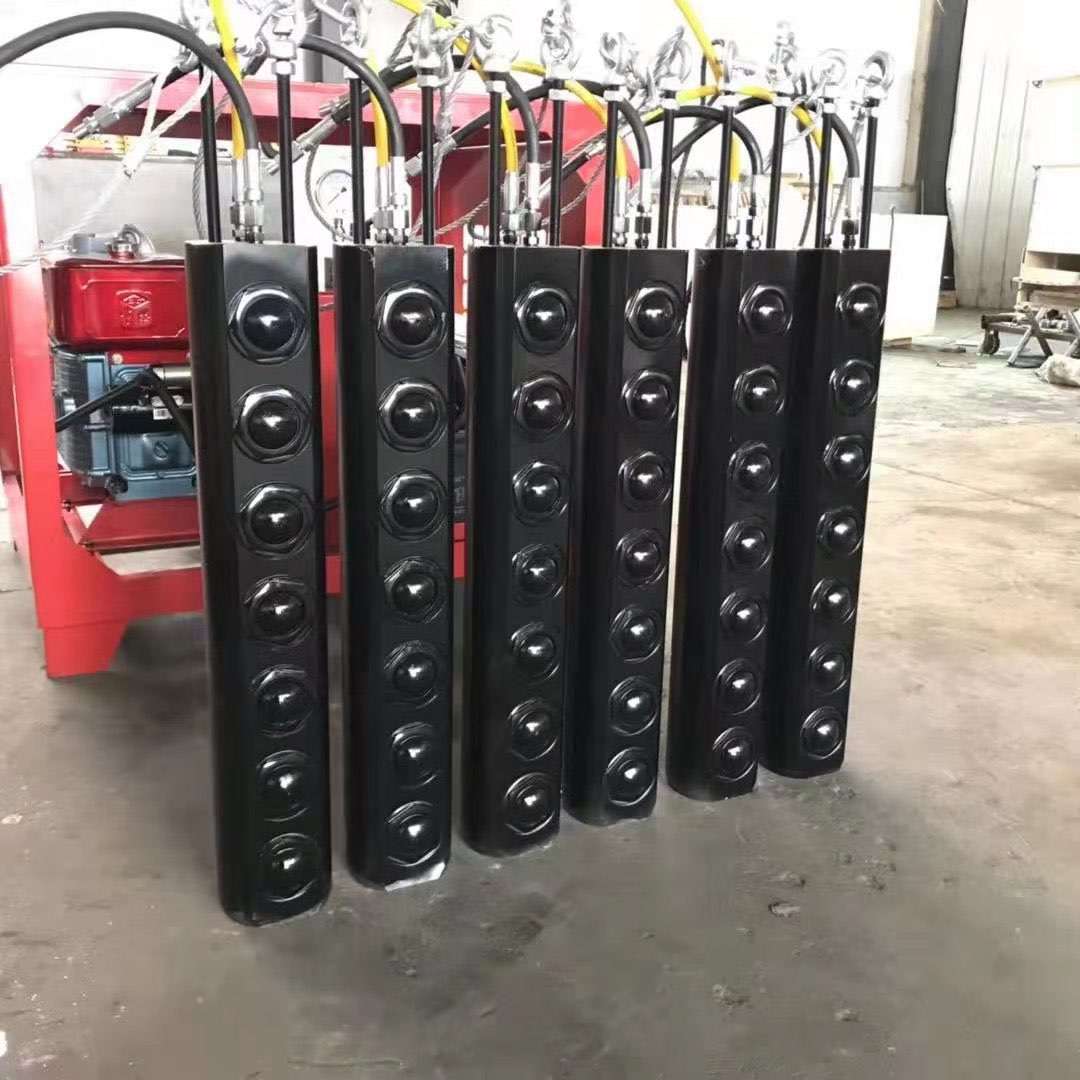

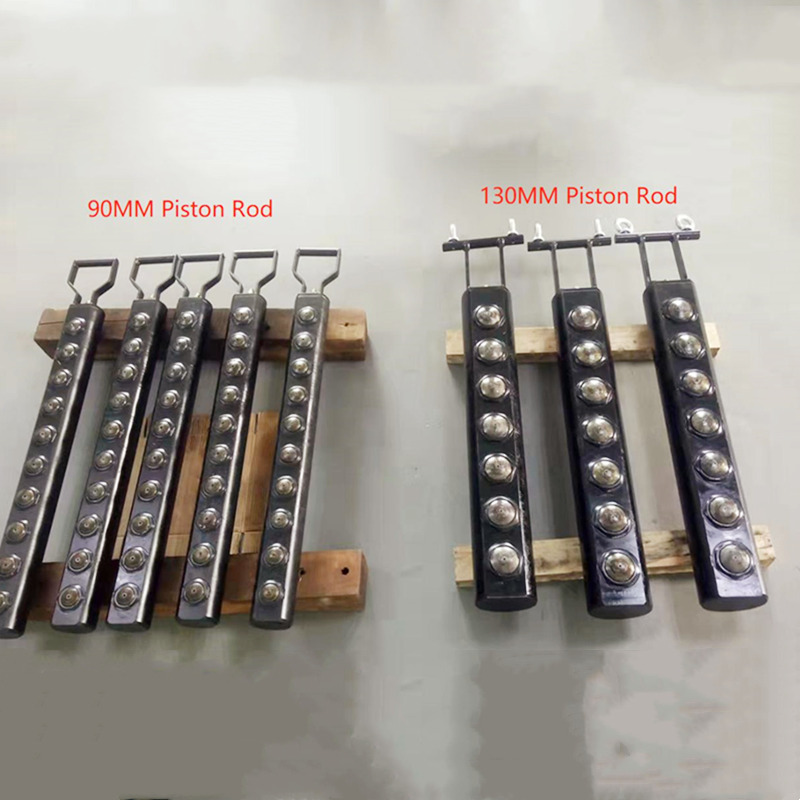

These splitters are piston type cylinders with piston rods inside Qty from 3-8 pcs
A manual type cylinder is light and portable for hand-held operation.
A mechanical type cylinder is heavy and controlled by excavator only.
Different size of diameter is available for the user\'s convenience.
These splitters are piston type cylinders with piston rods inside Qty from 3-8 pcs
A manual type cylinder is light and portable for hand-held operation.
A mechanical type cylinder is heavy and controlled by excavator only.
Different size of diameter is available for the user\'s convenience.

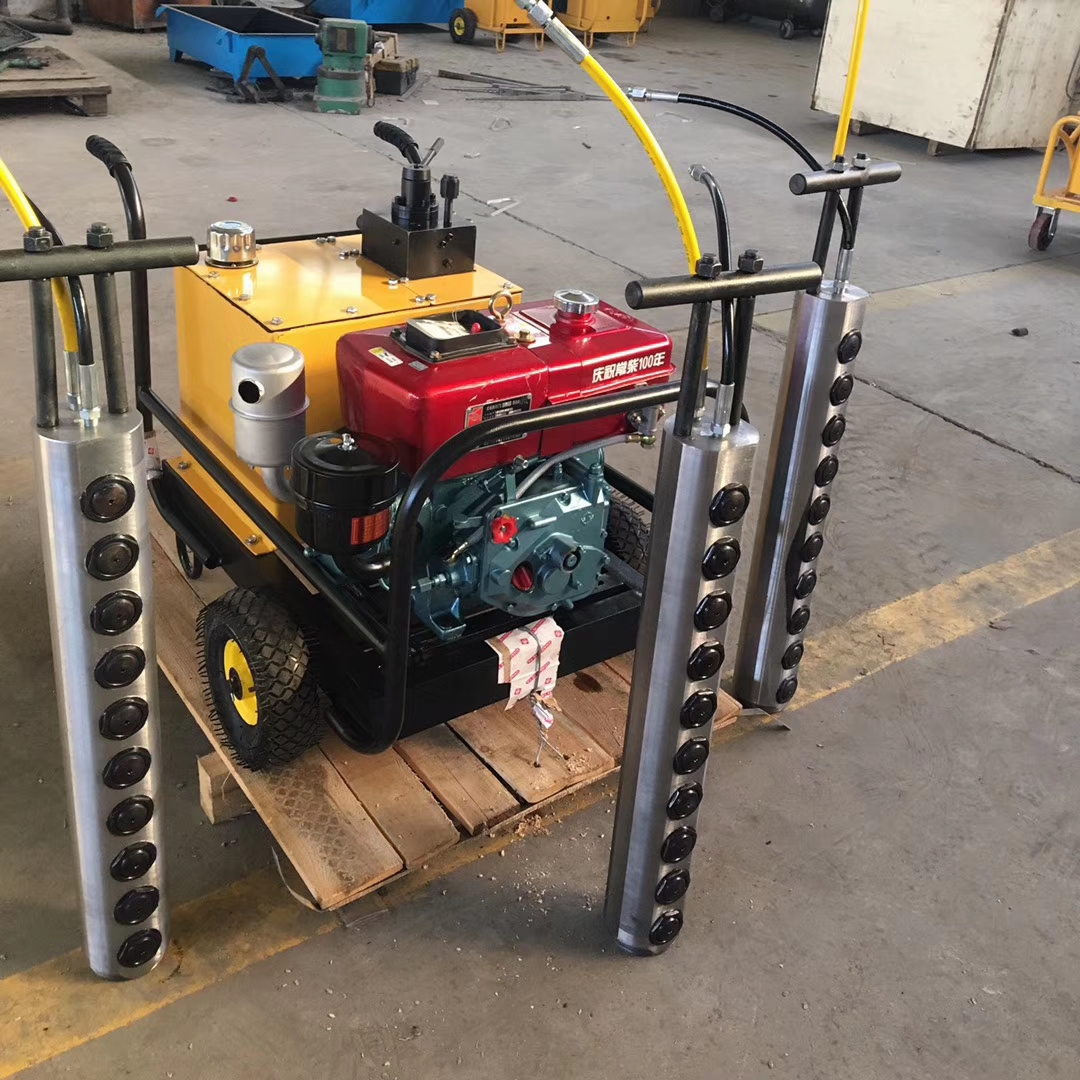

Model NO: PD90 Piston Rock Splitter System
PD90 piston rock splitter including :
Piston splitting clyinder 3-8 pcs x 90mm dia piston rock splitters
Hoses
Manifolds
Electric pump or Diesel engine.
Hoses
Manifolds
Electric pump or Diesel engine.

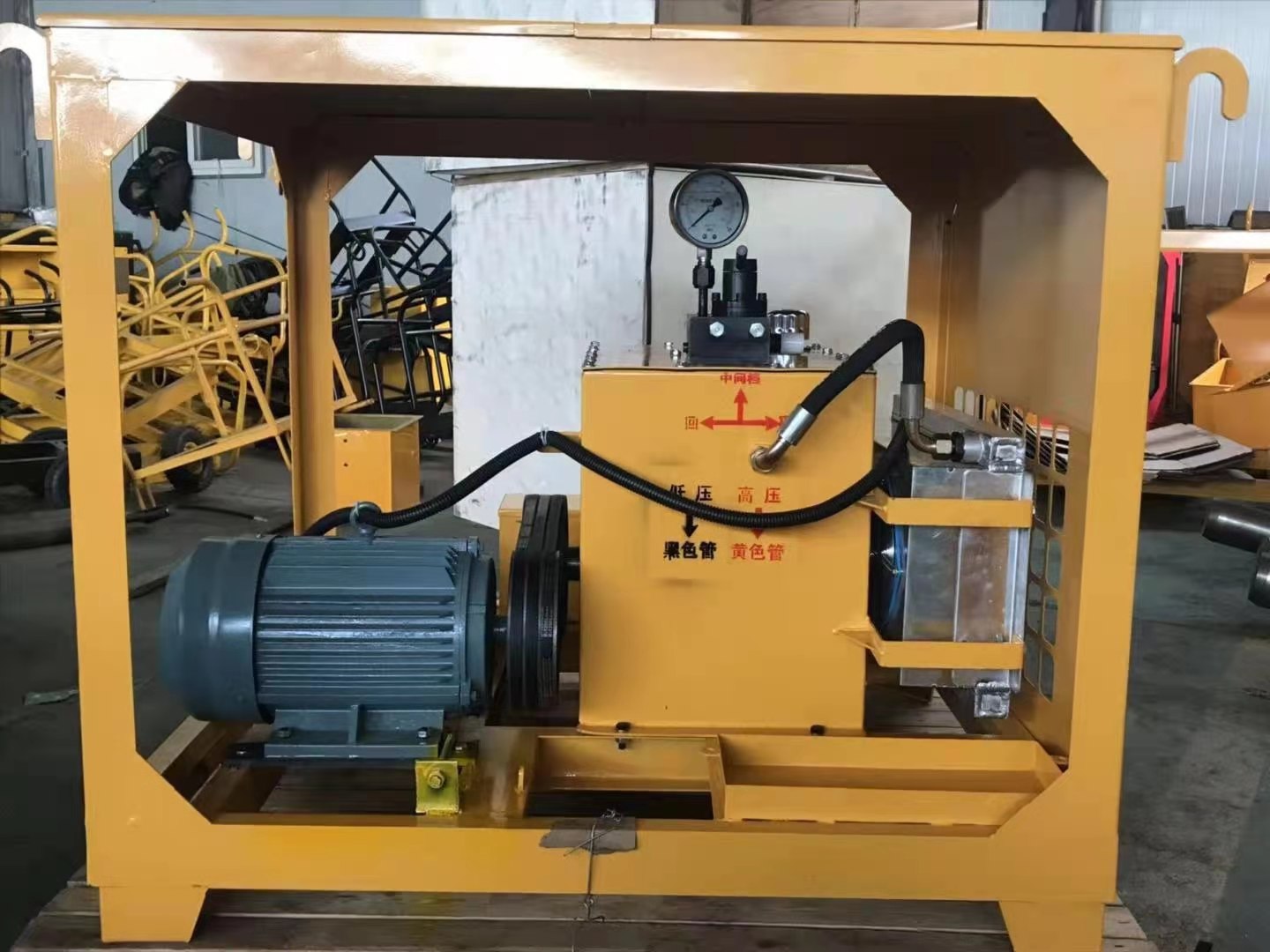

Electric pump with motor power of 11KW, 380V, 50HZ.

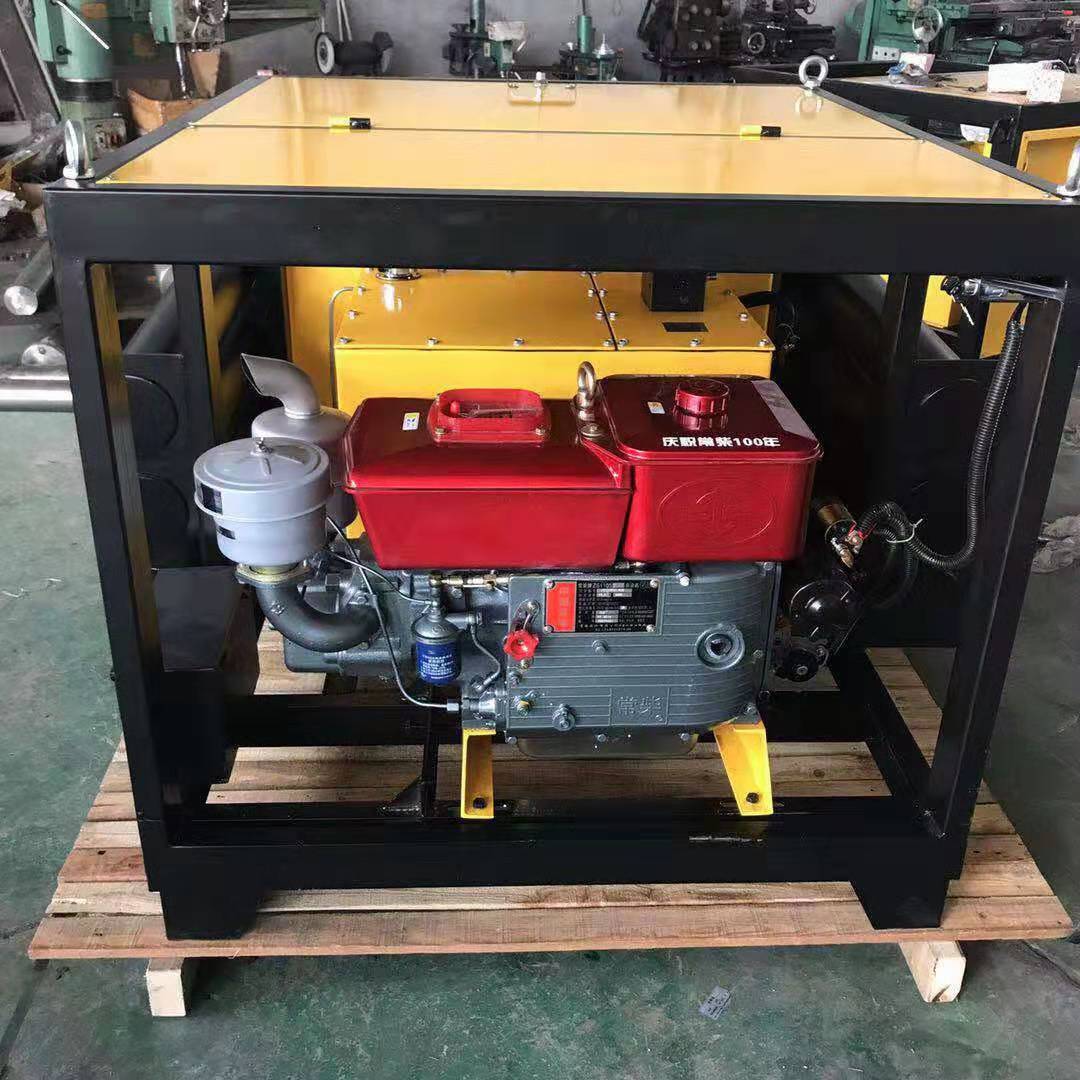

Diesel motor output 8 HP with water cooling
Each piston cylinder produces splitting force of 600 tons. 146MM of cylinder diameter , 152 mm for hole diameter.
Each piston cylinder produces splitting force of 260 tons. 90MM of cylinder diameter , 90MM for hole diameter.
