PD250 Jump Super Wedge(Excavator Mounted Hydraulic Rock Splitter)

Wedge effective length : 750 mm ,
Hole: 105mm-110 mm
hole depth: 1400 mm
Rated Voltage: 24-35 MPa ,
splitting power: 2600-4300 Tons
splitting gap: 39 mm
opposite hole: chain hoist ( lifting chain ) by hand,to use bucket oil hose to drive working,easy installation.

Product details

ProDemo™ is a famous brand for professional manufacturing of Excavator Mounted Rock Machines includes: Hydraulic Rock Breaker (Excavator Mounted Hammer) – Especially our silent breaker is excellent low noise breaker – Super Wedge (Excavator Mounted Rock Splitter) – Rock Drills ( Excavator Mounted Rock Drills )

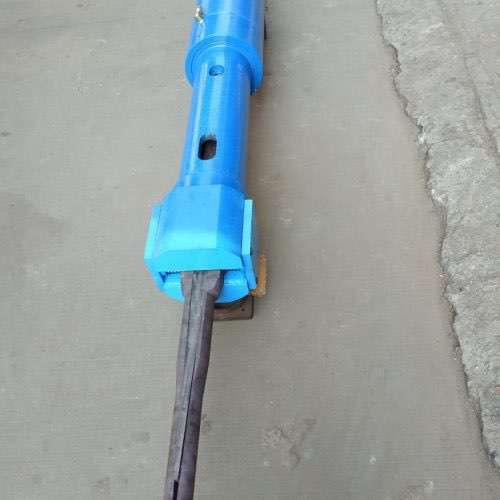

wei-xin-tu-pian-20200507103253-500x500

Jumbo Super Wedge :

ProDemo™ Jumbo Super Wedge as attachment is designed for most of hydraulic Excavators to form Excavator Mounted Jumbo Splitter which can be used for large volumes of hard rock where blasting is not practical or allowed, also not suitable for traditional hand-held hydraulic rock splitter working like DARDA or ProDemo™ rock splitter.

Its Working principle is Like universal Hydraulic rock splitters consist of two wedges which are inserted in a pre-drilled hole and a hydraulic cylinder is pushing out a over-sized center wedge between the two side super sized counter wedges forcing them to separate.

Model	WEDGE effective length(mm)	Hole depth(mm)	Working pressure(Mpa)	Splitting force(Ton)	Crack width(mm)	Weight(Kg)
PD200	750	1400	24~35	1800~2100	35	500
PD200	1000	1600	24~35	1800~2100	35	530
PD220	750	1400	24~35	2100~2300	35	600
PD220	1000	1600	24~35	2100~2300	35	630
PD250	750	1400	24~35	2600~4300	30	820
PD250	1000	1600	24~35	2600~4300	30	860
PD300	750	1400	24~35	3750~5500	30	930
PD300	1000	1600	24~35	3750~5500	30	970

This new design, it is more advance and high efficiency and productivity than traditional hand held hydraulic splitter.For vertical applications (shaftsinking, open pit excavation), the rock splitter is mounted on a chain or wire from a conventional excavator of 12-tons class or larger.

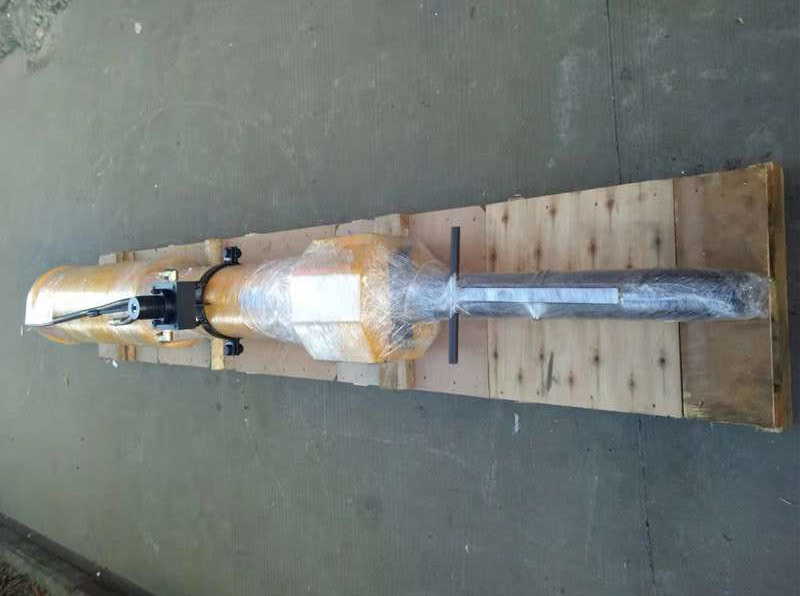

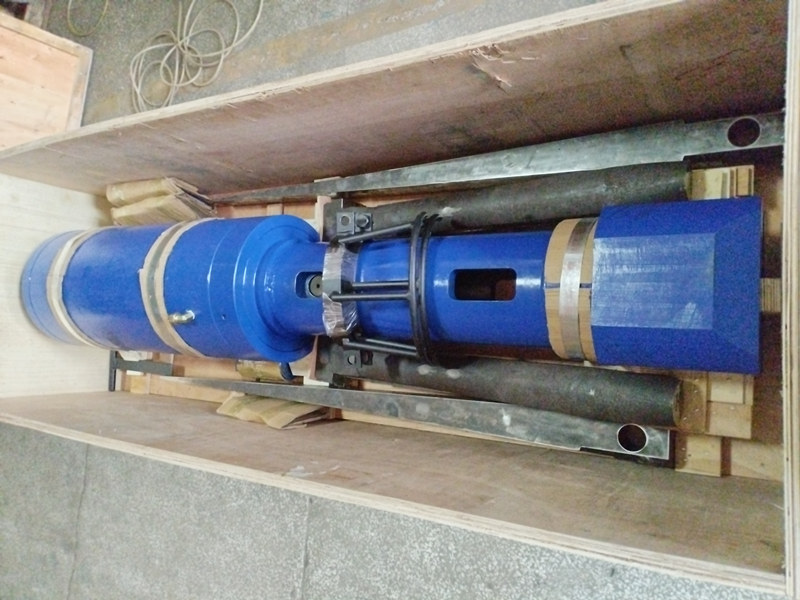

Wood box size : 2070mm*730mm*730mm, G.W. : 1090 KG.

Work process

1. Drill the hole of which diameter is bigger than 80mmØ and 1~3 meter deep by crawler drill, or ProDemo™ Excavator- Mounted Rock Drills available.

2. Switch on the Power switch on the control box.

3. Control the counter wedge is toward free face by wedge turning lever

4. Put the power jumbo cylinders into the holes and then push the rock toward the free face side.

5. Super wedge rock splitters consist of two over size wedges which are inserted in a pre-drilled hole and a hydraulic cylinder is pushing out a jumbo center wedge between the two side wedges forcing them to separate

6. Push down the center wedge by lever on the control box , Totally 12,000~ 24,00 ton power pushes the rock for 2-4 minute and then the rock will be split.

7. Breaking the rock, pull out the center wedge to the end.

8. Take out the wedge set from the hole for next hole break job.

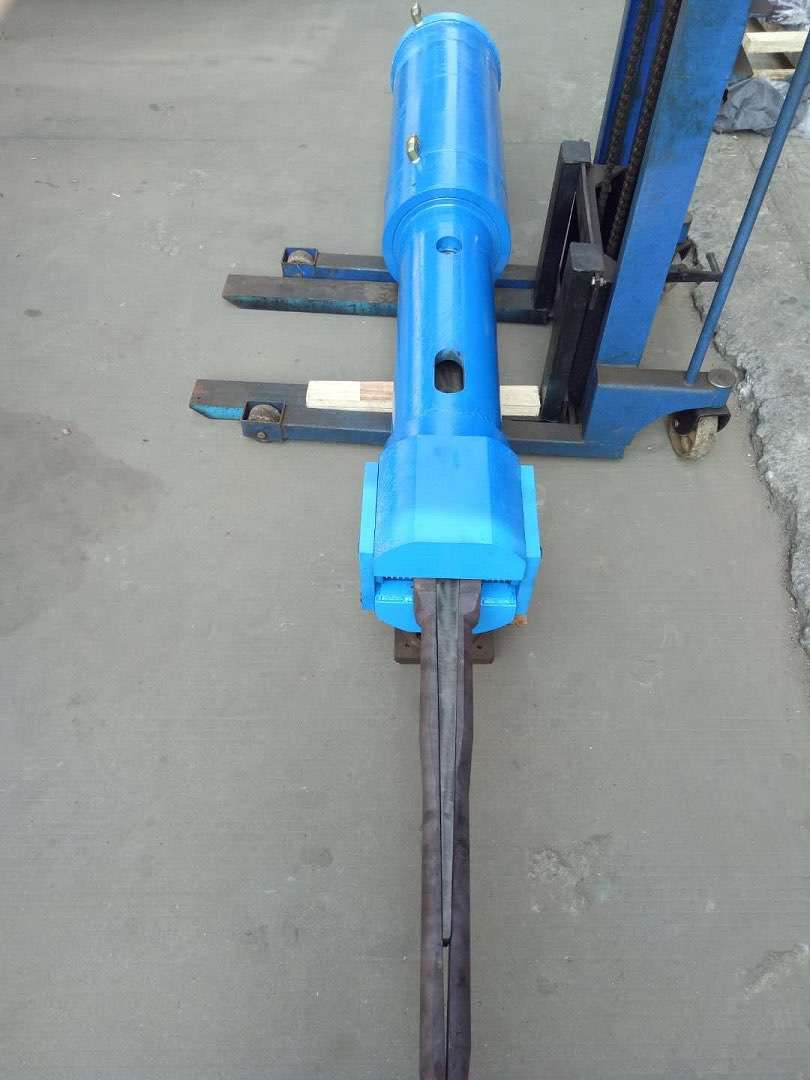

wei-xin-tu-pian-20200616094739-2

1 (1)

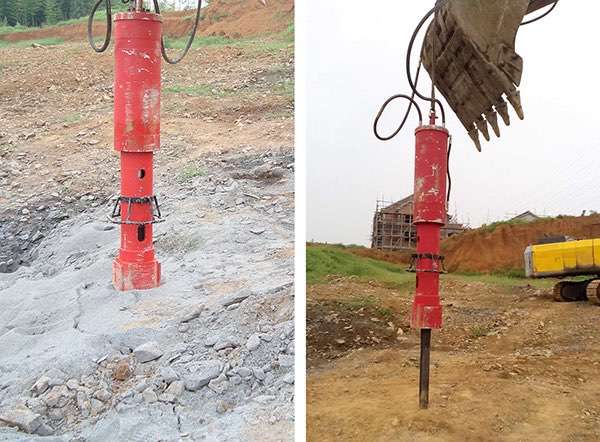

weibiaoti1
