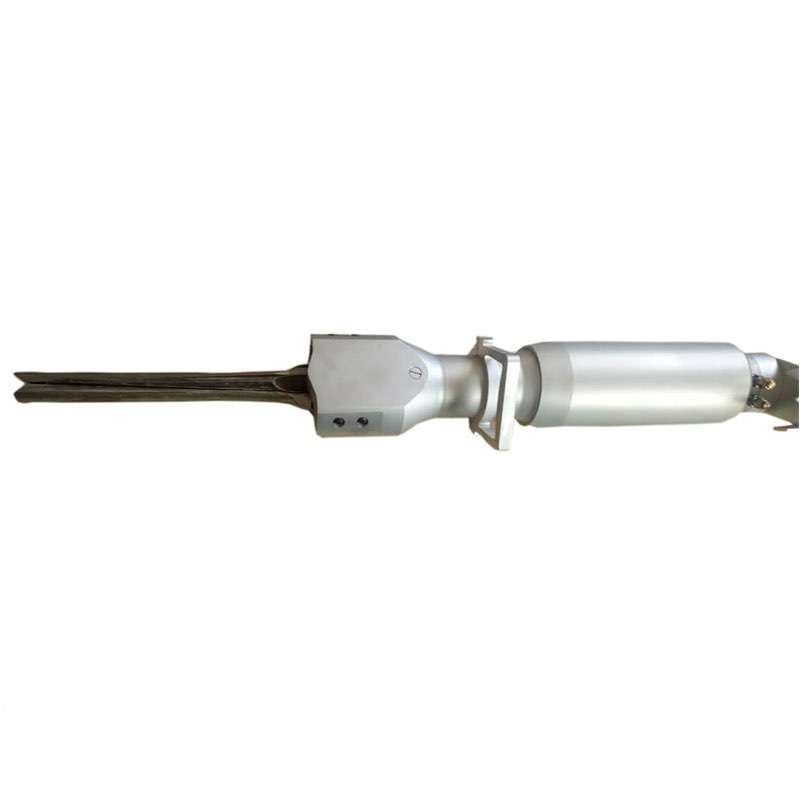

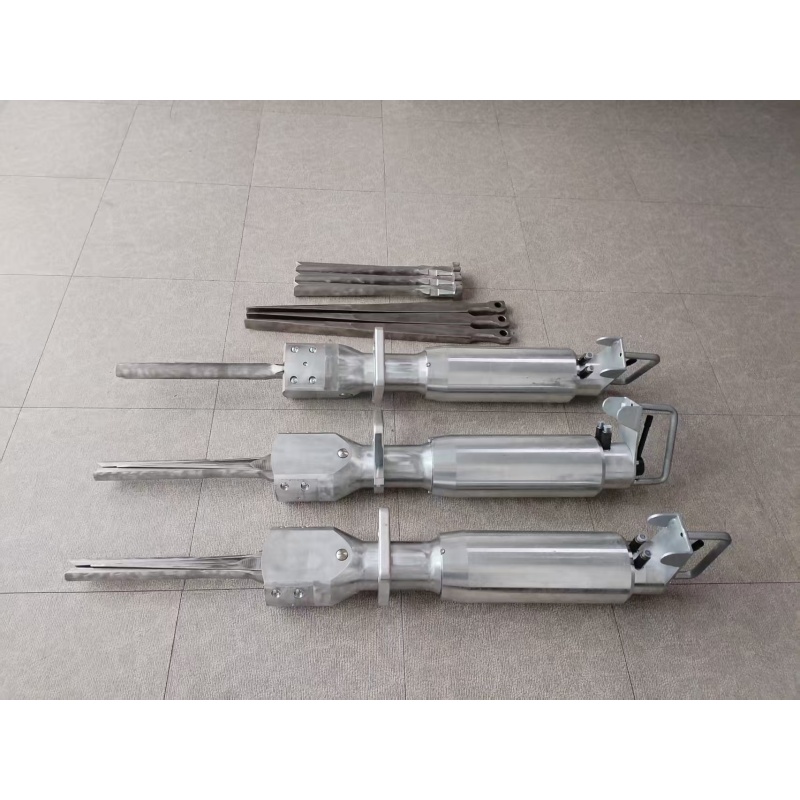

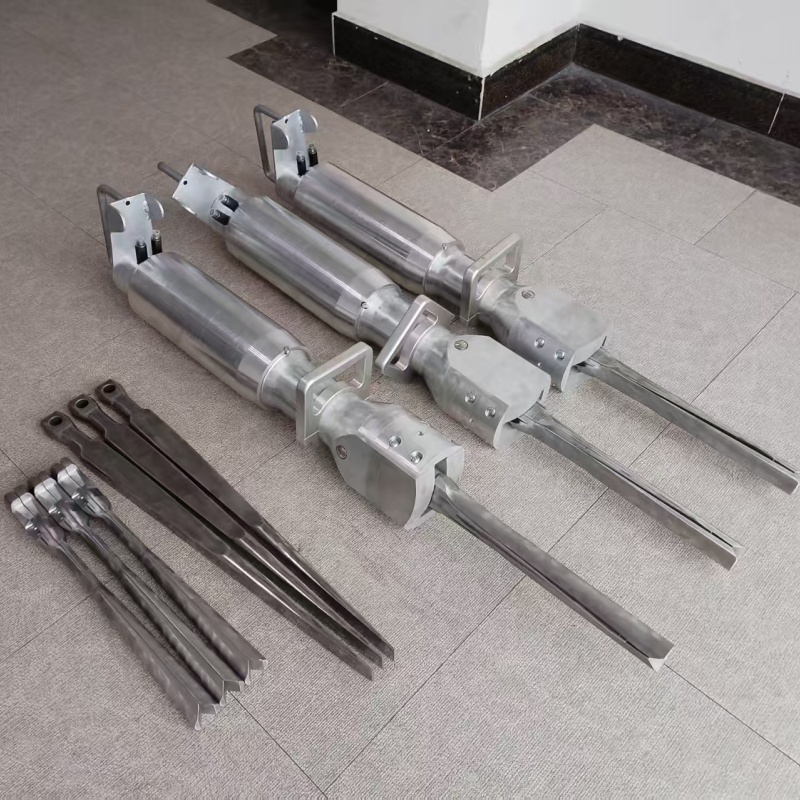

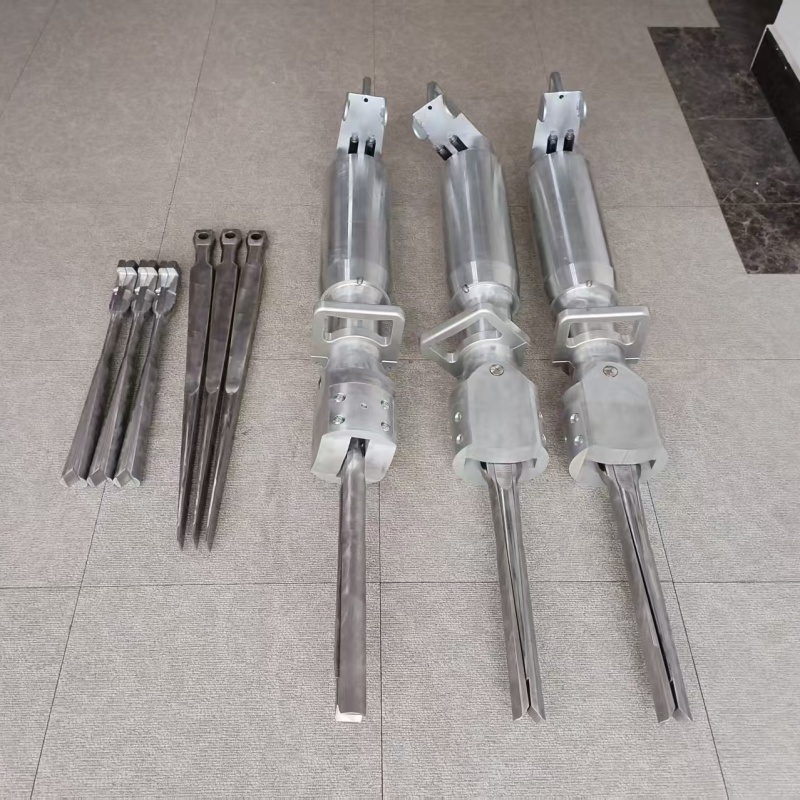

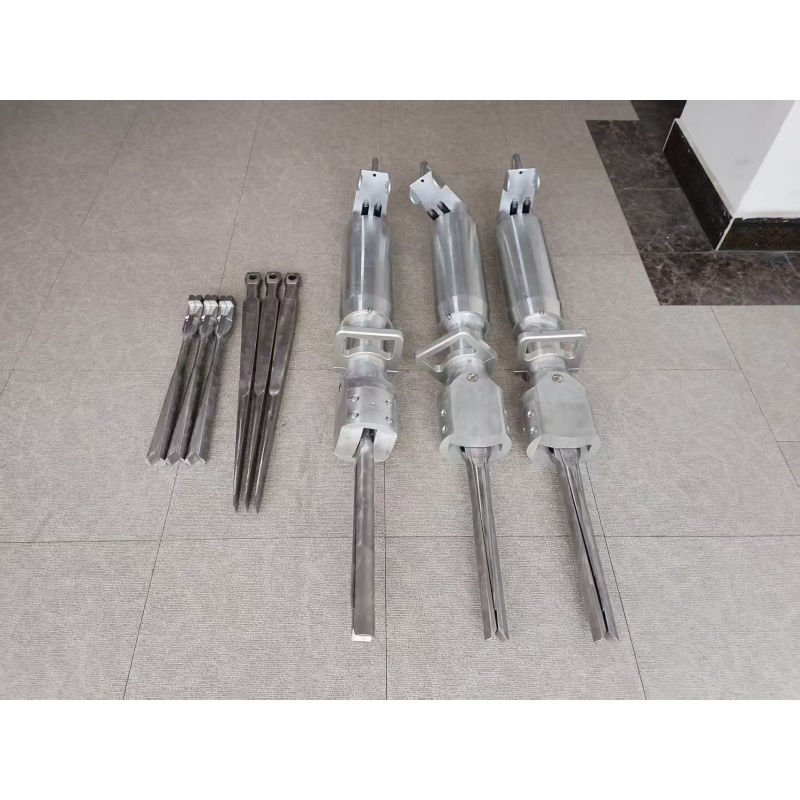

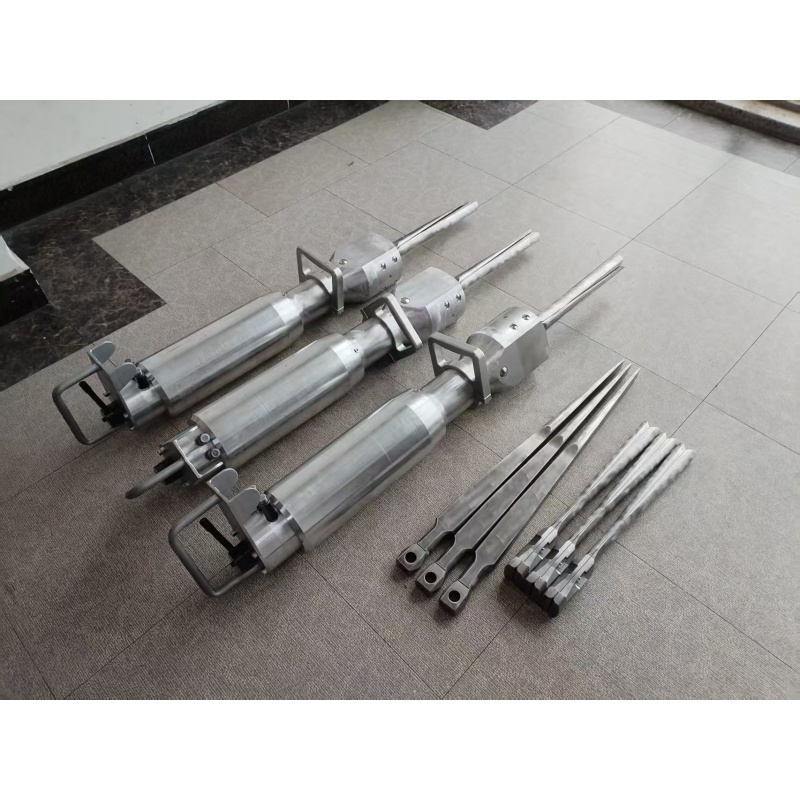

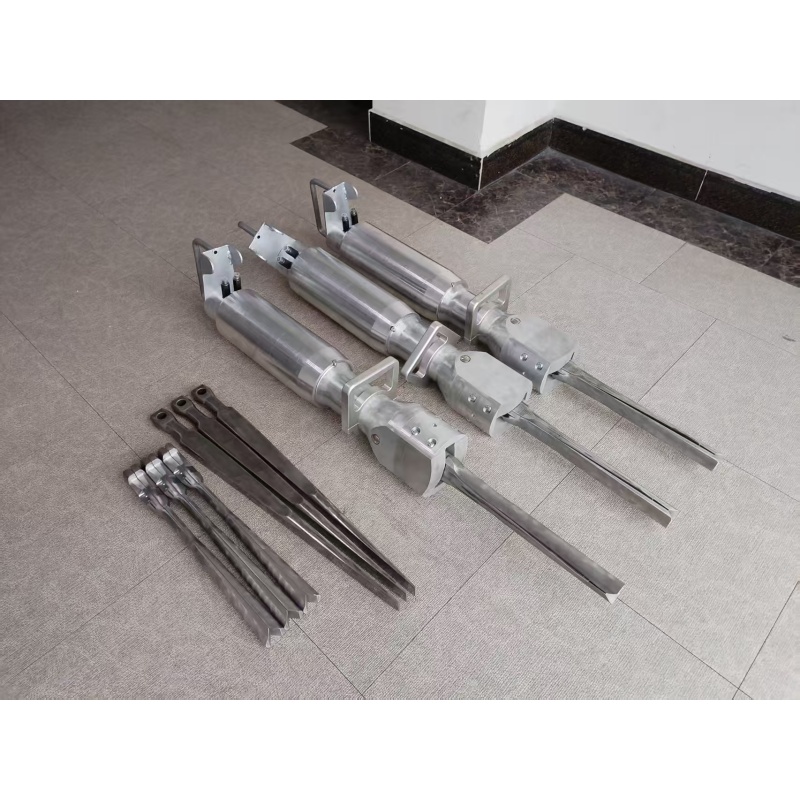

Darda C10/C12 Splitting Cylinder
Hydraulic splitting cylinder
The hydraulic splitting cylinder consists of a control valve,a cylinder,a front head and a wedge set(1wedge and 2counter wedges).The entire cylinder is made of highest quality aluminum and steel so that although the equipment is light,it is still extremely durable.The counter wedges are also coated with a hard metal(carbide)layer in a specially developed hardening process.This makes them more resistant to very high pressure and forces.

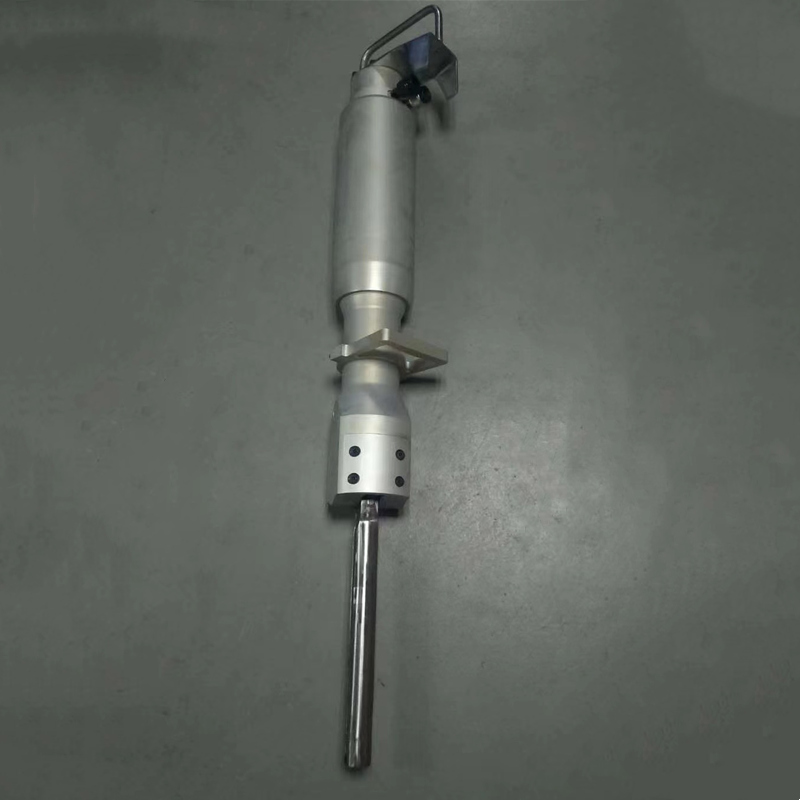

C12 Darda hydraulic splitting cylinder
C12 Technical Data Sheet
| C12N | C12L | |
| Splitting force | 358t | 413t |
| Drill hole ∅ | 45-48 mm | 45-48 mm |
| Drill depth | 610 mm | 680 mm |
| Weight | 31 kg | 32 kg |
| Bar pressure | 500 bar | 500 bar |

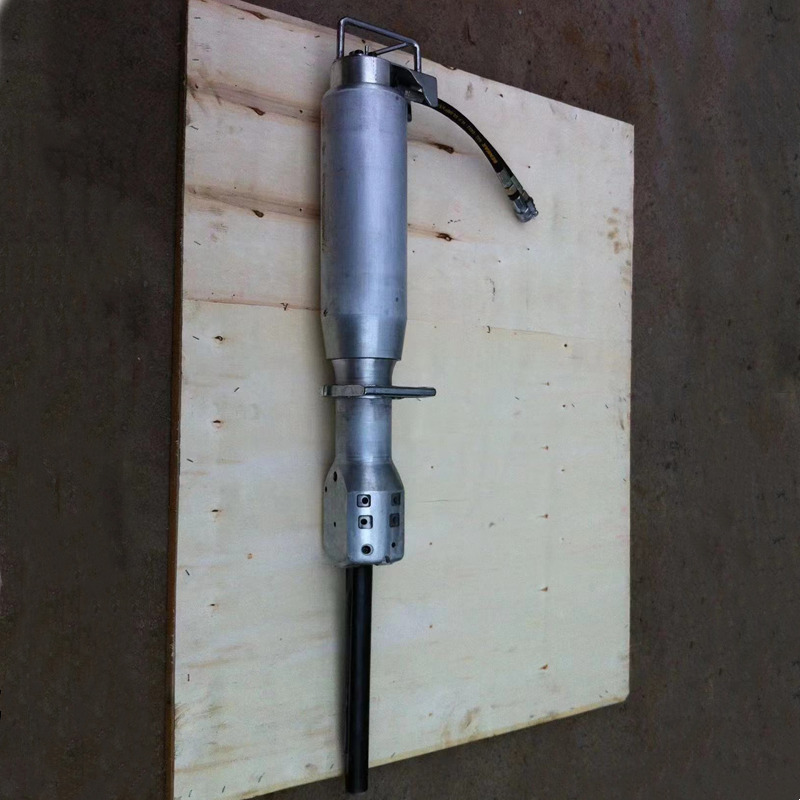

C10 Darda hydraulic splitting cylinder

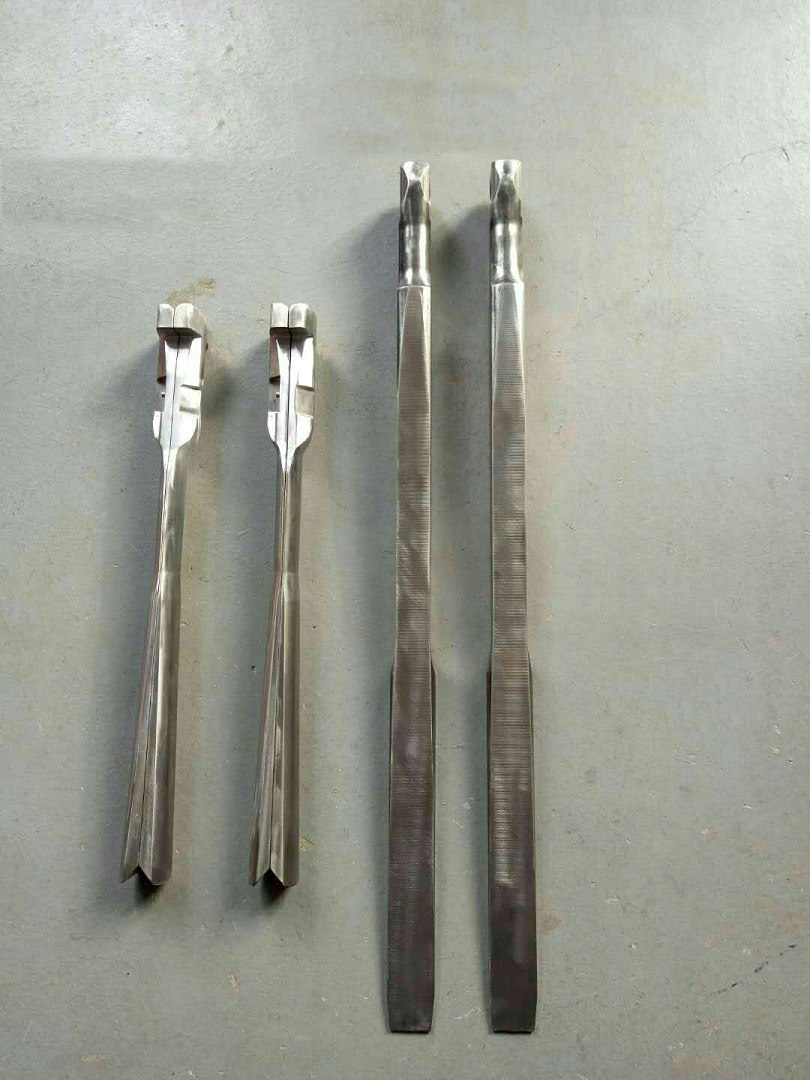

C10/C12 Darda \'s wedge set ( centra wedge, counter wedges )

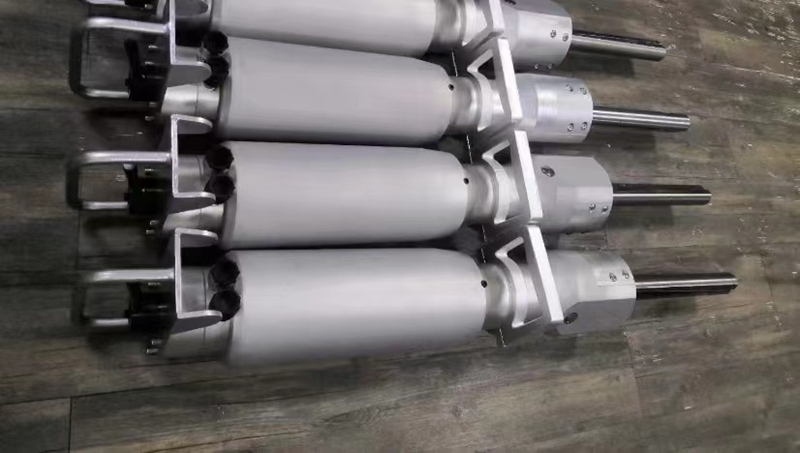

Splitting Cylinder

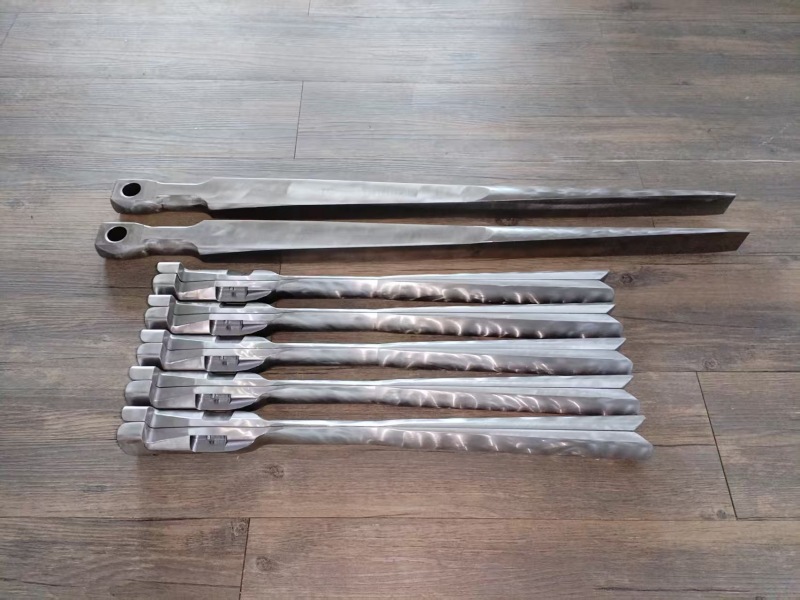

Wedge sets of counter wedge+centra wedge for PD 150,250,350,450 mm
Centre wedge
Piston
How the hydraulic splitter works:

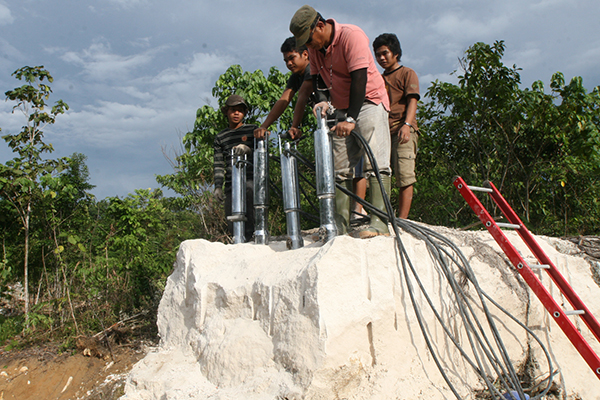

ProDrill hydraulic rock splitter with Darda C12 Aluminum Cylinder, hydraulic pump station powered by diesel motor wind cold engine，splitting power up to 800 Tons.
