Hydraulic Breaker Hammer is mainly installed in the front end of the excavator, which is a kind of physical crushing equipment which can turn hydraulic energy into mechanical energy.

It is mainly used in mining, metallurgy, railway, highway repair, cement pavement crushing, foundation excavation, etc., effectively crushing stones and rocks, and significantly improving working efficiency.

Check the video about Top type hydraulic breaker as below:

Products feature：

Hydraulic Breaker Hammer are complete in specifications, advanced design, excellent performance, strong force and durable, long life, low failure rate, parts, in the user enjoys a high reputation, has become the user\'s preferred products, is customer satisfaction products of national mechanical industry.

Technical Specifications：

Model	Weight(kg)	Length (mm)	Drive oil (l/min)	Driving Pressure (Kgf/cm²)	b.p.m	Drill rod Diameter (mm)	Excavator tonnage (ton)
TRB680	258	1415	40-70	110-140	500-900	Φ68	4-7
TRB750	332	1480	50-90	120-150	400-800	Φ75	6-9
TRB850	557	1735	60-100	130-160	400-800	Φ85	7-14
TRB1000	753	1994	80-110	150-170	350-700	Φ100	10-15
TRB1350	1653	2367	130-150	160-180	400-800	Φ135	18-26
TRB1400	1774	2414	120-180	160-180	350-500	Φ140	18-26
TRB1500	2221	2519	150-190	160-180	350-700	Φ150	27-35
TRB1550	2569	2760	180-240	160-180	300-450	Φ155	28-35
TRB1650	2752	2816	200-260	160-180	250-400	Φ165	30-45
TRB1750	3912	3176	210-290	160-180	200-350	Φ175	40-55

Suitable excavators list:

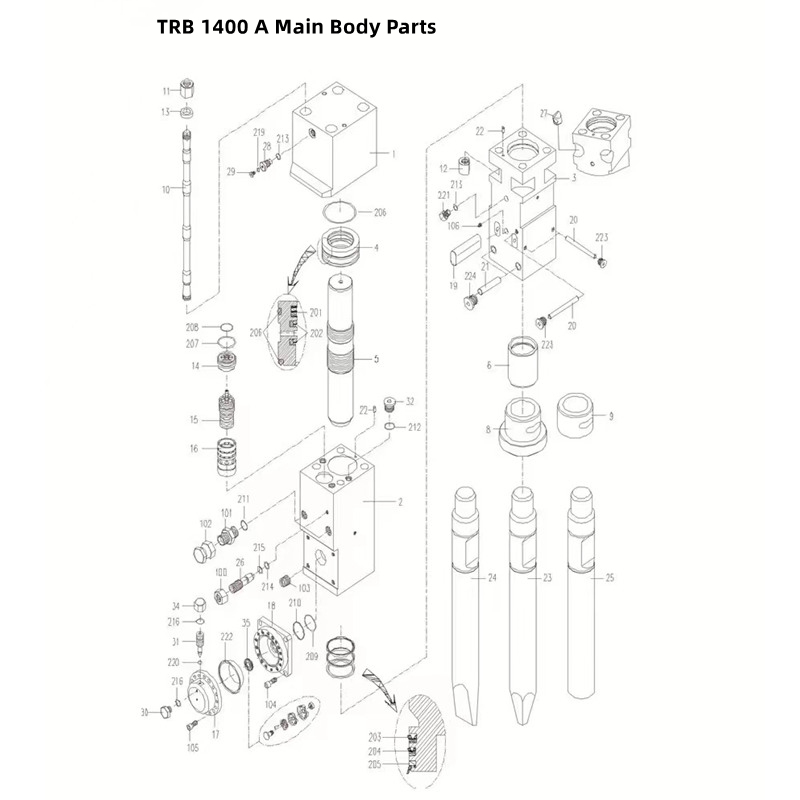

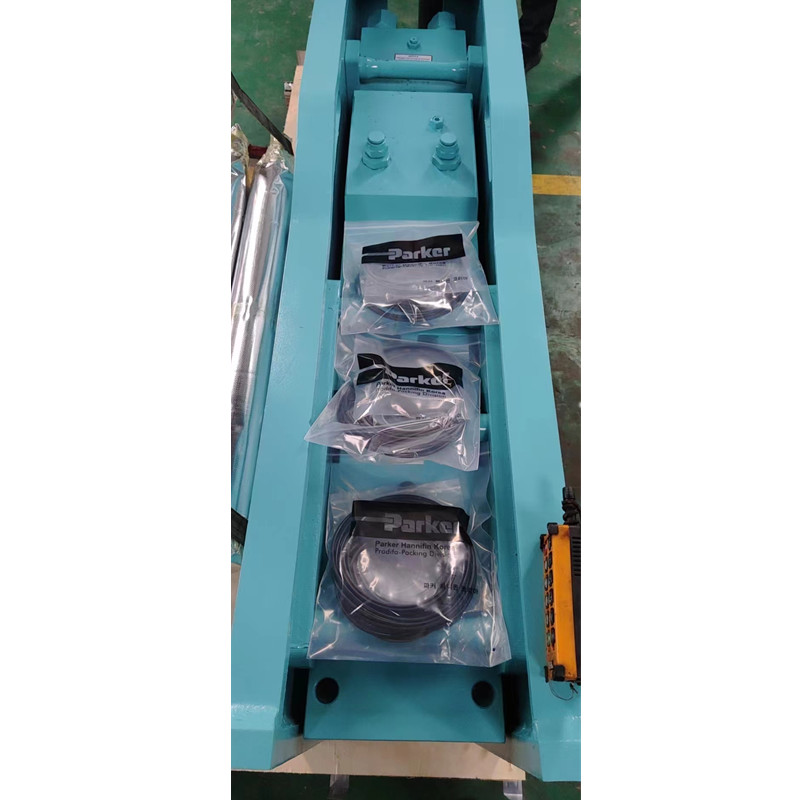

Seal kit for TRB1400 breakep:

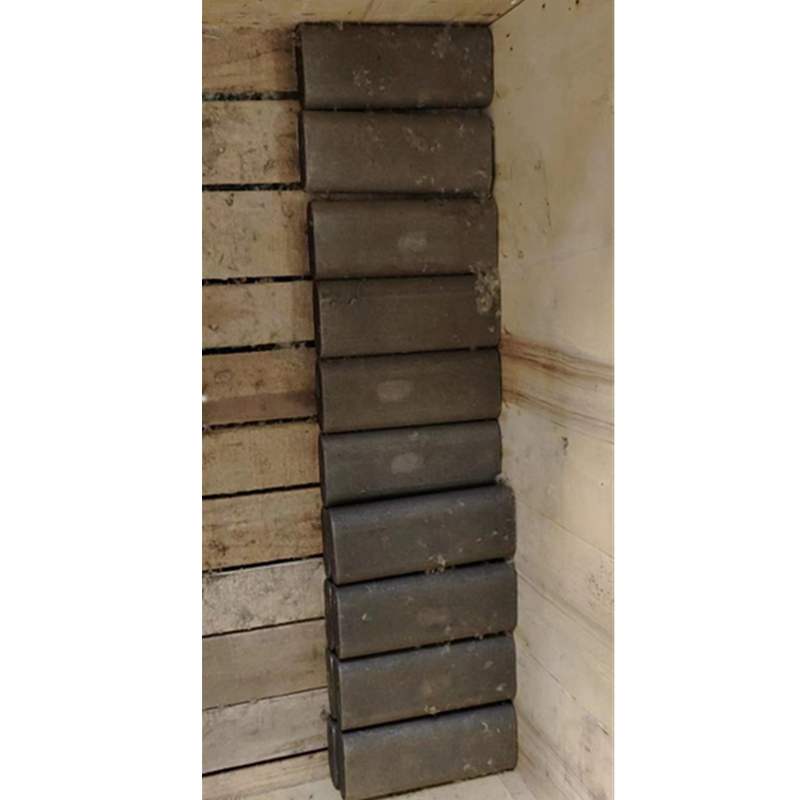

Chisel guide pin :

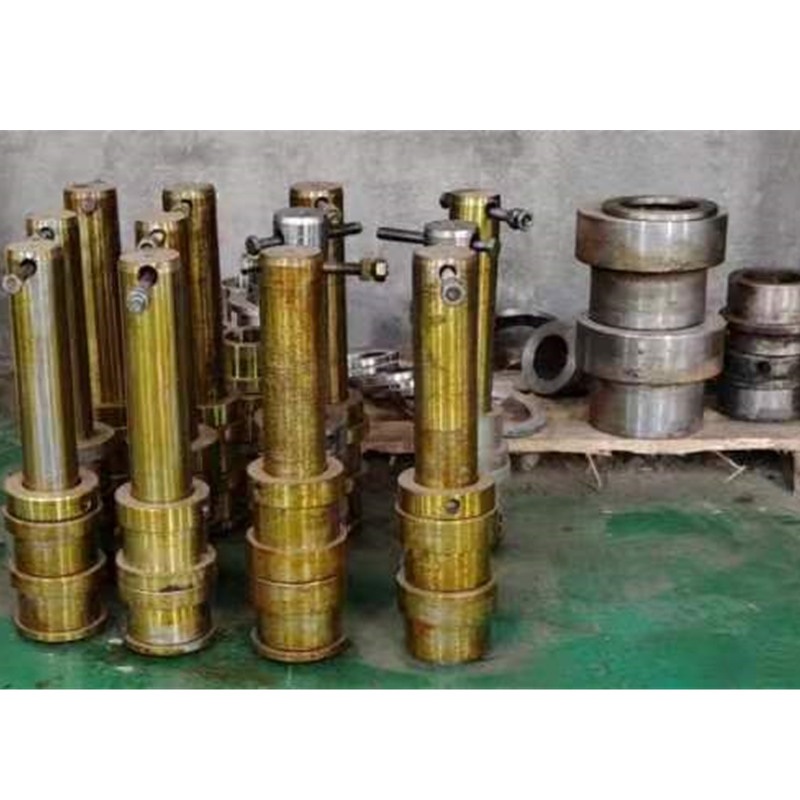

Bucket pin (1) +Bushing (2)+Lock bush (1) Total 6 pcs of TRB1400:

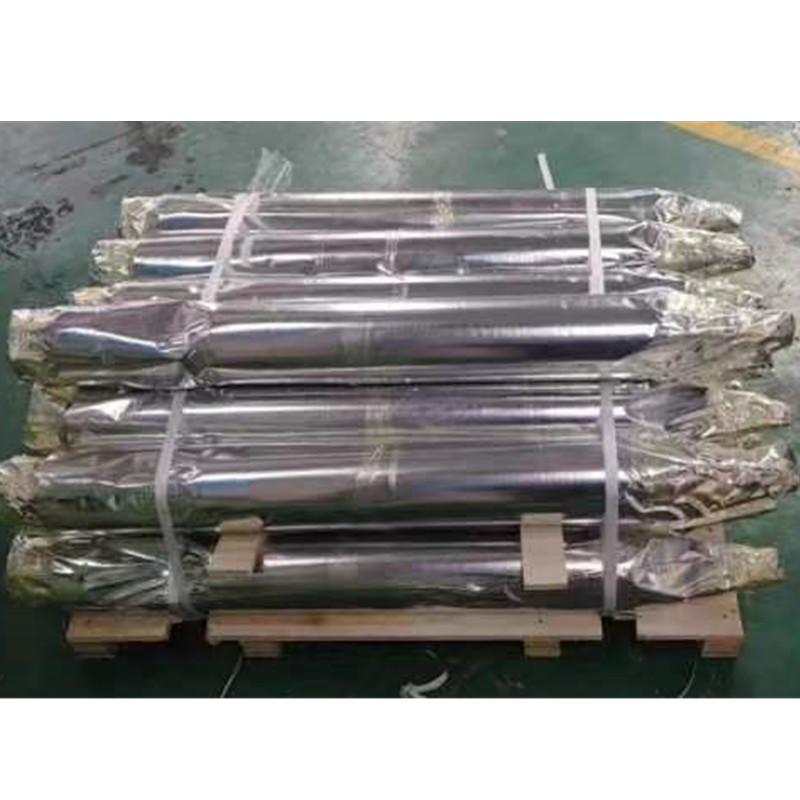

Chisel,moil point steel grade: 42 CrMo. for TRB1400:
