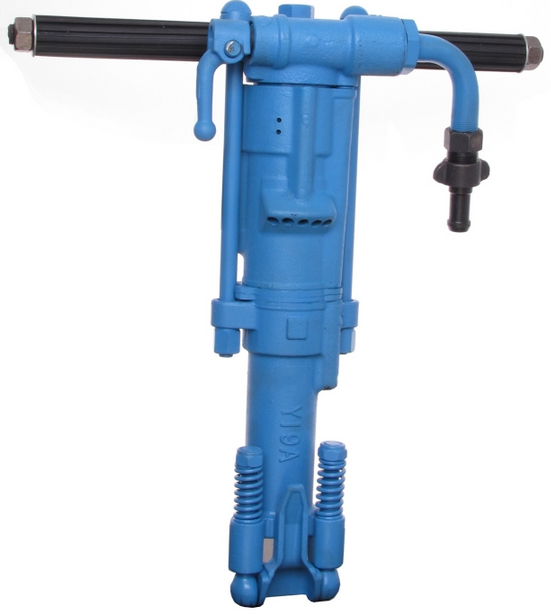

Y19A Rock Drills ( Jack hammer )
- Weight: 19KGS :
- Cylinder Stroke: 65*54mm :
- Air Consumption: 37-43L/s :
- Air Hose Size: 19mm :
- Bore Diameter: 32-42mm :
- Drilling Depth: 5mm :
- Shank: 22x108mm :
- Air leg:FT100:

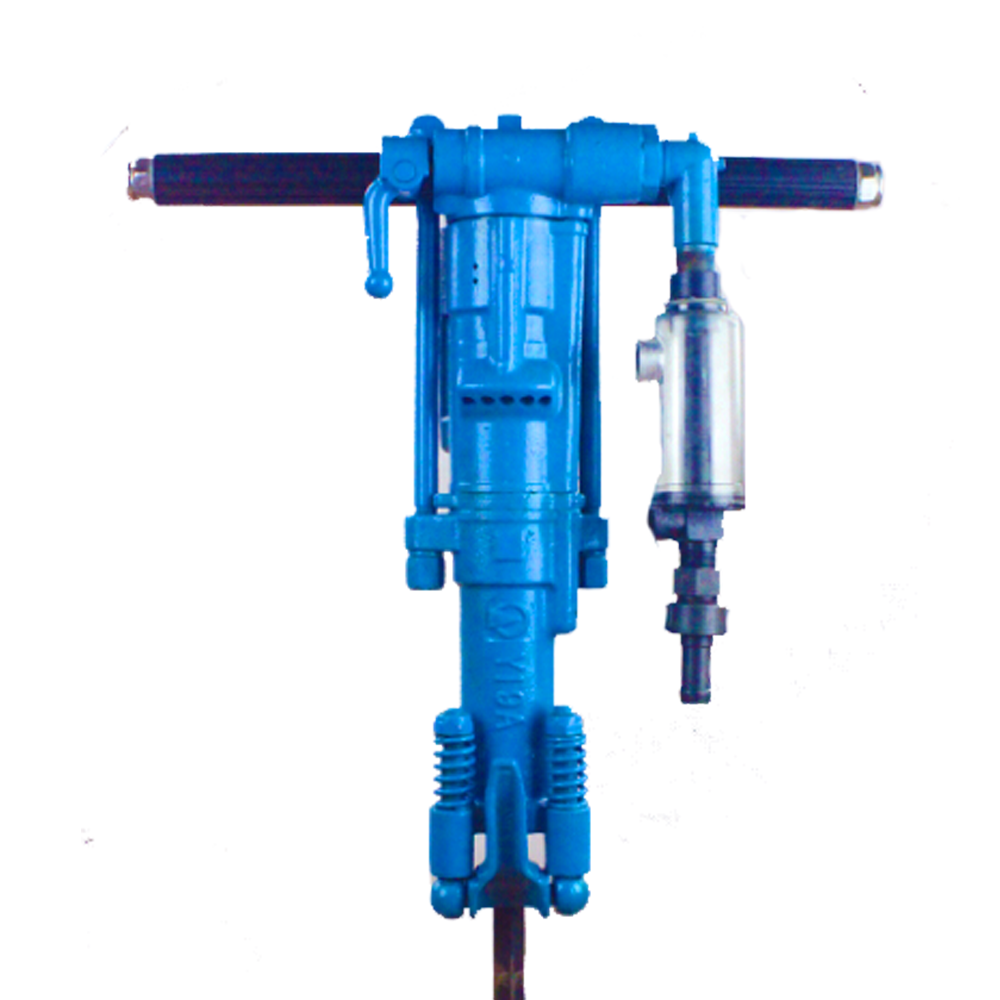

Y19A Hand Held Rock Drills/Jack Hammer Hand Drills
| Y19A Jack hammer spare parts list | ||||||
| Code | Part No | Name | 27 | 7655-205 | Bit clamp spring | |
| 1 | Y26-303 | Water injection pipe | 28 | 7655-203A | Bit clamp bolt | |
| 2 | Y26-302S | Water pipe nut | 29 | Nut GB889-86-M16 | I-nonmetal hexagonal locking nut | |
| 3 | 24x2.4GB1235-76 | O-rubber seal ring | 30 | Nut GB56-88-M16 | Thick hexagonal nut | |
| 4 | Y19A-04 | Back head | 31 | Y26-302F | Water pipe nut | |
| 5 | Y19A-05 | Operating valve | 32 | Y19A-14 | Long bolt | |
| 6 | 7655-304 | Water injection sleeve | 33 | YSP45-316 | Operating handle | |
| 7 | Y19A-06A | Ratchet wheel | 34 | Washer GB93-87-10 | Standard spring washer | |
| 8 | 8x3-23 | Plug | 35 | Nut GB6172-86-M10 | Thin hexagonal nut | |
| 9 | Y19A -07A | Valve cap | 36 | YT25-3.17A | Holding pin | |
| 10 | Y19A-08 | Valve | 37 | YT30-3.07 | Big seal sleeve | |
| 11 | Y19A-09 | Valve chest | 38 | YT25-3.33 | Snap ring | |
| 12 | Y19A-10A | Valve sleeve | 39 | YT25-3.12 | Pad | |
| 13 | Y19A-11 | Rifle rod | 40 | 30x3-25 | O-seal ring | |
| 14 | Y19A-03 | Cylinder body | 41 | 7655-307 | Air pipe nut | |
| 15 | Y19A-12 | Rifle nut | 42 | 7655-309A | Air pipe elbow | |
| 16 | Y19A-01 | Piston | 43 | Y26-305A | Rubber handle | |
| 17 | Y19A-13 | Guide sleeve | 44 | |||
| 18 | Y19A-02 | Machine head | 45 | Y26-306A | Handle bolt | |
| 19 | 7655-202A | Rotating sleeve | 46 | Y19A-15 | Locating stud | |
| 20 | YT25-2.03 | Bit shank sleeve | 47 | 7655-303 | Water injection | |
| 21 | YT25-1.15 | Tower-shaped spring | 48 | 19-16 | Pipe connector | |
| 22 | YT25-1.14 | Ratchet pawl | 49 | 19-01 | Butterfly nut | |
| 23 | 12x3-23 | Plug | 50 | 19-04 | Conical pipe connector | |
| 24 | YT25-3.21 | Locating stud | 51 | Hoop No.1 | ||
| 25 | YT25-3.20 | Spring | 52 | Washer GB848-85-20-A140 | Small washer | |
| 26 | 7655-207 | Bit clamp | 53 | Nut GB889-86-M20 | I-nonmetal hexagonal locking nut | |
Y19A hand-held gas-leg rock drill is mainly used in the development of small quarries, mining operations in coal mines, limestone mines and other small mines, rock drilling and blasting in road construction in mountainous areas, and irrigation and water conservancy construction. The machine is also suitable for drilling in secondary blasting and other engineering construction of large mines. Y19A type of hand air leg type dual purpose drill is matched with FT100 type air leg, which can be used for dry and wet drilling on medium hard or hard rock. This machine can be used together with a small air compressor of 1.5-2.5 cubic meters/min. Its performance is better than similar products.
