Y26 Hand Held Rock Drills for quarrying & demolition

Product details

Rock drilling tools manufacturer ProDrill: Y26 Atlas Copco pneumatic hand held rock drill (Pneumatic Hammer/Jack hammer hand drills) are light and small types designed on the basis of less recoil in safety. They are suitable to the secondary rock breaking, and bedrock drilling blast hole for demolition rock and dimension stone quarrying.

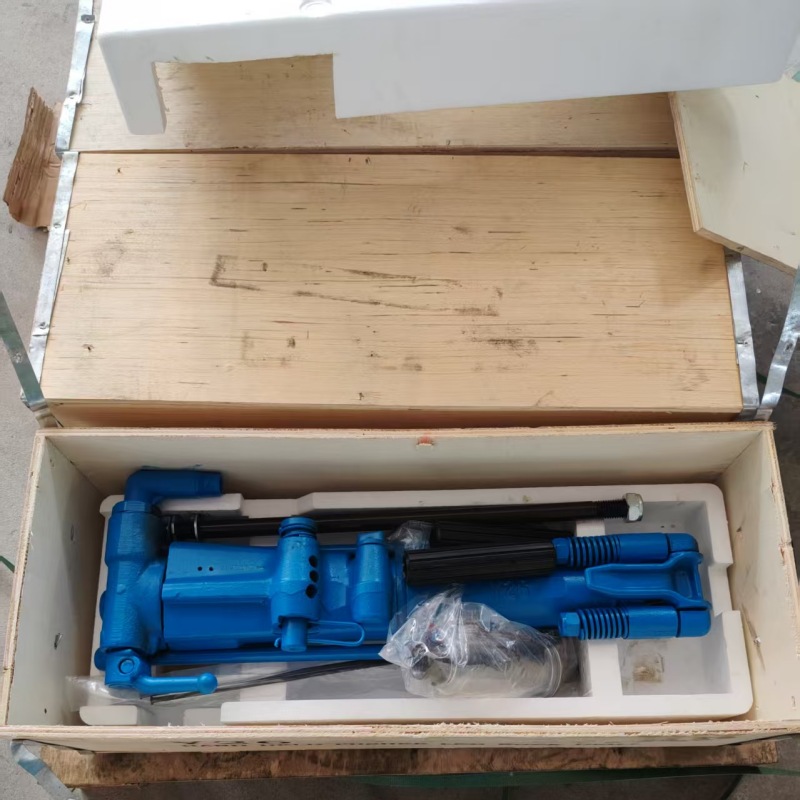

y26

Y26 Jackhammer spare parts list
序号NO	型号 PAPTNO	Name	名称PAPTNAME	序号NO	型号 PAPTNO	Name	名称PAPTNAME
1	Y26-303	Water connection tube	进水弯管	29	YT25-1.14	Ratchet pawl	棘轮爪
2	Y26-302a	Water pipe nut	水管螺母	30	YT25-1.15	Crowned spring	塔形弹簧
3	24×2.4GB1235-79	O-ring	O型密封圈	31	7655-203	Yoke bolt	钎卡螺栓
4	26-301	Back head	柄体	32	Y26-204	Yoke	钎卡
5	7655-304	Water tube sleeve	水针套	33	7655-205	Yoke spring	钎卡弹簧
6	26-304	Water & air tube	风水针	34	GB889 M16	nylon lock nut	尼龙锁紧螺母
7	7655-101	Ratchet	棘轮	35	7655-204	bulging nut	凸型螺母
8	83-23	tamping	填塞	36	GB56 M16	thick nut	六角厚螺母
9	26-101	Valve cover	阀盖	37	YGP28-304	long bolt	长螺栓
10	26-102	Valve chest	伐	38	Y26-112	oil plug	油堵
11	26-103	Valve	伐柜	39	Y26-112	hoop	喉箍
12	26-104	Valve sleeve	阀套	40	.25-04	Conical pipe connector	锥形胶管接头
13	26-105	Rifle bar	螺旋棒	41	.25-01	butterfly nut	蝶形螺母
14	26-107	Open and close valve	开闭阀	42	.25-16	pipe connector	管接套
15	26-108	Rifle nut	螺旋母	43	Y26-1.06	spring	弹簧
16	26-109	Piston	活塞	44	Y26-308	operating valve	操纵伐
17	26-110	Cylinder	缸体	45	YT25-3.33	air elbow pipe snap ring	气弯管卡环
18	26-111	Guide sleeve	导向套	46	7655-307	air pipe nut	气管螺母
19	26-201	Front head	机头	47	YT25-3.12	copper pad	铜垫
20	26-202	Rotational sleeve	转动套	48	303-256	O-seal ring	环形密封圈
21	26-203	Shank sleeve	钎尾套	49	Y26-307	inlet elbow pipe	进气弯管
22	YT25-3.17A	Fastening pin	紧固肖	50	YT27-105	fixing pin	定位肖
23	GB9310	Spring pad	弹簧垫圈	51	Y26-305A	rubber handle	橡胶手把
24	GB6172-M10	Hex.thin.nut	六角薄螺母	52	Y26-306A	handle bolt	把手螺杆
25	YT25-3.20	Spring	固定肖弹簧	53	GB889 M20	nylon lock nut	尼龙锁紧螺母
26	YT25-3.21	Setting pin	定位肖	54	YSP45-315	operating handle	操纵手把
27	123-23	tamping	填塞	55	Y26-11	open and close handle	开闭手把
28	GB84820	flat pad	平垫

Oil feeder:

Y26 Hand Held Rock Drills at work site

Quarry rock drill tool, Y26 Hand Held Rock Drills at work site, drilling granite.
