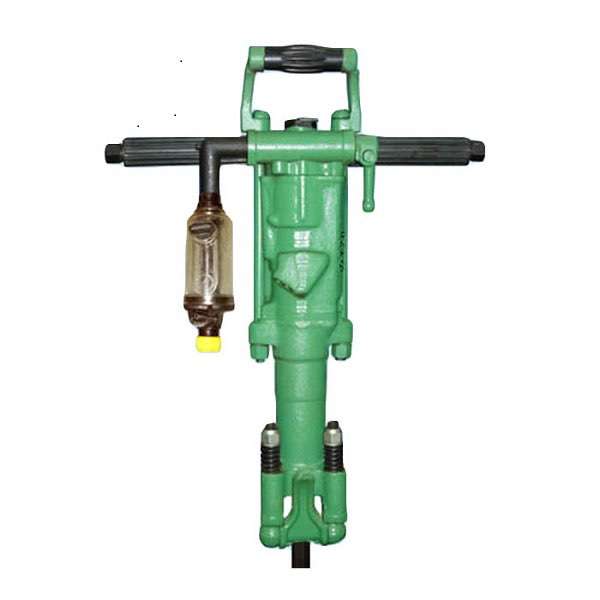

Y24 Hand Held Rock Drills for quarrying & demolition
- Weight: 24KGS
- Cylinder Stroke: 70*70mm
- Air Consumption: 55L/s
- Air Hose Size: 19mm
- Bore Diameter: 32-42mm
- Drilling Depth: 5m
- Shank: 22(25)x108mm

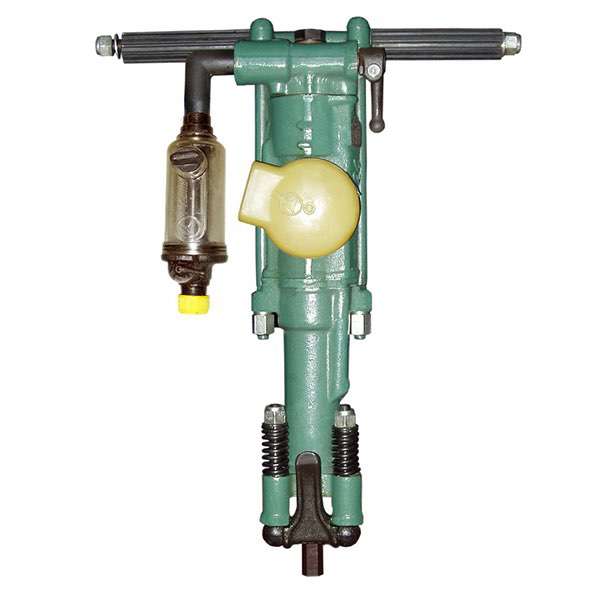

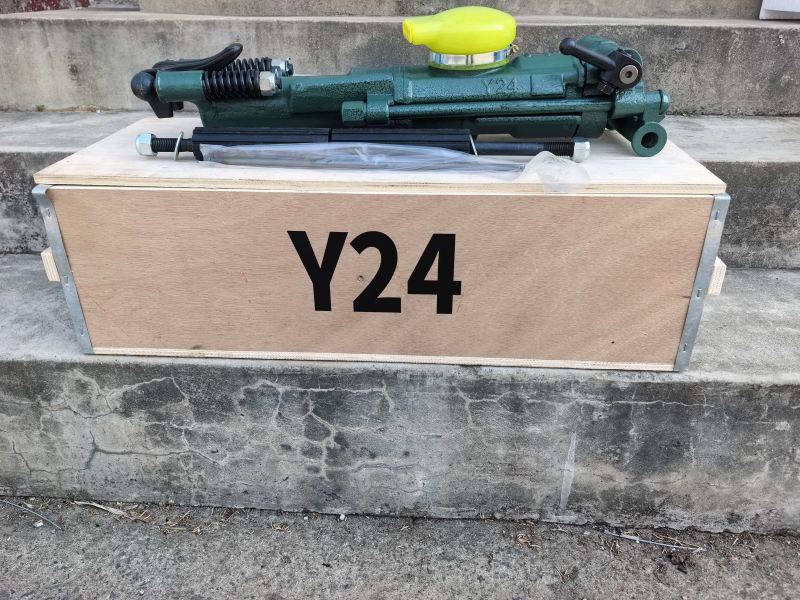

Y24 Hand Held Rock Drills/Jack Hammer Hand Drills
Rock drilling tools manufacturer ProDrill offers high quality Y24 Hand held Rock Drills, powered by pneumatic drive from air compressor, and used for small-hole drilling such as granite, marble, limestone quarrying. And for small size construction, and demolition work, hole size scope 30mm-40mm, match Tapered Drill Rods, Tapered Drill Bits, or Integral Drill Rods together for a drilling use. Y24 hand jack hammer is a light-duty drilling tools with stronger and stable drilling performance, and easy to use, simple repair, price is very competitive, so still popular in stone quarry market for most of following countries such as India, Africa, even Saudi Arabia. Now European quarry owners use hydraulic rock drills to replace Air jack hammers for quarry drilling holes, or blasting bore holes.

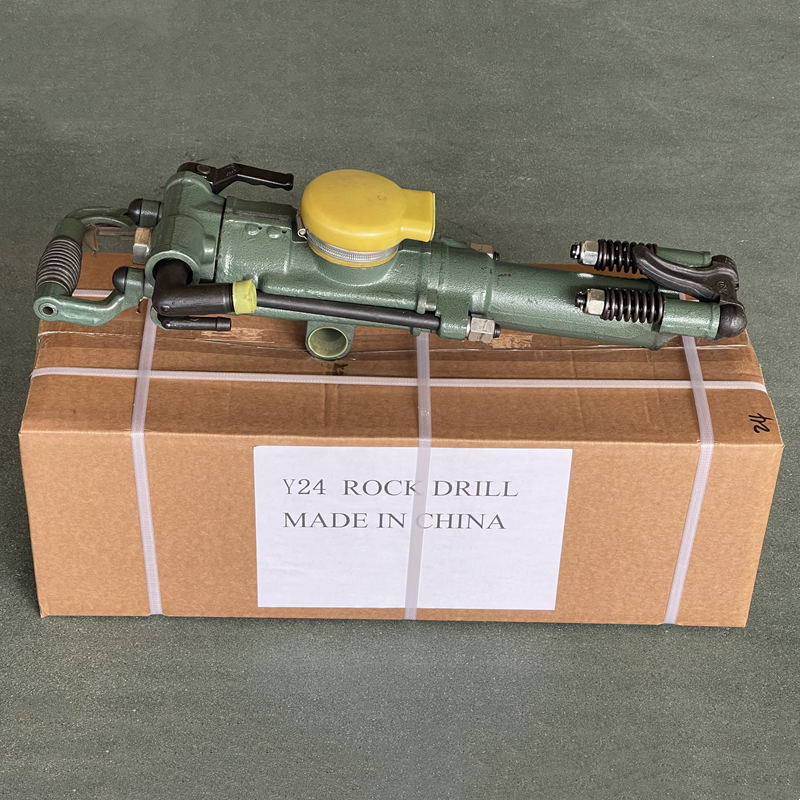

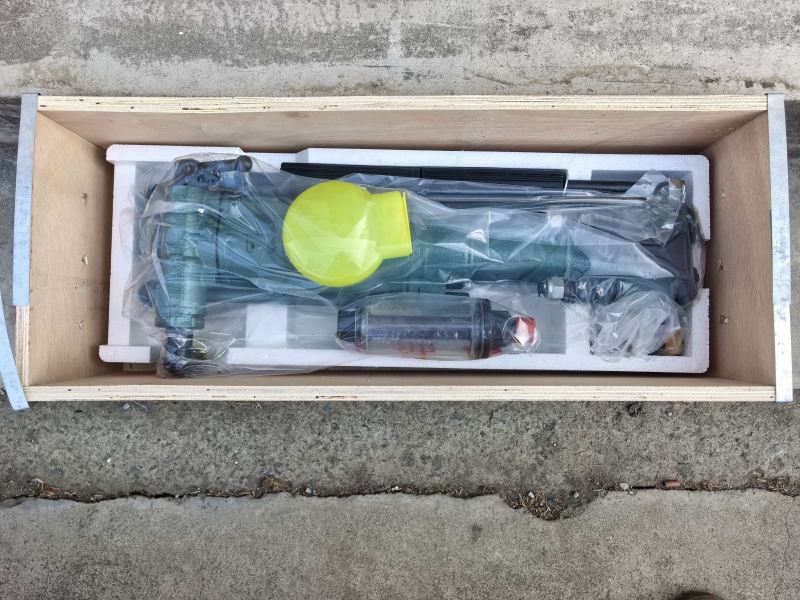

Y24 Hand Held Rock Drills carton packaging

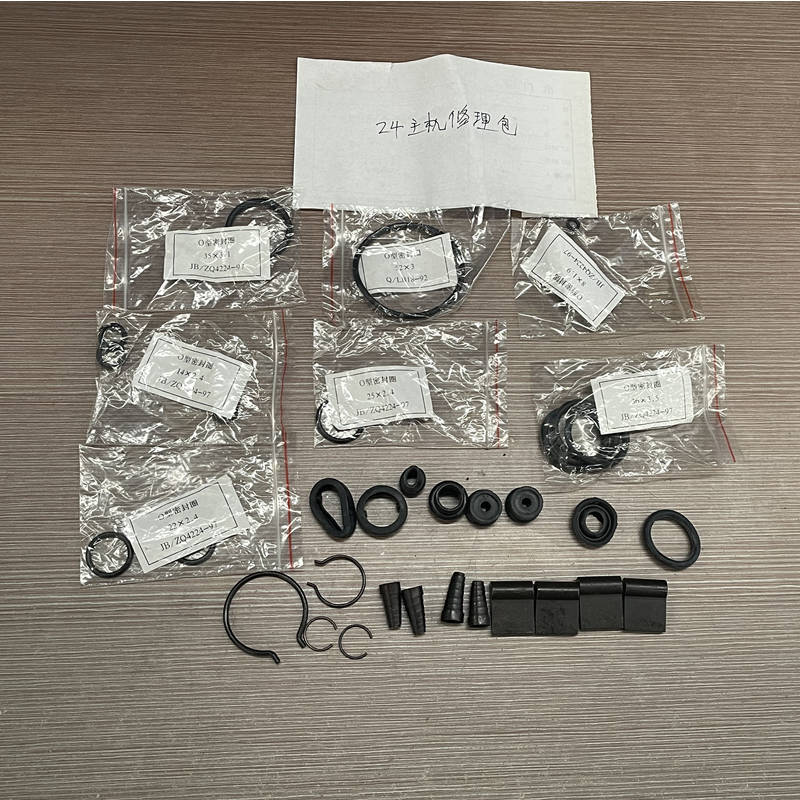

Y28 Hand Held Rock Drills repair kit
| Y24 Jackhammer spare parts list | ||||||
| No. | Part No. | Name | No. | Part No. | Name | |
| 1 | 36×3.5 RUBBER I-1GB1235-76 | O-ring seal | 23 | YT24-3.03 | Operating valve | |
| 2 | YT24-1.02 | Ratchet wheel | 24 | Y24-3.05 | Air injector | |
| 3 | YT24-1.03 | Valve chest | 25 | -3.08 | Handle body | |
| 4 | YT24-1.04 | Valve | 26 | -3.17 | Air injector sleeve | |
| 5 | YT24-1.05 | Valve cap | 27 | -3.23 | Nut plug | |
| 6 | YT24-1.06 | Locating stud | 28 | -3.27 | Handle | |
| 7 | YT24-1.07 | Ratchet pawl | 29 | -3.29 | Rubber handle | |
| 8 | YT24-1.08A | Rifle nut | 30 | -3.31 | Handle bolt | |
| 9 | YT24-1.09 | Rifle rod | 31 | GB97.2-85-16-140HV | Washer | |
| 10 | YT24-1.10 | Piston | 32 | YT24-3.02 | Long bolt | |
| 11 | Y24-1.11 | Cylinder body | 33 | -3.07 | Large gland cover | |
| 12 | Y24-1.12 | Guide sleeve | 34 | -3.09 | Long bolt nut | |
| 13 | YT24-1.13a | Silencing cover | 35 | -3.1 | Steel snap ring | |
| 14 | YT24-1.15 | Tower-shaped spring | 36 | YT28-3.11 | Air pipe elbow | |
| 15 | HOSE CLAMPS d100ZBJ15001-87 | Hose clamps | 37 | YT24-3.21 | Operating handle | |
| 16 | Y24-2.01a | Machine head | 38 | -3.22 | The group of Holding pin | |
| 17 | Y24-2.02 | Rotating sleeve | 39 | YT25-3.14 | Air injector pad | |
| 18 | YT24-2.03 | Bit shank sleeve | 40 | -3.2 | Spring | |
| 19 | YT24-2.05 | Bit clamp spring | 41 | -3.21 | Locating stud/lock | |

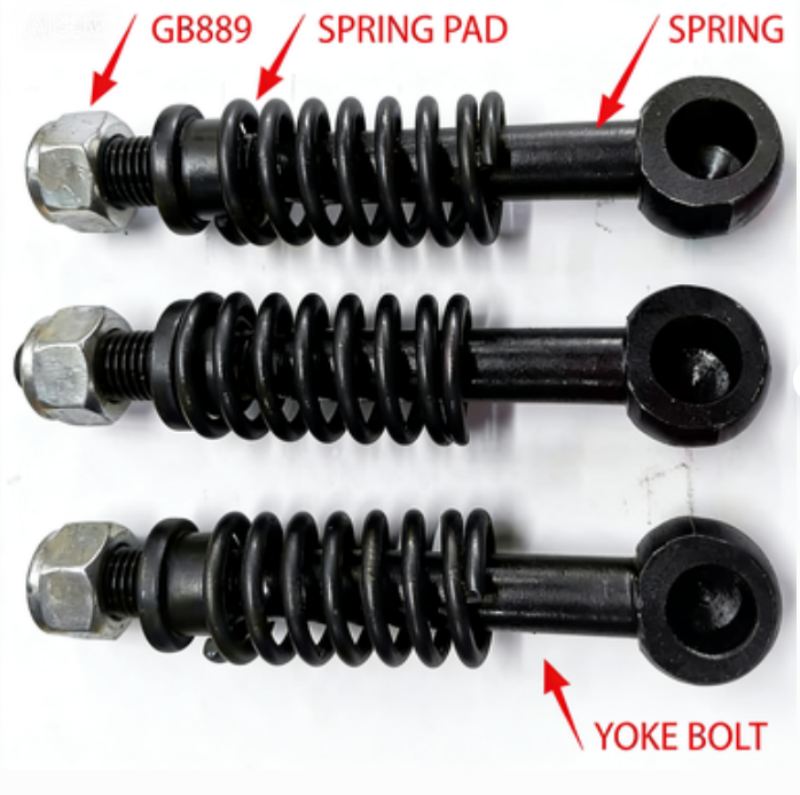

| 20 | YT24-2.06 | Bit clamp bolt | 42 | -3.35 | Copper Pad | |
| 21 | YT24-2.07a | Bit clamp | 43 | M16 | Handle nut | |
| 22 | YT28-2.12 | Spring pad | ||||

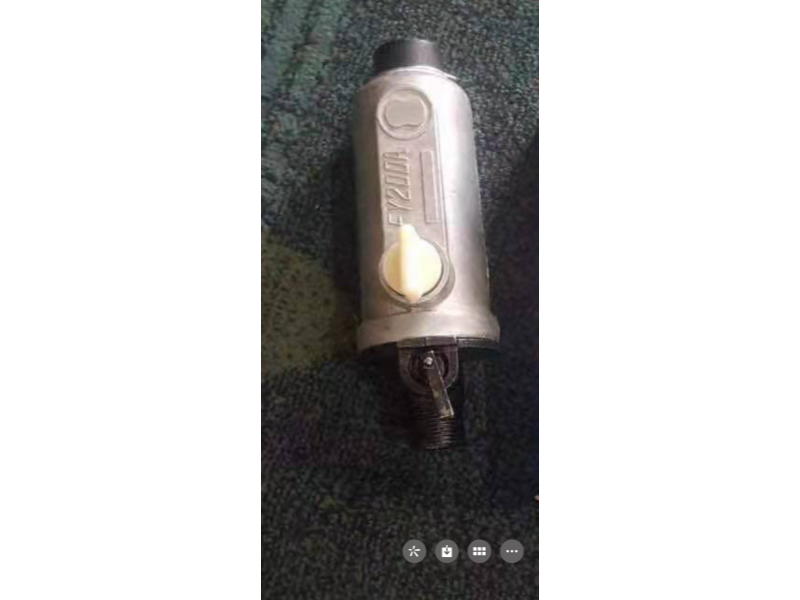

Oil feeder:
Y24 Hand Held Rock Drills for quarrying & demolition
For details please watch PDF online: Y24 Jackhammer spare parts list
