Q20-GT60-140 Threaded Button Bit
- Code No.: GT60-140
- Thread : GT60
- Diameter: 140mm
- Gauge Buttons:9*16mm
- Front Buttons:11*14mm
- Carbide Design: Dome
- Face Design: Uniface
Rock drilling tools manufacturer ProDrill™ offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching and long hole drilling underground
GT60 Threaded Button Bit
Diameter: 92mm, 96mm, 102mm, 115mm, 127mm, 140mm, 152mm

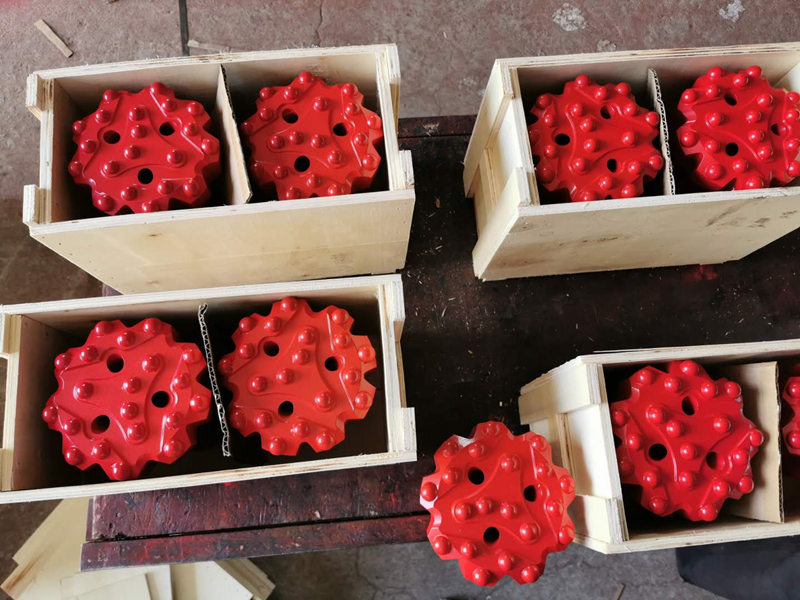

Q20-GT60-140 Threaded Button Bit Wooden box packaging
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center

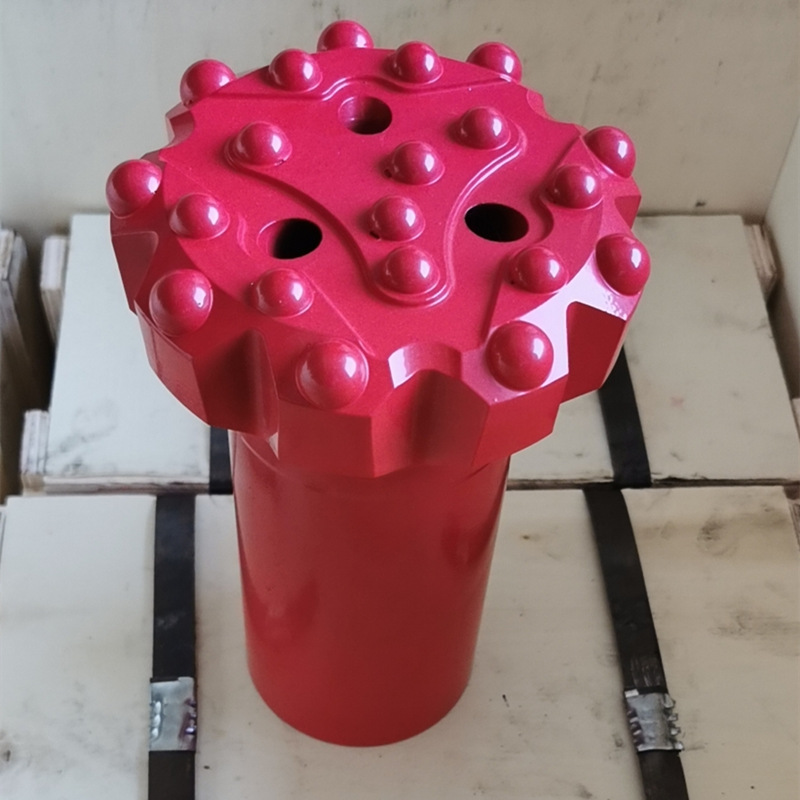

Uniface GT60 Threaded Drill Bit
Carbide Design: Dome, ballistic, semi-ballistic/parabolic
Retrac body Threaded Drill BitGT60 Threaded Button BitGT60 threaded button bitGT60 Thread Retrac Button Bit
Used in bench drilling, underground long hole drilling to match extension drill rod, heavy duty top hammer.
20 Semi-ballistic carbide inserts GT60 threaded dill bit with flat face design, 115mm diameter with extension drill steel for bench drilling and underground long hole drilling.
New DP1500i is performing drilling 102/115/127/140mm holes for bench and production mining
