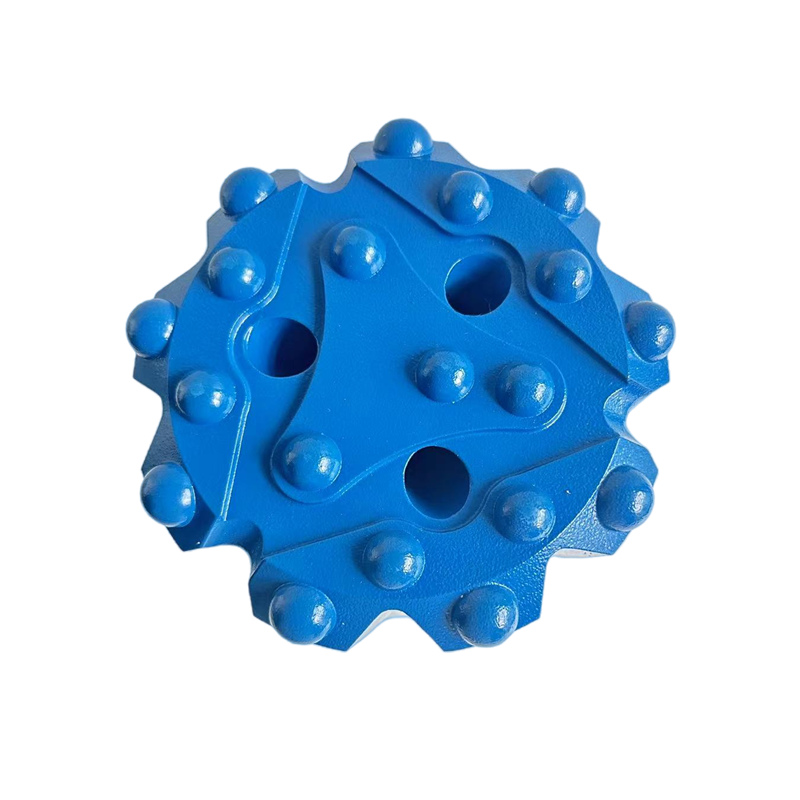

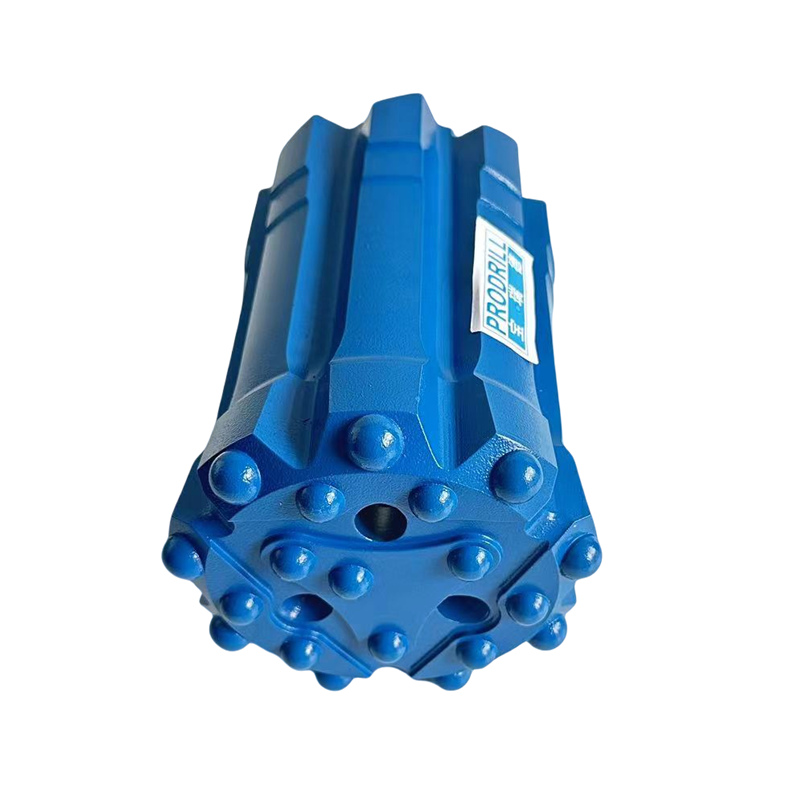

Q19-140-GT60 Retract Button Bit

  • Code No.: Q19-140-GT60-RC
  • Thread: GT60
  • Diameter: 140mm
  • Gauge Buttons: 9*16mm
  • Front Buttons: 10*14mm
  • Skirt Design: Retrac
  • Carbide Design: Dome
  • Weight : 17.1kg
Product details



Rock drilling tools manufacturer ProDrill™ offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching. GT60 rock drill bits are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.

Diameter: 93mm, 102mm, 115mm, 127mm,140mm

Skirt Body: retrac, and normal, straightrac

Face type: flat, uniface, drop center

New DP1500i is performing drilling 102/115/127/140mm holes for bench and production mining
