GT60 Rock Tools String for Sandvik Pantera™ DP1500i
- GT60 Drilling Consumables String forPantera™ DP1500i Surface top nammer drill rig-Sandvik:

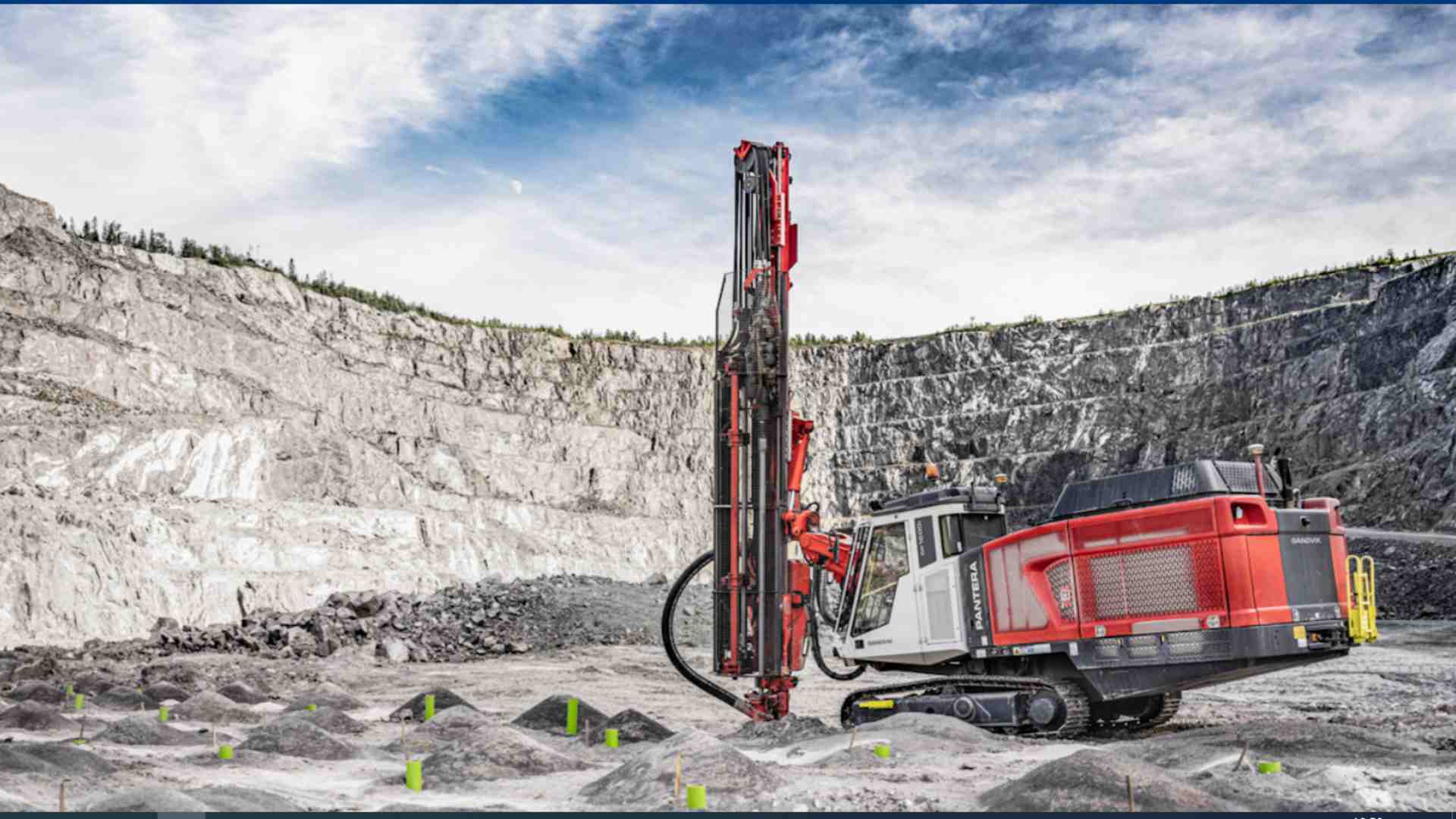

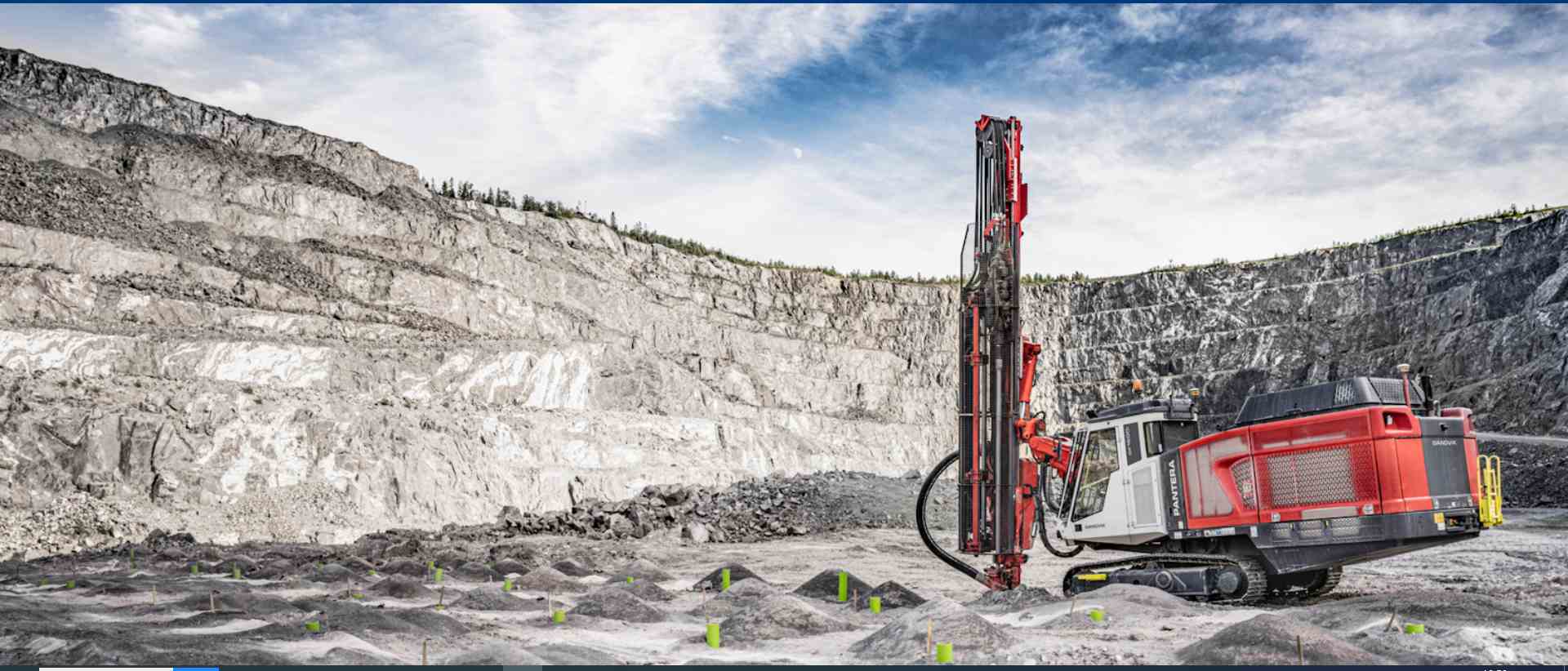

The world's most advanced Jumpo Surface Drilling Rig -- Sandvik Pantera DP1500i
GT60 Threaded Button Bits designed for Sandvik Pantera DP1500i are one of the most important size for benching. GT60 rock drill bits are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.Diameter: 93mm, 102mm, 115mm, 127mm,140mm. Skirt Body: retrac, normal, straightrac Face type: flat, uniface, drop center, Carbide Design: Dome, ballistic, semi-ballistic/parabolic, Carbide Insert ( Cemented Carbide ) grade : T6 or YK05.
| GT60 Rock Drilling Tools for DP1500i | ||
| Serial Number | Part Number | Product Description |

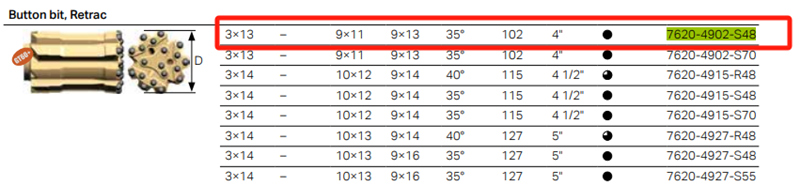

| 1 | 7620-4902-S48 | Retrac Bit GT60-102MM, Gauge, Buttons: 9*13mm, Front Buttons: 9*11mm, Carbide Design: Dome, Skirt Design: Retrac |

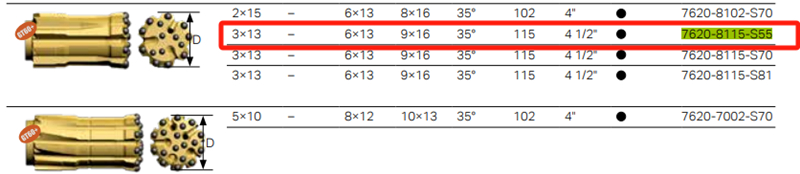

| 2 | 7620-8115-S55 | Q15-115-GT60-RC-Threaded Button Bit,Gauge Buttons: 9*16mm, Front Buttons: 6*13mm, Skirt Design: Retrac, Carbide Design: Dome |
| 3 | 7620-4927-S55 | Q19-127-GT60-RC-Threaded Button Bit,Gauge Buttons: 9*16mm, Front Buttons: 10*13mm, Skirt Design: Retrac, Carbide Design: Dome |
| 4 | 7620-4940-S70 | Q19-140-GT60-RC-Threaded Button Bit,Gauge Buttons: 9*16mm, Front Buttons: 10*14mm, Skirt Design: Retrac, Carbide Design: Dome |

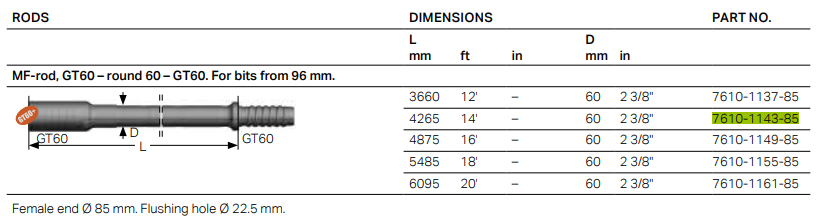

| 5 | 7610-1143-85 | MF ROD GT60 R60 |

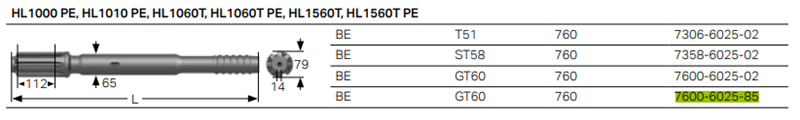

| 6 | 7600-6025-85 | HL1000PE-GT60-L760-D65 Shank Adapter, Length : 760mm, Dia : 65mm, Thread : GT60 |

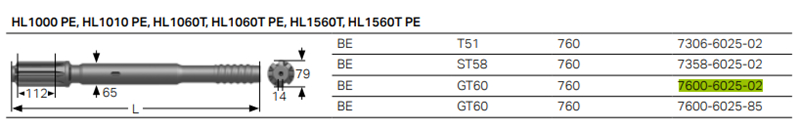

| 7 | 7600-6025-02 | HL1000/1500PE-GT60-L760-D65 Shank Adapter, Length : 760mm, Dia : 65mm, Thread : GT60 |

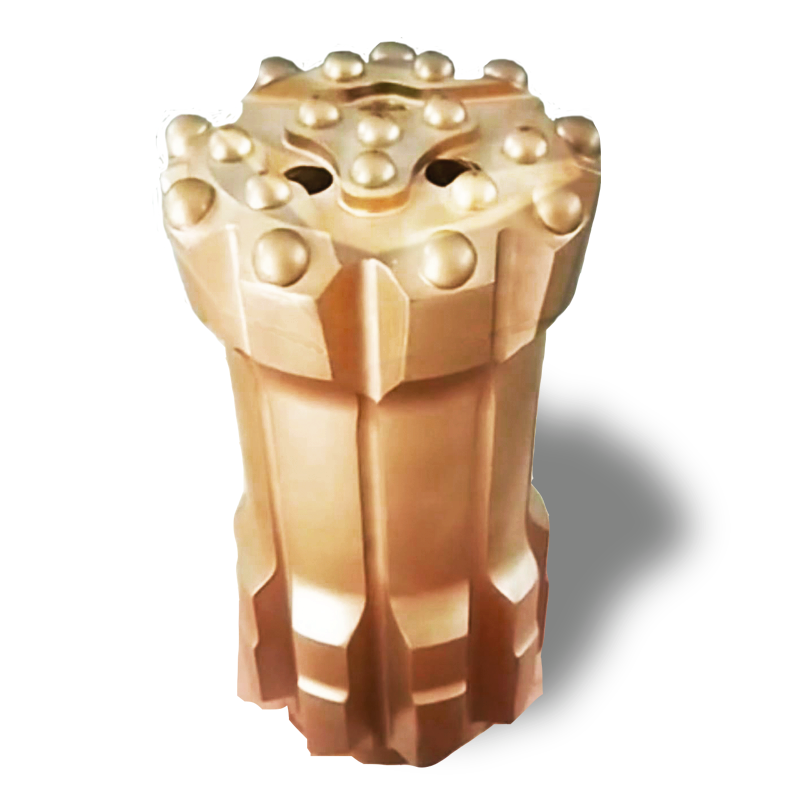

Q19-127-GT60-RC-Threaded Button Bit
HL1000/1500PE-GT60-L760-D65 Shank Adapter

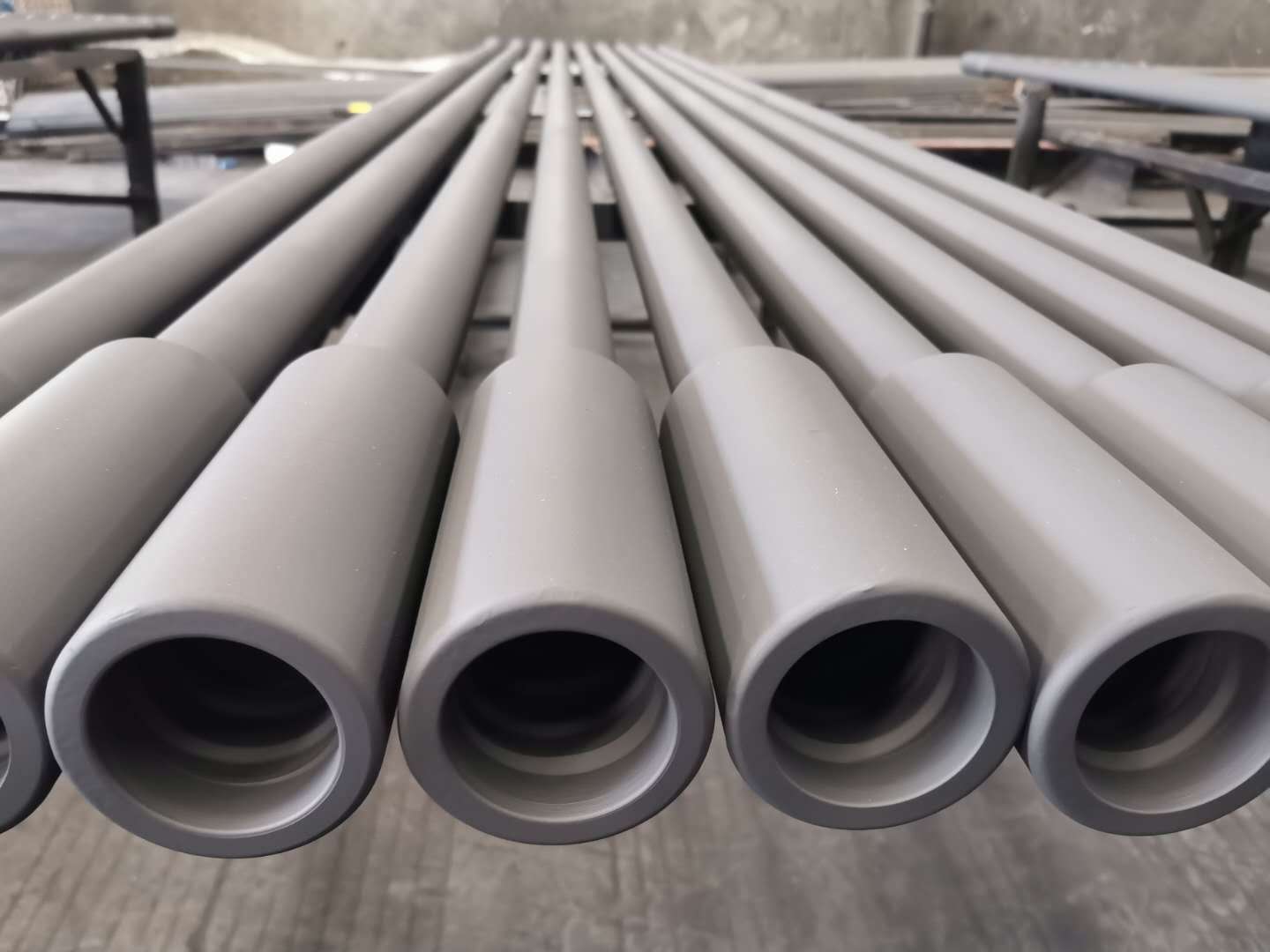

MF ROD GT60 R60
