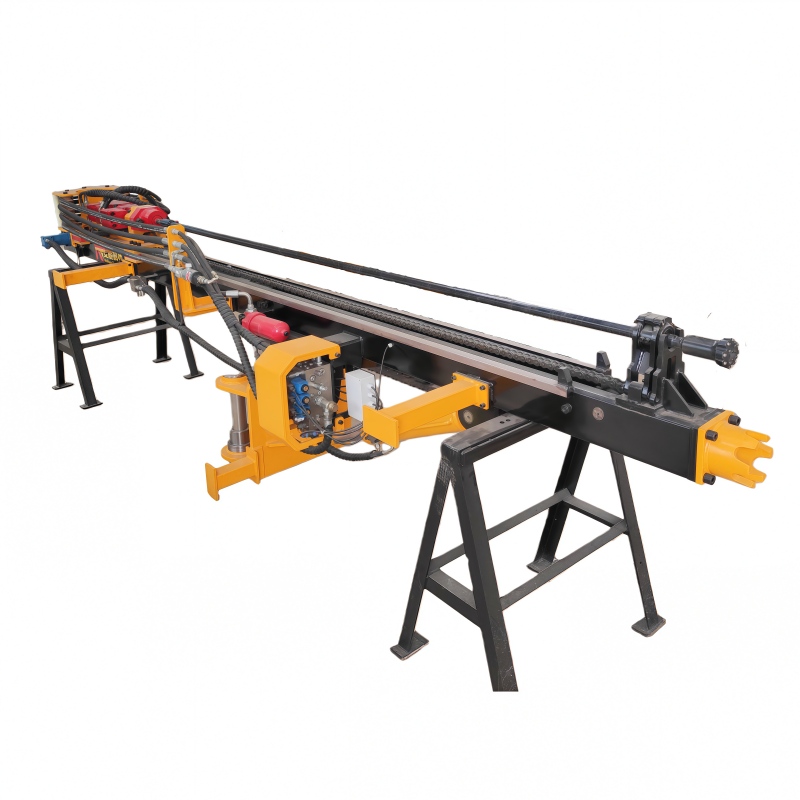

PD-90A Rock Drill Attachment for Excavator
- 1:PD-90A Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
- 2:The rate of the Pump can reach 200L/min, drilling diameter 38-115mm, 3m depth per time drilling.
- 3:Drilling speed: 1 Meter/Min for hard rock, 1.2 Meter/Min can drill 1m depth for soft rock.
- 4:Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.
- 5:Drilling control system from Sandvik together with the mechanical rod changer. Anti-jamming and hydaulic clamper design, high efficient, and more reliable ,perfect for quarry and surface mining
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock, and concrete demolition, construction works, etc. Pro Drill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
Feature
- PD-90A Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
- The rate of the Pump can reach 200L/min, drilling diameter 45-90mm, 3m depth per time drilling.
- Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock.
- Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker

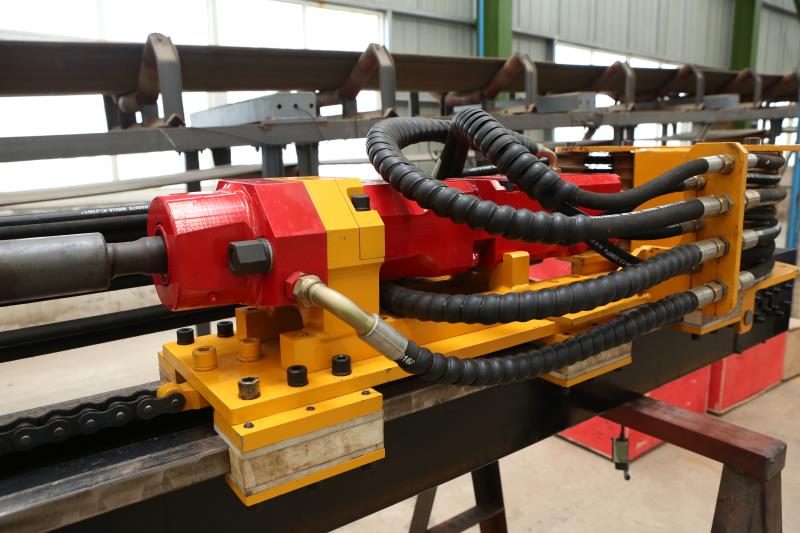

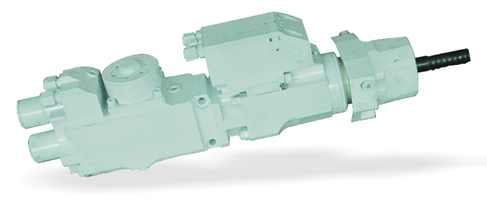

1.PD-90A Hydraulic Drifter:
Technical Parameter for PD-90A Hydraulic Drifter:
| Item | Description | Unite | Parameter | |
| 1 | Import parameter | Import Oil Pressure | Mpa | 16-19 |
| 2 | Import Rate | L/min | 55-65 | |
| 3 | Import Frequency | Hz | 34-50 | |
| 4 | Import Energy | J | 300 | |
| 5 | Rotation Parameter | Rotation Oil Pressure | Mpa | 4.5-15 |
| 6 | Rotation Rate | L/min | 40-70 | |
| 8 | Maximum Torque | Nm | 100-300 | |
| 11 | Net Weight | Kg | 115 | |
| 13 | Drilling hole Dia | mm | 38-89 | |
| 14 | Drilling depth | m | ≦15 | |
2.PD-90A Rock Drill Set:
The PD-90A excavator drill attachment set included with a T45-3660mm drill rod , and a T45-Φ102mm drill bit,
a screw air compressor set, a 5.2 m propulsion rail (total length 6.0 m), and a spare box.
1) 1PC/ PD-90A Excavator Mounted Rock Drill with hydraulic Driven Compressor 3m3，0.8Mpa. Excavator 20 Tons Required,One can enter the rod 2 meters deep, hydraulic drifter is China-made 300 type hydraulic rock drill, aperture 64-102mm,like JCB210 with YQ30 HYDRAULIC screw air compressor.
2) Rock Drill Attachment Arm Length : Rail length 5.2 meters, total length 6.0 meters
3) Without dust collection system.
4) PD-90A Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
5) The rate of the Pump can reach 200L/min, drilling diameter 45-102mm, 3m depth per time drilling. Drilling speed: 1.5-3min/m for hard rock, 1min can drill 1m depth for soft rock
Technical Parameter for PD-90A Set:
| Product model | PD-90A |
| Rock hardness | f=6-18 |
| Max.Drill depth | 12m |
| One time Drill Depth | 3 meter,using MF T38-3050MM |
| Weight | 1600kg |
| Hydraulic Drifter | HYD300 |
| Impact power | 15KW |
| Impact Frequency | 34-50HZ |
| Water flushing flow | 40L/min |
| Water flushing Pressure | 1MPa |
| Air flushing | 4.0m³/min |
| Air flushing pressure | 6-10bar |
| Rod type | R32/T38/T45/T51 |
| Drilling Diameter | 38-102mm |
| Size | 7000×1200×1500mm |
| Excavator | ≥15T |
Hydraulic Drifter HYD300

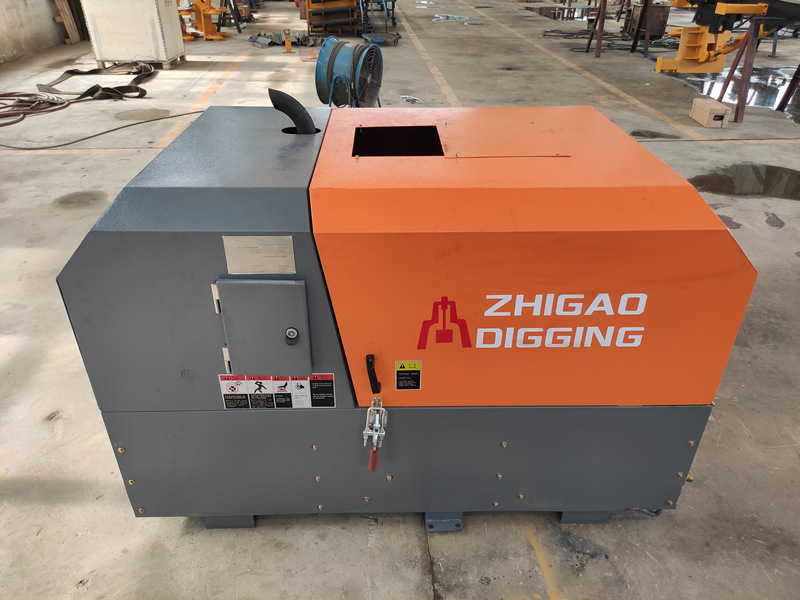

Model No: 40SCG-7 4.5m³/min, 8 bar, diesel motor Screw Air Compressor

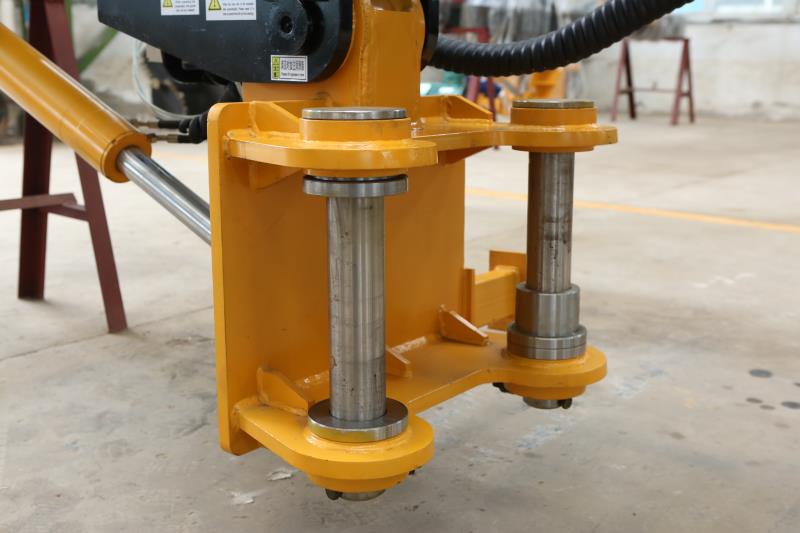

Quick Hitch

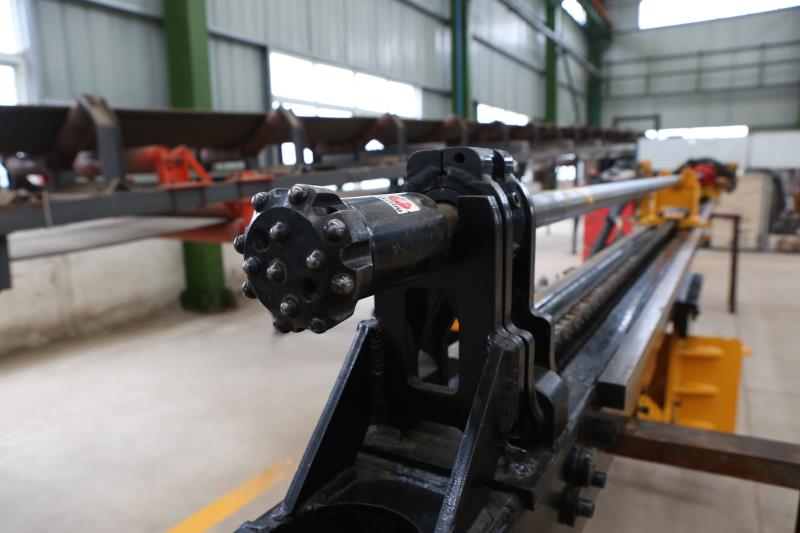

T45 -89 mm button bit,3660mm extension rod standard retainer for 3-4 meter hole depth

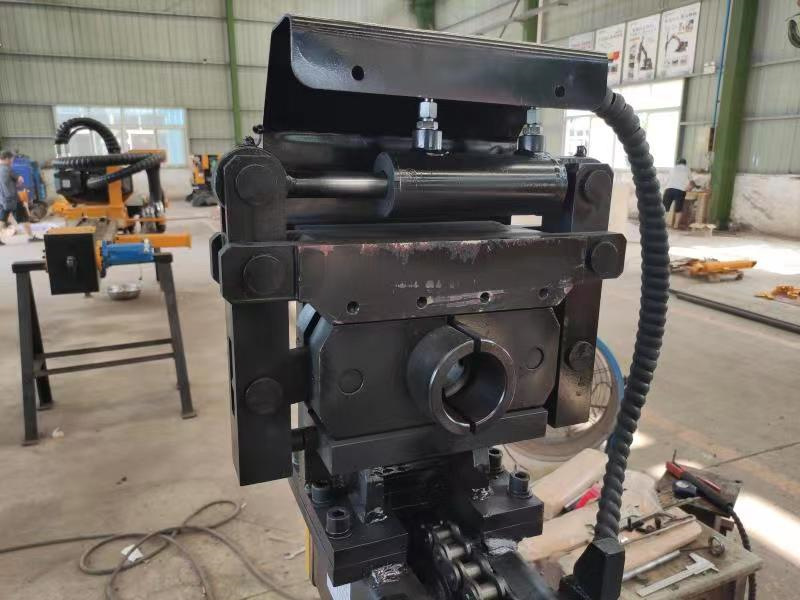

T45 -89 mm button bit,3660mm extension rod hydaulic clamper for 9-10 meter hole depth
3.Consignation of Excavated Mounted
(1) Multi function rail set
(2) Imported hydraulic drifter
(3) Moving System
(4) Dust collection
(5) Rock drilling tools
(6) Piston type air compressor
(7) With guide hydro-cylinder,plus 360° degree rotary function

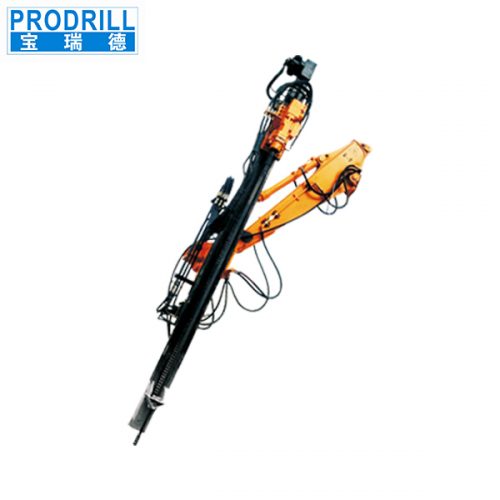

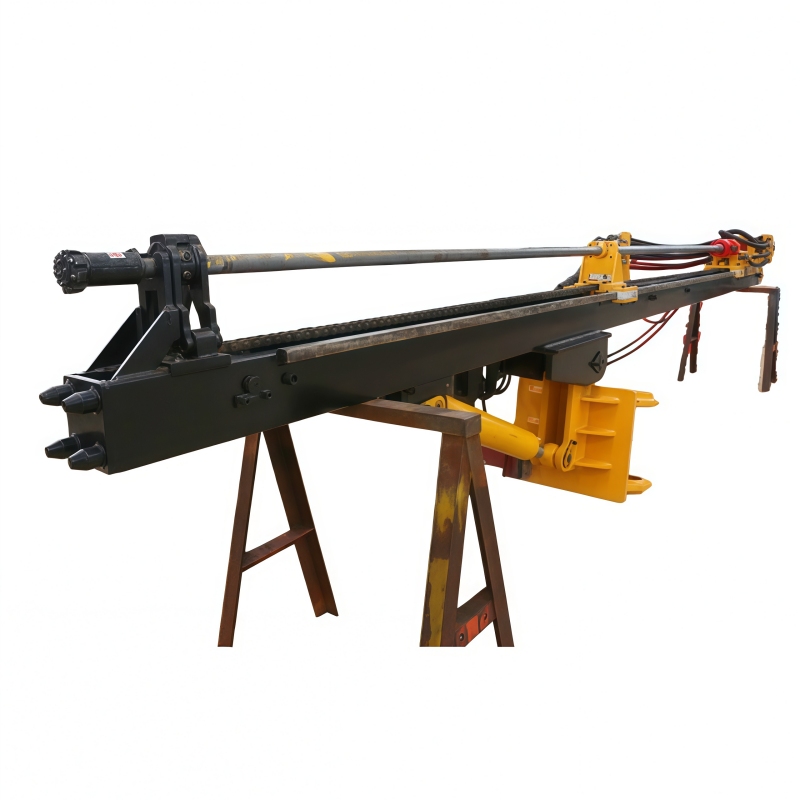

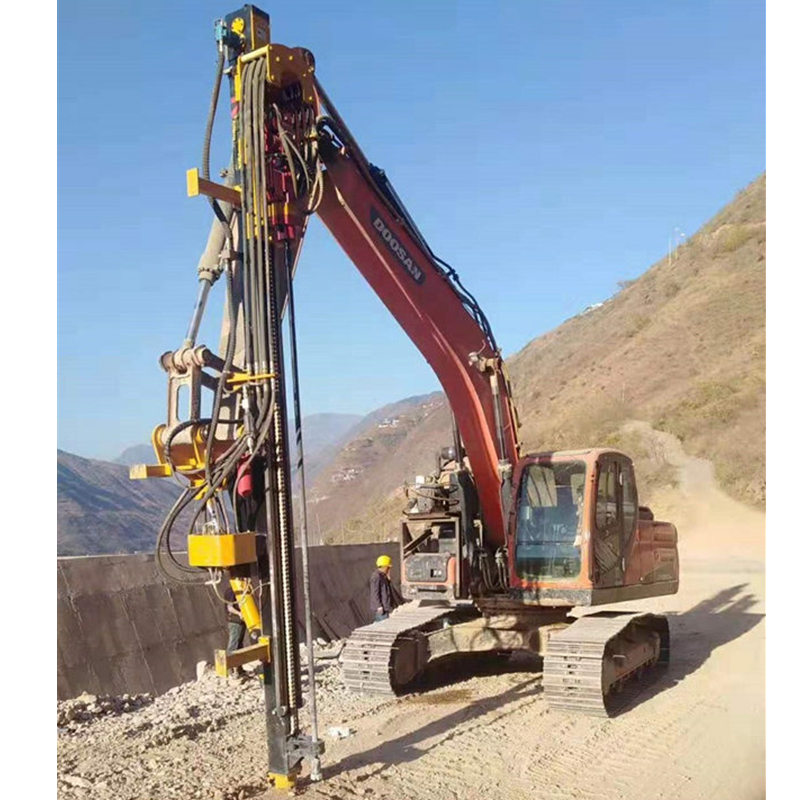

4.PD-90A Excavator Mounted Rock Drill
With guide hydro-cylinder,without 360° degree rotary function
PD-90A operating video, pls visit: https://youtu.be/efsAbBuiKb4

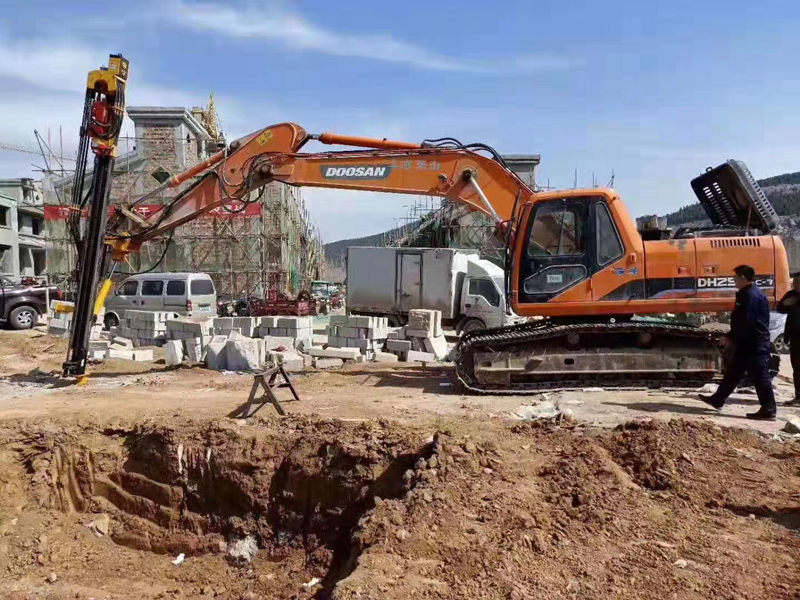

PD-90 Excavator Mounted Rock Drill
PD-90 Excavator Mounted Rock Drill without Dust Collection System
For more details please review PDF online:Excavator Drill Attachment installation manual
