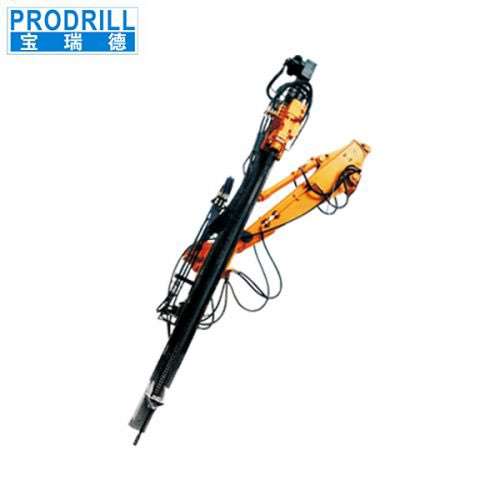

PD45 Excavator Mounted Rock Drill
Feature
1）PD45 Excavator Mounted rock drill suit to the 6 tons excavator mounted machines.
2）The rate of the Pump can reach 100 L/min, drilling diameter 32-64mm, 3.2m depth per time drilling.
3）Drilling speed: 0.7-1.0m/min for hard rock, 1min can drill 1.5 m depth for soft rock.
4）Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.

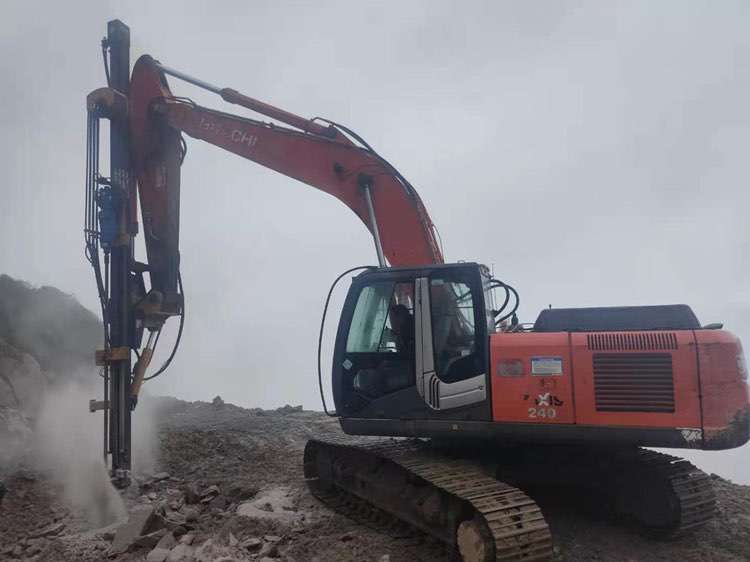

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc. Pro Drill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.

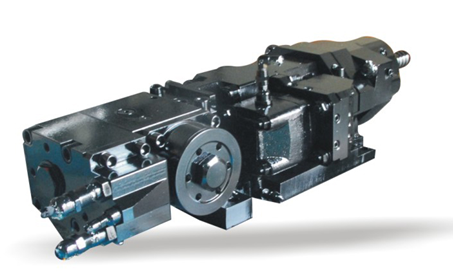

1. PD 45 Hydraulic Drifter
Technical Parameter for PD45 Hydraulic Drifter：
| Item | Description | Unit | Parameter | |
| 1 | Import Parameter | Import Oil Pressure | Mpa | 14-16 |
| 2 | Import Rate | L/min | 30-45 | |
| 3 | Import Frequency | Hz | 34-67 | |
| 4 | Import Energy | J | 200 | |
| 5 | Rotation Parameter | Rotation Oil Pressure | Mpa | 4.5-15 |
| 6 | Rotation Rate | L/min | 40-70 | |
| 8 | Maximum Torque | Nm | 95 | |
| 11 | Net Weight | Kg | 27-64 | |
| 13 | Drilling hole Dia | mm | 32-45 | |
| 14 | Drilling depth | m | ≦12 | |

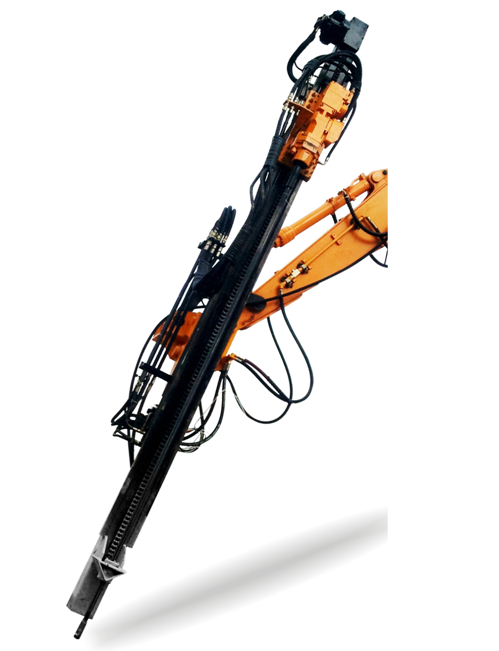

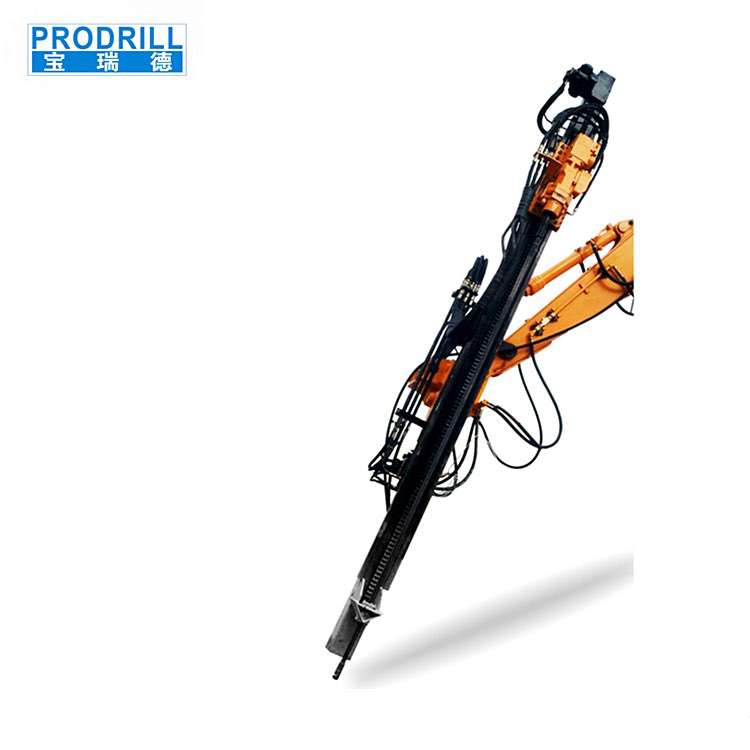

2.PD45 Rock Drill Set
PD45 Rock Drill Technical Datasheet：
| Product model | PD-45A | PD-45C | PD-45D |
| Rock hardness | f=6-18 | ||
| Drilling depth | ≤12m | ||
| Single rod Drilling depth | 3.2m | ||
| Weight | 1200kg | ||
| Hydraulic Drifter | HYD200 | HC20 | DF420/430 |
| Manufacturer | LHS | MONTABERT | DOOFOR |
| Origin | China | France | Finland |
| Impact power/KW | 7 | 4.5 | 5 |
| Drilling Diameter /mm | 32-54 | 32-64 | 32-51 |
| Suitable Excavator | ≥8T | ||
| Suitable Air compressor | ACH3.5/7 | ||

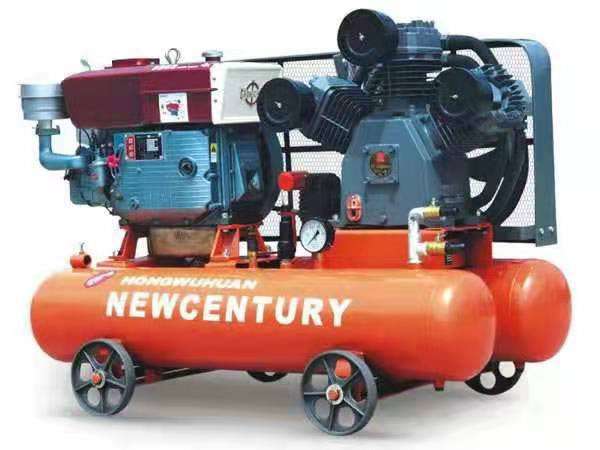

ACH 3.5/7 Diesel air compressor：

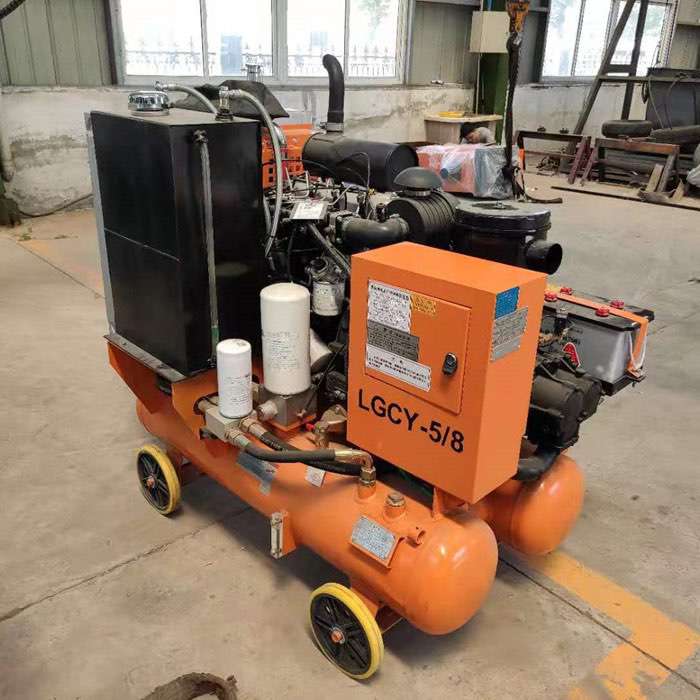

ACL 5.0/8 Diesel air compressor：
Diesel air compressor specifications：
| Model | ACH 3.5/7 | ACL 5.0/8 |
| Nose type | 活塞Piston | 螺杆Screw |
| Air displacement m³/min | 3.5 | 5 |
| Air pressure/MPa | 0.7 | 0.8 |
| Diesel engine power/KW | 18 | 30 |
| Size/mm | 1960×900×1250 | 1520×820×1060 |
| Weight/kg | 638 | 700 |
The PD-45 excavator drill attachment set included with a R32-3660mm drill rod , a R32-Φ45 drill bit,a Diesel-moving piston air compressor set, a 4.8m propulsion rail (total length 5.5 m, and a spare box.
5) The rate of the Pump can reach 100L/min, drilling diameter 33-64mm, 3m depth per time drilling. Drilling speed: 0.7-1.0m/min for hard rock, 1min can drill 1-1.5m depth for soft rock

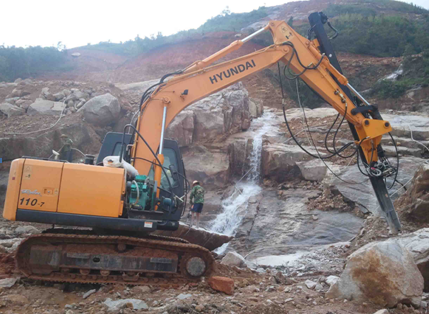

3.PD45 Excavator Mounted Rock
For more details please review PDF online:Excavator Drill Attachment installation manual
