DTH Drill Pipe O.D.89mm (No Flat) for mining

Outer Diameter : 89mm
Length: 6000mm
Wall Thickness: 6.5- 8mm
Thread Pin/Box : API 2 3/8 REG
Materials:35CrMo for thread connect + R780 for drill pipe
Cuts : 2/4 cuts for fork to hold
Process : Upsetting treatment to reduce the weight of rod while keep the strength on the weld;Auto changed rod

Product details

Rock drilling tools manufacturer Prodrill, DTH Drill Pipes

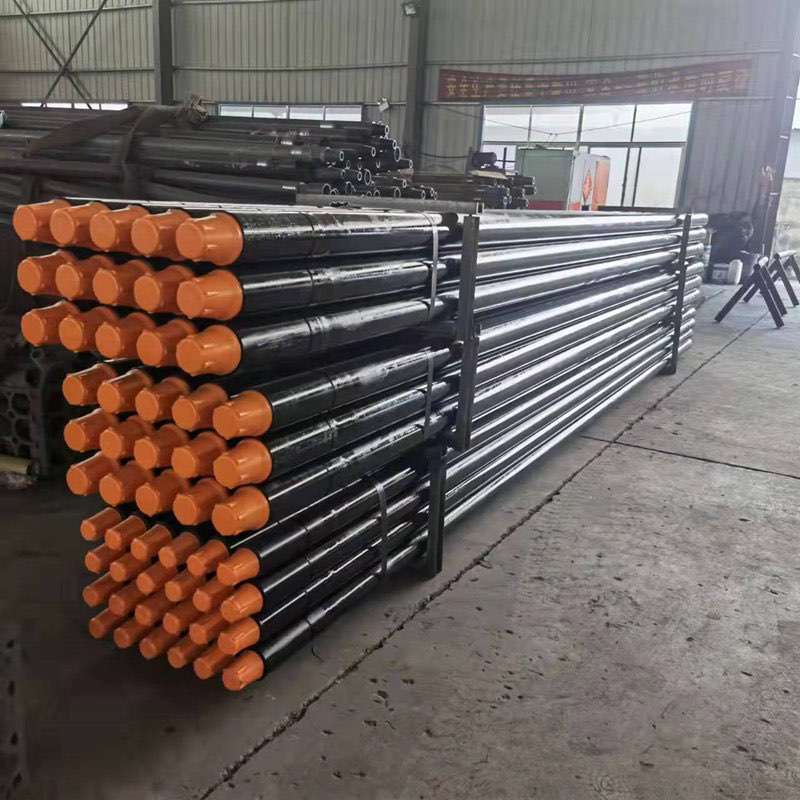

DTH drill tubes are used for connecting DTH hammer and DTH button bits rock drill bits, they are made from seamless tubes. Tubes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability.

ALL DTH drill tubes are friction welded, and usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 5000mm length of tubes, O.D we can offer 50mm, 60mm, 76mm, 89mm,102mm,114mm，127mm，140mm.

Parameter list of Prodrill™DTH drill pipe

Thread	Diameter （mm）	Length（mm）	Wall Thickness（mm）	Upsetting form
API23/8REG	76	1000-6000	4-10	Internal thickening
API23/8REG	83	1000-6000	4-10	Internal thickening
API23/8REG	89	1000-6000	4-10	Internal thickening
API27/8REG	102	1500-6000	6-12	Internal thickening
API31/2REG	114	1500-6000	6-12	Internal thickening
API31/2REG	127	1500-6000	6-12	Internal thickening
API31/2REG	133	1500-6000	6-12	Internal thickening
API41/2REG	140	1500-6000	6-12	Internal thickening
CUBX21#	89	1000-6000	4-10	Internal thickening
CUBX21#	102	1000-6000	6-12	Internal thickening
CUBX24#	102	1000-6000	6-12	Internal thickening
CUBX28#	114	1000-6000	6-12	Internal thickening

Friction welded technology

ProDrill™drill pipe advantages :

Durability and strength: Our drill rods are designed for high performance, able to withstand harsh drilling conditions, ensuring longer service life and reducing downtime.

High efficiency: These drill rods are designed for smooth operation, improving the efficiency of drilling operations by achieving faster and more precise drilling.

Multifunctionality: Whether you are engaged in mining, construction, or water well drilling, our rotary, DTH, and reverse circulation drill rods are suitable for a wide range of applications.

Corrosion resistance: Our drill rods are made of high-quality materials with excellent corrosion resistance, making them an ideal choice for open-pit and underground drilling in various environments.

Precise fit: Our drill rods are manufactured with high tolerances to provide safe and tight connections between drilling tools, ensuring better torque transmission and reducing wear.

Products feathers:

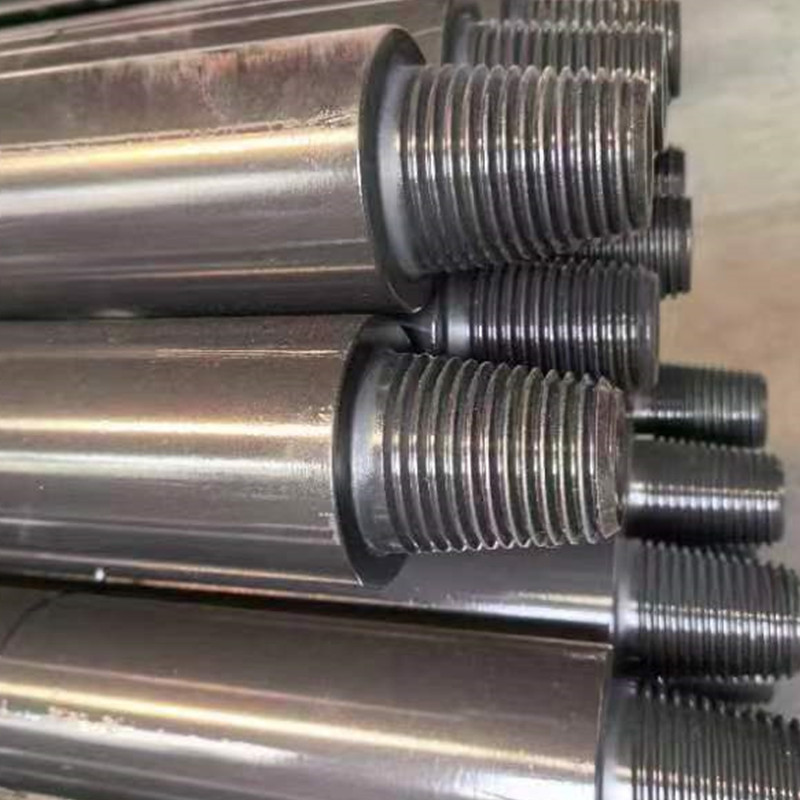

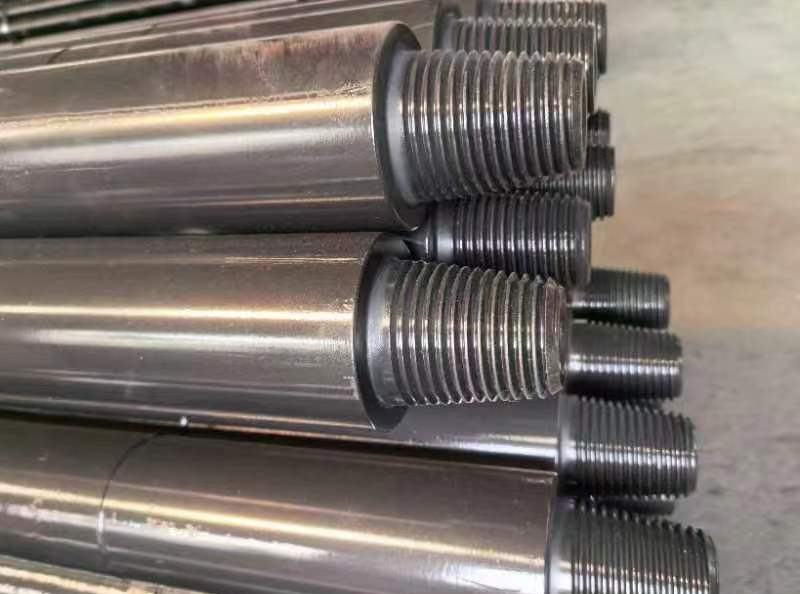

1.Nitriding on the thread of rod joint to improve the hardness of thread surface and increase the wear resistance of thread.

2.Using R780 as the material of rod body to improve the wear resistance and the strength, 35CrMo materials for thread connect.

3.Adopts the upsetting treatment to reduce the weight of rod while keep the strength of the welds.

4.Upsetting treatment technology.

685646

Thread Pin/Box: 2-3/8" API Reg

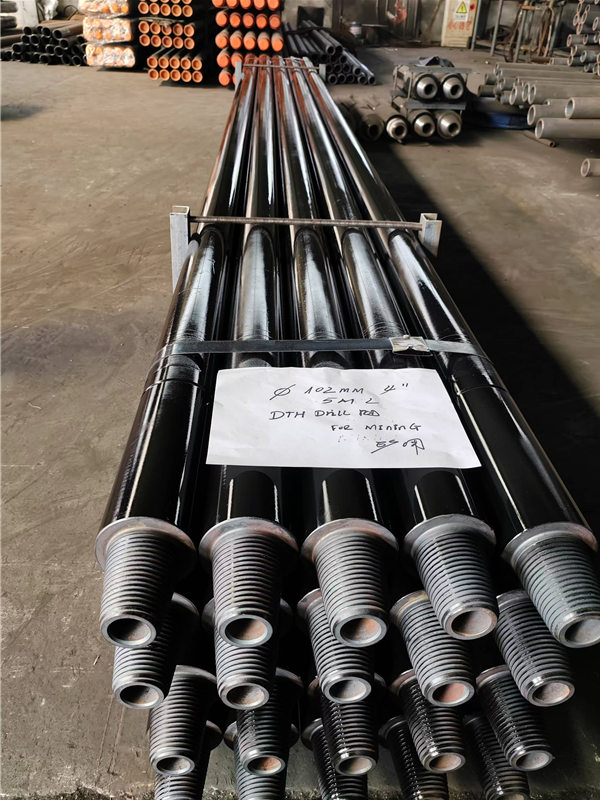

DTH pipe O.D 102mm for mining
