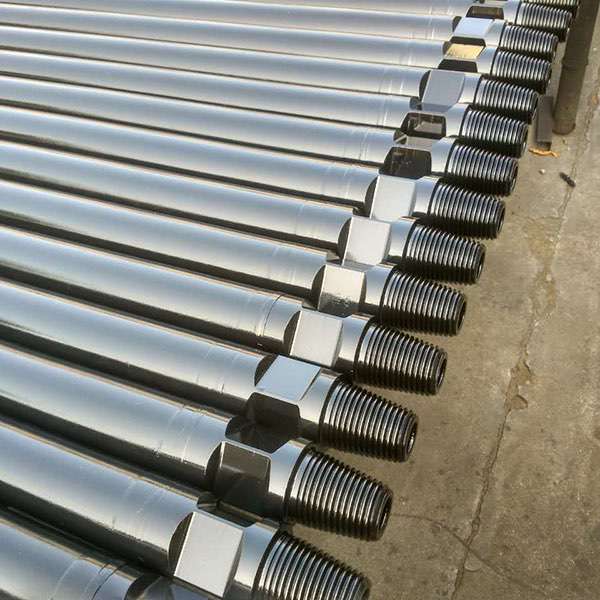

DTH drill Pipe O.D.76mm for Water Wells

Outer Diameter OD: 76mm
Length: 1000-5000mm
Wall Thickness: 5-6.5mm

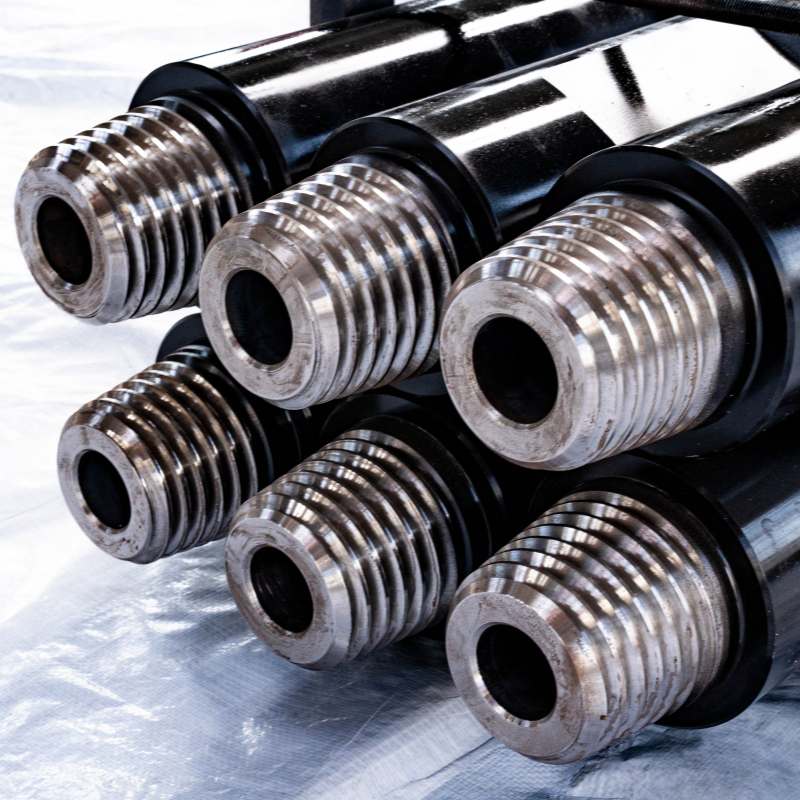

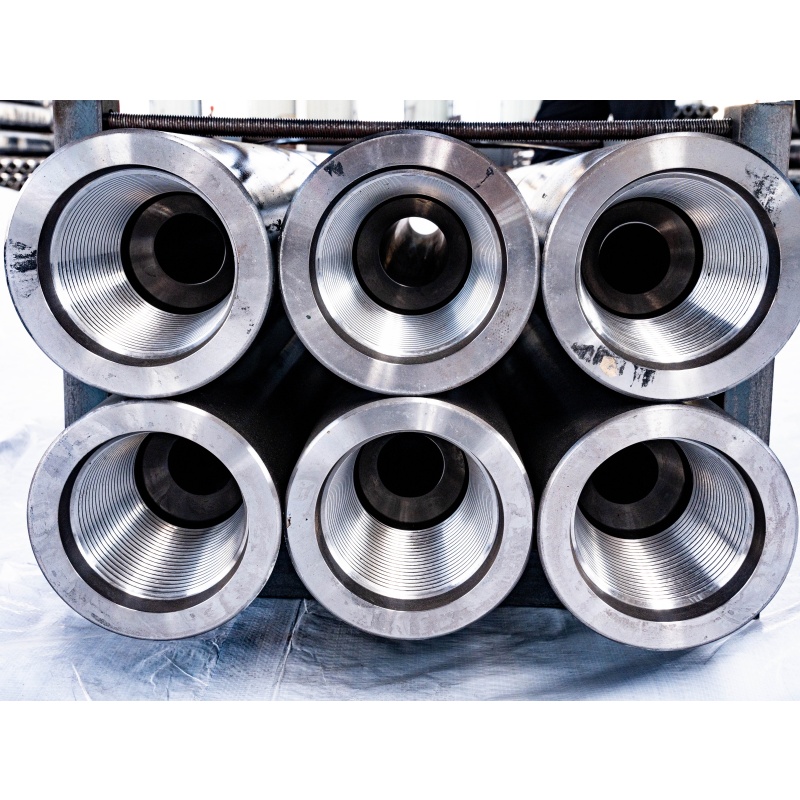

Thread Pin/Box: 2-3/8" API Reg.
Materials: 42CrMo for sub adapter + R780 for drill pipe
Process: : Upsetting treatment to reduce the weight of rod while keep the strength on the weld

Product details

Rock drilling tools manufacturer Prodrill™, DTH Drill Pipes

The downhole drill pipe products are made of high-quality materials,the heat treatment of the materials is carried out by an integrated multi-functional furnace,all threads are processed by professional numerical control,the internal part of the end of the rod body is thickened,the strength of the weld joint is greatly improved,and the tempering treatment is carried out after friction welding,so that the quality of the drill pipe is stable and reliable,and the service life is greatly prolonged.

DTH drill tubes are used for connecting DTH hammer and DTH button bits rock drill bits, they are made from seamless tubes. Tubes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability.

ALL DTH drill tubes are friction welded, and usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 5000mm length of tubes, O.D we can offer 50mm, 60mm, 76mm, 89mm,102mm，127mm，140mm.

Parameter list of Prodrill™DTH drill pipe

Specifications	Thread	Outer diameter (mm)	Wall Thickness（mm）	Tube upsetting form	Drill rod length (mm)	Wrench socket type
Specifications	Thread	Outer diameter (mm)	Wall Thickness（mm）	Tube upsetting form	Drill rod length (mm)	Wrench socket type
76mm	2-3/8REG	76	5-6.0	Internal thickening	1500-6000	Single layer
89mm	NC26	89	5-6.0	Internal thickening	1500-6000	Single/double layer
102mm	NC31	102	7-8.38	Internal thickening	1500-6000	Single/double layer
102mm	NC31	102	7-8.38	Internal and external thickening	1500-6000	Single/double layer
114mm	NC35	114	7-8.38	Internal thickening	1500-6000	Single/double layer
127mm	NC38	127	8-9.19	Internal thickening	1500-6000	Single/double layer
140mm	4-1/2Reg	140	9.19	Internal thickening	1500-6000	Single/double layer

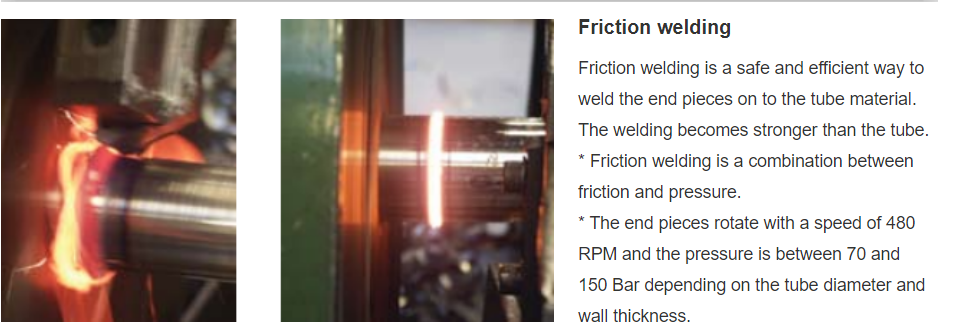

Friction welded technology

DTH pipe & DTH Sub adaptor

ProDrill drill pipe advantages :

Durability and strength: Our drill rods are designed for high performance, able to withstand harsh drilling conditions, ensuring longer service life and reducing downtime.

High efficiency: These drill rods are designed for smooth operation, improving the efficiency of drilling operations by achieving faster and more precise drilling.

Multifunctionality: Whether you are engaged in mining, construction, or water well drilling, our rotary, DTH, and reverse circulation drill rods are suitable for a wide range of applications.

Corrosion resistance: Our drill rods are made of high-quality materials with excellent corrosion resistance, making them an ideal choice for open-pit and underground drilling in various environments.

Precise fit: Our drill rods are manufactured with high tolerances to provide safe and tight connections between drilling tools, ensuring better torque transmission and reducing wear.

Products feathers:

1. Threaded connection of DTH drill rod has been processed by nitrogen treatment to improve the surface hardness and wear resistance of thread.
2. Use R780 as material of DTH drill rod to improve wear resistance and strength.
3. Adopt the upsetting treatment to reduce the weight of the DTH drill pipe while keep the strength of welding connection(Wall thickness is 6.6mm and welding connection thickness is 8.5mm)

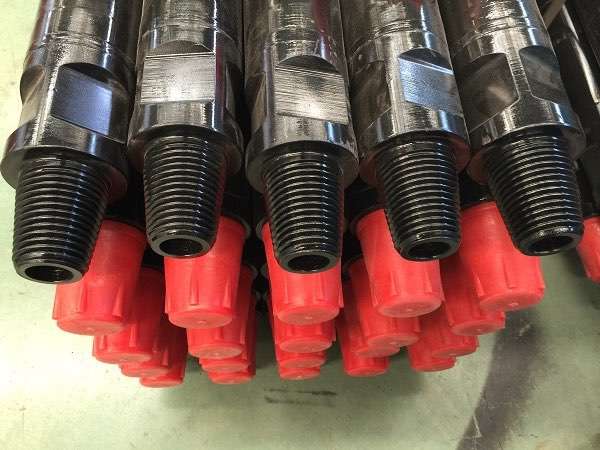

Upsetting treatment technology

239335152788391421

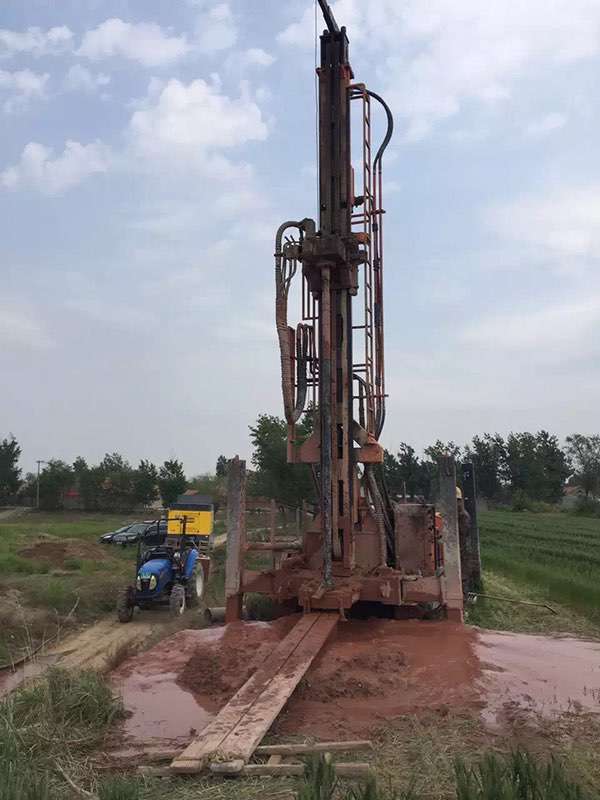

DTH pipes in water well drilling

ProDrill DTH drill pipes used in water well digging, performance and quality approved by our clients in South Africa. Every monthly Qty reach 2,000-3,000 pcs from local distributor.

Stangland, Norway

Mr. Simon Hu, CEO of ProDrill, visit clients in Norway, StangerLand is one of largest construct contractor company in Norway.

PDF For more details please watch PDF online: DTH Pipe Catalogue
