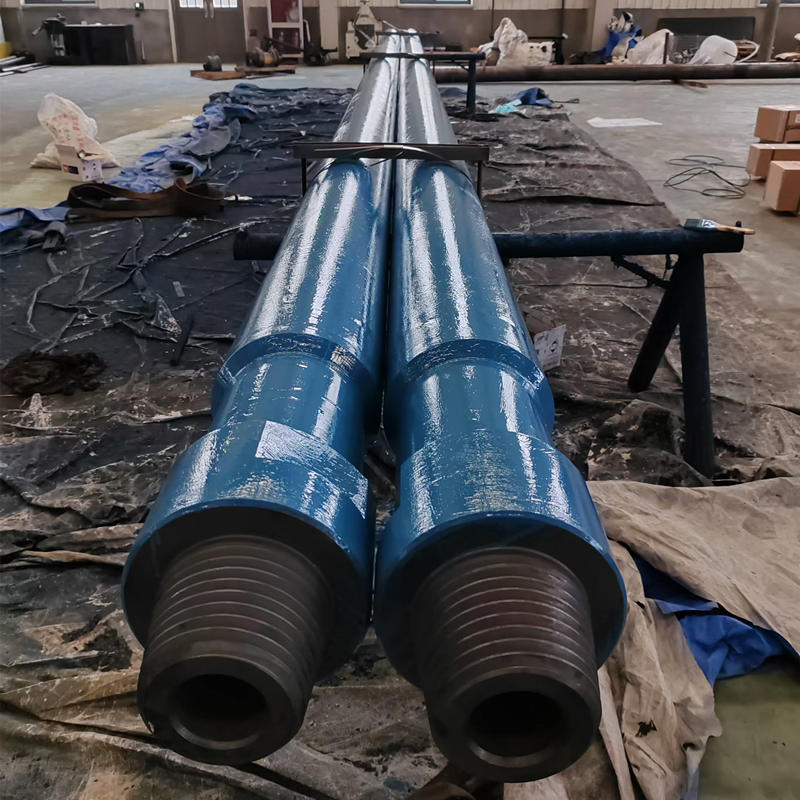

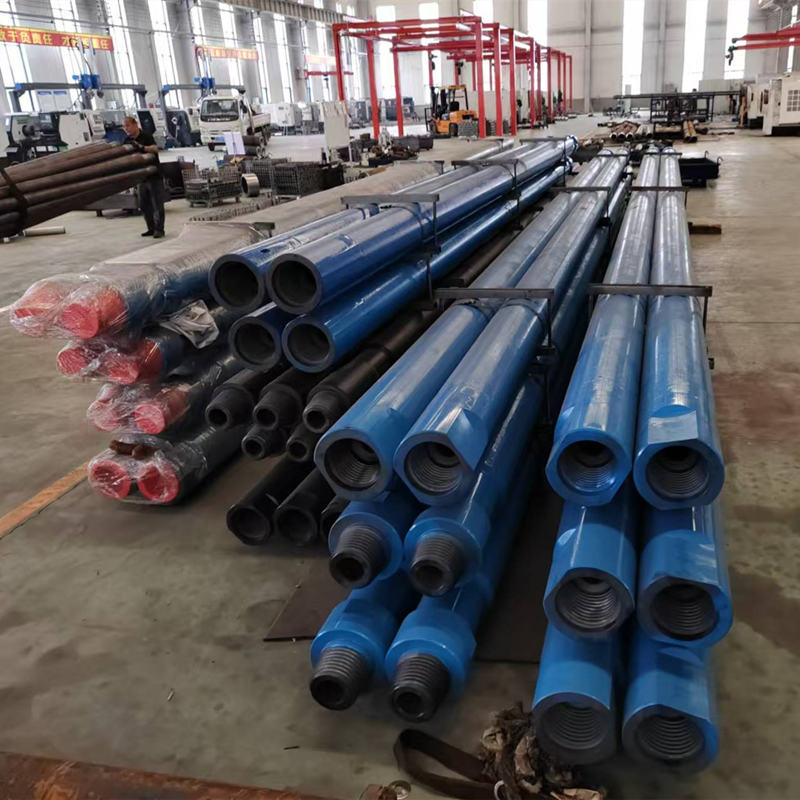

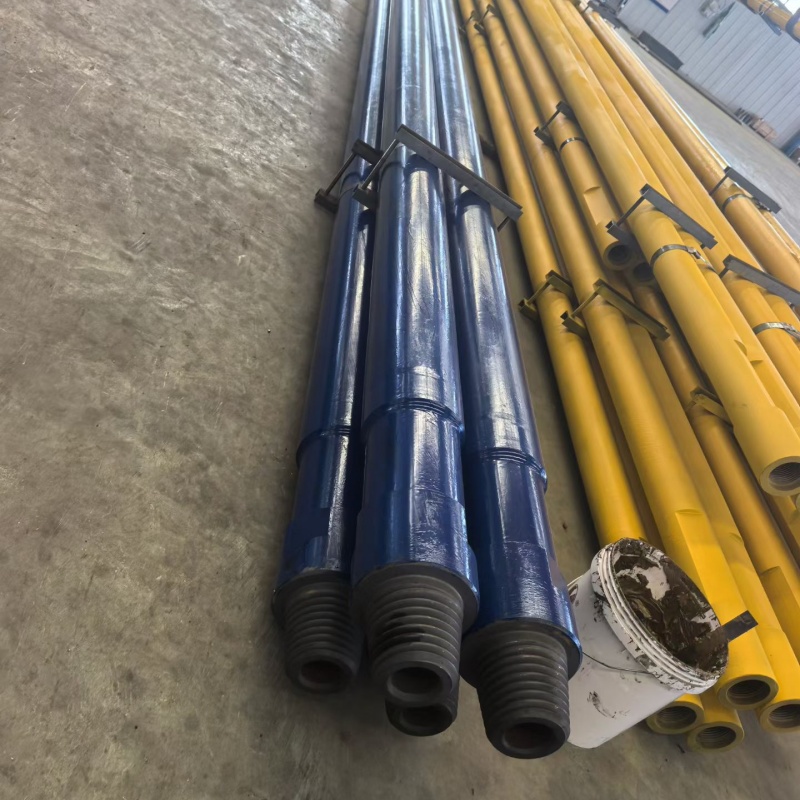

Rotary Tricone Drill Pipe
- Available for rigs from EPIROC, Sandvik, CAT, Bucyrus, Cubex, Driltech, GTD Desco, Fraste, Hausherr, Ingersoll Rand, Nordmeyer, Prakla, Soilmec/Drillmec and many other :
- Standard thread types like API Regular, API NC, API FH, API IF, BECO, DIBH, Cubex, Z-threads, RD (round threads) and many more:
Rotary Drilling does not require a hammer. Instead, rotary drilling creates a very large compressive force along the drill string to the drill bit, in combination with rotational movement.
ProDrill™ Rotary Tricone Drill Pipes are made of high-quality materials, and the heat treatment of materials uses multi-functional integrated heat treatment equipment. All threads are processed with professional CNC processing equipment,and all threads are processed and tested with professional thread gauges in line with international industry standards,so the threads are closely matched and the quality of thread matching is improved to the maximum extent.The rotary tricone drill pipe is welded by submerged arc welding or friction welding. Compared with the common welding method,the submerged arc welding has deeper penetration and better weld quality after welding.

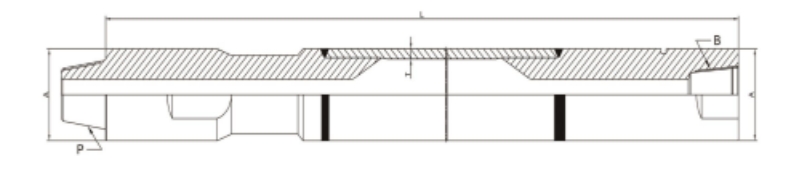

Rotary Tricone Drill Pipe Technical Parameter
| Thread | Diameter/D | Length/L | Inner Diameter/B |
| 3" ВЕСО | 114.3 | 6100-12192 | 8.8-19.05 |
| З-1/2"ВЕСО | 127 | 6100-12192 | 12.7-19.05 |
| З-1/2"ВЕСО | 140 | 7620-12192 | 12.7—25.4 |
| 4"ВЕСО | 152 | 7620-12192 | 12.7—25.4 |
| 4"ВЕСО | 159 | 7620-12192 | 12.7—25.4 |
| 4"-1/2"ВНСС | 159 | 7620-12192 | 12.7—25.4 |
| 4"ВЕСО | 165 | 7620-12192 | 12.7—25.4 |
| 4-1/2"ВЕСО | 165 | 7620-12192 | 12.7—25.4 |
| 4"ВЕСО | 178 | 7620-12192 | 12.7—25.4 |
| 4-1/2"ВЕСО | 178 | 7620-12192 | 12.7—25.4 |
| 5—1/4"ВЕСО | 194 | 7620-12192 | 19.05-35.1 |
| 6"ВЕСО | 219 | 7620-12192 | 25.4-38.1 |
| 6"ВЕСО | 235 | 7620-12192 | 25.4-38.1 |
| 8"ВЕСО | 273 | 7620-12192 | 25.4-38.1 |
| 8"ВЕСО | 323.9 | 7620-12192 | 25.4-38.1 |
| 1О"ВЕСО | 339.7 | 7620-12192 | 25.4-38.1 |

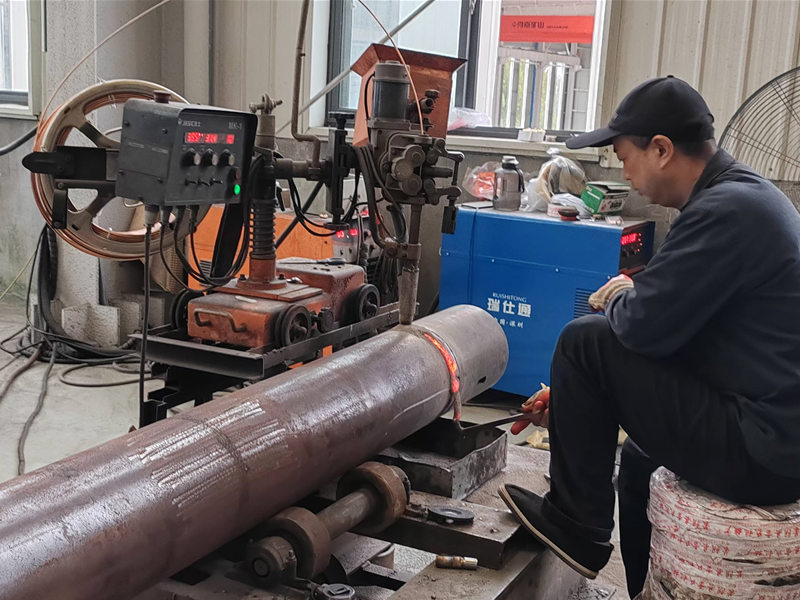

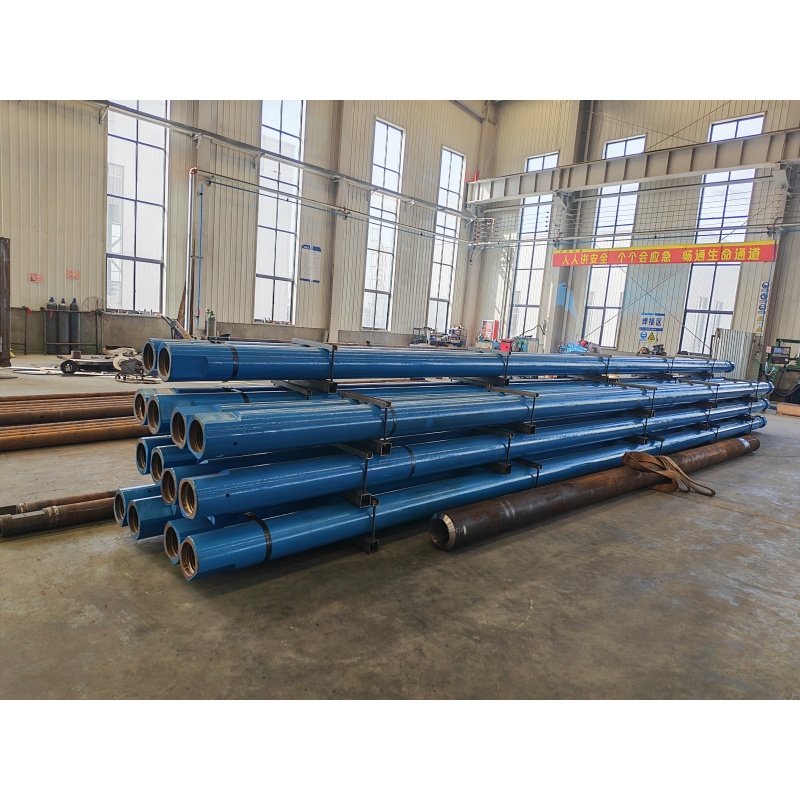

Submerged arc welding techology

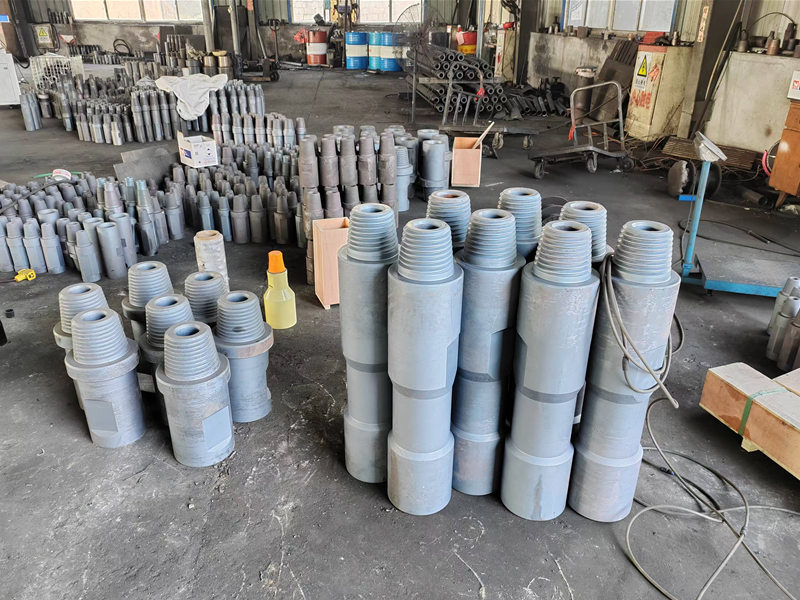

Rotary Tricone Drill Pipe accessories Technical Parameter
Rotary blasting transition joints,rotary bushings, centralizers,elevators and other high-quality materials are processed,the heat treatment of the materials iscompleted by an integrated multi-functional furnace,all threads are processed by professional numerical control, all threads are equipped with thread gauges in line with international standards,the threads are effectivelyprocessed after processing,and the wear resistance of the threads is greatly improved.Therefore,the quality of the processed joint is stable and reliable,and the service life is greatly prolonged.No matter what type and size of thread you have,we have an effective thread to connect your drill pipe.
| Male thread | Female thread | Diameter/A | Length/L |
| 3BECO | API3-1/2REG | 127 | 200-1000 |
| 3-1/2BECO | API3-1/2REG | 127 | 200-1000 |
| 3BECO | API3-1/2REG | 140 | 200-1000 |
| 3-1/2BECO | API3-1/2REG | 140 | 200-1000 |
| 4BECO | API3-1/3REG | 159 | 200-1000 |
| 4-1/2BECO | API3-1/3REG | 159 | 200-1000 |
| 4BECO | API3-1/2REG | 168 | 200-1000 |
| 4-1/2BECO | API3-1/2REG | 168 | 200-1000 |
| 4-1/3BECO | API3-1/2REG | 169 | 200-1000 |
| 5-1/5BECO | API3-1/4REG | 178 | 200-1000 |
| 5-1/5BECO | API3-1/5REG | 194 | 200-1000 |
| 6BECO | API6-5/8REG | 219 | 200-1000 |
