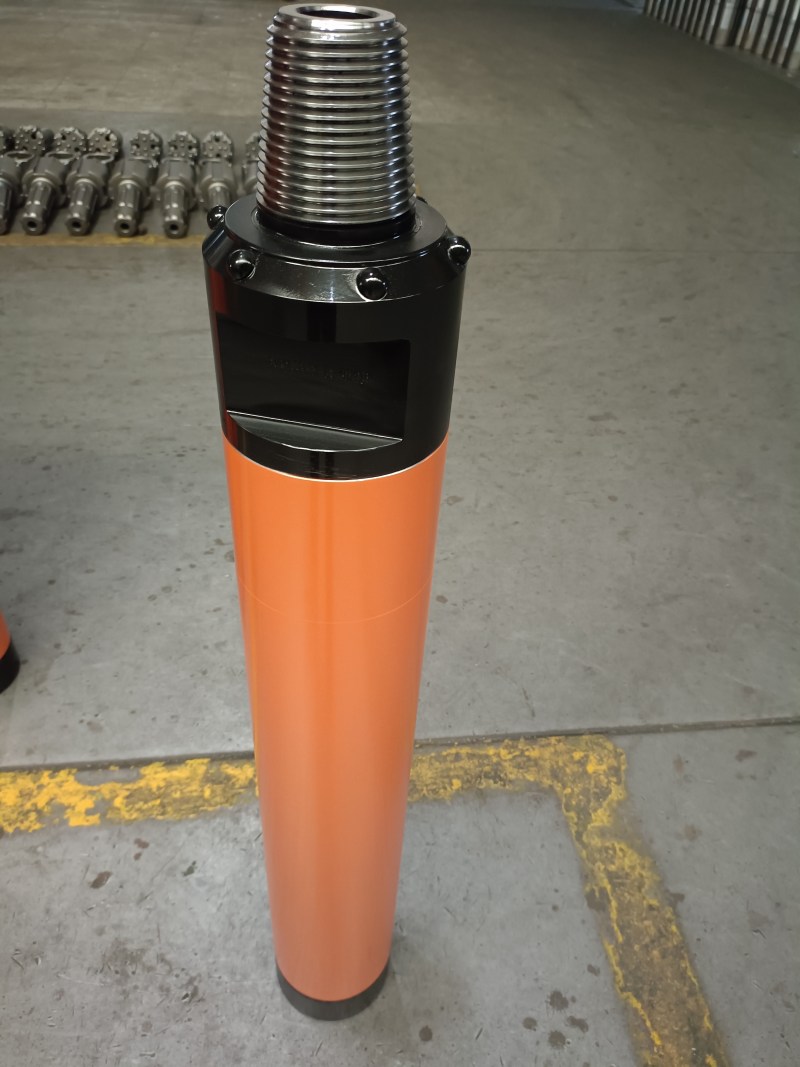

6” Super Dominator F6-QL 60 DTH hammer ( 2024 new )
- External Diameter : 148mm
- Connection Thread : API3 1/2''REG
- Hole Range : 165-190mm
- Work Pressure : 10-25Bar
- Air Consumption : 300-350(PSI)/600-900(CFM)
ProDrill model No: F6-QL60 DTH hammer is first new Breaking through the Peak of current DTH hammer in China. ProDrill focus continuous development for DTH rock tools non- stop improvment from 2008 , Many mines and quarries prefer the DTH method for production drilling. In addition, DTH is ideal for drilling the pre-split and buffer holes in surface mining operations that use rotary for their production drilling. For these mines, ProDrill now offers the perfect combo.
ProDrill DTH product line comes with a full range covering 4, 5, 6, 7 and 8-inch hammers. The ProDrill DTH hammer is built to be a reliable workhorse - combininghigh performance and efficiency with a rugged construction. lts easy-to-service design allows for minimal service time and higher productivity. A range of QL shank bits complement the hammer range for reliable and high performance drilling.

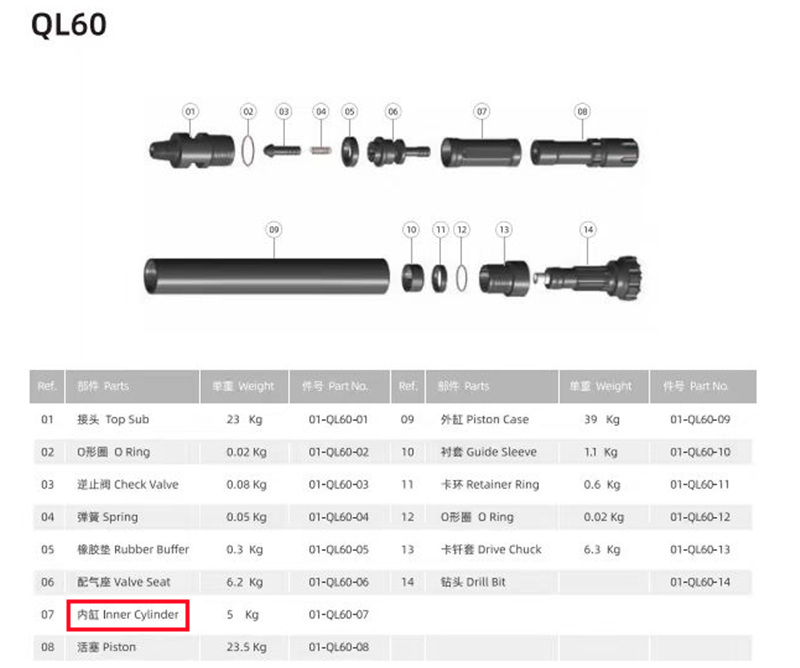

Spare parts list of new DTH hammer QL60

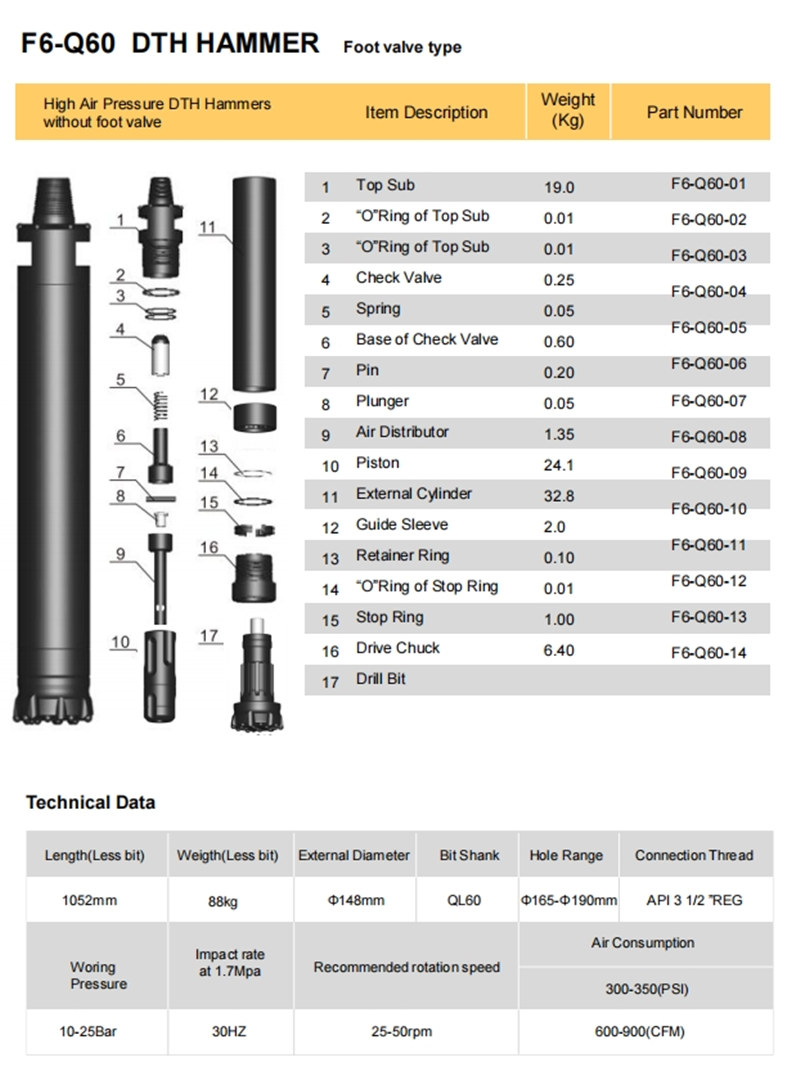

Spare parts List of Conventional DTH Hammer QL60
ProDrill new 6 inch , 8 inch QL DTH hammer advantage :
ROBUST PISTON : Designed to withstand the most difficult of drilling conditions. High level of reliability achieved by a robust solid piston and thorough field testing. Premium material and heat treatment process to achieve maximum resistance to fatigue and failure. Value Add: a reliable workhorse hammer that delivers productivity over an extended life.
OPTIMIZED AIR CYCLE : Achieved through a comprehensive design simulation analysis. Designed to deliver maximum power output. Value Add: a powerfulhammer with low air consumption; resulting in lower cost operation.
SIMPLE DESIGN : Very easy to assemble and disassemble, with very few tools needed. Value Add: easy to service and return to production with minimal service time.
PREMIUM OUALITY :Premium materials and state of the art processes assure the highest manufacturing standards and exacting tolerances. Value Add: a rugged hammer consistently delivering elevated power levels over an extended tool life.
PRODRILL DTH BITS
OPTIMIZED DESIGN
Air holes and channels designed for efficient cuttings evacuation and fast drilling. Cutting structure are load balanced for maximum power transmission and even drilling. Comprehensive bit selection for commonly encountered rock conditions. Value Add: a fast and efficient bit designed for your drilling conditions.
PREMIUM TUNGSTEN CARBIDE
Proven carbide technology and grade selection developed through years of experience in mining industny. Wear resistant carbide allows extended runs between re-grinding gives improved utilization.
WEAR RESISTANT STEEL BODY
Premium steel and proprietary heat treatment provides high surface hardness and tough core optimal material properties. Wear resistant bit face provides extended service life and button retention. Value Add: extended life and lower cost per meter.
EXACTING MANUFACTURING
Highly automated manufacturing processes deliver precision machining and reliable process control.Critical button hole drilling and button installation processes are tightly controlled to assure consistent field performance.Value Add: long,reliable performance while transmitting high power to rock.
