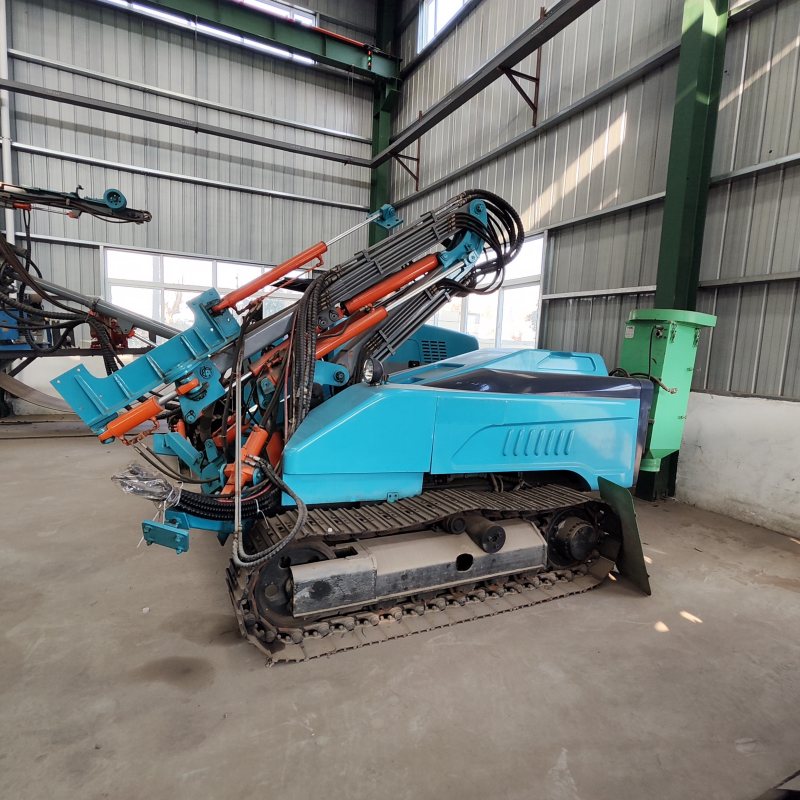

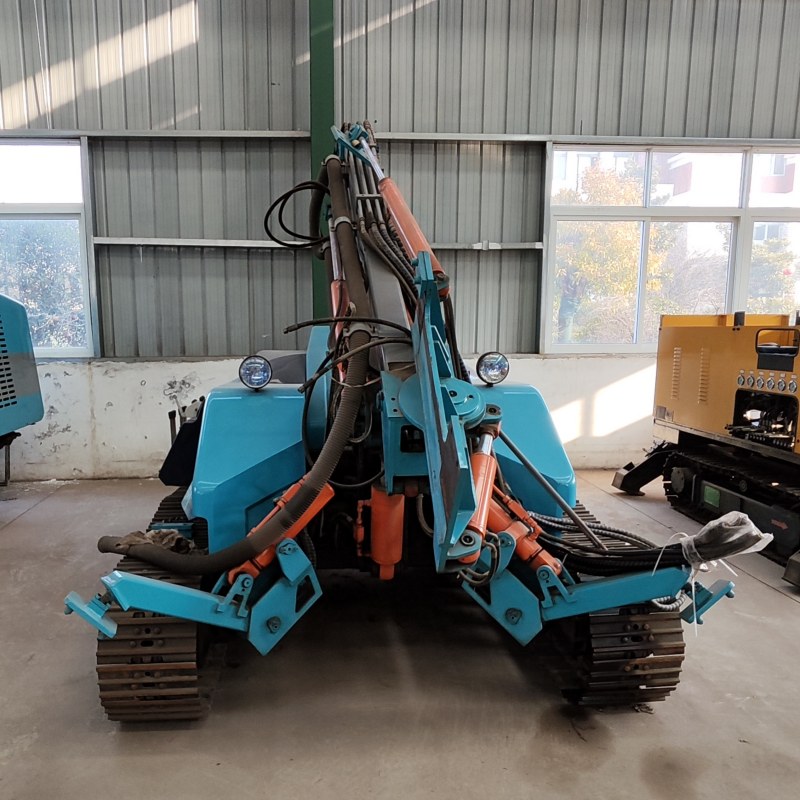

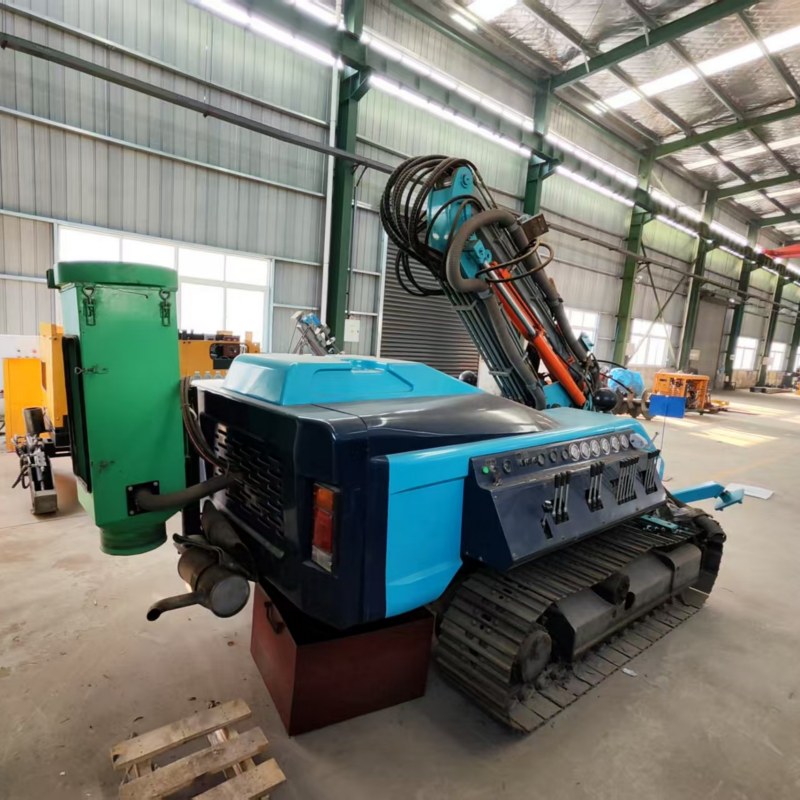

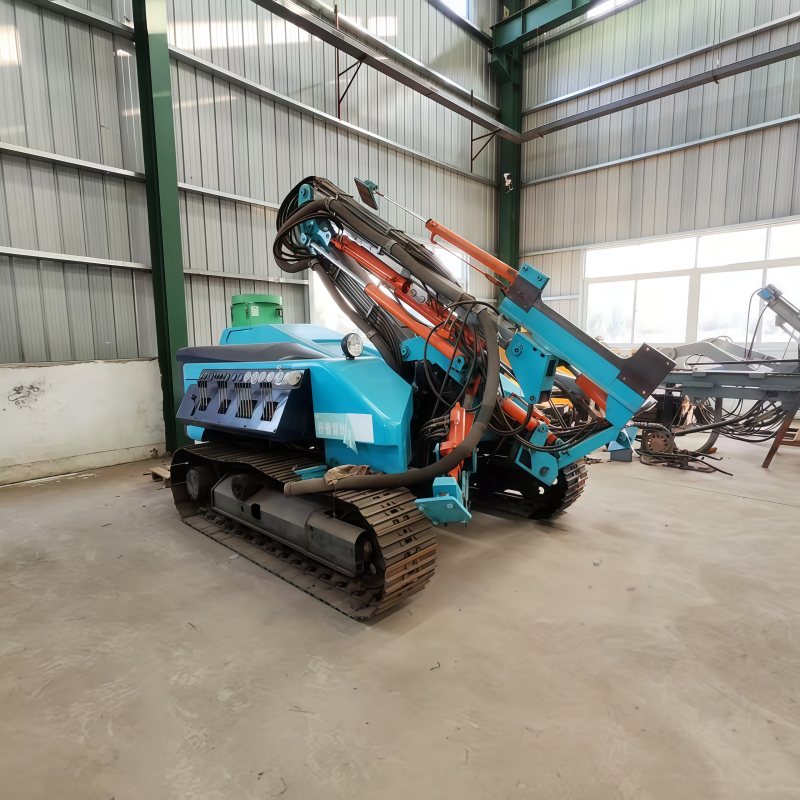

PD-45 Folding-Arm Hydraulic Rock Drilling Jumbo
- Model : PD45
- Hole diameter : 32-57mm
- Drilling speed : 0.6-1.5m/min
- Drill depth : 3.4m
- Impact energy : 100kw
- Weight : 5t
PD-45 folding-arm hydraulic rock drilling jumbo is a fully hydraulic mining rig powered by a tracked travel system and a diesel engine,featuring a folding-arm hydraulic operation method. Its working structure possesses actions such as lifting, translation, fan-shaped swing, compensation, and propulsion, and it is characterized by rapid movement, stable drilling, low energy consumption, strong climbing ability, and simple operation. It can perform multi-angle operations and hole-arranging tasks. The rig is equipped with a unique hydraulic lock device for the oil cylinder, and an optional small-volume dust collector and an air compressor for slag removal are available.
Main technical parameters
| Model | PD45 | Drifter | DF530L |
| Hole diameter | 32-57mm | Impact energy | 100kw |
| Drilling speed | 0.6-1.5m/min | Impact flow | 55L/min |
| Drill depth | 3.4m | Impact pressure | 13MPa |
| Gradeability | ＜30° | Rotation flow | 50L/min |
| Engine | Yuchai | Rotation pressure | 14MPa |
| Walking speed | 3km/h | Air pressure | ≤8bar |
| Engine power | 78kw | Air flow | 1m³/min |
| Weight | 5t | Size | 5.5×2.2×3.0m |

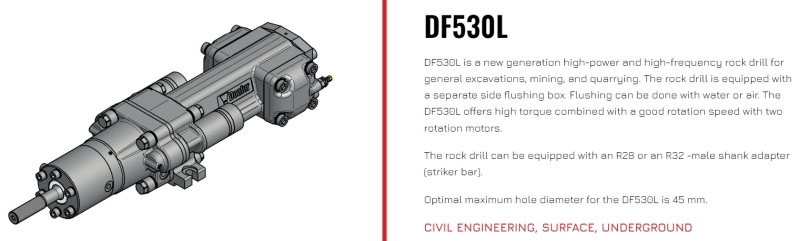

Drilling machine parameters Drifter

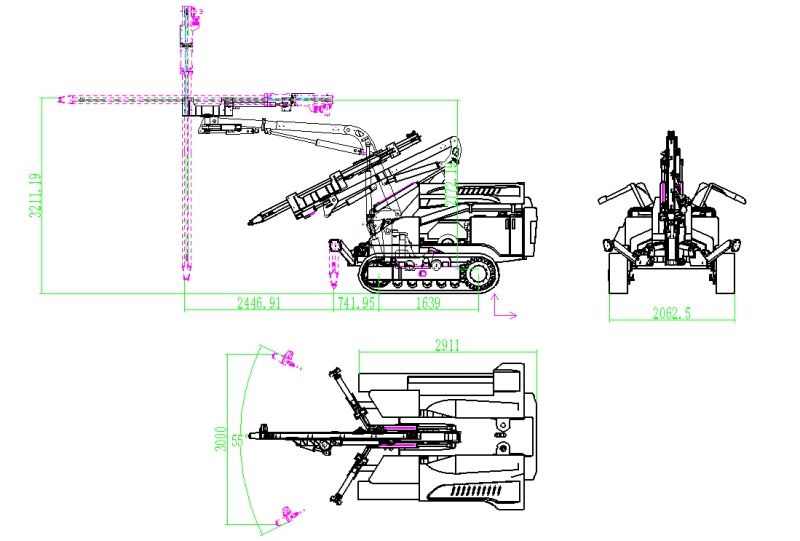

Drilling range
