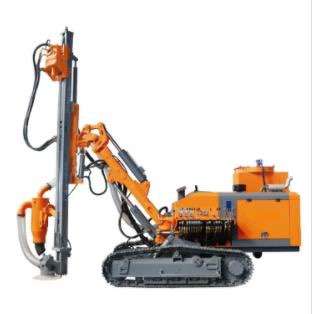

PD-430 Surface Mine DTH Drilling Rig

Product details

The integrated DTH drilling rig is an advanced drilling equipment which is the DTH drilling system combined with the screw air compresor system. With compact structure, good integrity and mobile convenience. The characteristics of drilling rig are energy-saving efficient, safe environmental production, flexible and convenient operation, stable performance, etc.



Specification:

Main technical specifications
Rig model PD-430
Power YUCHAI
Rated power 73.5KW
Hole Depth 30m
Drill Pipe Sizes Φ76mmx3000mm
Hole Dia Φ110-165mm
DTH Hammer 4"/5"
Rotation Torque(Max.) 3,500N.m
Rotation Speed 0-100rpm
Working Pressure 0.7-2.5Mpa
F.A.D 10-20m³/min
Feed Force 20KN
Pull Up Force 45kN
Tramming Speed(Max.) 3 km/h
Gradient 30°
Total Weight 5820kg/6460kg
(LXWXH)Transportation Dimensions 7370×2360×2560mm



The high pressure DTH drill powers the moving of the oil hydraulic motor, rotation, prepelling and lifting, swing angle location and so on by diesel ( electronic motor) driving the hydraulic oil pump.



The down the hole hammers consume the pressured air only when drilling. It can save energy ( fuel oil or electric quantity) as 40%-50% as the total pneumatic drill.



The surface DTH drilling rig is good for blasting hole in surface mine, water electric building, road construction and stone project.
