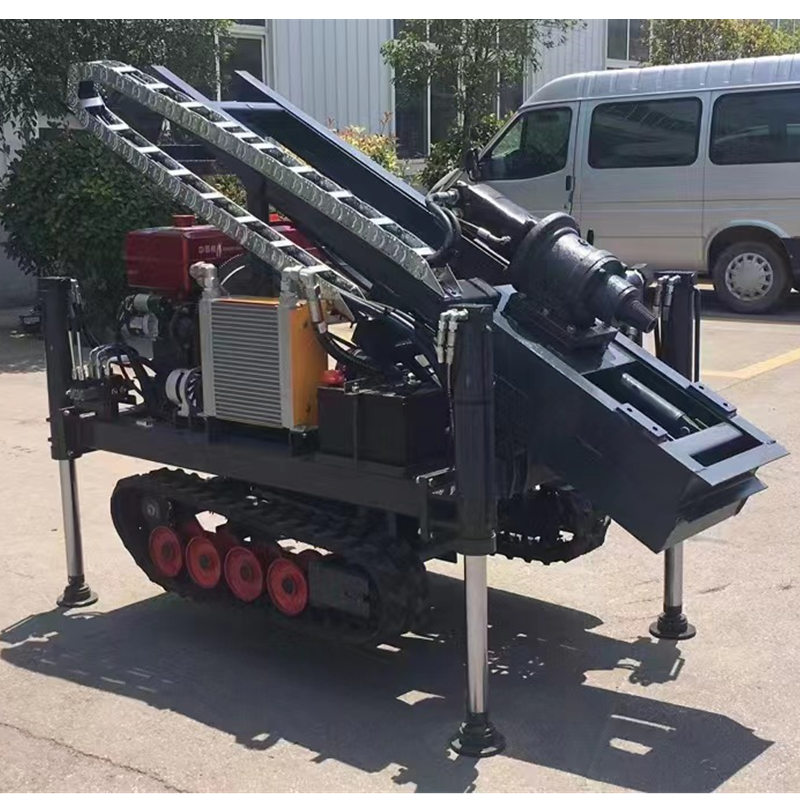

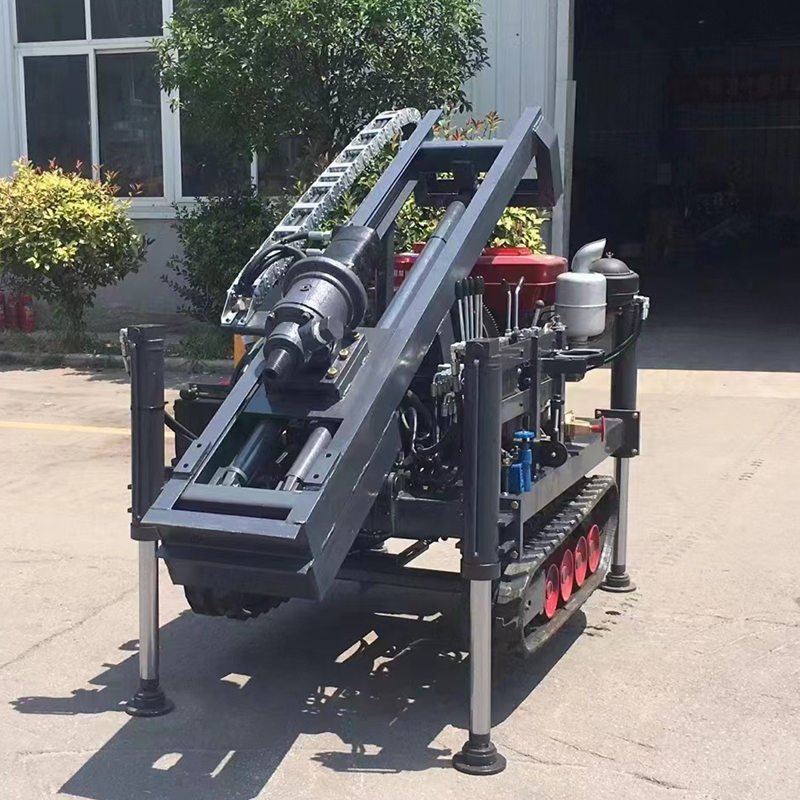

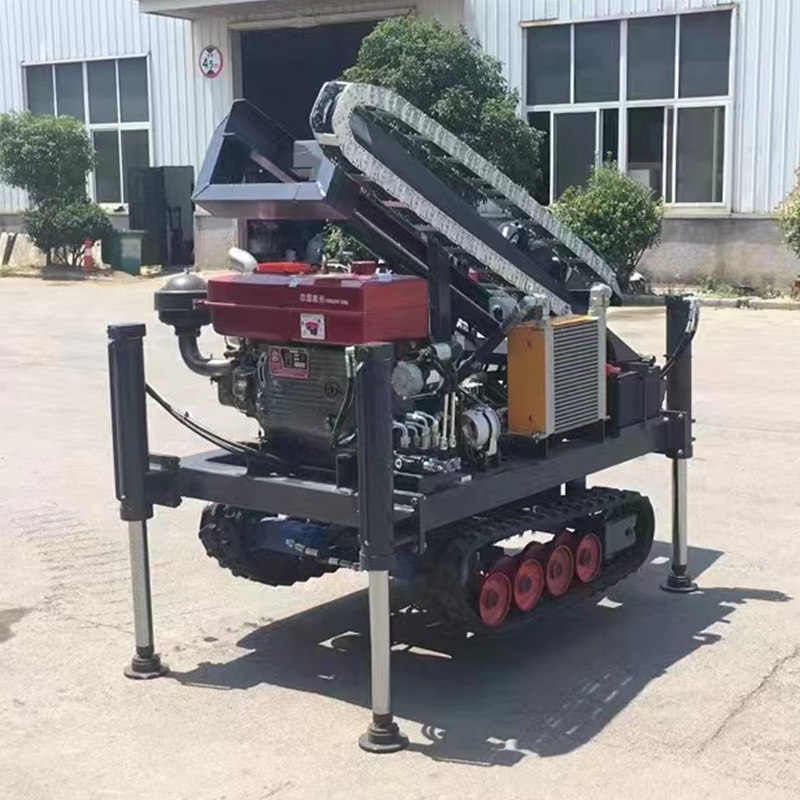

PD40 Crawler Diesel DTH Drill Rig
- Drill depth: 0-40M
- Drilling diameter : 50-250MM
- Vehicle weight : 1000KG
- Ground clearance : 150MM
- Track size : wide 1.1m * long 1.2m
- Overall dimensions : long 2.3m * wide 1.1m * high 1.5m
PD40 Crawler Diesel DTH drill rig is adopting new hydraulic technology, it is small in size, light in weight, easy to operate, and convenient in transportation and transfer in quarry, This drill rig is used for diamond wire hole drilling for natural dimensional stone quarry like granite, marble , limestone , Also used for underground blasting holes, small water well drilling, slope support drilling, highway grouting drilling, highway guardrail drilling, basement drilling, photovoltaic drilling, photovoltaic soil lifting, and photovoltaic ground nailing piles.
According to customer requirements, 2 or 4 hydraulic support legs and dust collector functions can be added， which can increase the stability of the body and increase the depth of drilling.
| Serial Number | Component | Specifications | Notes |
| 1 | Overall dimensions | long 2.3m * wide 1.1m * high 1.5m | Transport dimensions |
| 2 | Track size | wide 1.1m * long 1.2m | Walking size |
| 3 | Lifting height of drilling frame | 1.7m minimum and 2.2m maximum | |
| 4 | Applicable rock | f=6-20 | |
| 5 | Drilling diameter | 50-250MM | |
| 6 | Drill depth | 0-40M | |
| 7 | Gradeability | ≤30° | |
| 8 | Walking speed | Low speed 0-25Km/h, high speed 0-5Km/h | |
| 9 | Walking mode | Diesel driven gearbox transmission shaft travel | |
| 10 | Ground clearance | 150MM | |
| 11 | Sliding frame pitch angle | 90 ° elevation and 45 ° elevation | |
| 12 | One push length | 1000MM | |
| 13 | lift force | 0-1000N | |
| 14 | Slewing torque | 0-1000N.m | |
| 15 | Rotation speed | 0-150Rpm | |
| 16 | Working air pressure | 0.7-1.7Mpa | |
| 17 | Gas consumption | 5-18m³/min | |
| 18 | Power | 25 horsepower single cylinder diesel engine | |
| 19 | Vehicle weight | 1000KG | |
| 20 | Supporting drill pipe | 60 * 1m or 76 * 1m |
