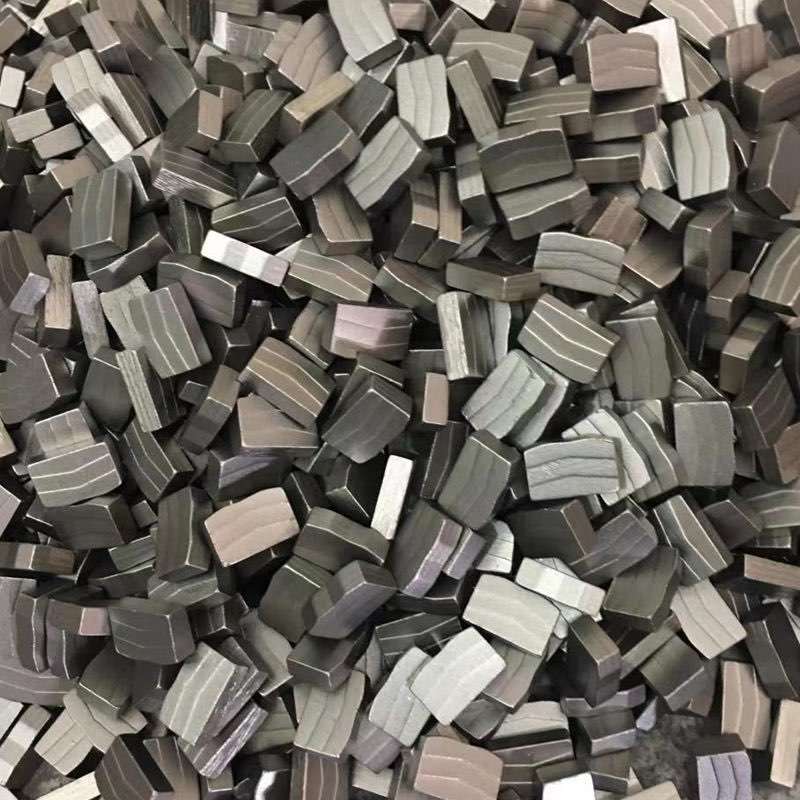

Diamond Segment for quarry and factory
- Advantage:High-performance ProDrill \'s Diamond Segemtns are with these special shapes makes fast diamond exposed and high cutting efficiency;
- Features of our segments:Fast cutting speed with good life and stable performance.
Diamond Segment
Application: For cutting all kinds of granite,marble, limestone, sandstone and etc
Quality available: High, Medium, Economic

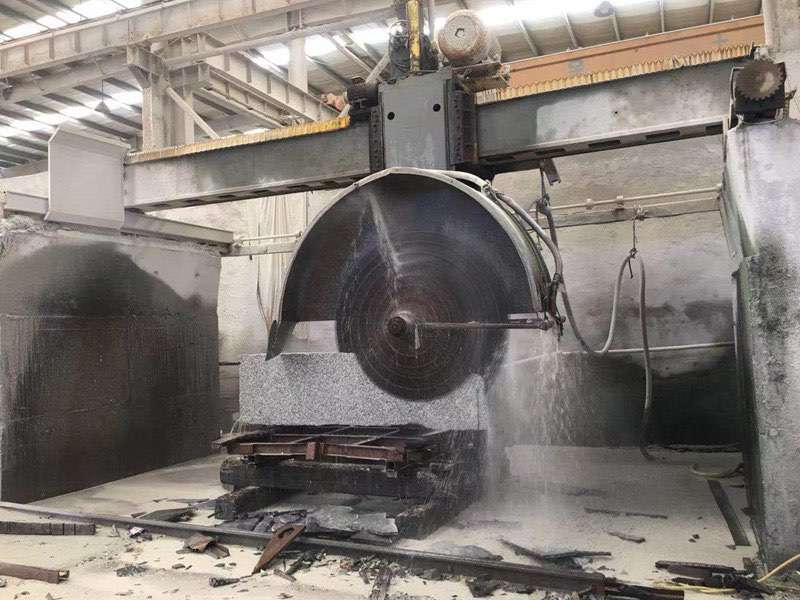

It is suitable for bridge cutting machine and single arm cutting machines. Different shapes such as "K", "M" shapes are available.
Specification ：
|
Diameter
（mm）
|
Segment Dimension(mm) | Core thickness(mm) | Segment No. | Remarks | ||
| Length | Width | Height | ||||
| 900 | 24 | 6.0/6.5/7.0 | 12/15/20 | 5.0/5.5 | 64 | Different sizes are available base on customers’ requests |
| 1000 | 6.0/6.5/7.0 | 12/15/20 | 5.0/5.5 | 70 | ||
| 1200 | 6.5/7.0 | 12/15/20 | 5.5/6.0 | 80 | ||
| 1300 | 7.5 | 12/15/20 | 6.5 | 88 | ||
| 1400 | 8.0 | 12/15/20 | 7 | 96 | ||
| 1600 | 8.2 | 12/15/20 | 7.2 | 108 | ||
| 1800 | 9.0/10.0 | 12/15/20 | 7.2/8.0 | 120 | ||
| 2000 | 10/11 | 12/15/20 | 9 | 128 | ||
| 2200 | 10/11 | 12/15/20 | 9 | 132 | ||
| 2500 | 11/12 | 15/20/30 | 9 | 140 | ||
| 2700 | 11/12 | 15/20/30 | 9 | 140 | ||
| 3000 | 12/13 | 15/20/30 | 10 | 160 | ||
| 3500 | 12/13 | 12/20/30 | 10.0/11.0 | 180 | ||

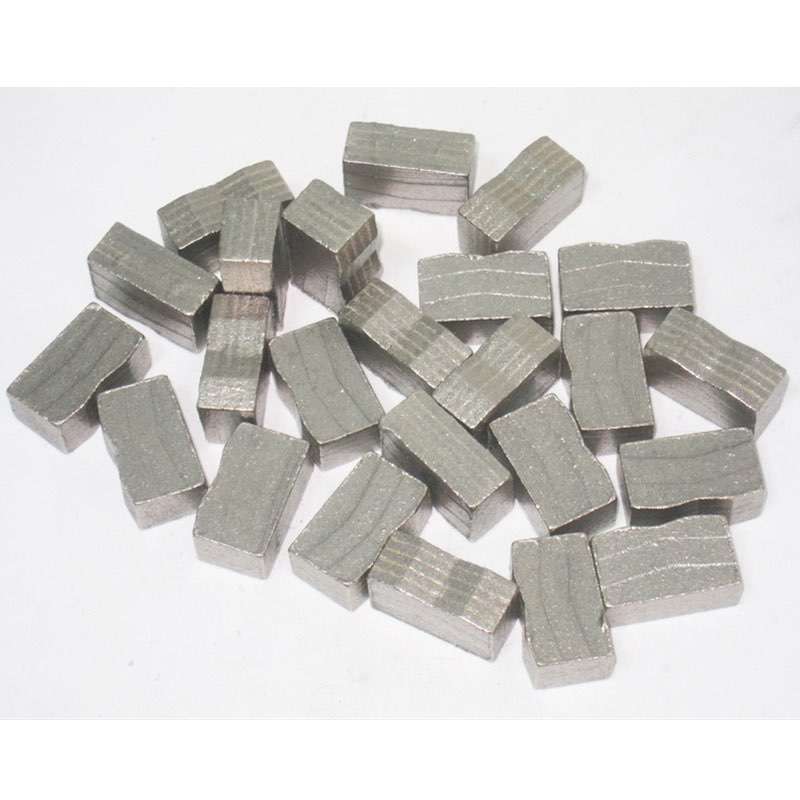

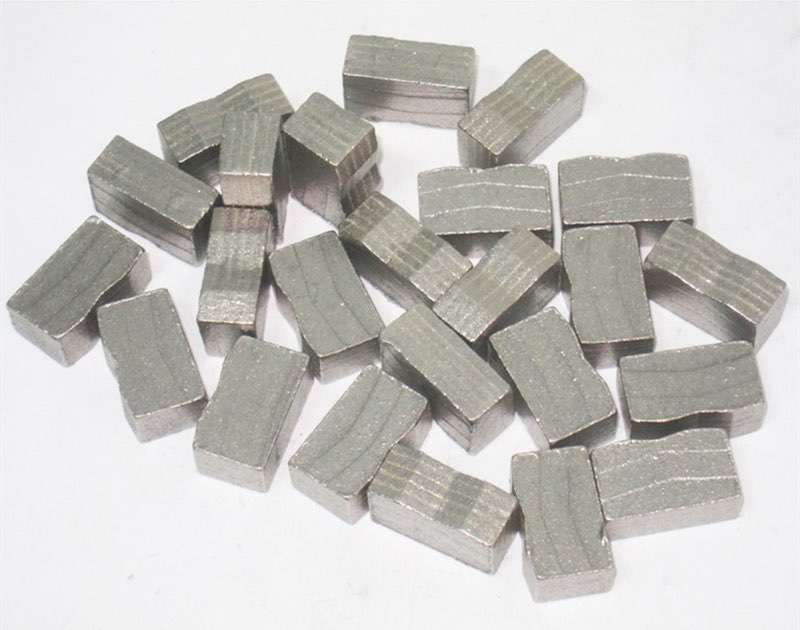

Diamond Segment for Quarry Saw Double-blades
It is suitable for granite, marble basalt, slate, sandstone quarrying.
Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface
Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry owners.
Product Specification
There are 4 main Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600. Detail as follows:
|
Diameter |
Core thickness |
Segment Qty (PCS) |
Segment Size |
|
2200 |
9.5/10.0 |
132 |
23*14/13*15 |
|
2400 |
9.5/10.0 |
136 |
23*14/13*15 |
|
3300 |
9.5/10.0 |
170 |
23*12.5/11.5*15 |
|
3600 |
9.5/10.0 |
180 |
23*12.5/11.5*15 |
There are 3 main Triple -Blade-Combinations: D2600/D3600/D4200,D2600/D3800/D4600, D2600/D3800/D4800. Detail as follows:
|
Combination |
Diameter |
Core thickness |
Segment Qty (PCS) |
Segment Size |
|
First one |
2600 |
12 |
142 |
23*16/15*15 |
|
3600 |
12 |
180 |
23*15/14*15 |
|
|
4200 |
12 |
210 |
23*14/13*15 |
|
|
Second one |
2600 |
12 |
154 |
23*16/15*15 |
|
3800 |
12 |
190 |
23*15/14*15 |
|
|
4600 |
12 |
230 |
23*14/13*15 |
|
|
Third one |
2600 |
12 |
180 |
23*16/15*15 |
|
3800 |
12 |
190 |
23*15/14*15 |
|
|
4800 |
12 |
240 |
23*14/13*15 |

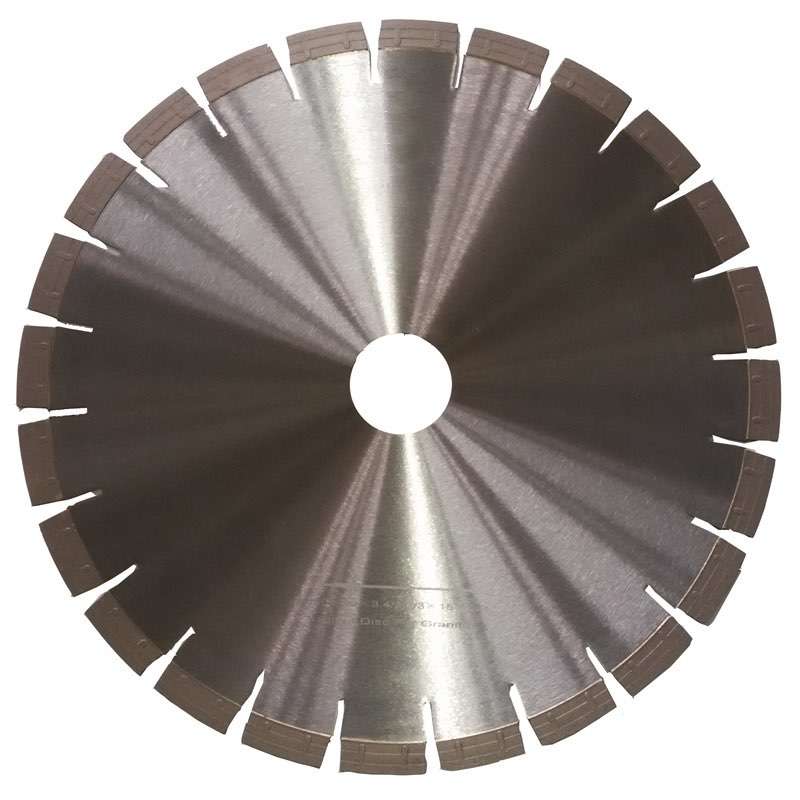

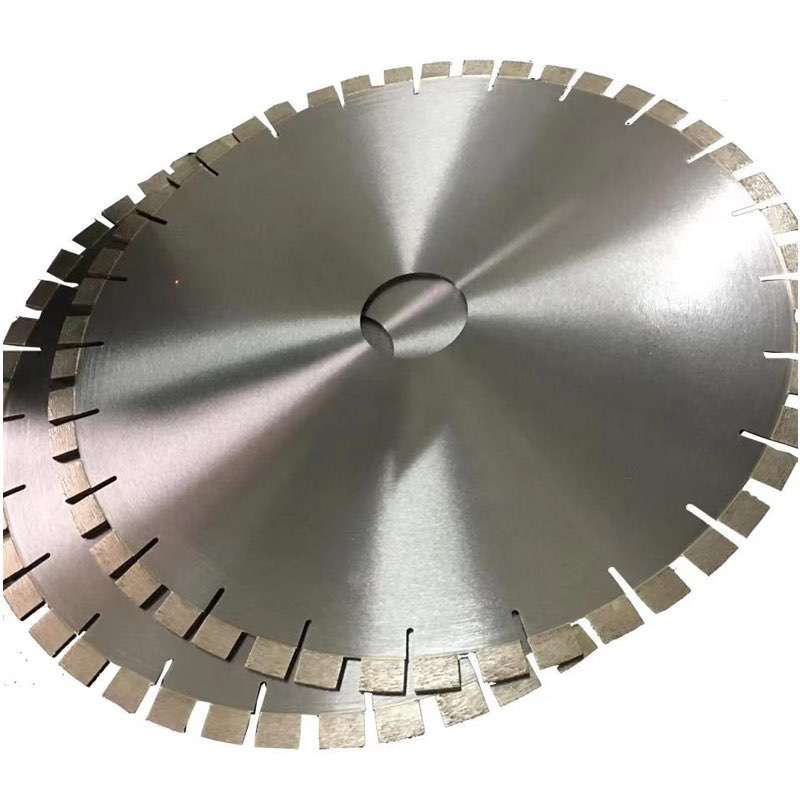

Diamond Saw Blade for Granite sawing in factory
Application: For cutting the edges and small blocks of granite, fast and smooth cutting without edge breaking.
Quality available: High, Medium, Economic
Specification ：
|
Diameter |
Segment Specification(mm) |
Inner
hole
|
Teeth |
|||
|
Inch
|
Metric(mm)
|
L
|
T
|
H
|
|
|
|
10" |
250 |
40 |
2.6 |
10/12/15 |
25.4/50/60 |
18 |
|
12" |
300 |
3.0 |
21 |
|||
|
14" |
350 |
3.2 |
24 |
|||
|
16" |
400 |
3.6 |
28 |
|||
|
18" |
450 |
4.0 |
32 |
|||
|
20" |
500 |
4.0 |
36 |
|||
|
24" |
600 |
4.2 |
42 |
|||
|
25" |
625 |
4.2 |
36 |
|||
|
32" |
800 |
6 |
46 |
|||
|
Other sizes are available according to customers\' requirements |
||||||
