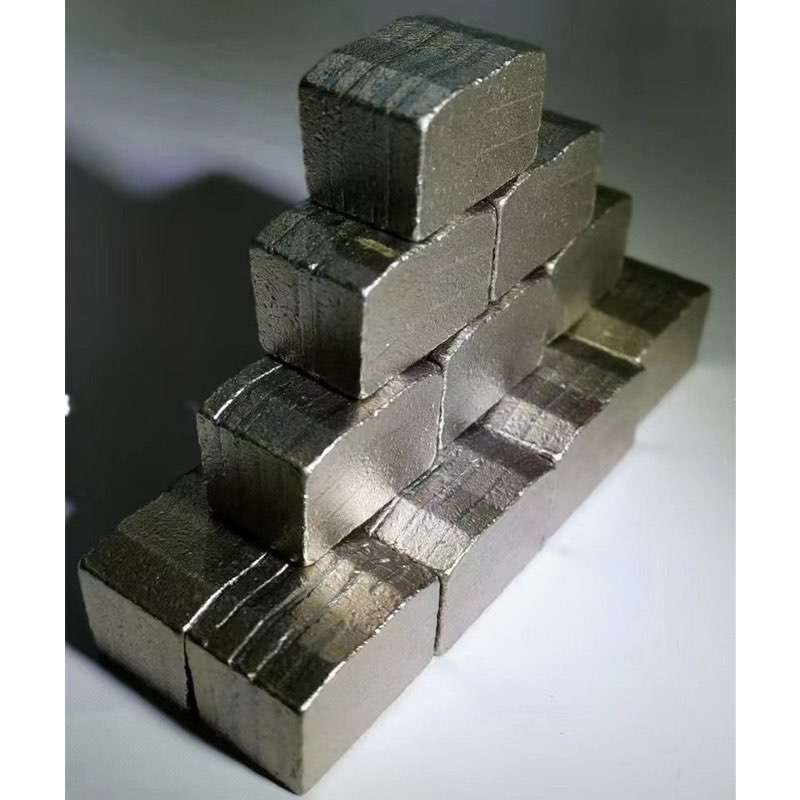

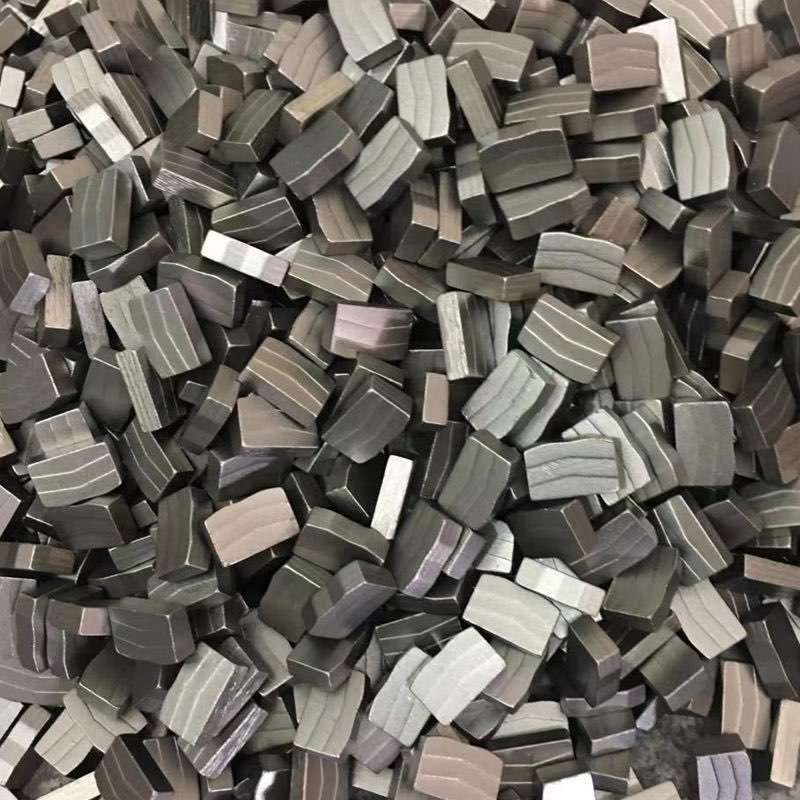

Diamond Segment for Quarry Saw Blade
- Advantage:High-performance ProDrill \'s Diamond Segemtns are with these special shapes makes fast diamond exposed and high cutting efficiency;
- Features of our segments:Fast cutting speed with good life and stable performance.

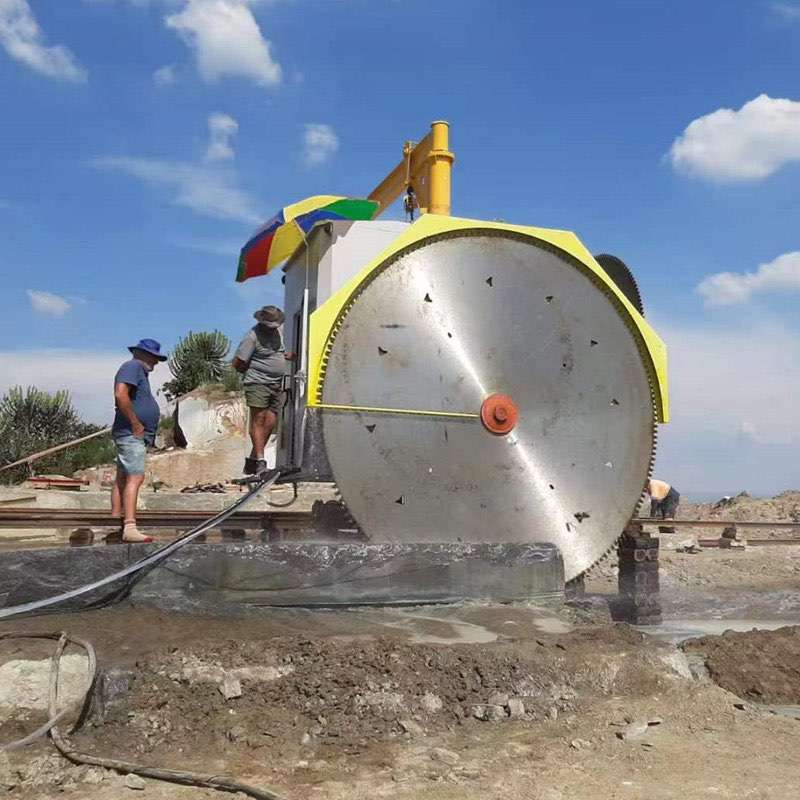

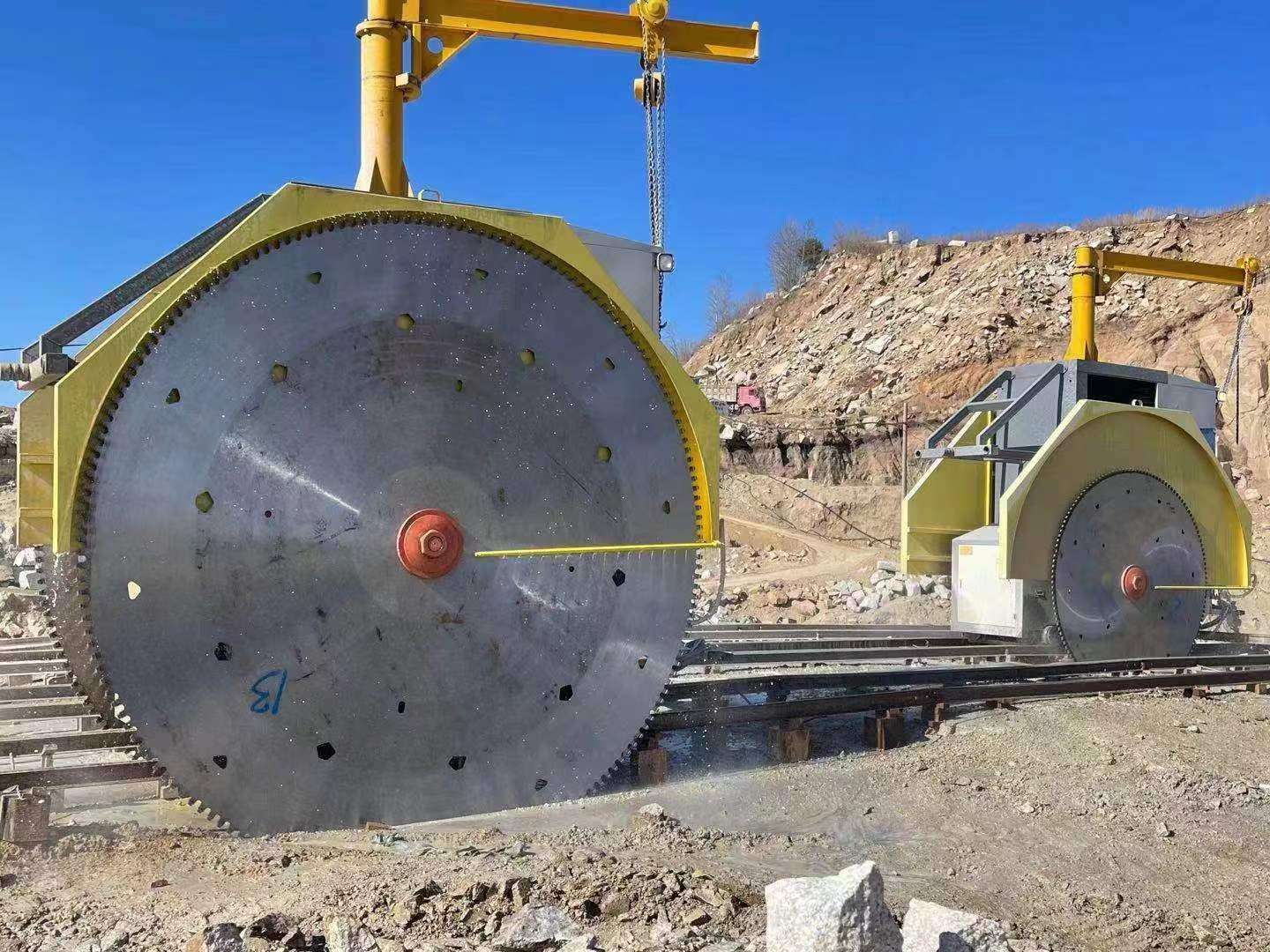

Diamond Segment for Quarry Saw Double-blades
It is suitable for granite, marble basalt, slate, sandstone quarrying.
Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface
Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry owners.
Product Specification
There are 4 main Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600. Detail as follows:
|
Diameter |
Core thickness |
Segment Qty (PCS) |
Segment Size |
|
2200 |
9.5/10.0 |
132 |
23*14/13*15 |
|
2400 |
9.5/10.0 |
136 |
23*14/13*15 |
|
3300 |
9.5/10.0 |
170 |
23*12.5/11.5*15 |
|
3600 |
9.5/10.0 |
180 |
23*12.5/11.5*15 |
There are 3 main Triple -Blade-Combinations: D2600/D3600/D4200,D2600/D3800/D4600, D2600/D3800/D4800. Detail as follows:
|
Combination |
Diameter |
Core thickness |
Segment Qty (PCS) |
Segment Size |
|
First one |
2600 |
12 |
142 |
23*16/15*15 |
|
3600 |
12 |
180 |
23*15/14*15 |
|
|
4200 |
12 |
210 |
23*14/13*15 |
|
|
Second one |
2600 |
12 |
154 |
23*16/15*15 |
|
3800 |
12 |
190 |
23*15/14*15 |
|
|
4600 |
12 |
230 |
23*14/13*15 |
|
|
Third one |
2600 |
12 |
180 |
23*16/15*15 |
|
3800 |
12 |
190 |
23*15/14*15 |
|
|
4800 |
12 |
240 |
23*14/13*15 |
