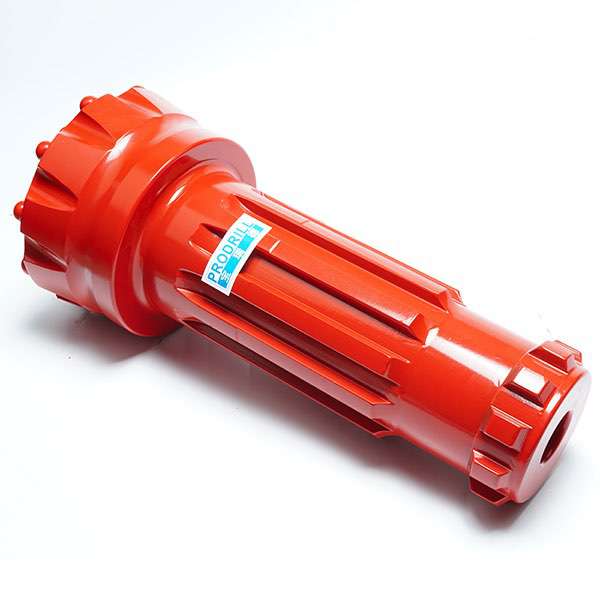

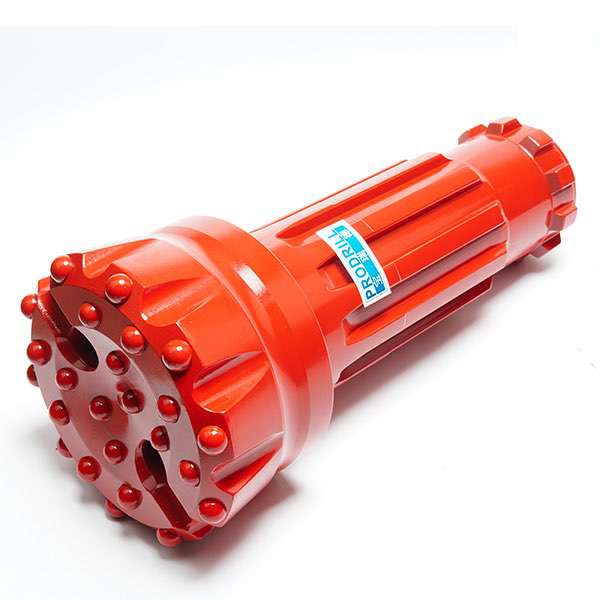

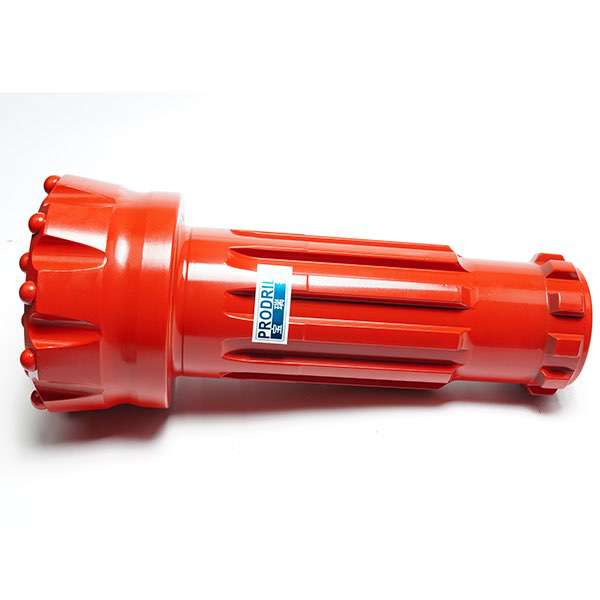

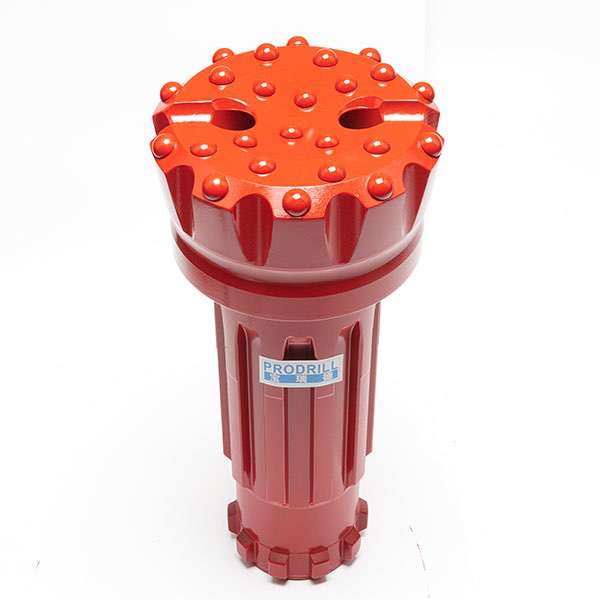

DTH Bit-DHD380-203
- Code No.: DHD380-203
- Diameter: 203mm
- Air Holes No.: 2
- Gauge Buttons: 10
- Front Buttons: 14
- Carbide Design: Dome
- Face Design: Concave
- Shank Type: DHD

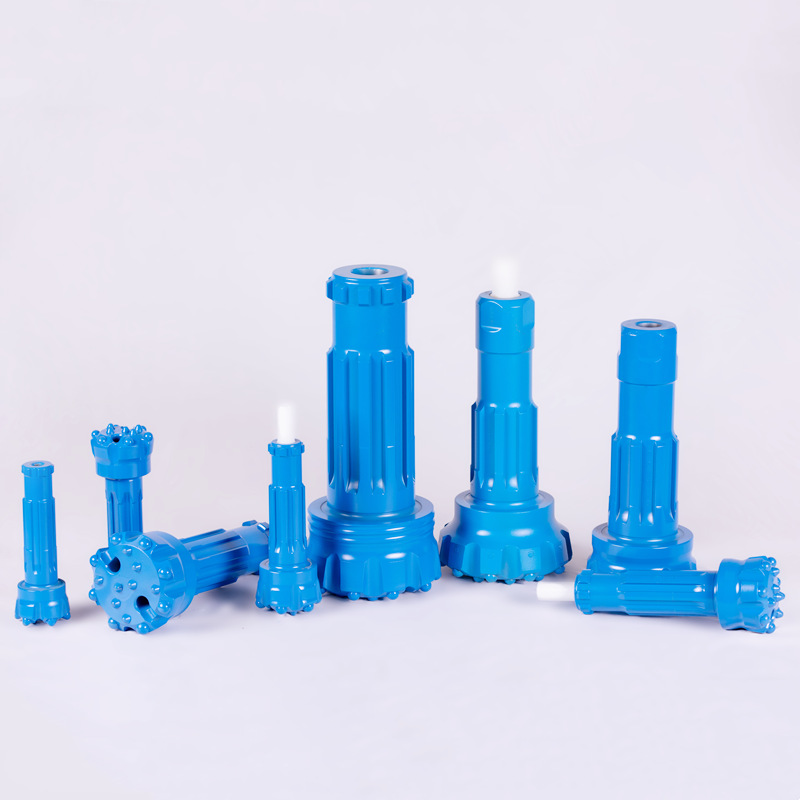

Rock drilling tools ProDrill has a comprehensive range of DTH drill bits with DHD shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for stone quarrying, water well industries, mining and construction.
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm)

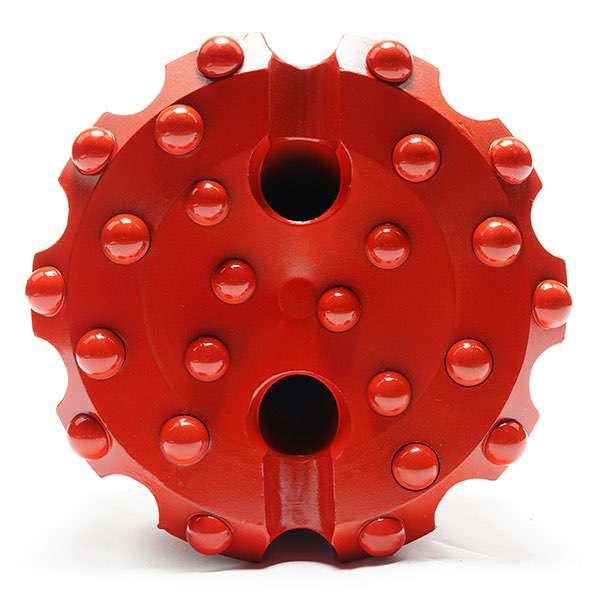

Concave Face
The all around application rock drill bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
Sedibeng Iron Ore. South Africa
DHD Shank Type DHD380-203 DTH Hammer Bit with concave face, dome buttons for blasting bore holes, water well drilling.
For more details please watch PDF online: DTH hammer bits with DHD shanks Catalogue
