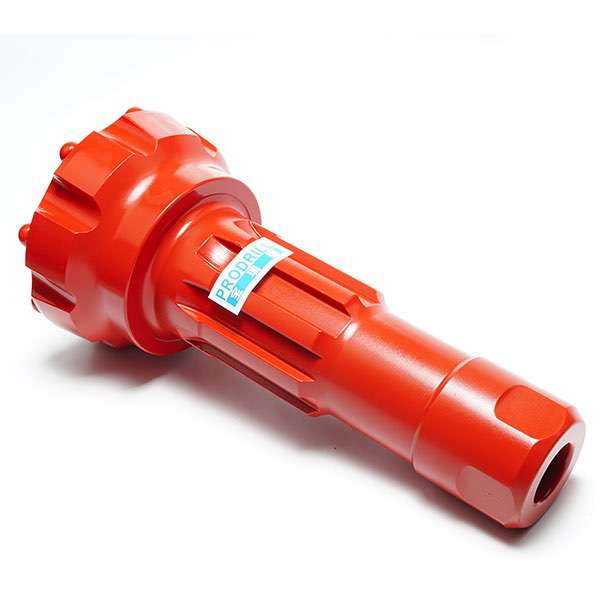

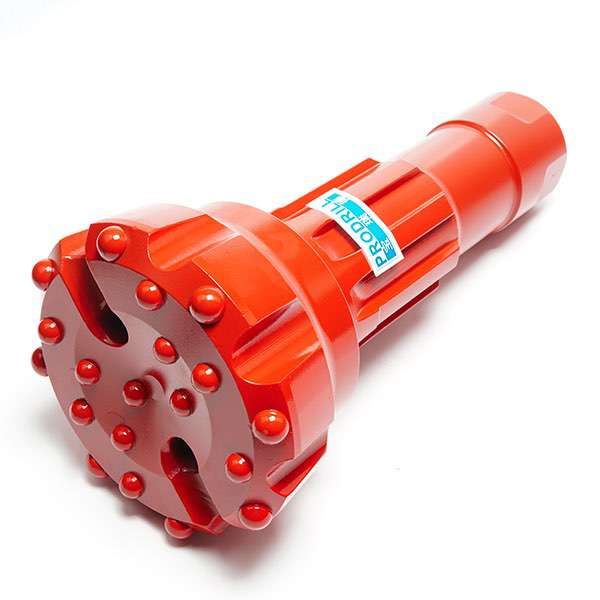

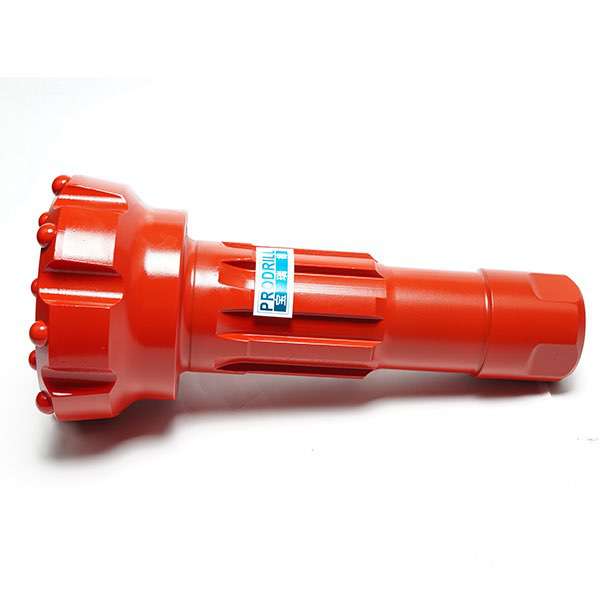

DTH Bit-DHD360-178
- Code No.: DHD360-178
- Diameter: 178mm
- Air Holes No.: 2
- Gauge Buttons: 8
- Face Buttons: 11
- Face Design: Concave
- Carbide Design: Dome
- Shank Type: DHD
- Application:Water Well Drilling:
Rock drilling tools ProDrill manufactures a comprehensive range of DTH drill bits with DHD shanks type for a various range of hole sizes, which are designed to match all conceivable applications for water well industries, quarry, mining and construction.
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH rock drill bits hole diameter: 3", 4", 5", 6", 8"(85mm-305mm)

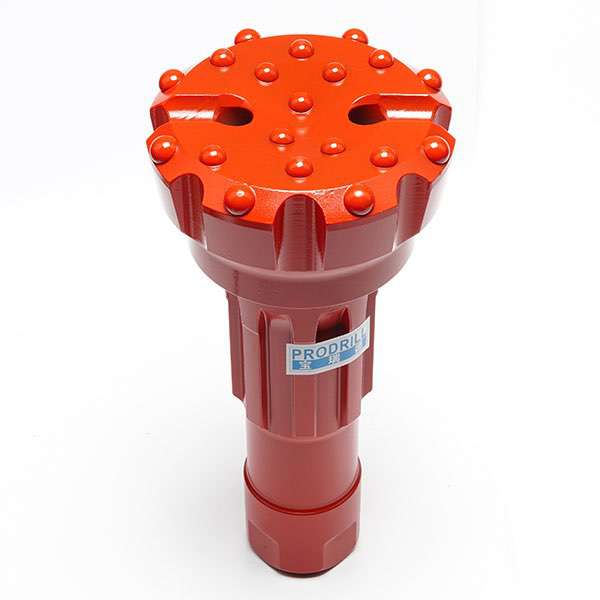

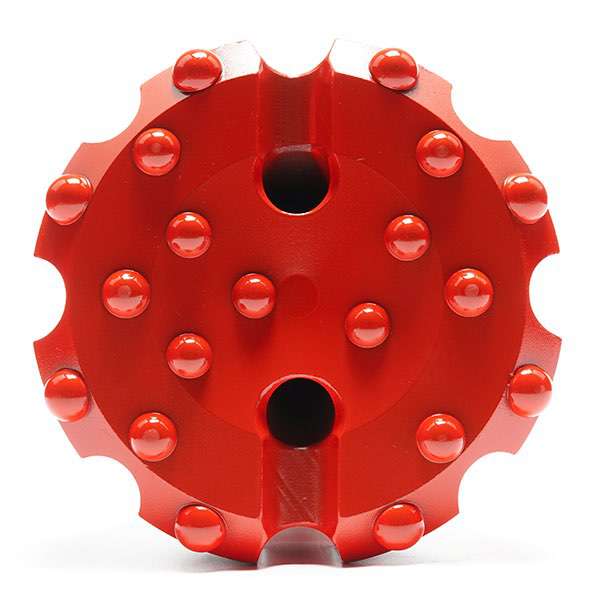

Concave Face
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
Semi-Ballistic/Parabolic Buttons
Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.
Sedibeng Iron Ore. South Africa
DHD shank DTH hammer bit with concave face, dome carbide buttons for blasting bore holes, water well drilling.
For more details please watch PDF online: DTH hammer bits with DHD shanks Catalogue
