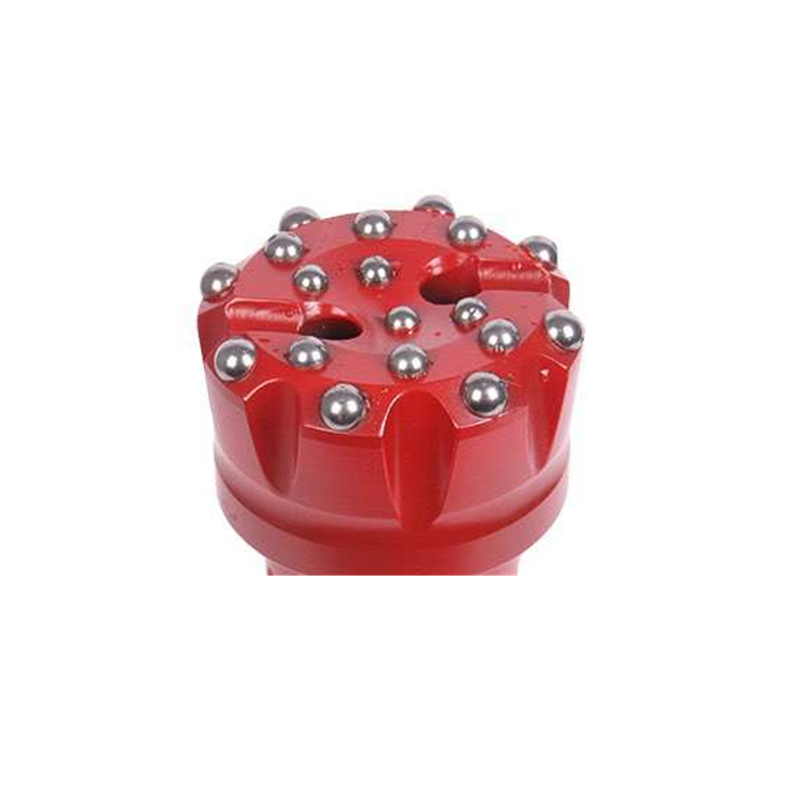

DTH Bit QL60-165 for water well drilling
- Code No. : QL60-165
- Diameter : 165mm
- Air Holes No. : 2
- Face Design : Concave face
- Gauge Buttons : 8*18mm
- Flat Face : 6*16mm
- Concave face : 4*16mm
Rock drilling tools factory ProDrill produces DTH Drill Bits with QL shank type are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation.
Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH hammer bits hole diameter: 3", 4", 5", 6", 8"(85mm-350mm).
Flat Face
An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

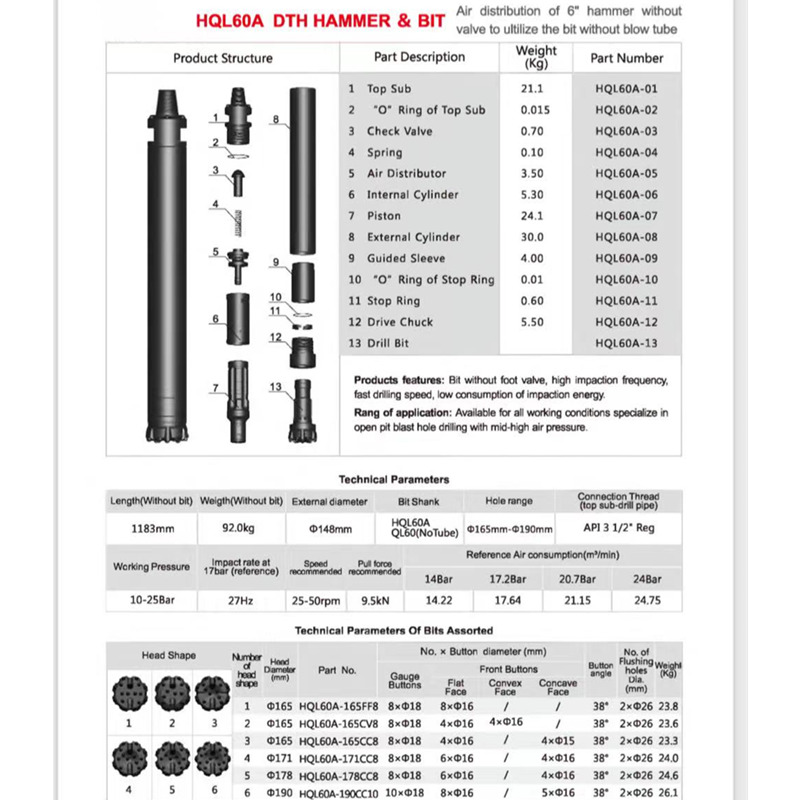

QL60 DTH Hammer Technical data sheet
